4x4 HDMI 2.0 Matrix with output 4K to 1080p downscaling and display control 18Gbps
VLMX-0404E
4x4 HDMI 2.0 matrix switcher routing four sources to four displays independently, up to 4K@60Hz 4:4:4 (18Gbps)
Per-output 4K-to-1080p downscaling, with HDR10, HDR10+, Dolby Vision, and HLG pass-through
De-embedded analog L/R and coaxial audio on all four outputs, with ARC returning display audio to the coax output
Built-in Web GUI plus control via front panel, RS-232, IR, and TCP/IP
Product Description
VLMX-0404E is a high-performance HDMI Matrix Switcher can switch any of four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output supports up to 4K60 4:4:4 resolution and HDCP 2.2. The outputs can be individually scaled for 1080p. De-embedded audio, as analog L/R and coaxial, is available for both outputs.
The ARC function can return display device audio to the coaxial port output only. Advanced EDID management is supported, with 18Gbps bandwidth and additional features aligned with the latest HDMI standards. This switcher can be controlled from the front panel, RS232, IR remote, or TCP/IP.
Key Features
HDMI 2.0, HDCP 2.2/1.4, and DVI 1.0 compliant
Four 18G HDMI 2.0 inputs, up to 4K@60 4:4:4
Four 18G HDMI 2.0 outputs, up to 4K@60 4:4:4
All four outputs individually scalable 4K-to-1080p
De-embedded audio to analog L/R and coaxial outputs
ARC audio returns to the coaxial output only
Built-in Web GUI for TCP/IP control
Advanced EDID management

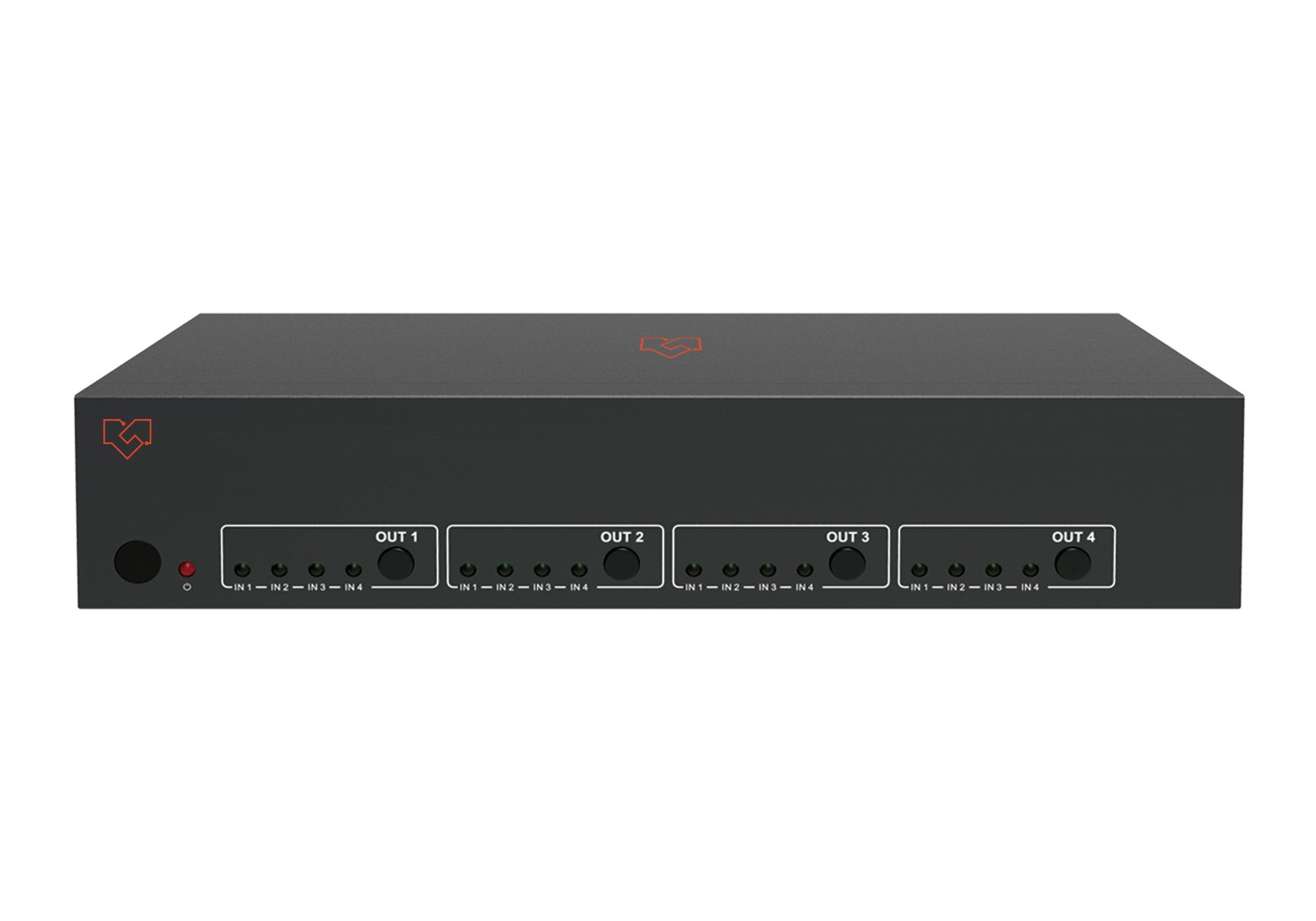

Four control methods: front panel, RS-232, IR, and TCP/IP
Compact design for easy, flexible installation
Downloads
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.0 | ||
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions, including 1920 x 1200 |
||
| Output Scaling | 4K to 1080p | ||
| 3D Support | Yes | ||
| Color Space | RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr 4:4:4)] |
||
| HDMI Audio Formats (Pass-through) | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
||
| Coaxial Audio Formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 | ||
| L/R Audio Formats | PCM2.0CH | ||
| HDR Support | HDR10, HDR10+. Dolby Vision, HLG | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
||
| Connection | |||

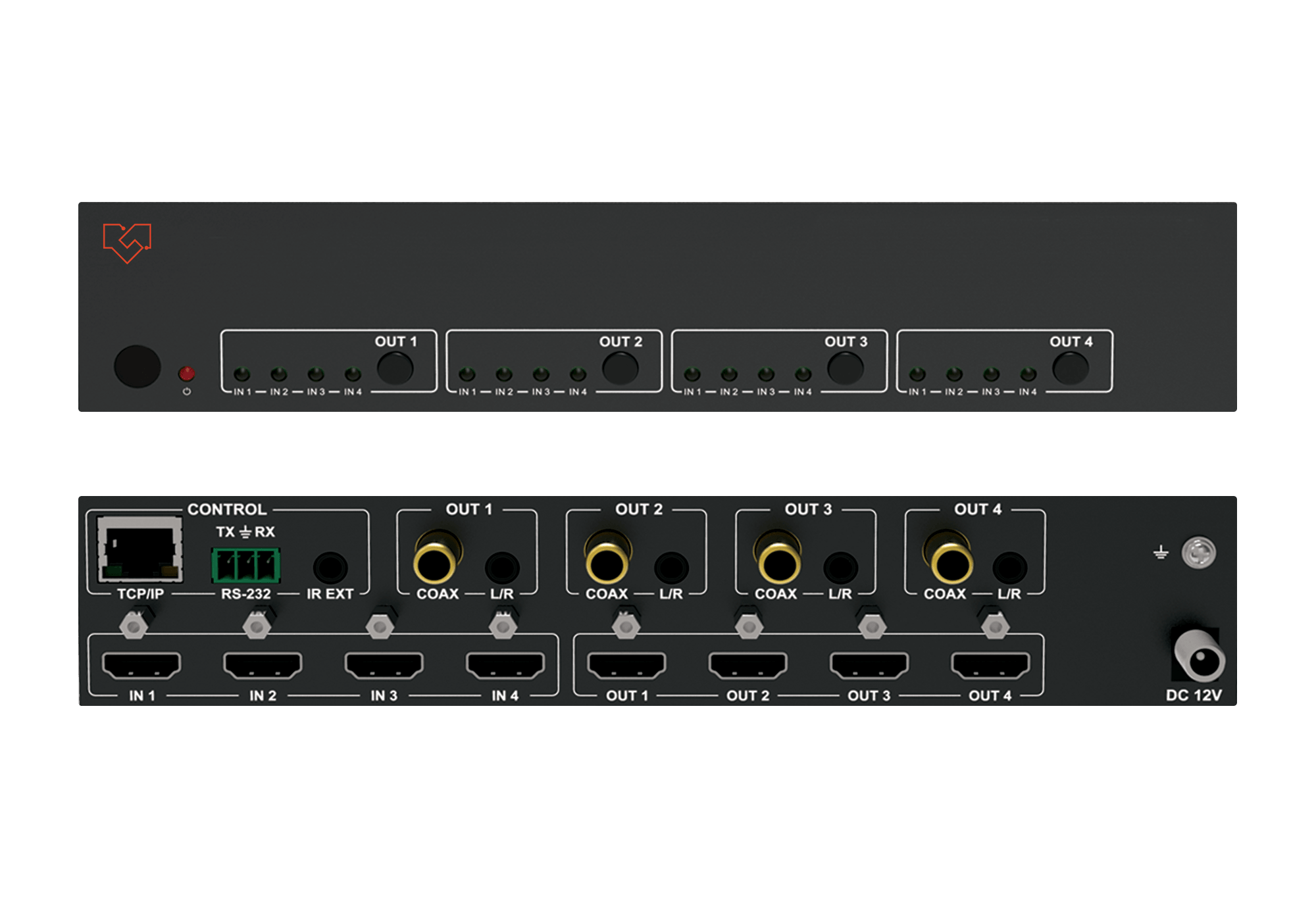

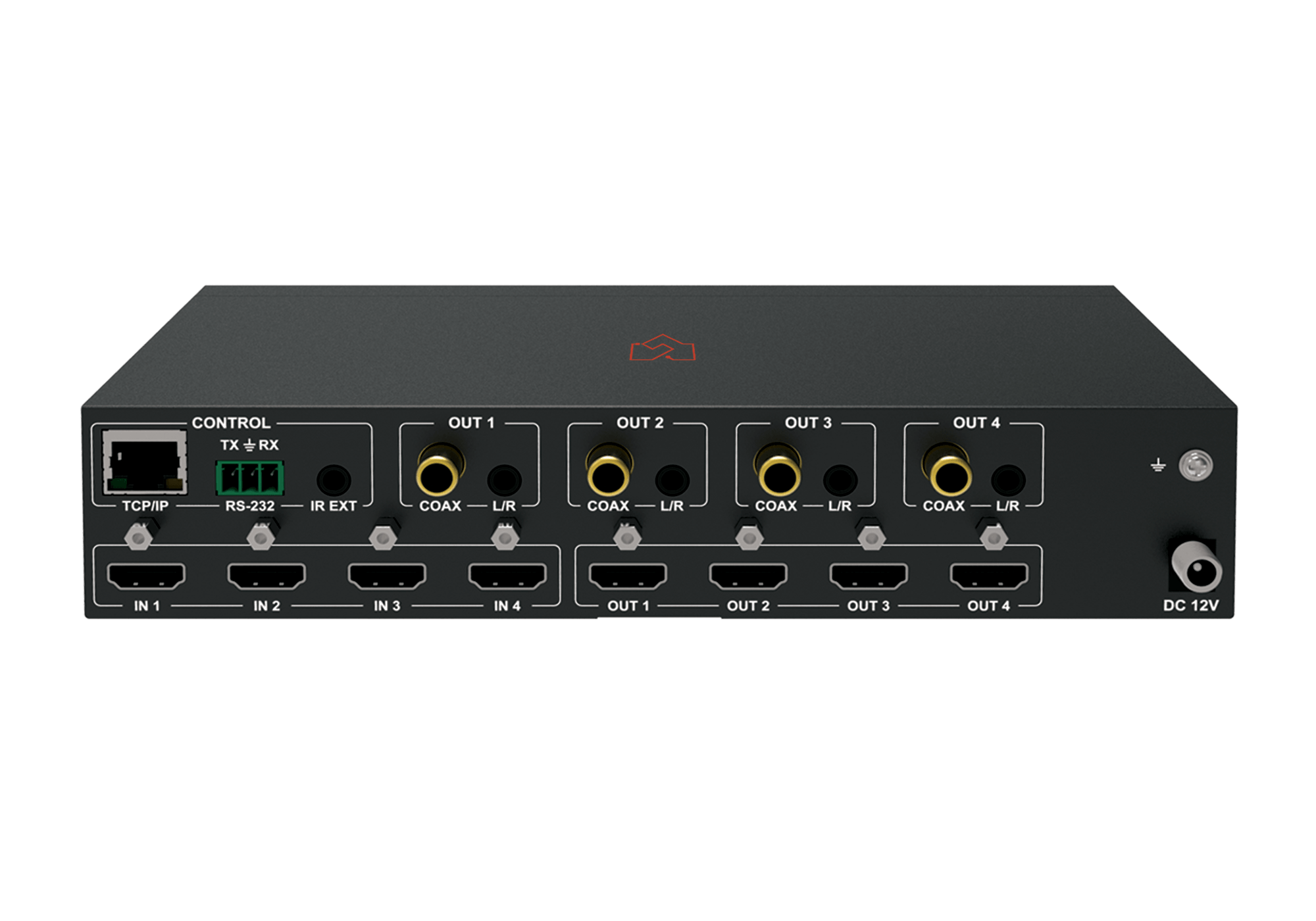

| Input Ports | 4×HDMI Type A [19-pin female] | ||
| Output Ports | 4×HDMI Type A [19-pin female] 4×L/R audio out [3.5mm Stereo Mini-jack] 4×COAX audio out [RCA] |
||
| Control ports | 1x TCP/IP [RJ45] 1x RS-232[3-pin phoenix connector] 1x IR EXT [3.5mm Stereo Mini-jack] |
||
| Mechanical | |||
| Housing | Metal enclosure | ||
| Color | Black | ||
| Dimensions | 220mm (W)×105mm (D)×44mm (H) | ||
| Weight | 792g | ||
| Power Supply | Input: AC100~240V 50/60Hz Output: DC12V/2.5A (Locking connector) |
||
| Power Consumption | 10W (max), 1.56W (Standby) | ||
| Operating Temperature | 32 - 104°F / 0 - 40°C | ||
| Storage Temperature | -4 - 140°F / -20 - 60°C | ||
| Relative Humidity | 20 - 90% RH (No condensation) | ||
| Resolution / Distance | |||
| 4K2K | 394ft / 120M | ||
| 1080P | 492ft / 150M | ||
| Resolution / Cable Length |
4K60 - Feet / Meters |
4K30 - Feet / Meters |
1080P60 - Feet / Meters |
| HDMI IN / OUT | 10ft / 3M | 30ft / 10M | 42ft / 15M |
| The use of the “Premium High-Speed HDMI” is highly recommended. |
|||
