VLMX-0808E

8x8 HDMI 2.0 matrix switcher routing eight sources to eight displays independently, up to 4K@60Hz 4:4:4 (18Gbps)
Per-output 4K-to-1080p downscaling, with HDR10, HDR10+, Dolby Vision, and HLG pass-through
Digital (coax) and analog audio de-embedding on every output, plus ARC to route display audio back to the coax outputs
Advanced EDID and CEC management, with control via front panel, IR, RS-232, TCP/IP, and Web GUI

Product Description

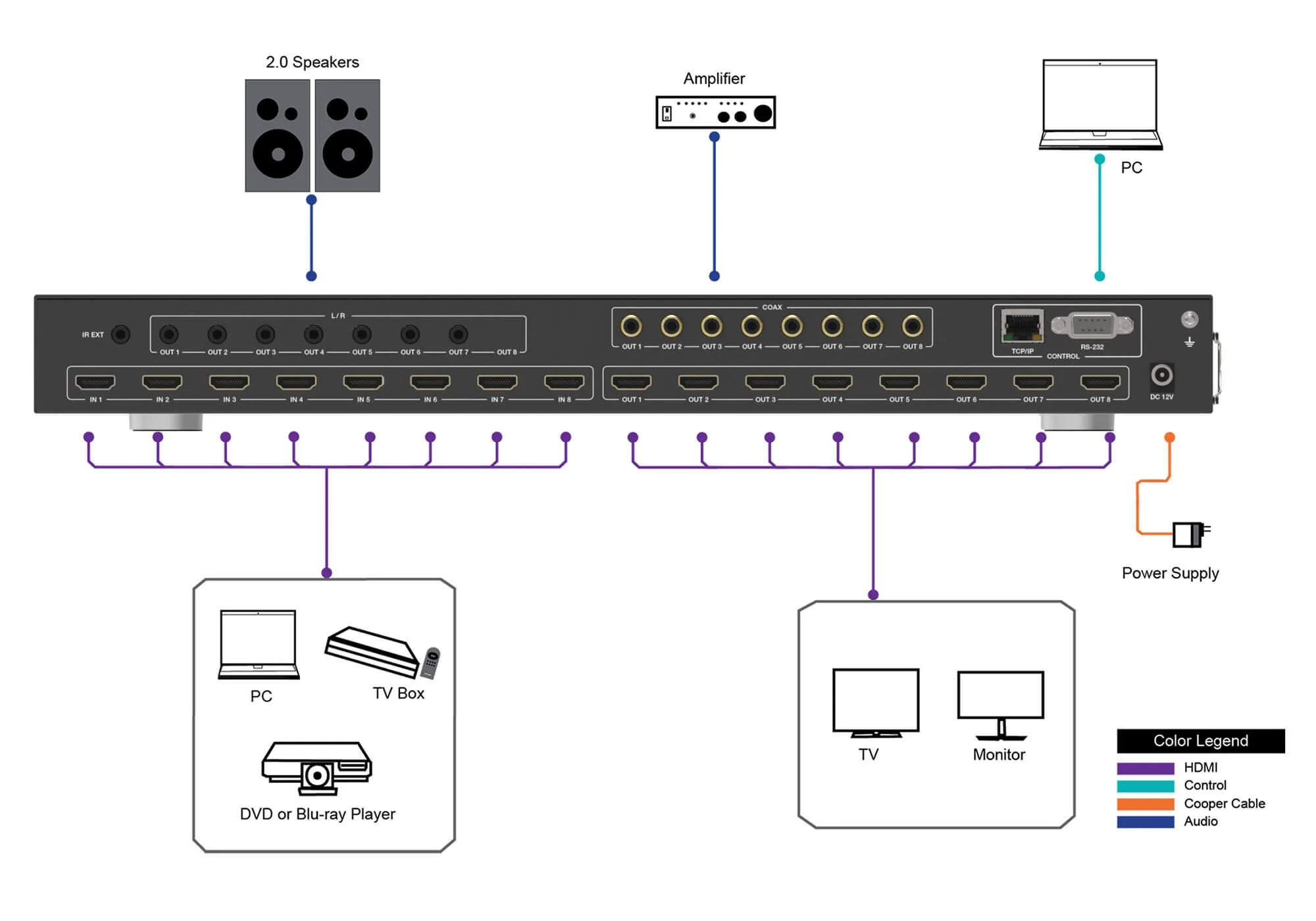

The VLMX-0808E is an 8x8 HDMI Matrix Switcher that distributes video signals up to 4K2K at 60Hz (4:4:4) and multi-channel digital audio from eight HDMI sources to eight HDMI displays. Each output supports independent 4K to 1080p downscaling for flexible display compatibility.

The unit features audio de-embedding to both analog and coaxial outputs from each HDMI output port. With the ARC function enabled, audio from connected display devices can also be routed to the coaxial outputs.

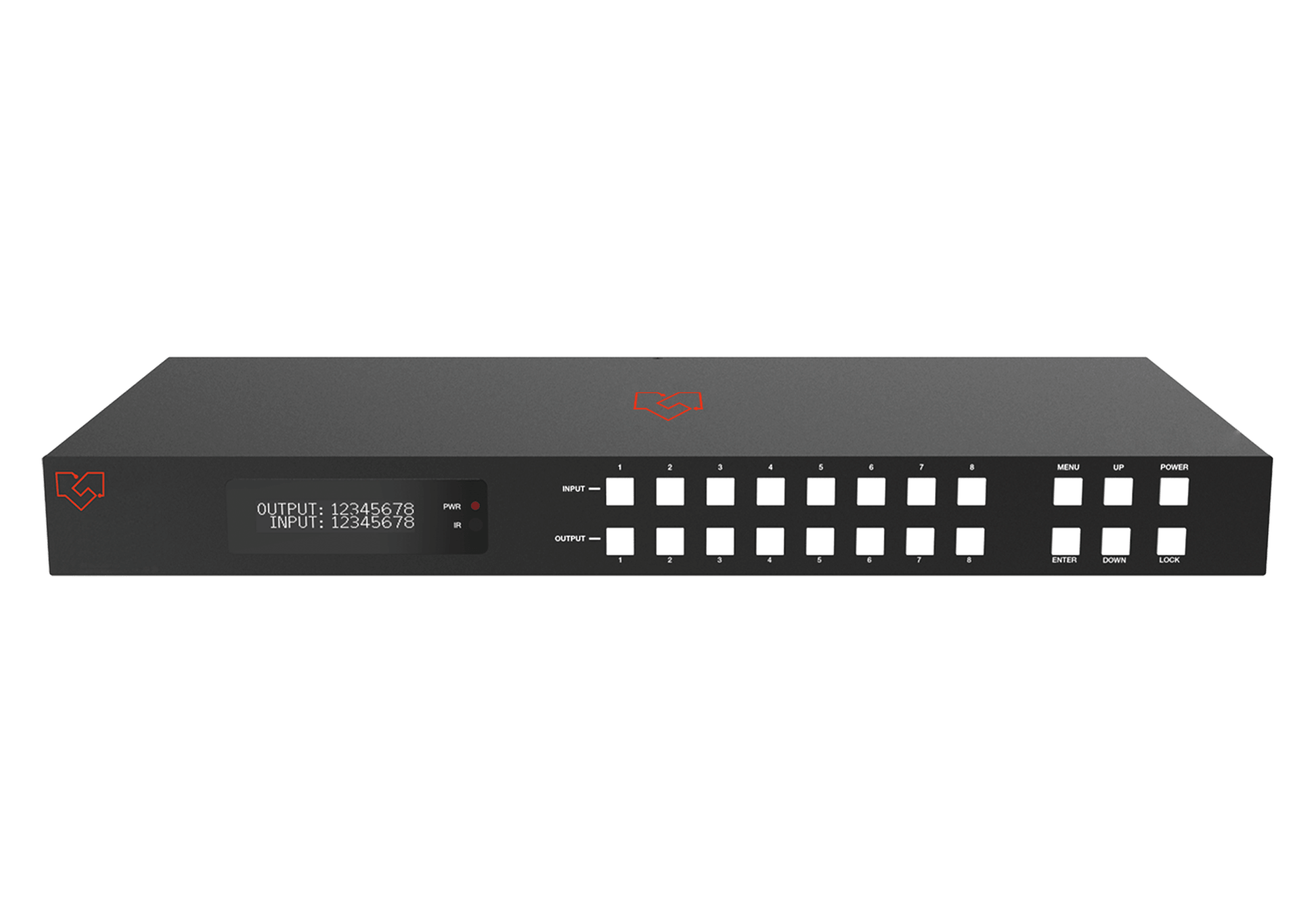

Control options include front panel buttons, IR remote, RS-232, LAN, and Web GUI, offering seamless integration into any AV environment.

Key Features

HDMI 2.0b and HDCP 2.2 compliant
Up to 4K/2K@60Hz with 24-bit RGB/YCbCr 4:4:4
HDR, HDR10, HDR10+, and Dolby Vision pass-through
Digital (coax) and analog audio de-embedding on every output, plus ARC to route display audio back to the coax outputs
LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio support
Each output independently downscales 4K to 1080p
Each output supports digital and analog audio de-embedding
Advanced EDID management
Source and display control via CEC
Control via front panel, IR, RS-232, TCP/IP, and Web GUI

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Specifications


     Technical

     HDMI Compliance
     HDMI 2.0b

     HDCP Compliance
     HDCP 2.2 and HDCP 1.4

     Video Bandwidth
     18Gbps

     Video Resolution
     Up to 4K2K@50/60Hz (4:4:4)

     Color Space
     RGB, YCbCr 4:4:4/4:2:2/4:2:0

     Color Depth
     8-bit, 10-bit, 12-bit

     HDMI Audio Formats (Pass-through)
     LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD,

 DTS-HD Master Audio, Dolby Atmos, DTS:X

     Coax Audio Formats
     LPCM 2.0, Dolby Digital / Plus, DTS 5.1

     L/R Audio Formats
     PCM2.0

     HDR formats
     HDR10,HDR10+,Dolby Vision, HLG

     ESD Protection
     Human body model — ±8kV (Air-gap discharge)

& ±4kV (Contact discharge)

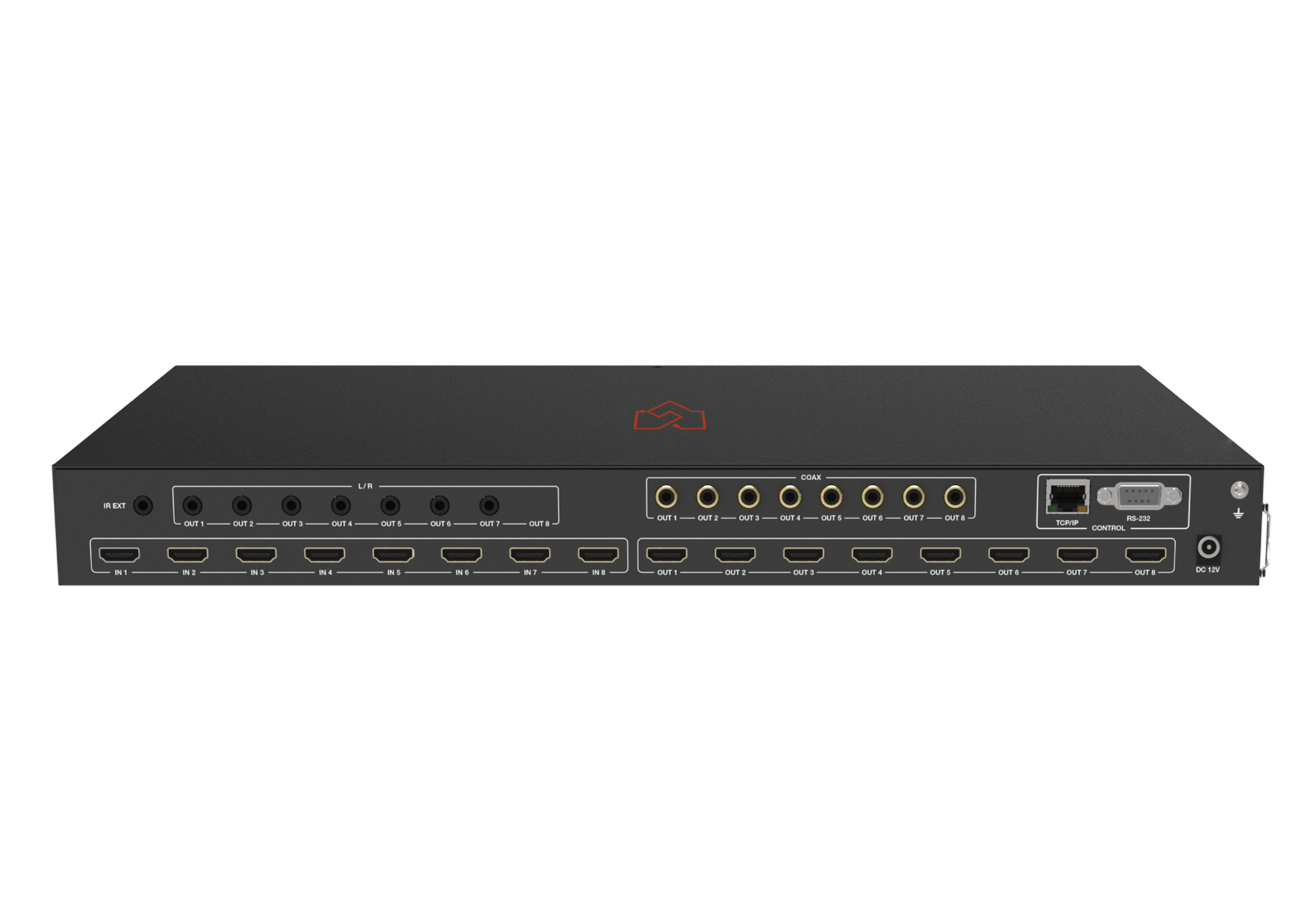

    Connection

     Input Ports
 8×HDMI Type A [19-pin female]

1×IR EXT [3.5mm Stereo Mini-jack]

     Output Ports
 8×HDMI Type A [19-pin female]

8×Coax Audio (RCA)

8×L/R Audio [3.5mm Stereo Mini-jack]

     Control Ports
 1×TCP/IP [RJ45]

 1×RS-232 [D-Sub 9]

     Mechanical

     Housing
     Metal enclosure

     Color
     Black

     Dimensions
     440mm (W)×200mm (D)×44.5mm (H)

     Weight
     2.8kg

     Power Supply
     Input: AC 100- 260V 50/60Hz

Output: DC 12V/5A

 (US/EU standards, CE/FCC/UL certified)

     Power Consumption
     43W

     Operating Temperature
     -10°C ~ 45°C / 14°F ~ 113°F

     Storage Temperature
     -20°C ~ 60°C / -4°F ~ 140°F

     Relative Humidity
     20 - 90% RH (No condensation)

     Resolution /

 Cable Length
     4K60 -

 Feet / Meters
     4K30 -

Feet / Meters
     1080P60 -

Feet / Meters

     HDMI IN / OUT
     16ft / 5M
     32ft / 10M
     50ft / 15M

The use of the “Premium High-Speed HDMI” is highly recommended.
