4x4 HDMI 2.0 Matrix over HDBaseT 150m 18Gbps
VLMX-44HT2
4x4 HDMI/HDBaseT matrix distributing four sources to eight displays, with four HDMI plus four mirrored HDBaseT outputs and four receivers included
Extends 4K@60Hz 4:4:4 up to 394ft (120m), or 1080p up to 492ft (150m), over a single Cat5e/6/7 cable
Per-output 4K-to-1080p downscaling, with HDR10, HDR10+, Dolby Vision, and HLG pass-through, at 18Gbps
Coaxial and balanced-analog audio de-embedding per output, 24V PoC on all HDBaseT ports, and OLED/IR/RS-232/LAN/Web GUI control
Product Description

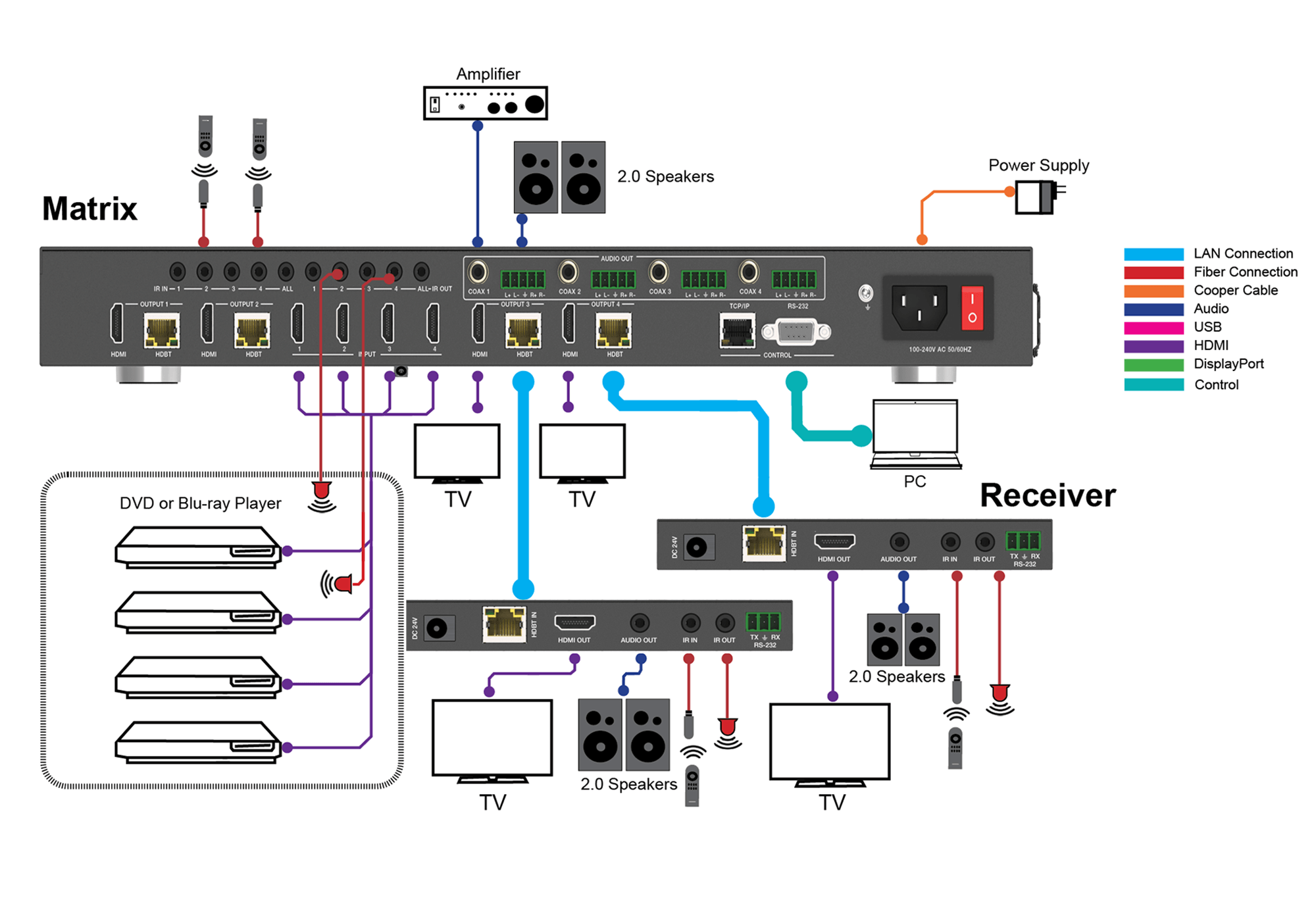

The VLMX-44HT2 is a high-performance 4x4 HDBaseT Matrix Switcher that distributes four (4) HDMI sources to eight (8) displays, featuring four HDMI outputs and four mirrored HDBaseT outputs. Designed for professional AV installations, the matrix delivers uncompressed 4K@60Hz (4:4:4) video and digital audio signals over a single Cat5e/6/7 cable up to 492ft (150m).
Each HDMI output features a built-in 4K to 1080p downscaler, enabling flexible integration with displays of mixed resolutions. Audio de-embedding is supported via analog and coaxial outputs, ensuring easy routing to external sound systems.

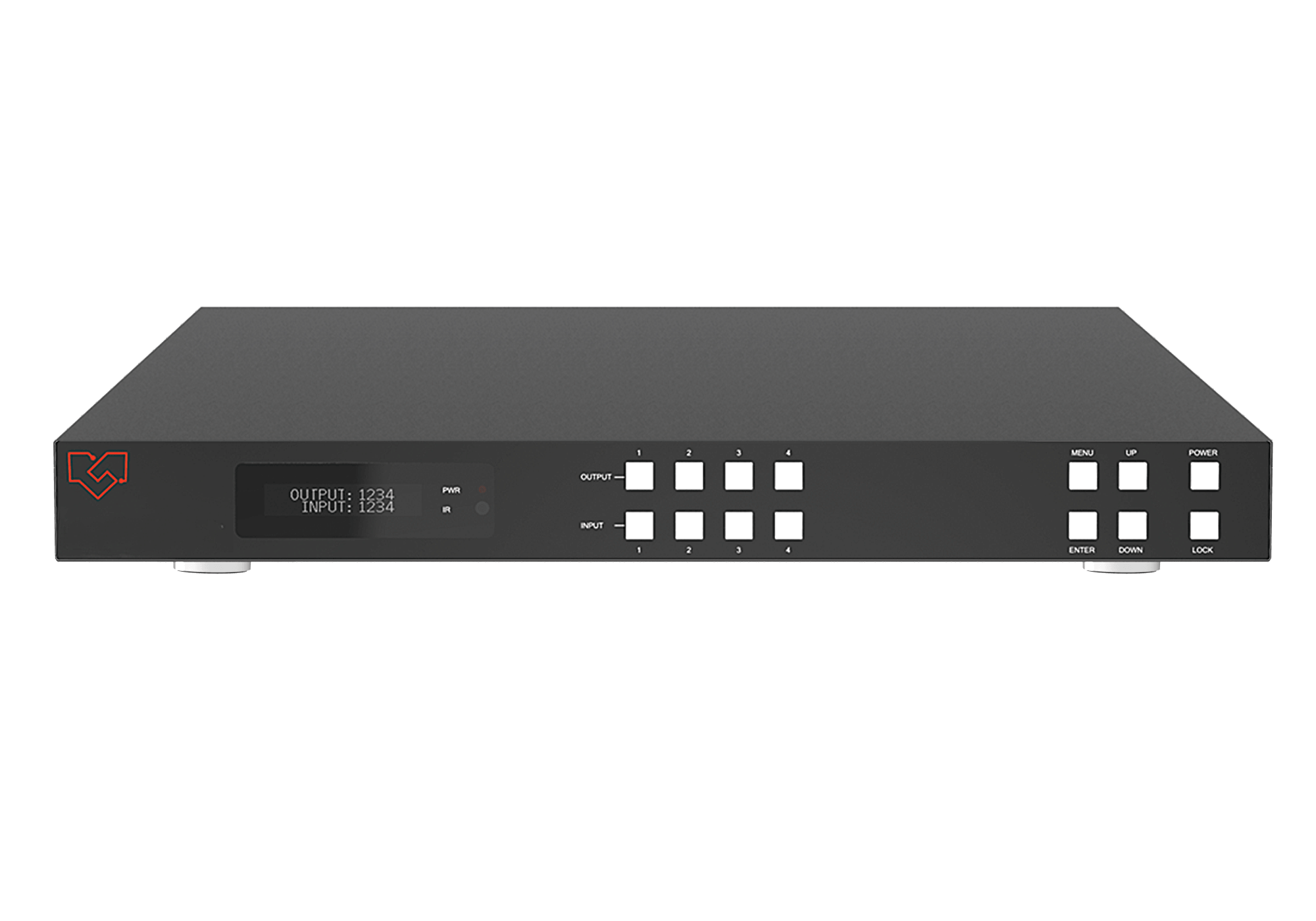

Control is accessible through an OLED front panel interface, an IR remote, RS-232, LAN, and a user-friendly Web GUI. The system comprises one matrix unit and four HDBaseT receivers, providing complete end-to-end connectivity.
Key Features
4x HDMI inputs, 4x mirrored HDMI and HDBaseT outputs
HDMI 2.0b and HDCP 2.2 compliant
Up to 4K/2K@60Hz with 24-bit RGB/YCbCr 4:4:4
HDR, HDR10, HDR10+, and Dolby Vision pass-through
LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio support
Each output independently downscales 4K to 1080p
Each output supports digital and analog audio de-embedding
HDBaseT output: 1080p up to 492ft/150m, 4K2K up to 394ft/120m
Advanced EDID management
Built-in IR matrix
24V PoC on all HDBaseT ports
Control via front panel, IR, RS-232, TCP/IP, and Web GUI
Downloads
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2/1.x | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) | ||
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 | ||
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit，10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0） |
||
| HDR | HDR10, HDR10+, Dolby Vision, HLG | ||
| HDMI Audio Formats (Pass-through) | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
||
| Coax Audio Formats | PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1 | ||
| Analog Balanced Audio Formats | PCM2.0CH | ||
| Vmax | 2Vrms | ||
| SNR | ＞90dB | ||
| THD+N Ratio | ＜0.1%（V_max） 0.001%~0.01%（V_best） | ||
| Crosstalk | ＞80dB | ||
| Frequency Response | 20Hz~20kHz ±0.5dB | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
||
| Connection | |||

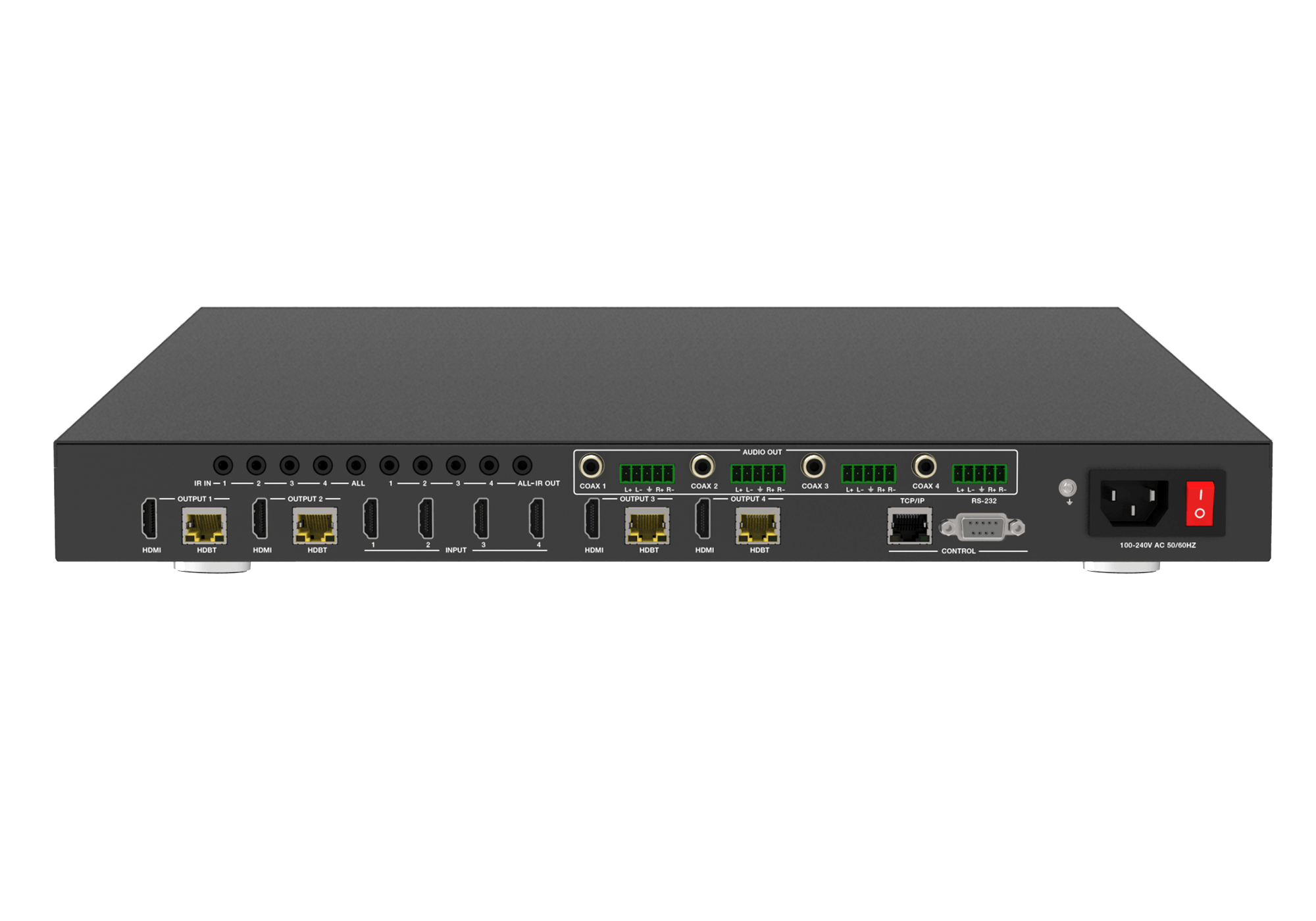

| Matrix | Inputs: 4 x HDMI Type A [19-pinfemale]
Outputs: 4 x HDMI Type A [19-pin female] 4 × HDBaseT port [RJ45] 4 × Coaxial audio [3.5mm Stereo Mini-jack] 4 × balanced analog audio [5-pin Phoenix connector] Controls: 5 x IR IN [3.5mm Stereo Mini-jack] 5 x IR OUT [3.5mm Stereo Mini-jack] 1 × TCP/IP [RJ45] 1 × RS-232 [D-Sub 9] |
||

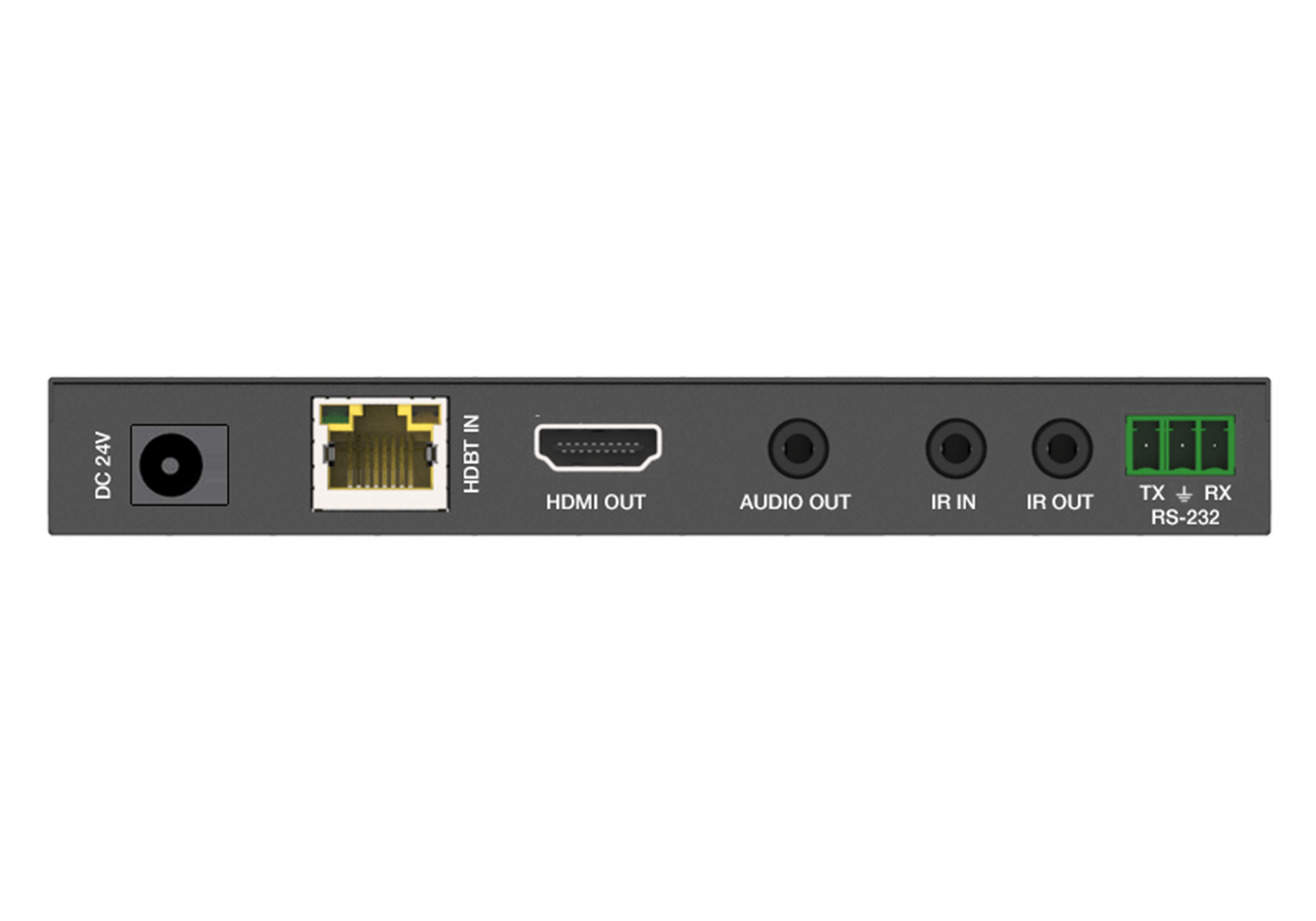

| HDBaseT Receiver | Inputs: 1 x HDBT IN [RJ45, 8-pin female]
Outputs: 1 x HDMI Type A [19-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Controls: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3-pin Phoenix connector] 1 x SERVICE [Mini-USB, Update port] |
Mechanical | |
| Housing | Metal enclosure | ||
| Color | Black | ||
| Dimensions | Matrix: 440mm (W) × 200mm (D) × 44.5mm (H)
Receiver: 140mm (W) x 65mm (W) x 18mm (W) |
||
| Weight | Matrix: 3.1Kg, Receiver: 155g |
||
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/3.75A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | 60W (Max) | ||
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F | ||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
| Relative Humidity | 20 - 90% RH (No condensation) | ||
| Resolution/Distance | 4K60 - Feet / Meters | ||
| Cat5e/6/7 | 492ft / 150M | ||
| Resolution / Cable Length |
4K60 - Feet / Meters |
4K30 - Feet / Meters |
1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
| The use of the “Premium High-Speed HDMI” is highly recommended. |
|||
