8x8 HDMI 2.0 Matrix over HDBaseT 150m 18Gbps
VLMX-88HT2

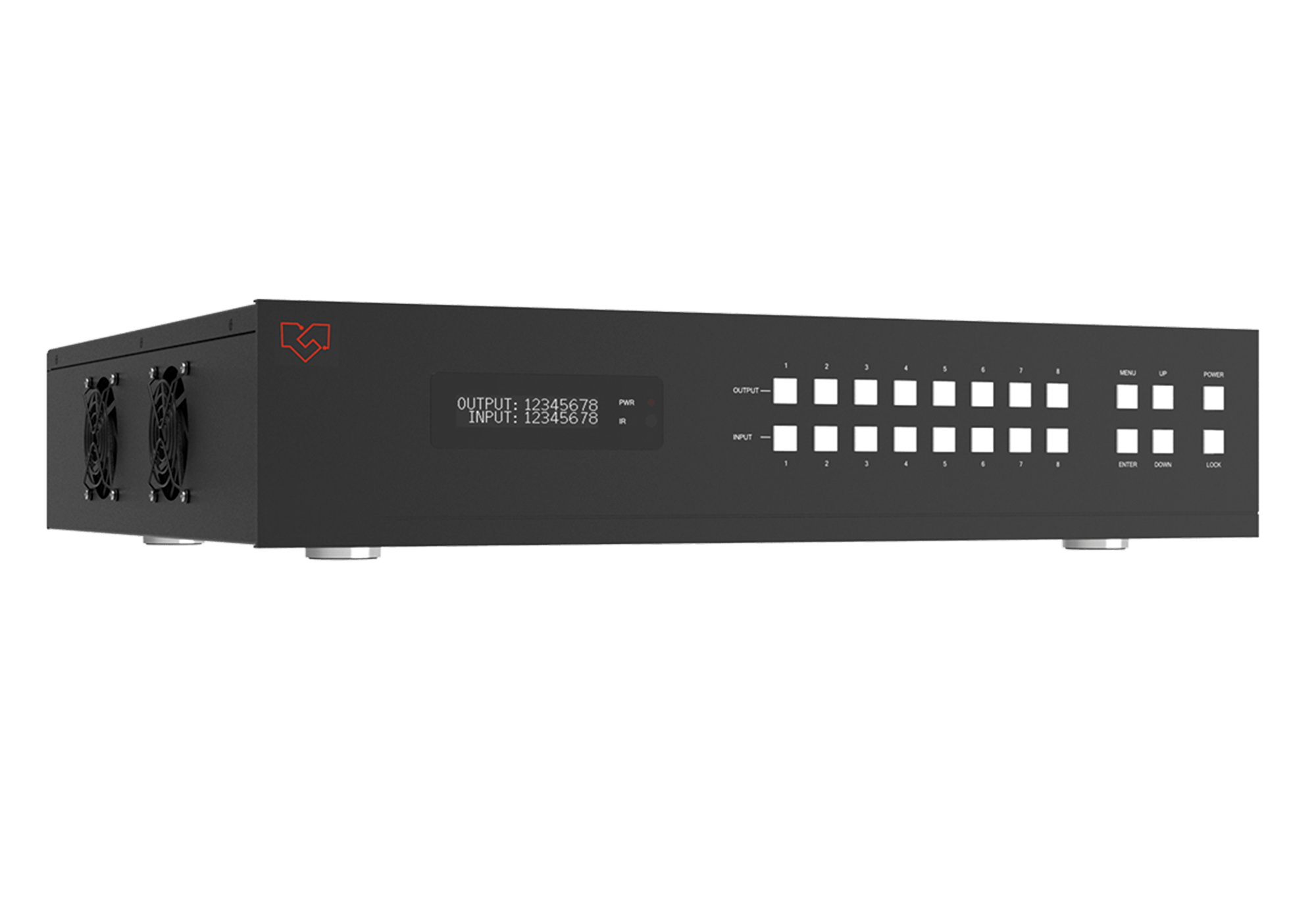

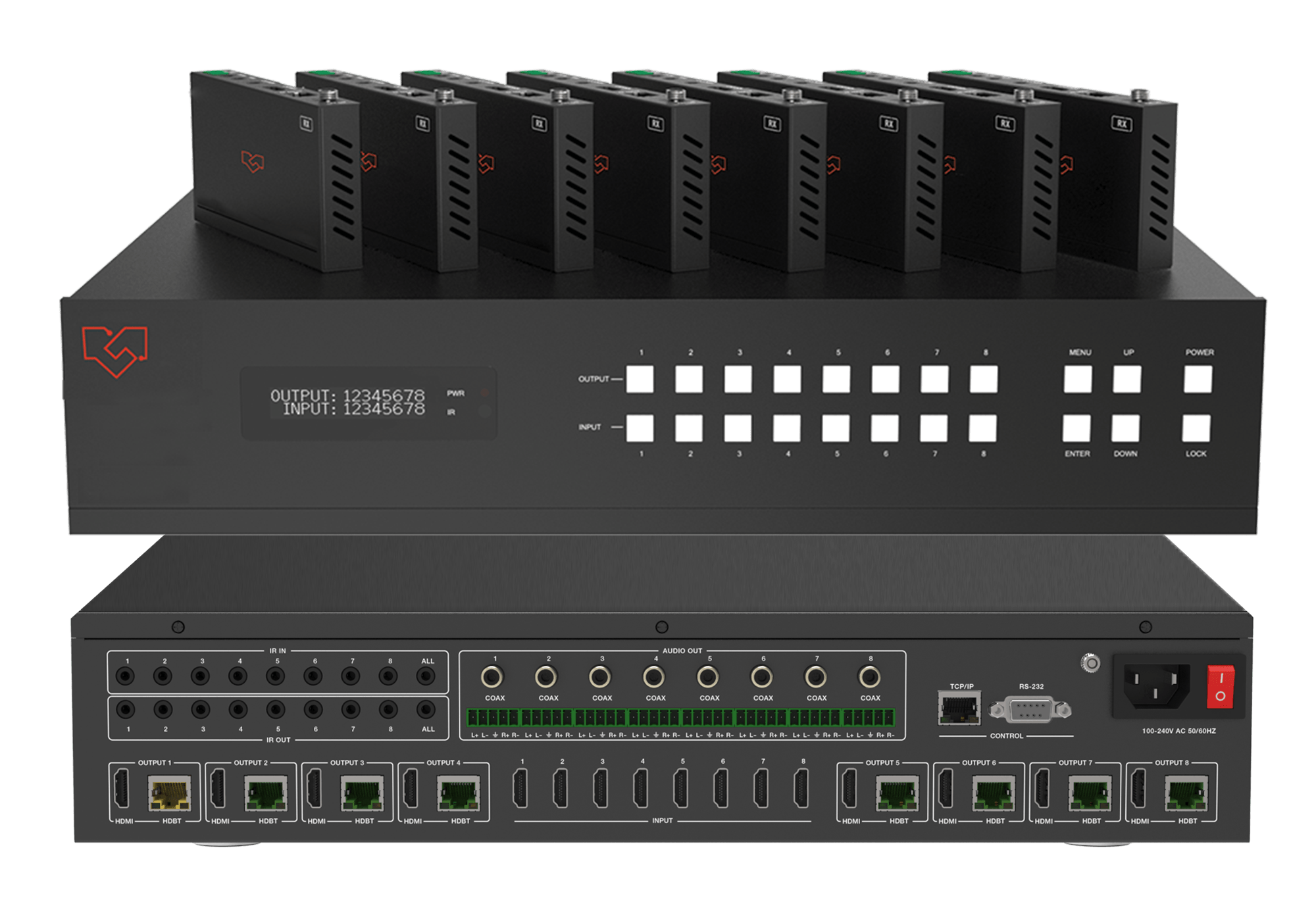

8x8 HDMI/HDBaseT matrix distributing eight sources to sixteen displays, with eight HDMI plus eight mirrored HDBaseT outputs and eight receivers
Extends 4K@60Hz 4:4:4 up to 394ft (120m), or 1080p up to 492ft (150m), over a single Cat5e/6/7 cable
Per-output 4K-to-1080p downscaling, with HDR10, HDR10+, Dolby Vision, and HLG pass-through, at 18Gbps
Coaxial and balanced-analog audio de-embedding per output, 24V PoC on all HDBaseT ports, and OLED/IR/RS-232/LAN/Web GUI control
Product Description
The VLMX-88HT2 is a professional-grade 8x8 HDMI matrix switcher featuring HDBaseT technology for long-distance signal extension. It connects up to eight HDMI sources to sixteen displays, offering eight HDMI outputs, each mirrored with a simultaneous CAT output.
Each HDBaseT output extends video up to 492 ft (150 m) over a single Cat5e, 6, or 7 cable and supports resolutions up to 4K2K at 60Hz (4:4:4). Independent downscalers on every HDMI output allow seamless 4K-to-1080p conversion for mixed-display environments.
Audio de-embedding is supported via analog and coaxial outputs, enabling flexible audio integration.

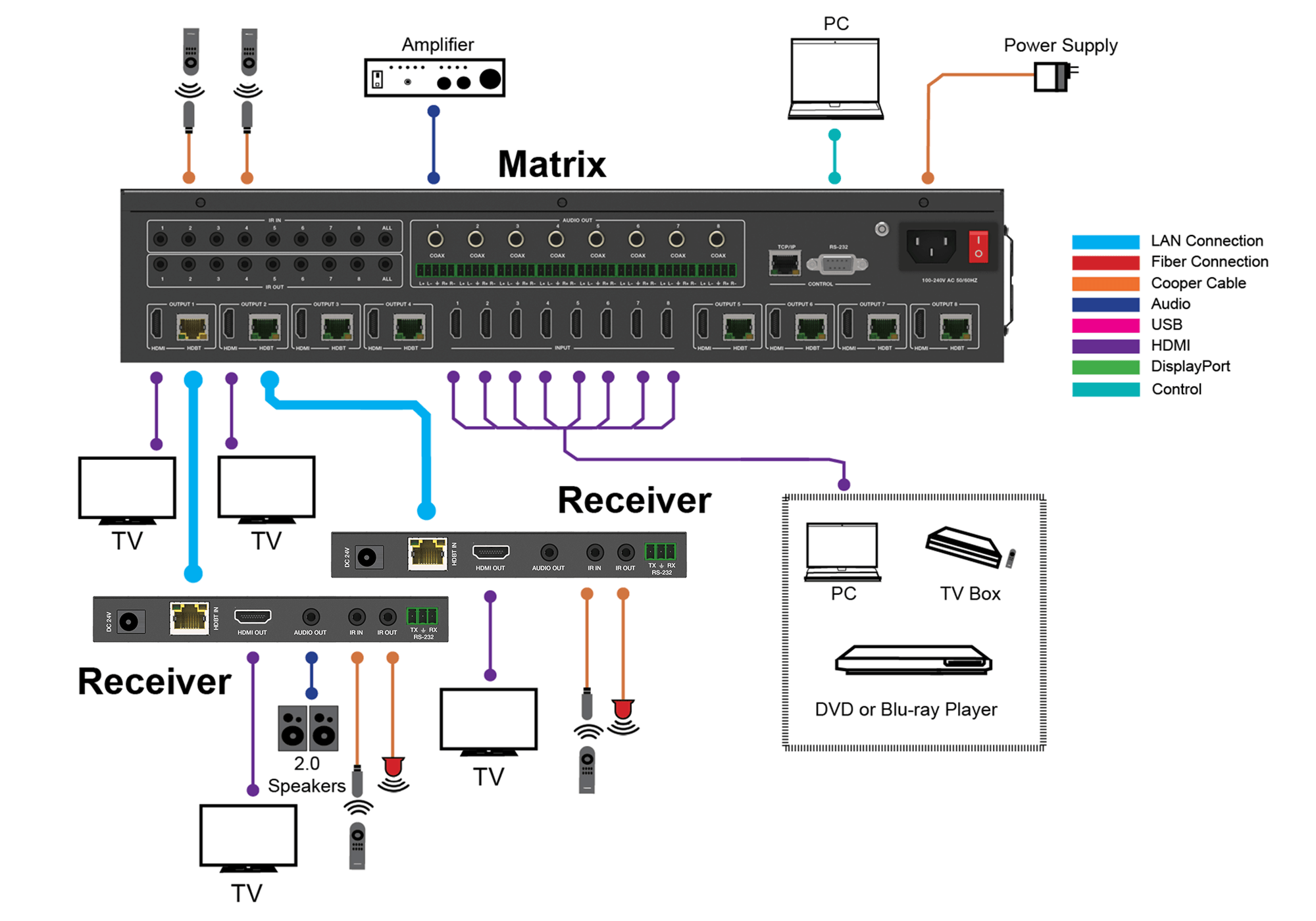

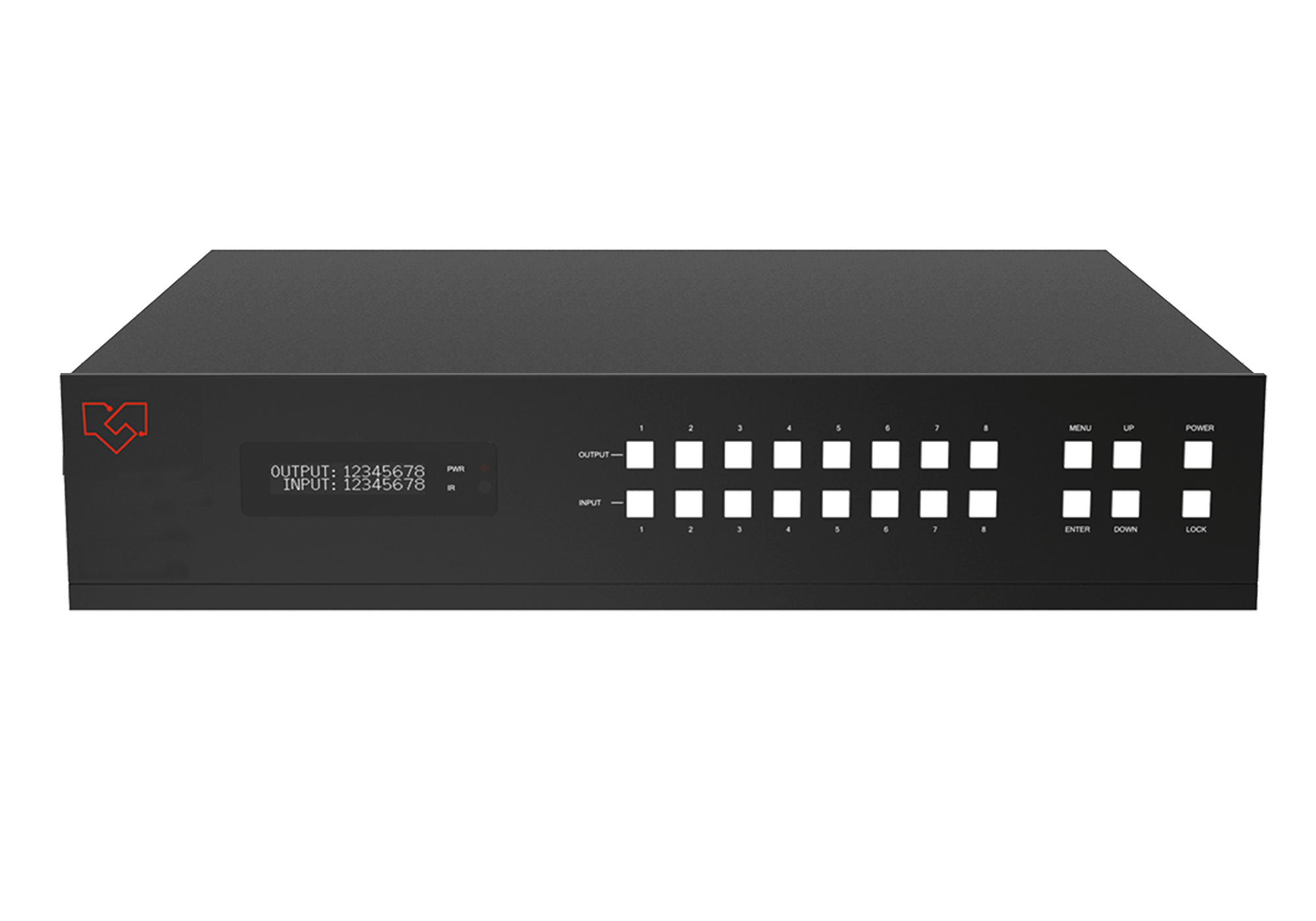

The VLMX-88HT2 offers multiple intuitive control options including front-panel buttons with OLED display, IR remote, RS-232, LAN, and Web GUI, making it ideal for commercial AV, control rooms, and high-end residential applications.
Key Features
8x HDMI inputs, 8x mirrored HDMI and HDBaseT outputs
HDMI 2.0b and HDCP 2.2 compliant
Up to 4K/2K@60Hz with 24-bit RGB/YCbCr 4:4:4
HDR, HDR10, HDR10+, and Dolby Vision pass-through
LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio support
Each output independently downscales 4K to 1080p
Each output supports digital and analog audio de-embedding
HDBaseT output: 1080p up to 492ft/150m, 4K2K up to 394ft/120m
Advanced EDID management
Built-in IR matrix
24V PoC on all HDBaseT ports
Control via front panel with OLED display, IR, RS-232, TCP/IP, and Web GUI
Downloads
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2/1.x | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) | ||
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 | ||
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
||
| HDR | HDR10, HDR10+, Dolby Vision, HLG | ||
| HDMI Audio Formats (Pass-through) | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
||
| Coax Audio Formats | PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1 | ||
| Analog Balanced Audio Formats | PCM2.0CH | ||
| Vmax | 2Vrms | ||
| SNR | ＞90dB | ||
| THD+N Ratio | ＜0.1%（V_max） 0.001%~0.01%（V_best） | ||
| Crosstalk | ＞80dB | ||
| Frequency Response | 20Hz~20kHz ±0.5dB | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
||
| Connection | |||
| Matrix | Inputs: 8 x HDMI Type A [19-pinfemale]

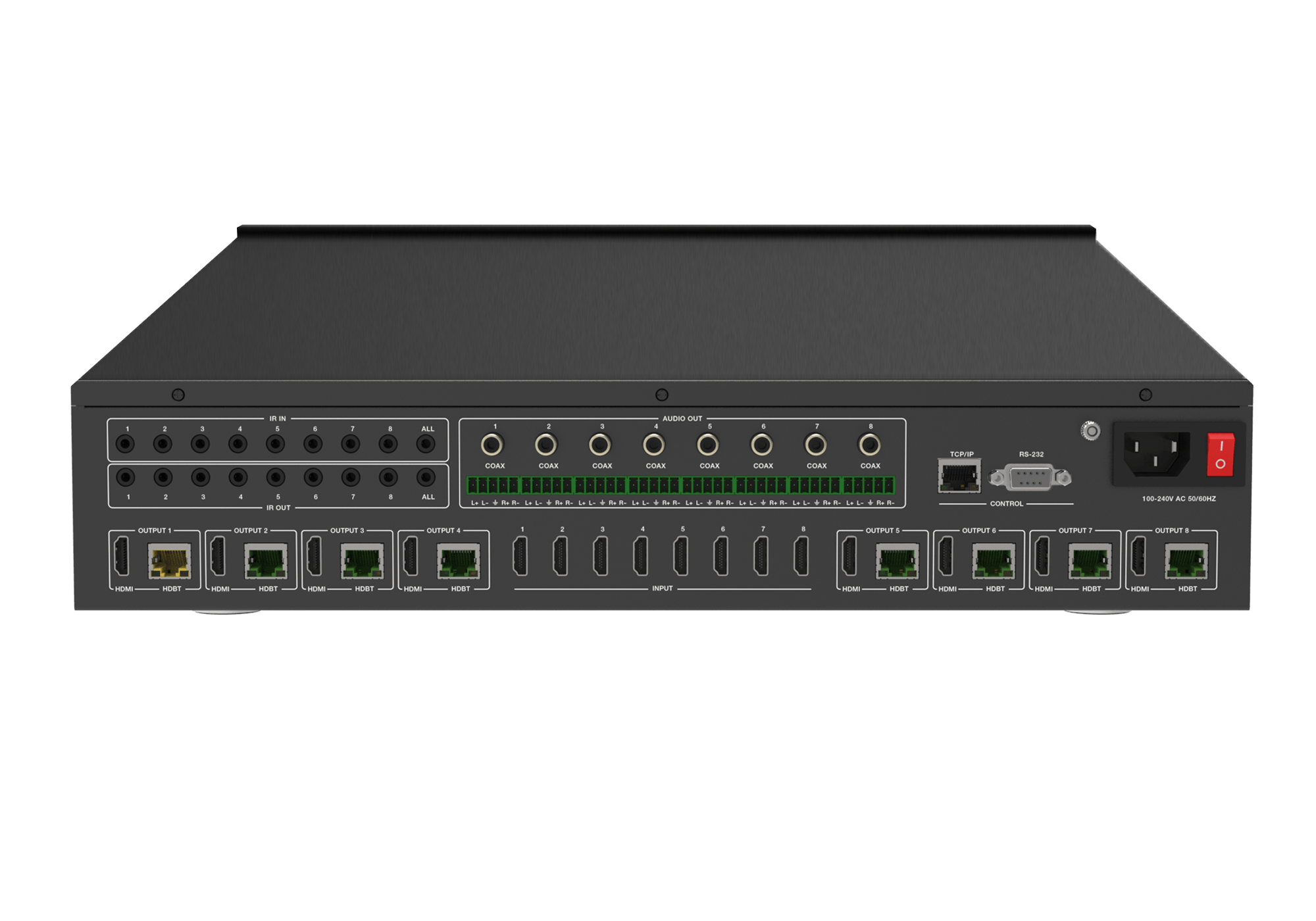

Outputs: 8 x HDMI Type A [19-pin female] 8 × HDBaseT port [RJ45] 8 × Coaxial audio [3.5mm Stereo Mini-jack] 8 × balanced analog audio [5-pin Phoenix connector] Controls: 9 x IR IN [3.5mm Stereo Mini-jack] 9 x IR OUT [3.5mm Stereo Mini-jack] 1 × TCP/IP [RJ45] 1 × RS-232 [D-Sub 9] |
||
| HDBaseT Receiver | Inputs: 1 x HDBT IN [RJ45, 8-pin female]
Outputs: 1 x HDMI Type A [19-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Controls: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3-pin Phoenix connector] 1 x SERVICE [Mini-USB, Update port] |
Mechanical | |
| Housing | Metal enclosure | ||
| Color | Black | ||
| Dimensions | Matrix: 440mm (W) × 374mm (D) × 88.6mm (H)
Receiver: 140mm (W) x 65mm (W) x 18mm (H) |
||
| Weight | Matrix: 6.54Kg Receiver: 155g |
||
| Power Supply | AC 100 - 240V 50/60Hz | ||
| Power Consumption | 125W (Max) | ||
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F | ||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
| Relative Humidity | 20 - 90% RH (No condensation) | ||
| Resolution/Distance | 4K60 - Feet / Meters | ||
| Cat5e/6/7 | 492ft / 150M | ||
| Resolution / Cable Length |
4K60 - Feet / Meters |
4K30 - Feet / Meters |
1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
| The use of the “Premium High-Speed HDMI” is highly recommended. |
|||
