4x4 HDMI 2.0 Matrix with output 4K to 1080p downscaling 18Gbps
VLMX-0404
4x4 HDMI 2.0 matrix switcher routing four sources to four displays independently, up to 4K@60Hz 4:4:4 (18Gbps)
Per-output 4K-to-1080p downscaling, so each display can run at its own resolution
HDR10, HDR10+, and Dolby Vision pass-through, with LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Distribution and switching modes, advanced EDID management, and control via front panel and IR remote
Product Description
The VLMX-0404 is a 4x4 HDMI 2.0 matrix switcher that routes any of four HDMI sources to any of four displays, supporting resolutions up to 4K@60Hz with YCbCr 4:4:4 color and multichannel HD audio. Each output can be individually downscaled from 4K to 1080p, ensuring compatibility with mixed-resolution displays across the same installation.
The switcher supports HDR10, HDR10+, and Dolby Vision pass-through, along with LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio, and includes advanced EDID management for reliable source-to-display handshaking. It operates in either distribution mode (the same source to all outputs) or switching mode (independent routing per output), and is controlled via front panel buttons or IR remote, making it a versatile choice for conference rooms, classrooms, and multi-display AV systems.
Key Features
HDCP 2.2 compliant
Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4
HDR, HDR10, HDR10+, and Dolby Vision pass-through
LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio support
4K-to-1080p downscaling per output
Advanced EDID management
Distribution and switching modes

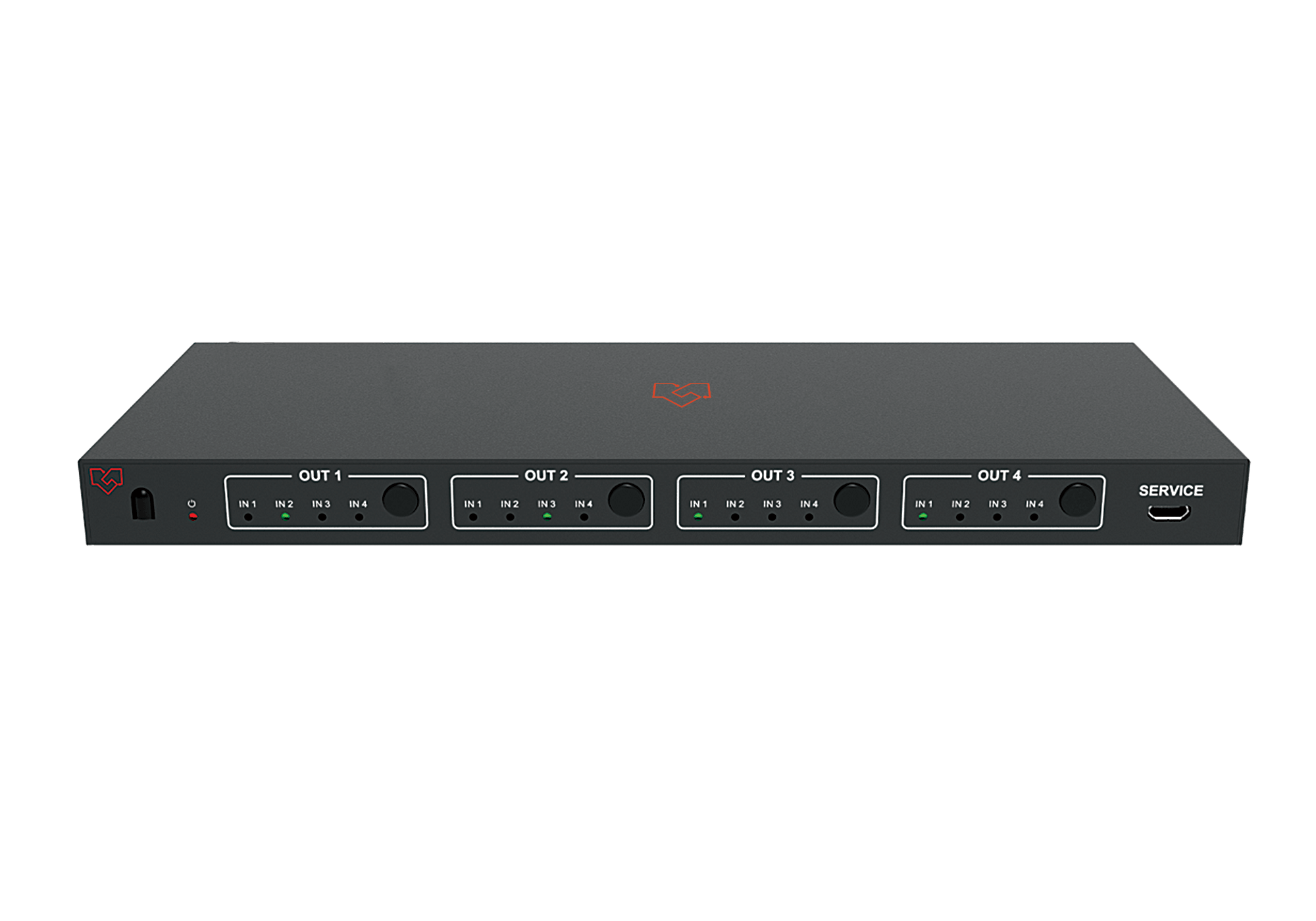

Control via front panel and IR remote
Downloads
Specifications
| Technical | |
|---|---|
| HDCP Compliant | HDCP 2.2 / 1.x |
| Video Bandwidth | 594MHz / 18Gbps |
| Video Resolution | 480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
| HDMI Audio Formats | LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

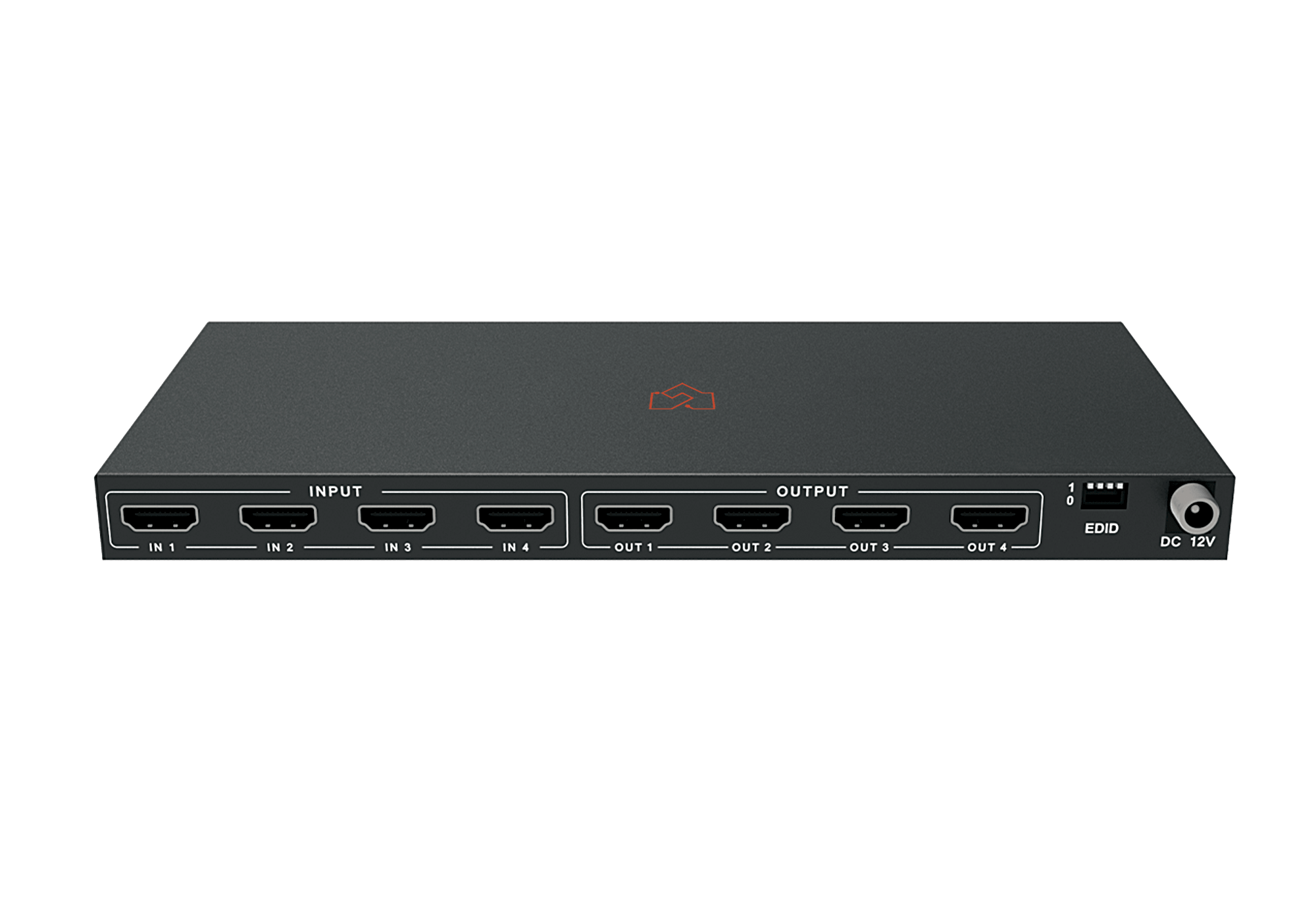

| Inputs | 4×HDMI Type A [19-pin female] |
| Outputs | 4×HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 220mm(W)×205mm(D)×19mm(H) |
| Weight | 535g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 11.04W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
