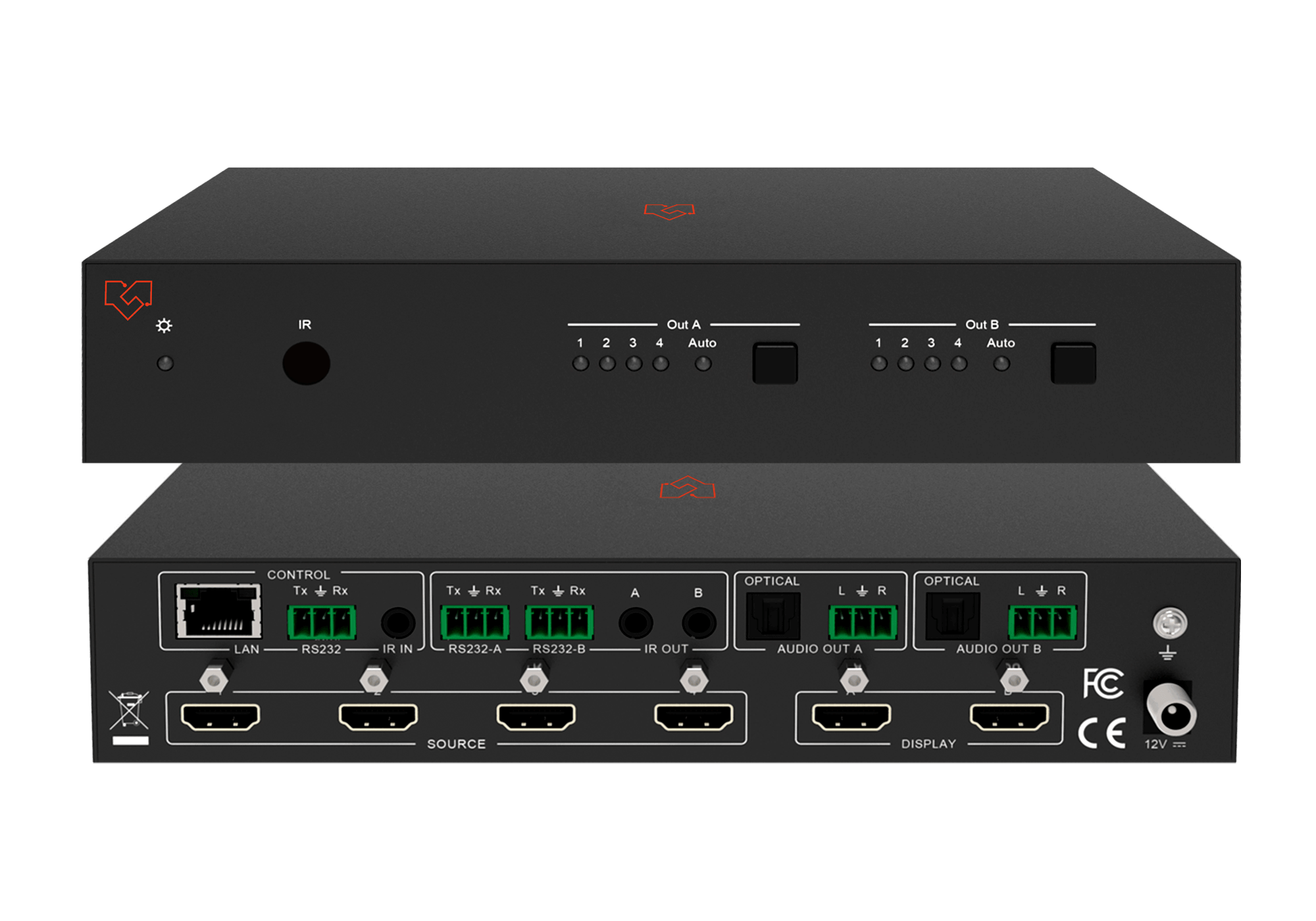

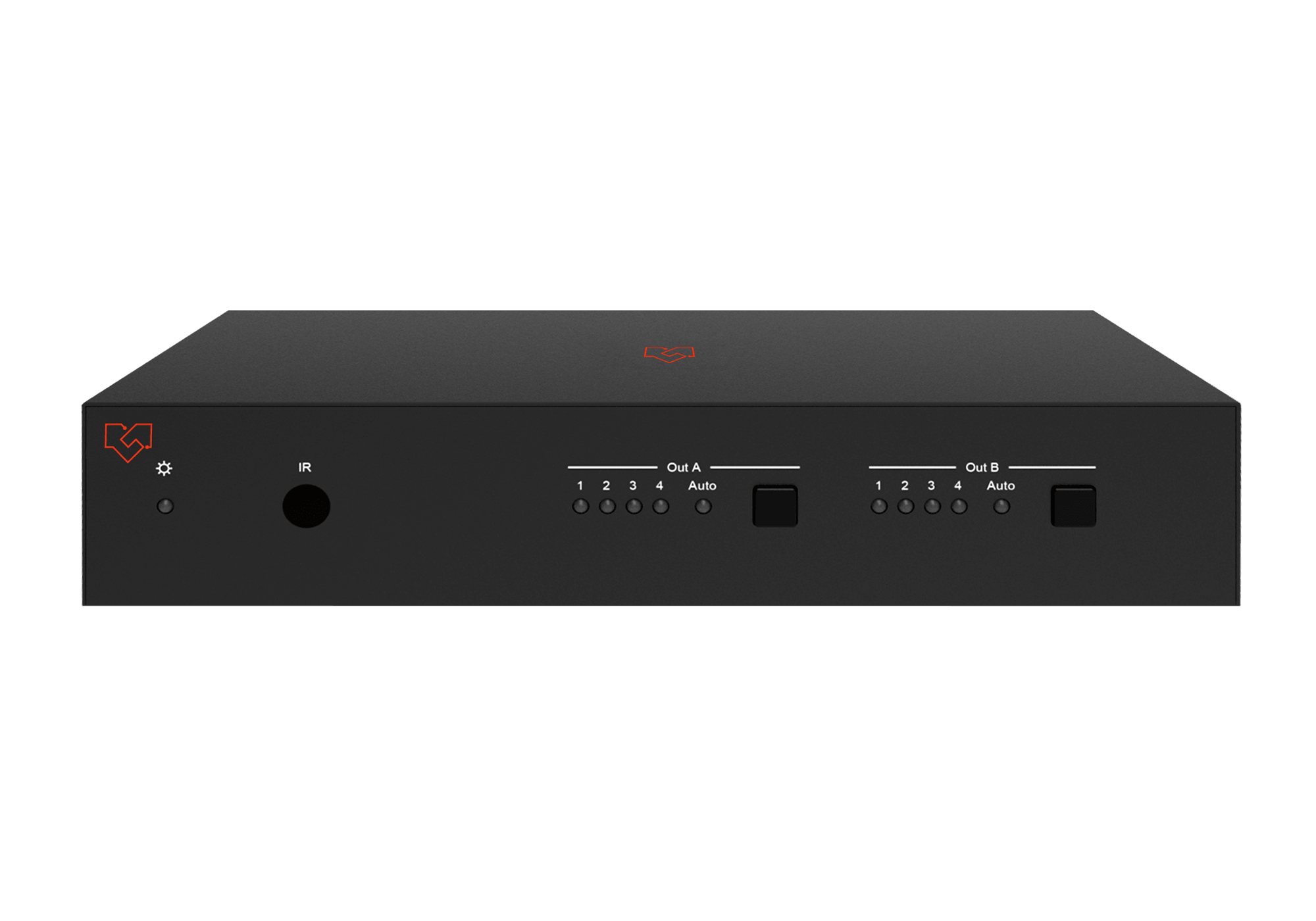

4x2 HDMI 2.0 Matrix with 4K to 1080p downscaling and display control 18Gbps

VLMX-0402E

  • 4x2 HDMI 2.0 matrix switcher with two independently scalable outputs, routing four sources to two displays at 4K@60 4:4:4 (18Gbps)

  • Per-output downscaling to 1080p or HDBaseT mode (capped at 10.2Gbps), with distribution and switching operating modes

  • Automatic display power control via RS-232, CEC, or IR on signal loss or detection, plus a test-pattern mode

  • Dual de-embedded analog L/R and TosLink audio outputs (ARC decoded to TosLink), with control via front panel, RS-232, IR, and Web GUI over LAN

Where to Buy
Six Year Warranty logo

Product Description

The VLMX-0402E is an 18G HDMI matrix switcher featuring four HDMI inputs and two independently scalable HDMI outputs. Each input and output supports video resolutions up to 4K60 (4:4:4) with full HDMI 2.0 and HDCP 2.2 compliance.

Each output can be individually downscaled to 1080p, allowing compatibility with legacy displays or HDBaseT extension systems. The unit supports audio de-embedding for both outputs, providing analog L/R and optical TosLink audio outputs.

Designed for smart automation, the VLMX-0402E can automatically control connected display devices via RS232, CEC, or IR, either when the last input signal is lost or when a new signal is detected.

Flexible control options include front panel buttons, RS232, IR, and LAN. The switcher also offers two operational modes: distribution mode (where the same source is sent to both outputs) and switching mode (independent switching per output), making it a versatile solution for conference rooms, classrooms, and small-scale AV systems.

Key Features

  • HDMI 2.0, HDCP 2.2/1.4, and DVI 1.0 compliant

  • Four 18G HDMI 2.0 inputs, up to 4K@60 4:4:4

  • Two 18G HDMI 2.0 outputs, up to 4K@60 4:4:4

  • Both outputs individually scalable for 4K-to-1080p or HDBaseT mode

  • Automatic RS-232, CEC, and IR control of display power state

  • Two sets of de-embedded analog and TosLink audio outputs, one per output

  • ARC decoding to the TosLink audio outputs

  • Test-pattern mode for verifying output signal integrity

  • Built-in Web GUI for LAN control

  • Four control methods: front panel, RS-232, IR, and LAN

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 2.0
HDCP Compliance     HDCP 2.2 and HDCP 1.4
Video Bandwidth     18Gbps
Video Resolution     4K2K 50/60Hz 4:4:4

4K2K 50/60Hz 4:2:0

4K2K 30Hz 4:4:4

1080p, 1080i, 720p, 720i, 480p, 480i

All HDMI 3D TV formats

All PC resolutions, including 1920 x 1200
Output Scaling     4K to 1080p

4K to HDBaseT (Down-scale to no more than 10.2Gbps)
3D Support     Yes
Color Space     RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
Color Depth     8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]

8-bit [4K60Hz (YCbCr4:4:4)]
HDMI Audio Formats (Pass-through)     PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,

DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats     PCM2.0CH

(Note: If the ARC function is turned on, the audio port will mute.)
Optical Audio Formats     PCM2.0, Dolby Digital / Plus, DTS
Audio Frequency Response     20Hz to 20kHz, ±3dB
RS232 Control     57600, No parity, 8 data bits, 1 stop bit, No handshaking
RS232-A and RS232-B    RS232 (main) = 57600 8-N-1; RS232-A and RS232-B = configurable 4800–115200 baud, 7/8 bits, none/odd/even parity, 1/2 stop bits
ESD Protection     Human body model — ±8kV (Air-gap discharge) & ±4kV
Connection

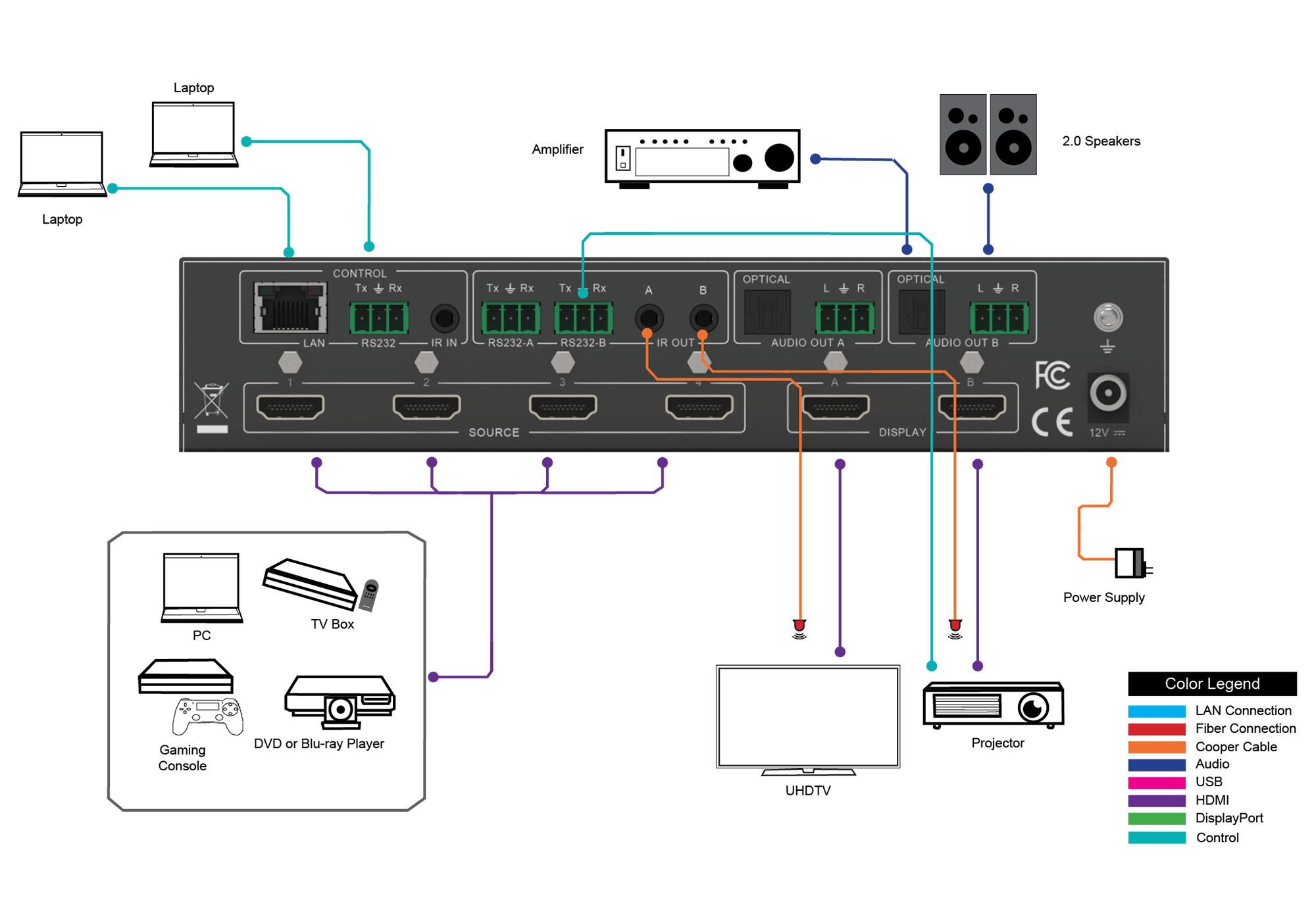

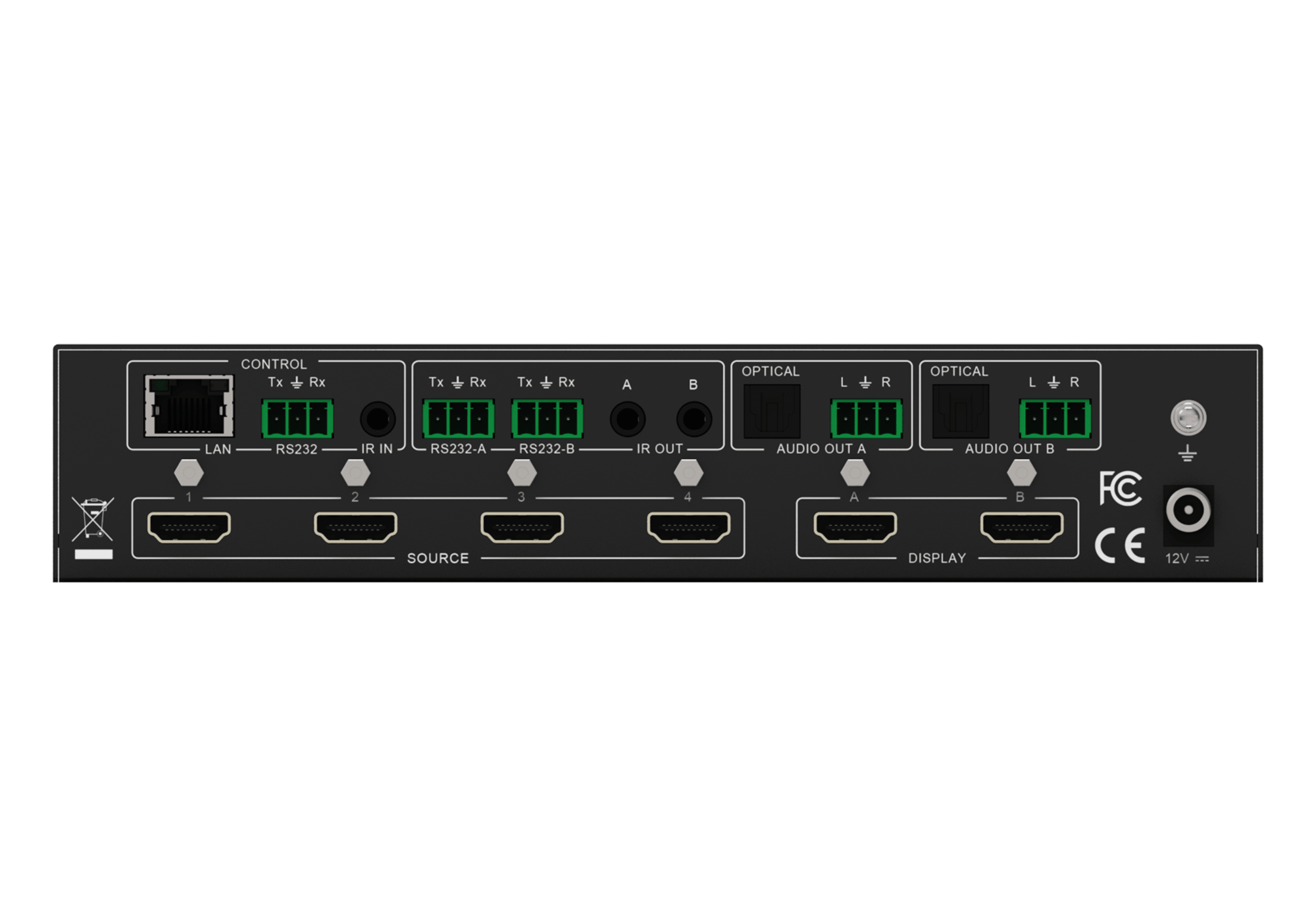

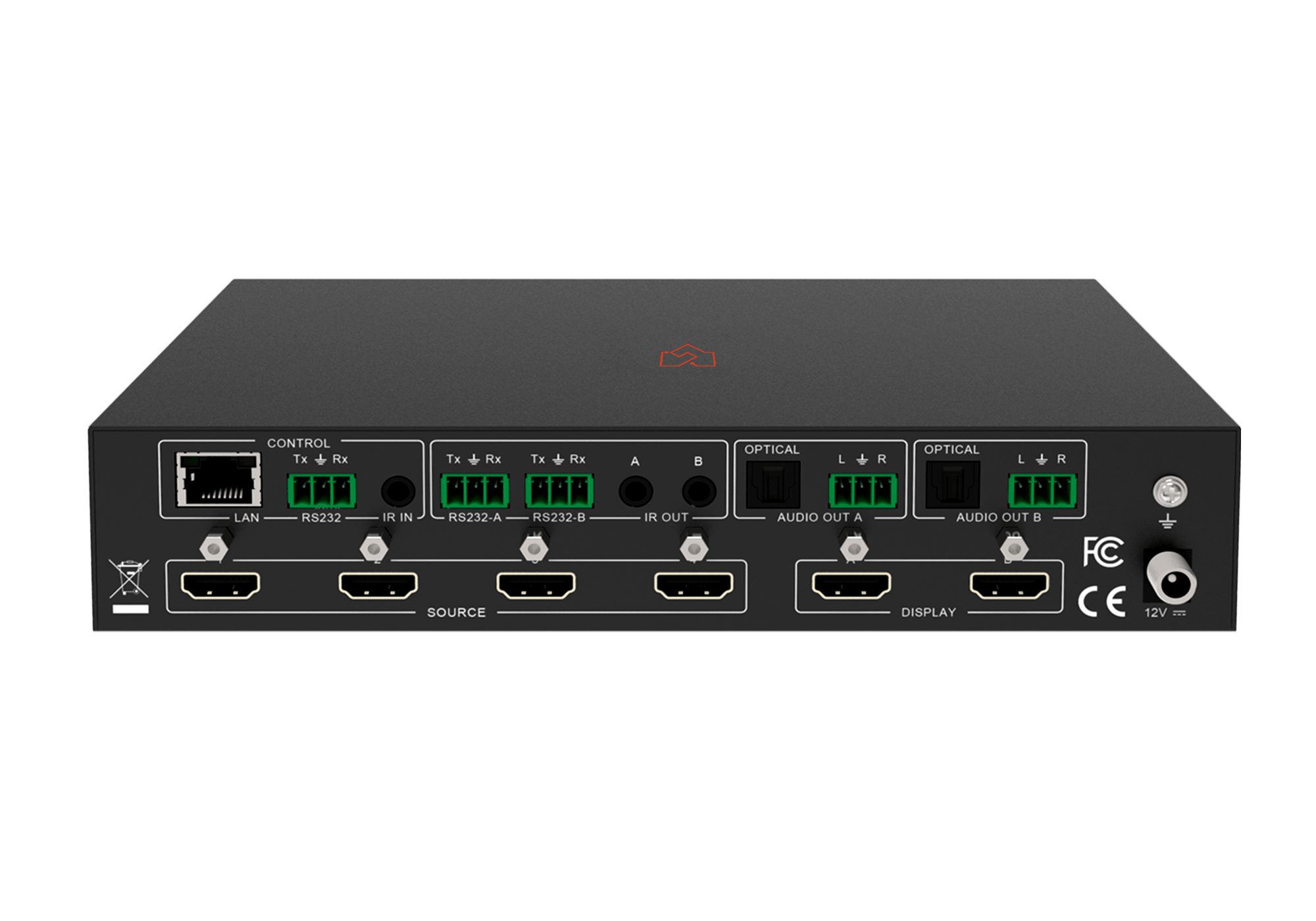

Input Ports 4×HDMI Type A [19-pin female]
Output Ports     2×HDMI Type A [19-pin female]

2×L/R audio out [3-pin phoenix connector]

2×OPTICAL audio out [S/PDIF]

2×RS232 A/B [3-pin phoenix connector]
Control ports     1×LAN [RJ45]

3×RS232 [3-pin phoenix connector]

1×IR IN [3.5mm Stereo Mini jack]

2×IR OUT A/B [3.5mm Stereo Mini jack]
Mechanical
Housing     Metal enclosure
Color     Black
Dimensions     218mm(W)×140mm(D)×43mm(H)
Weight    1050g
Power Supply    Input: AC100~240V 50/60Hz

Output: DC12V/1A (Locking connector)
Power Consumption     4.3W (max)
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (No condensation)
Resolution / Distance
4K2K     394ft / 120M
1080P     492ft / 150M
Resolution /

Cable Length    		 4K60 -

Feet / Meters    		 4K30 -

Feet / Meters    		 1080P60 -

Feet / Meters
HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M

The use of the “Premium High-Speed HDMI” is highly recommended.
