VLMX-1616E

16x16 HDMI 2.0 matrix switcher routing sixteen sources to sixteen displays independently, up to 4K@60Hz 4:4:4 (18Gbps)
Per-output 4K-to-1080p downscaling, with HDR10, HDR10+, Dolby Vision, and HLG pass-through on all ports
Coaxial audio de-embedding on every output, plus ARC to return HDMI display audio to the corresponding coax outputs
1U rack design with front-panel OLED, ARC/CEC/smart EDID management, and control via panel, IR, RS-232, LAN, and Web GUI

Product Description

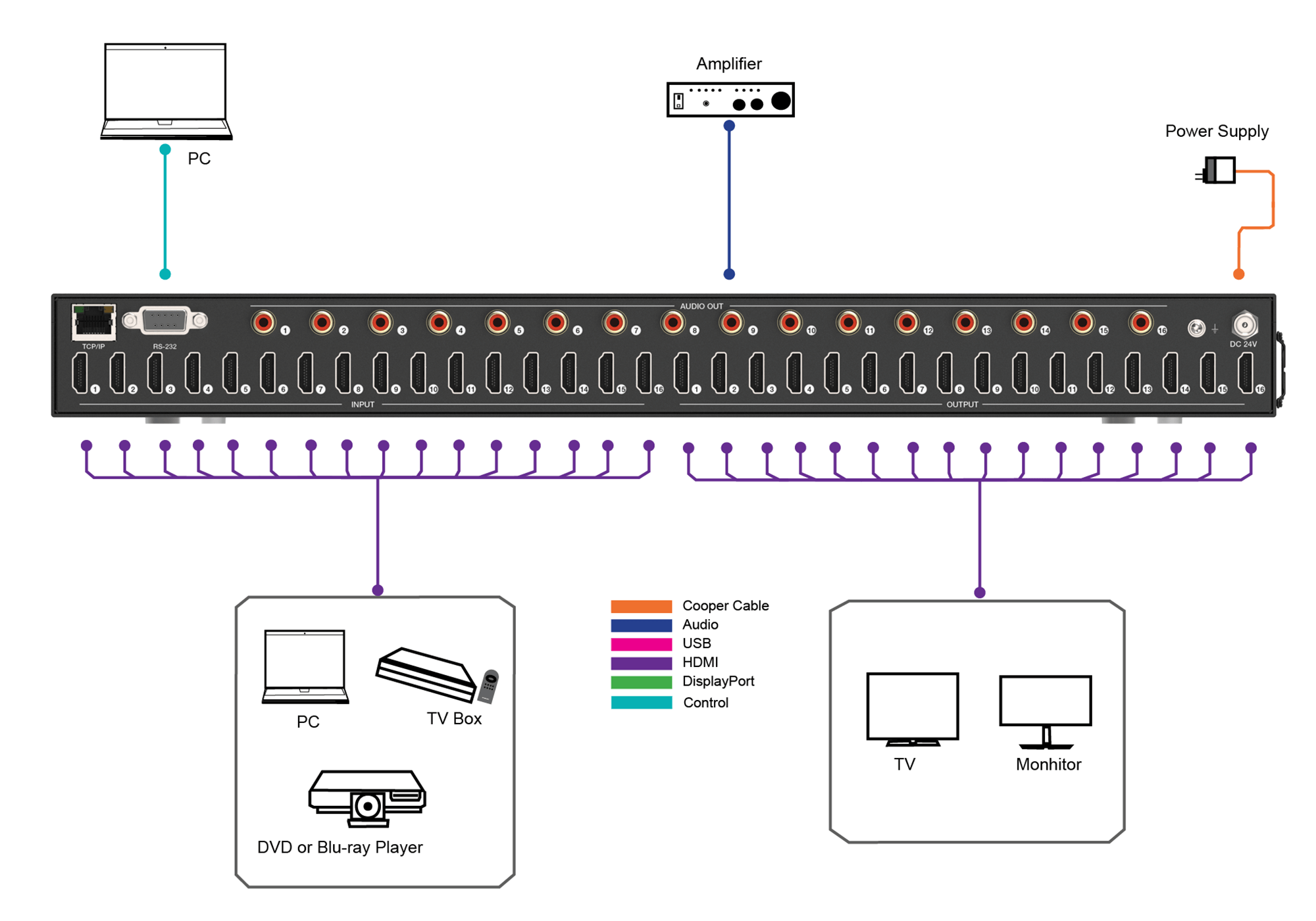

The VLMX-1616E is a high-performance 16x16 HDMI Matrix Switcher that transmits video up to 4K@60Hz (4:4:4) and multi-channel high-resolution digital audio from sixteen HDMI sources to sixteen HDMI displays. Each output supports independent 4K to 1080p downscaling, allowing compatibility across mixed display environments.

Audio de-embedding to coaxial outputs is supported across all sixteen HDMI outputs. When the ARC function is enabled, audio from HDMI displays is extracted and returned to the corresponding coaxial outputs.

Control is available via front panel buttons, IR remote, RS-232, LAN, and an intuitive Web GUI, making it ideal for professional AV integration and system customization.

Key Features

HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0 compliant
Video resolution up to 4K2K@60Hz YUV 4:4:4 on all HDMI ports
Supports 18Gbps video bandwidth
HDR, HDR10, HDR10+, Dolby Vision, and HLG supported
4K-to-1080p downscaling on each output port
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, DTS-HD Master Audio)
Audio de-embedding via coax ports
ARC, CEC, and smart EDID management supported

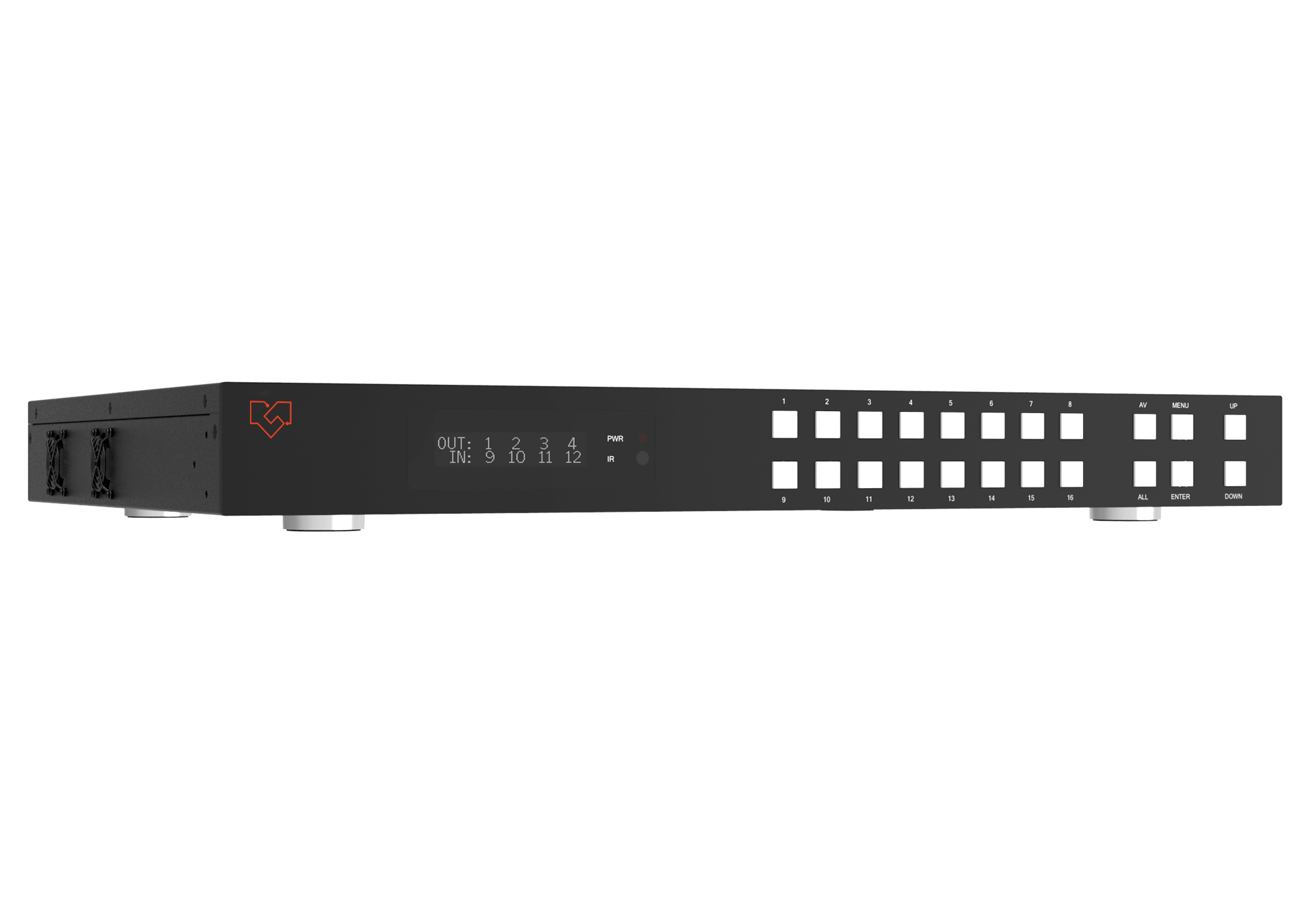

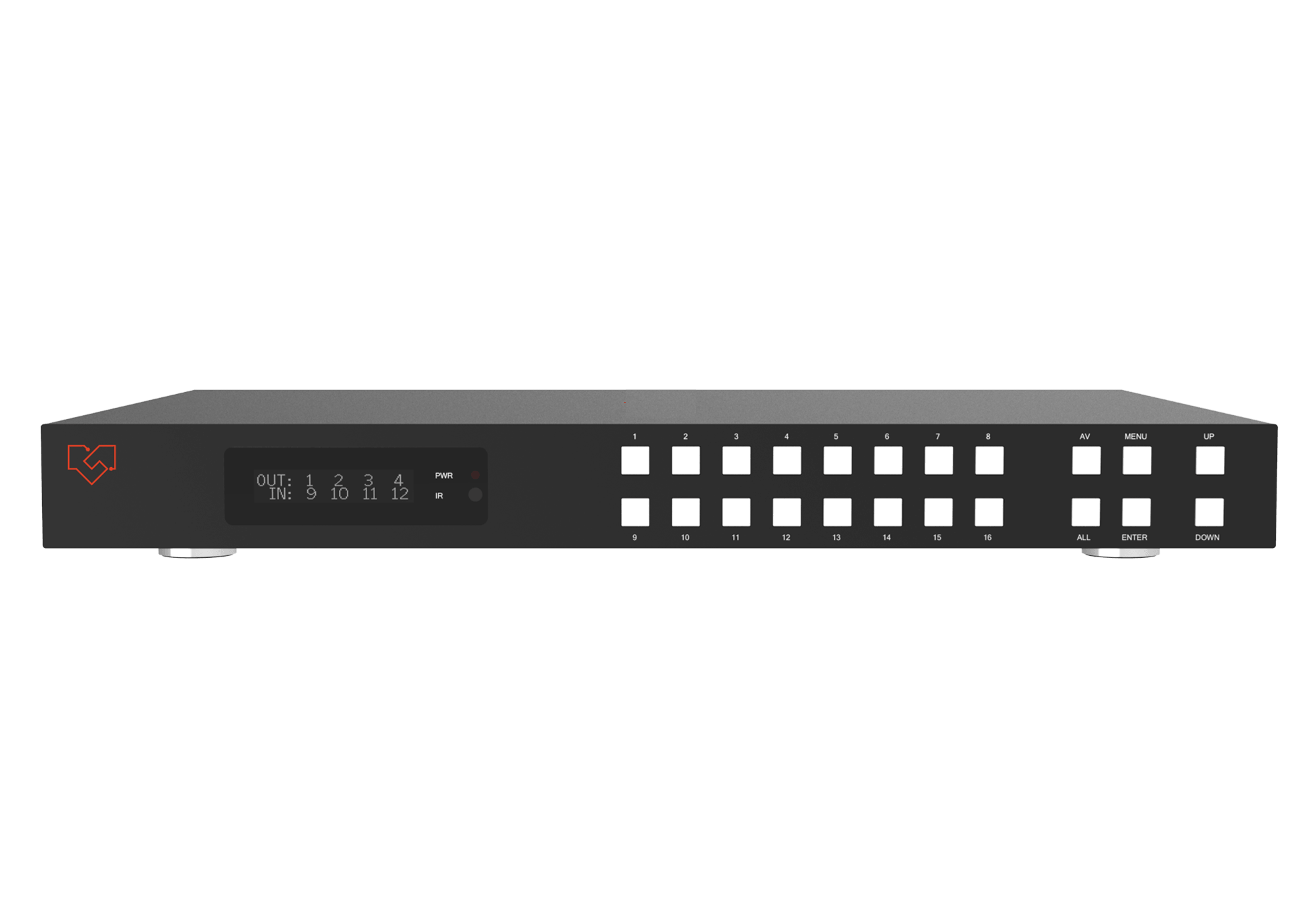

1U rack-mount design with front-panel OLED display
Control via front panel, IR remote, RS-232, LAN, and Web GUI

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Specifications


     Technical

     HDMI Compliance
     HDMI 2.0b

     HDCP Compliance
     HDCP 2.2/1.x

     Video Bandwidth
     18Gbps

     Video Resolution
     Up to 4K2K@50/60Hz (4:4:4)

     Color Space
     RGB, YCbCr 4:4:4/4:2:2/4:2:0

     Color Depth
     8-bit, 10-bit, 12-bit

     HDMI Audio Formats (Pass-through)
     LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD,

 DTS-HD Master Audio, Dolby Atmos, DTS:X

     Coax Audio Formats
     LPCM 2.0, Dolby Digital / Plus, DTS 5.1

     HDR formats
     HDR10,HDR10+,Dolby Vision, HLG

     ESD Protection
     Human body model — ±8kV (Air-gap discharge)

 & ±4kV (Contact discharge)

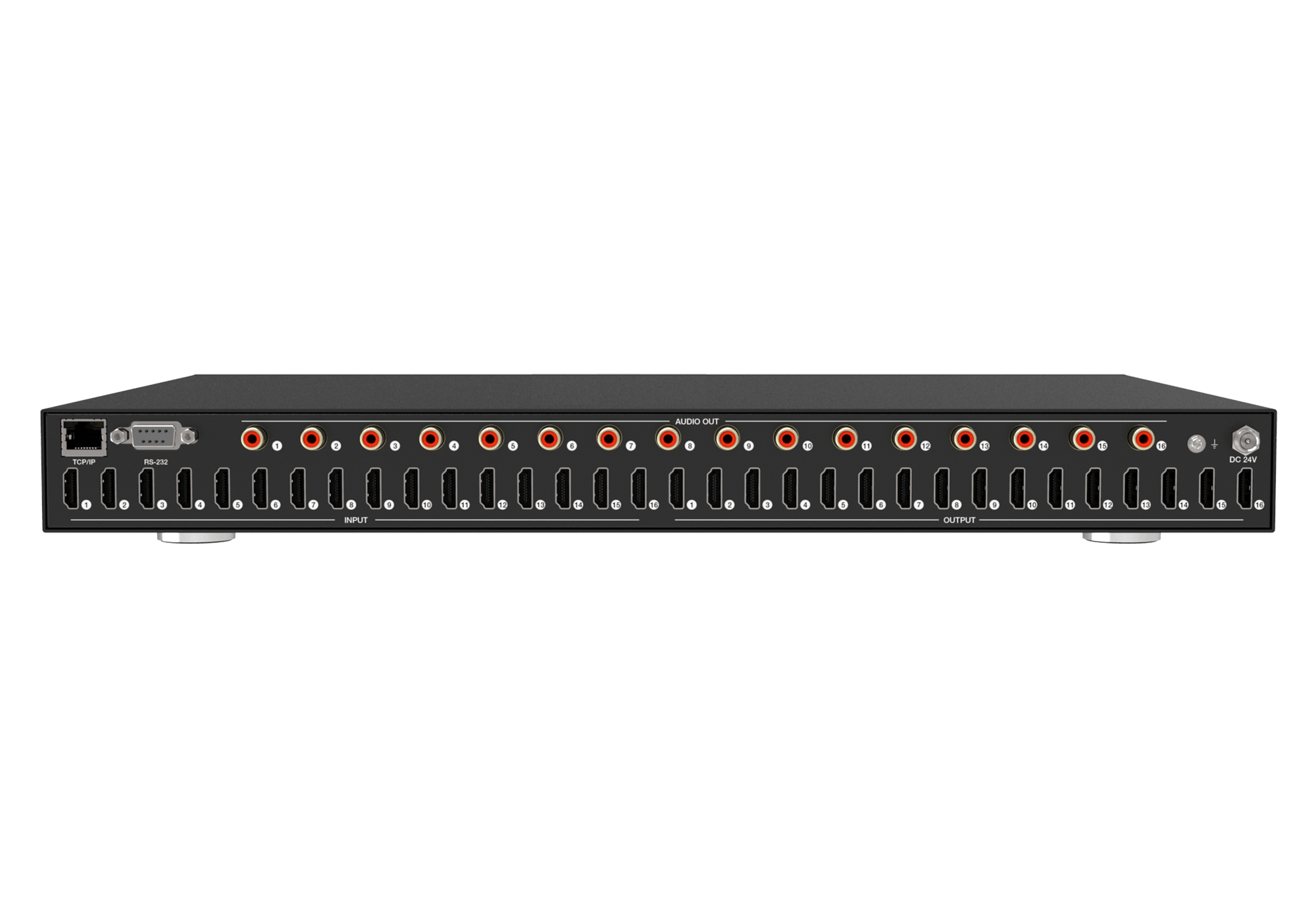

    Connection

     Input Ports
 16×HDMI Type A [19-pin female]

     Output Ports
 16×HDMI Type A [19-pin female]

16×Coax Audio (RCA)

     Control Ports
 1×TCP/IP [RJ45]

 1×RS-232 [D-Sub 9]

     Mechanical

     Housing
     Metal enclosure

     Color
     Black

     Dimensions
     440mm (W)×200mm (D)×44mm (H)

     Weight
     3.1kg

     Power Supply
     Input: AC 100 - 240V 50/60Hz

Output: DC 24V/3.75A

 (US/EU standards, CE/FCC/UL certified)

     Power Consumption
     76.8W

     Operating Temperature
     -10°C ~ 45°C / 14°F ~ 113°F

     Storage Temperature
     -20°C ~ 60°C / -4°F ~ 140°F

     Relative Humidity
     20 - 90% RH (No condensation)

     Resolution /

 Cable Length
     4K60 -

 Feet / Meters
     4K30 -

Feet / Meters
     1080P60 -

Feet / Meters

     HDMI IN / OUT
     16ft / 5M
     32ft / 10M
     50ft / 15M

The use of the “Premium High-Speed HDMI” is highly recommended.
