Basic HDMI Matrix Switchers
About Basic HDMI Matrix Switchers
VigilLink's basic HDMI matrix switchers provide professional any-input-to-any-output 4K routing using standard HDMI connections throughout — no proprietary cabling, no extension hardware, no additional receivers required at each display. The VLMX-series basic matrix line spans three port configurations: the VLMX-0202E in a compact 2x2 footprint, the VLMX-0808E at 8x8 for mid-scale installations, and the VLMX-1616E at 16x16 for large facilities requiring maximum source and display flexibility. All three models operate at full 4K@60Hz 18Gbps HDMI 2.0 bandwidth on every port simultaneously, support HDCP 2.2 for protected content passthrough, and pass HDR10 metadata to connected displays.
Choosing the Right Matrix Switcher

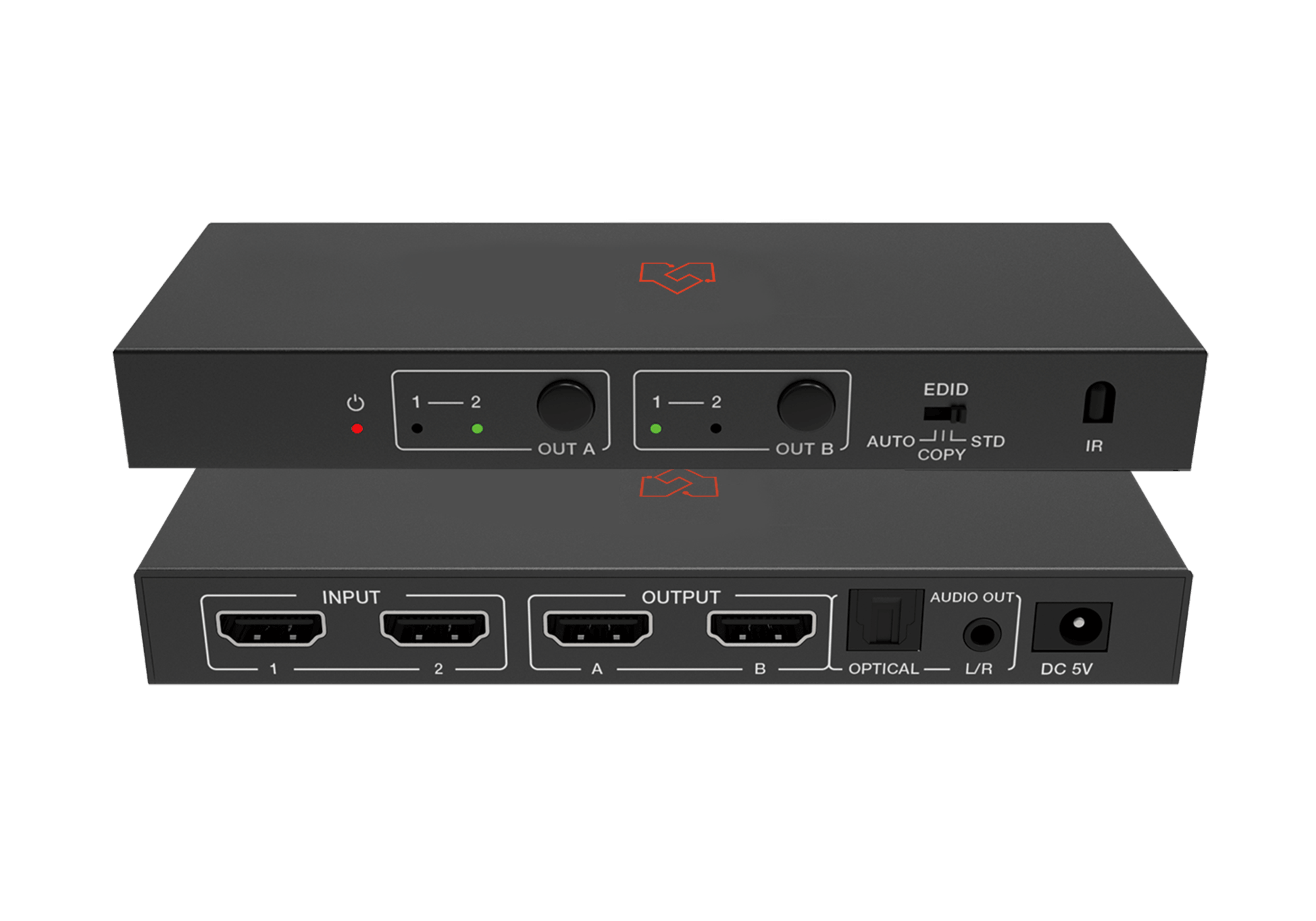

VLMX-0202E — 2x2: Two inputs and two outputs in a compact half-rack or desktop-installable form factor. Choose for small conference rooms, dual-display presentation environments, and any installation where two independent sources must be routable to two displays. The most space-efficient matrix solution for two-source, two-display AV rooms.

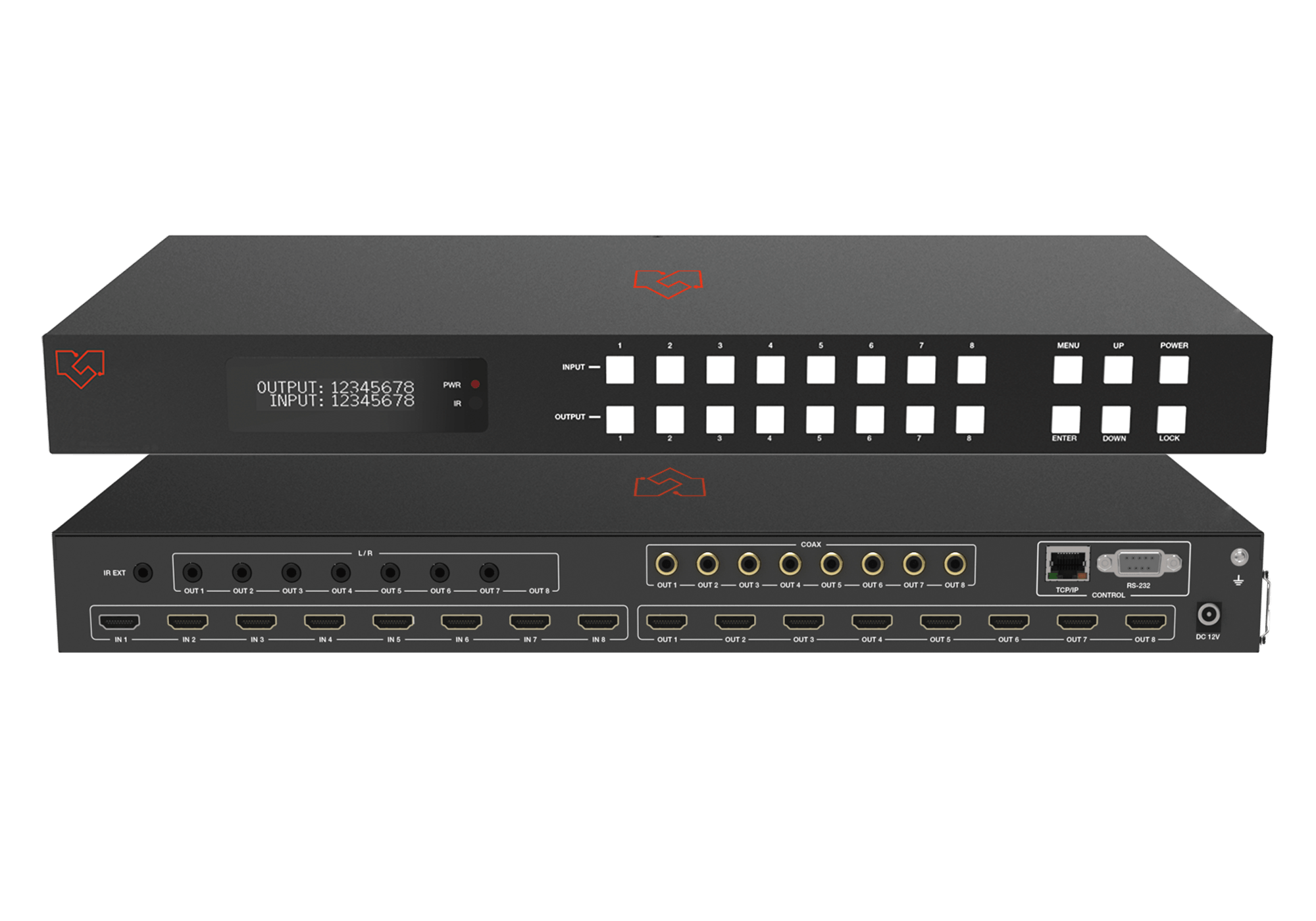

VLMX-0808E — 8x8: Eight inputs and eight outputs in a 1U rack-mount chassis. The practical standard for mid-scale conference centers, training facilities, and broadcast monitor walls. Accommodates up to eight independent source feeds routable to up to eight display destinations simultaneously, with any-to-any routing and multi-output mirroring.
VLMX-1616E — 16x16: Sixteen inputs and sixteen outputs in a 2U rack-mount chassis. The maximum-capacity basic matrix for large corporate campuses, broadcast control rooms, large venues, and any facility requiring centralized routing of a large source library across many display destinations.
Frequently Asked Questions
What is the difference between the VLMX-0202E, VLMX-0808E, and VLMX-1616E? The three models differ in port count only. The VLMX-0202E provides 2 inputs and 2 outputs; the VLMX-0808E provides 8 inputs and 8 outputs; the VLMX-1616E provides 16 inputs and 16 outputs. All three operate at identical 4K 18Gbps HDMI 2.0 bandwidth, support HDCP 2.2, HDR10, and the same multi-protocol control suite. Select by counting your maximum simultaneous source and display count, then choose the tier that covers both with growth headroom.
Do these matrix switchers support 4K@60Hz on all outputs simultaneously? Yes. All VigilLink basic HDMI matrix switchers maintain full 4K@60Hz 18Gbps bandwidth on every active output simultaneously. Bandwidth is not shared across ports — each output operates at the full HDMI 2.0 specification regardless of how many outputs are active or how many inputs are being routed at the same time.
What control systems are compatible with VigilLink basic HDMI matrix switchers? All VLMX-series basic matrix models include RS-232 and TCP/IP control interfaces with published command sets, making them compatible with Crestron, AMX, Extron, Savant, Control4, VigilLynx™, and any other control system that supports RS-232 or Ethernet-based device control. Front panel buttons and IR remote control are also included for manual operation and testing.
Can I route one source to all outputs at the same time? Yes. Any input can be assigned to all outputs simultaneously — this is standard matrix behavior. You can also mirror a source to any subset of outputs while other inputs are routed to the remaining outputs independently. Routing changes take effect immediately without interrupting other active routes.
Do these switchers pass HDR10 and Dolby Vision? VLMX-series basic matrix switchers pass HDR10 metadata intact from source to display. HDR10 compatibility is confirmed across the product line. For Dolby Vision passthrough, verify the specific model's datasheet, as Dolby Vision support may vary by firmware and source device behavior. HDCP 2.2 is required for all 4K HDR protected content and is supported on all VLMX basic matrix models.
What is the maximum HDMI cable length for these matrix switchers? Standard passive HDMI cable performance varies by cable quality and signal bandwidth. For 4K@60Hz 18Gbps signals, reliable passive HDMI cable distances are typically 3–5 meters. Active HDMI cables and HDMI signal boosters can extend this range. For installations requiring longer distances — 10 meters or more — VigilLink's HDBaseT extension matrix models (VLMX-44HT2, VLMX-88HT2) deliver 4K over Cat6 to 150m per output without signal loss.
Is there a 4x4 basic HDMI matrix in the VigilLink lineup? The basic matrix family currently includes 2x2, 8x8, and 16x16 configurations. For 4x4 routing requirements, VigilLink's HDBaseT extension matrix (VLMX-44HT2) provides 4x4 switching with integrated 150m Cat6 extension, and the downscaling matrix models (VLMX-0404, VLMX-0404E) provide 4x4 switching with per-output 4K-to-1080p downscaling. Contact VigilLink to confirm current lineup availability for your specific requirement.
Are these matrix switchers compatible with HDMI 1.4 sources and displays? Yes. HDMI 2.0 is backward compatible with HDMI 1.4. HDMI 1.4 sources (1080p, 1080i, 720p, or 4K@30Hz) will operate correctly through VLMX-series matrix switchers, and HDMI 2.0 sources connected to HDMI 1.4 displays will negotiate to the highest mutually supported resolution automatically. The matrix does not require all connected devices to operate at the same resolution.
