VLMX-0202E

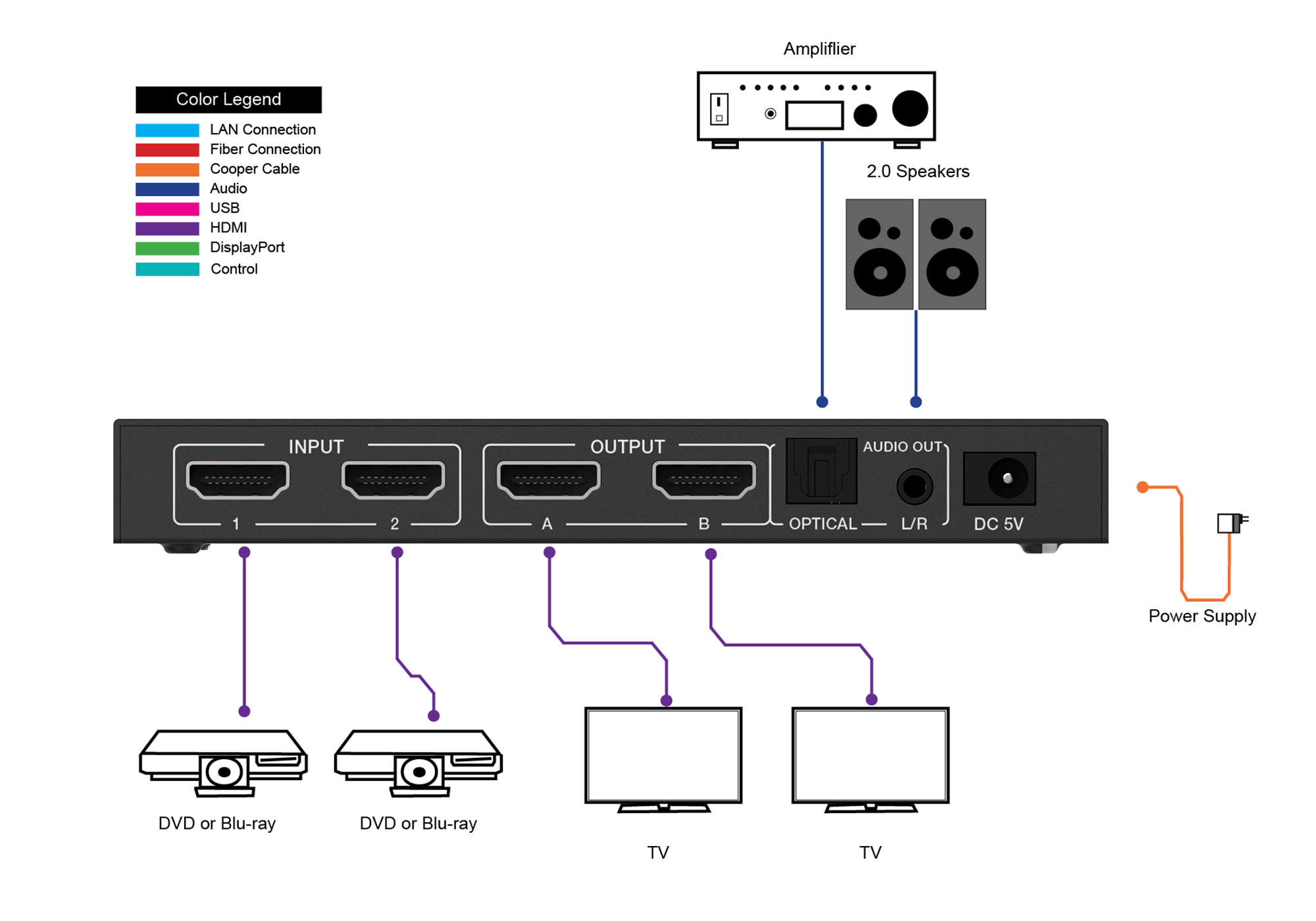

2x2 HDMI 2.0 matrix switcher routing two HDMI sources to two displays independently
18Gbps (594MHz) bandwidth, up to 4K@60Hz 4:4:4, with HDR, HDR10+, HLG, and Dolby Vision support
Digital (optical) and analog audio de-embedding from Output A, with optical pass-through up to Dolby TrueHD and DTS-HD
Three EDID modes (Auto, Copy, STD) via front-panel selector, with control by panel buttons and IR remote

Product Description

The VigilLink VLMX-0202E is an 18Gbps 2x2 HDMI matrix switcher designed to route high-resolution video from two HDMI sources to two HDMI displays simultaneously. Supporting video resolutions up to 4K2K@60Hz (YCbCr 4:4:4), it ensures exceptional signal clarity and flexibility for a wide range of AV environments.

This matrix switcher features integrated audio extraction from Output A, with both optical and analog outputs available for external audio integration. With three selectable EDID modes: AUTO, COPY, and STD, it ensures seamless communication between connected devices, optimizing compatibility and performance.

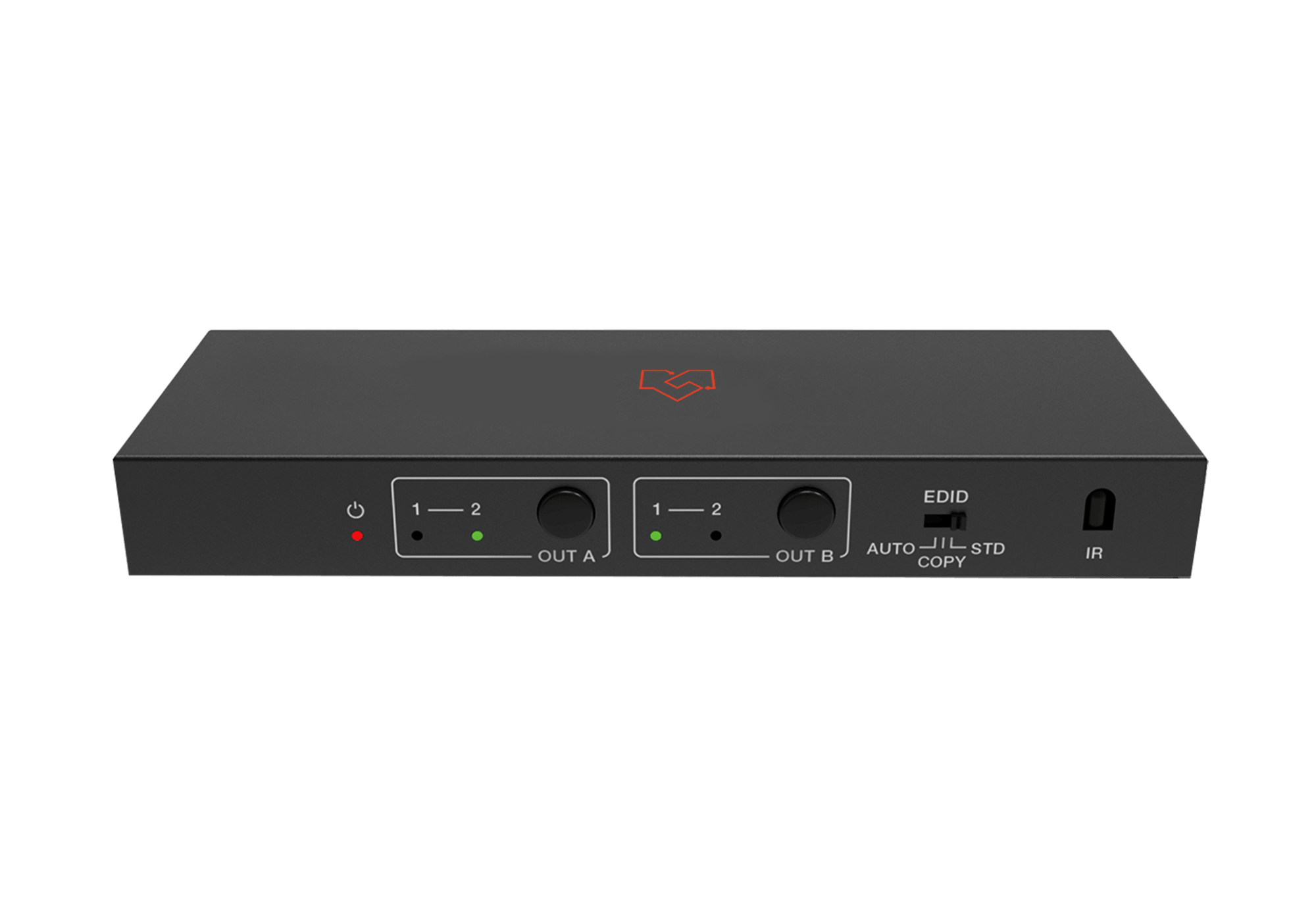

User-friendly control is provided via front-panel buttons and an IR remote, with LED indicators that display active input/output status. The VLMX-0202E is an ideal solution for conference rooms, classrooms, digital signage, and home AV systems requiring efficient and reliable HDMI routing.

Key Features

HDCP 2.2/1.x and DVI 1.0 compliant
Supports 18Gbps video bandwidth
Video resolution up to 4K2K@50/60Hz 4:4:4
Digital and analog audio de-embedding from Output A
EDID selectable via front-panel selector: Auto, Copy, and STD modes
Analog audio PCM 2.0 output
Optical audio pass-through:
LPCM 2.0/2.1CH, Dolby 5.1, Dolby TrueHD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HD MA 5.1, DTS HD-HRA 5.1
HDR support
Control via front-panel buttons and IR remote

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Specifications


     Technical

     HDCP Compliance
     HDCP 2.2 and HDCP 1.x

     DVI Compliance
     DVI 1.0

     Video Bandwidth
     594MHz / 18Gbps

     HDMI Video Resolution
     Up to 4K2K@50/60Hz YCbCr 4:4:4

     High Dynamic Range
     HDR, HDR 10+, HLD, DOLBY VISION

     Color Space
     RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

     Color Depth
     8-bit, 10-bit, 12-bit

     HDMI Audio Formats
     PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD

     L/R Audio Formats
     Analog stereo PCM 2.0

     Optical Audio Formats
     LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6,

  DTS-HDMA 5.1, DTS HD-HRA 5.1

     ESD Protection
     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

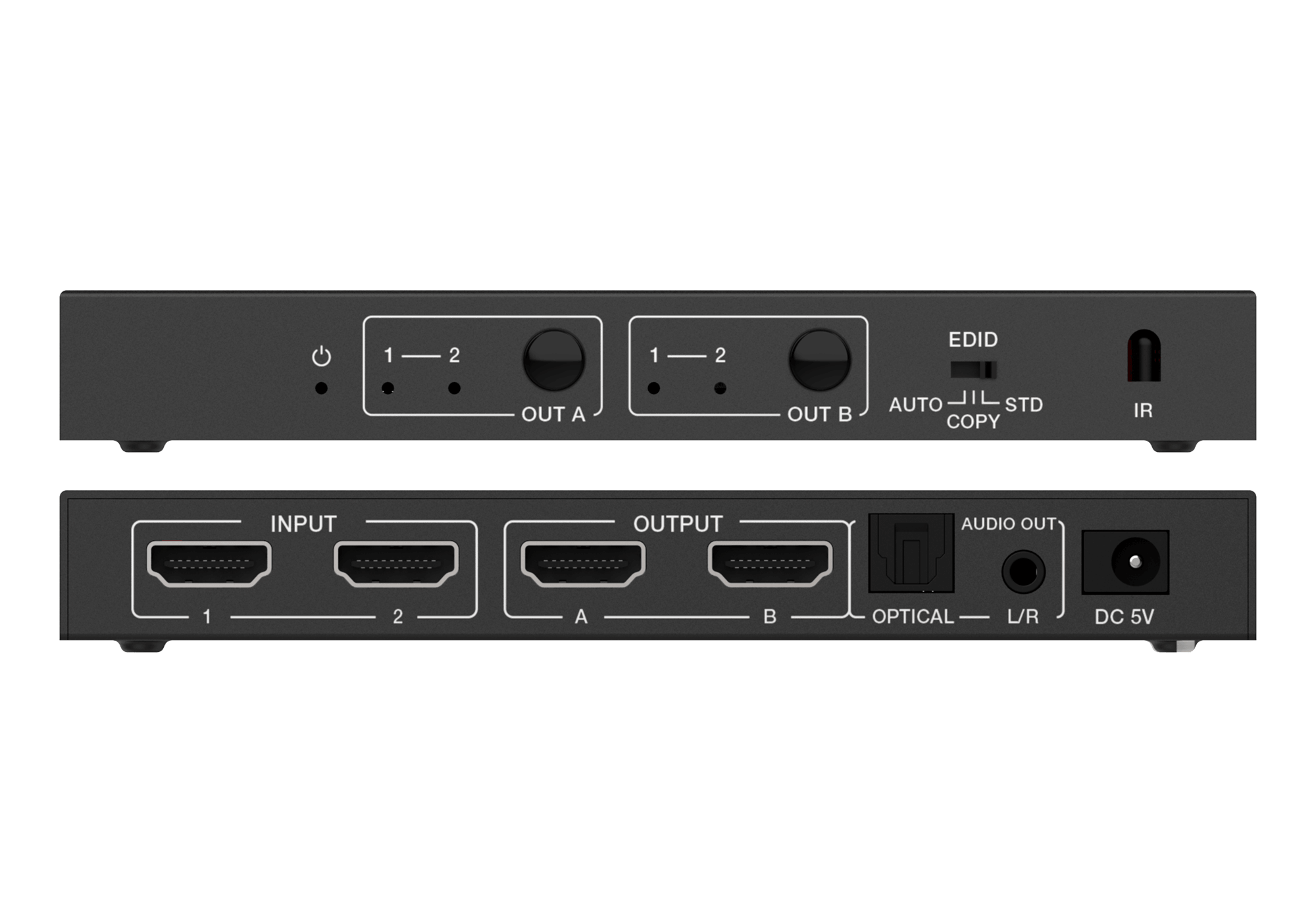

     Connection

    Input ports
     2×HDMI Type A [19-pin female]

 1×IR Receiver Window

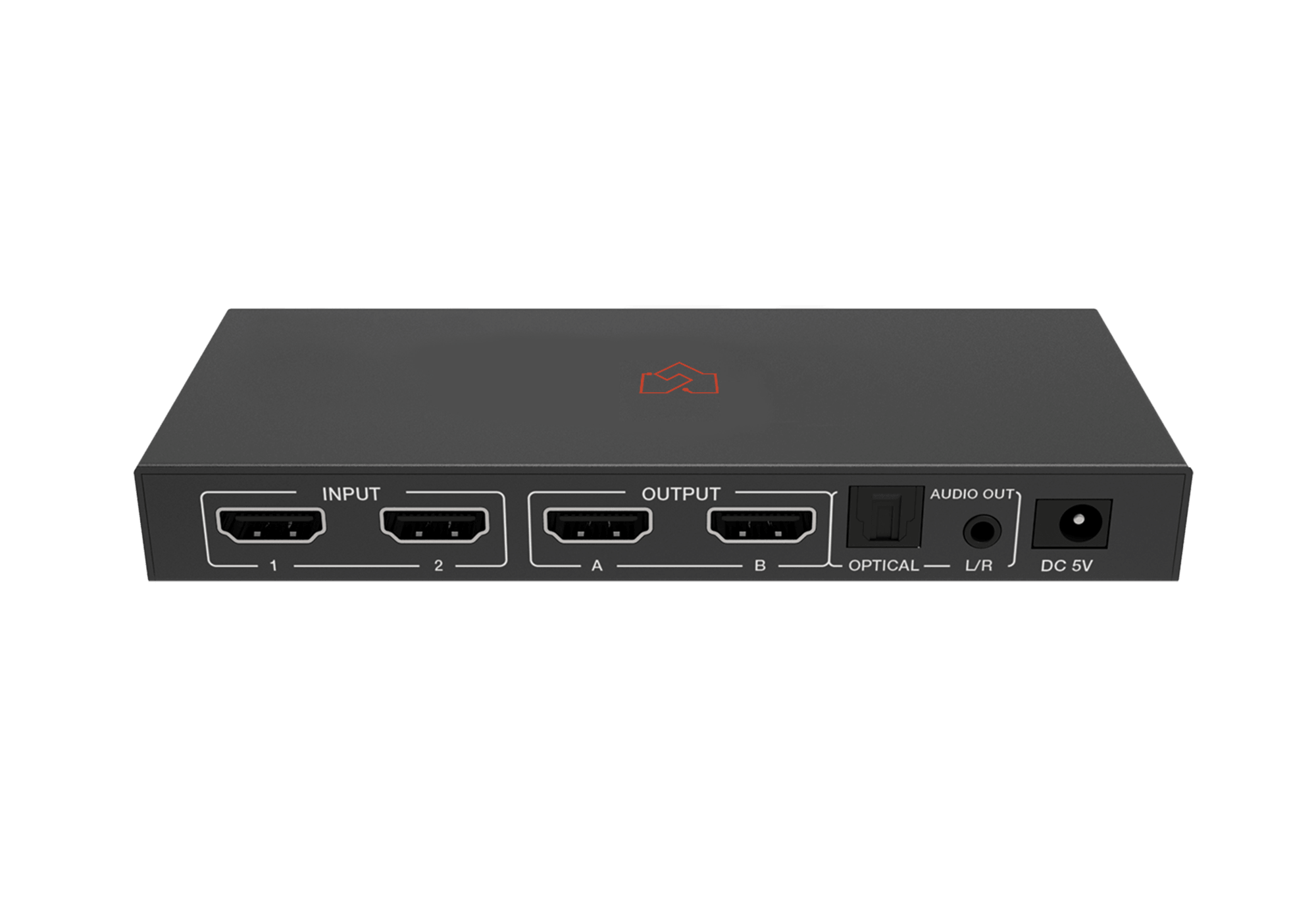

    Output ports
     2×HDMI Type A [19-pin female]

 1×L/R [3.5mm Stereo Mini-jack]

  1×OPTICAL OUT [Optical jack]

     Mechanical

     Housing
     Metal Enclosure

     Color
     Black

     Dimensions
     144mm (W)×59.5mm (D)×18mm (H)

     Weight
     208g

     Power Supply
     Input: AC100~240V 50/60Hz

 Output: DC5V/1A

     Power Consumption
     2.7W

     Operating Temperature
      0°C ~ 40°C / 32°F ~ 104°F

     Storage Temperature
     -20°C ~ 60°C / -4°F ~ 140°F

     Relative Humidity
     20 - 90% RH (No condensation)
