4x2 HDMI 2.0 Matrix with output 4K to 1080p down scaling 18Gbps
VLMX-0402
4x2 HDMI 2.0 matrix switcher routing any of four sources to two displays, up to 4K@60Hz 4:4:4 (18Gbps)
Independent 4K-to-1080p downscaling on both outputs for mixed-resolution displays
Audio de-embedding from Output A or B to optical and analog L/R outputs, with ARC support
HDR10+, HLG, and Dolby Vision support, three EDID modes (Auto, Copy, STD), and control via front panel and IR remote
Product Description
The VLMX-0402 is a high-performance HDMI matrix switcher that allows any of four HDMI sources to be routed to two HDMI displays. It supports resolutions up to 4K2K at 60Hz with YCbCr 4:4:4 color sampling and HDCP 2.2 compliance.
This matrix switcher can extract audio from HDMI source devices to both optical and analog L/R outputs. It also features a 4K-to-1080p downscale function for compatibility with displays that support up to 1080p resolution.
Additional supported features include ARC and EDID management (AUTO, COPY, STD). With an 18Gbps bandwidth and compliance with the latest HDMI standards, the VLMX-0402 provides flexible control options via front panel buttons and IR remote, making it ideal for professional AV installations.
Key Features
HDMI 2.0, HDCP 2.2/1.4, and DVI 1.0 compliant
4 HDMI inputs and 2 HDMI outputs
Video resolution up to 4K2K@60Hz YCbCr 4:4:4
18Gbps uncompressed bandwidth on all HDMI ports
Dolby Vision, HDR10+, and HLG support
Audio de-embedding from Output A or B source to optical and analog L/R outputs
Output A and B support 4K-to-1080p downscaling
ARC (Audio Return Channel) support
Advanced EDID management: Auto, Copy, and STD modes

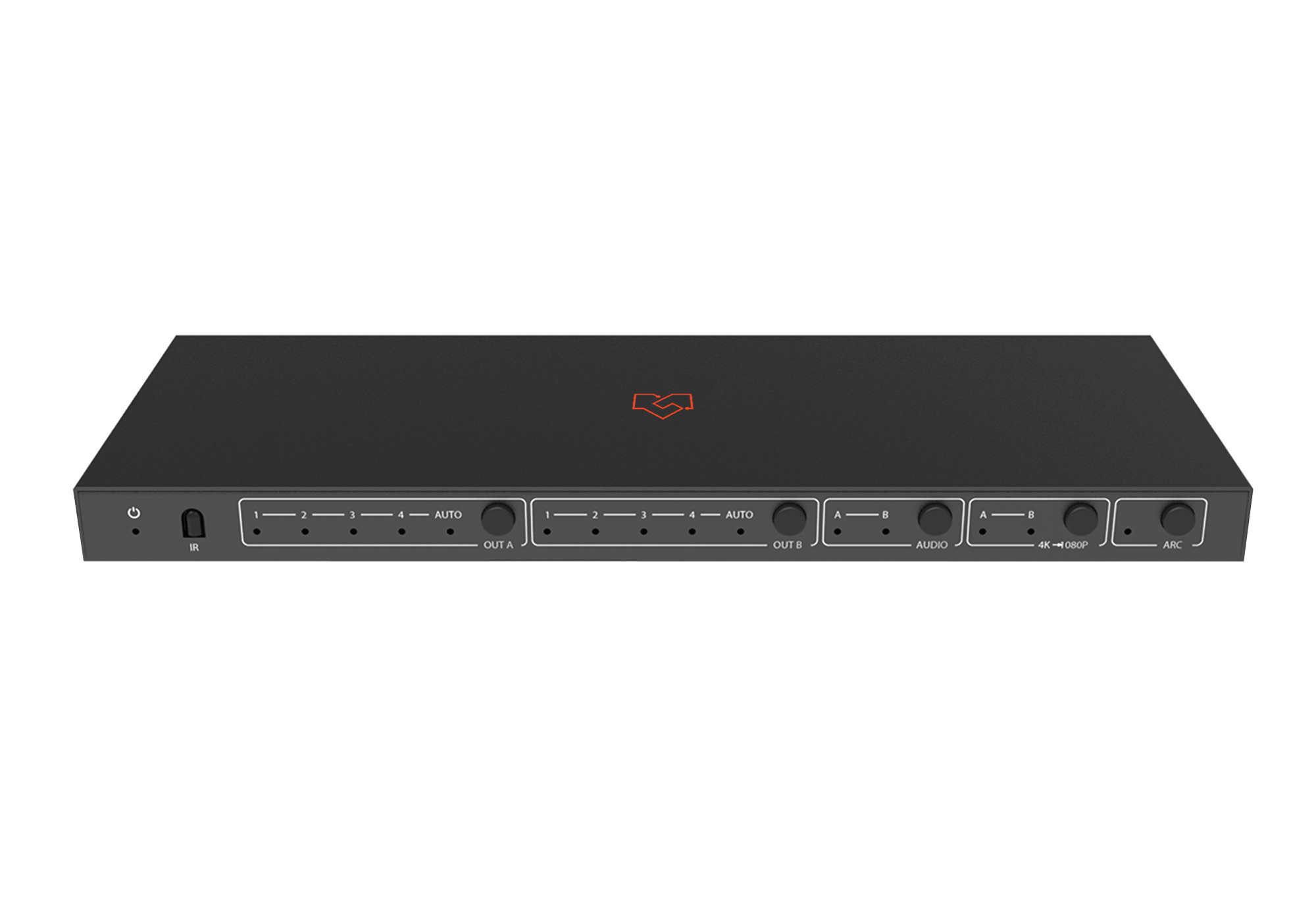

Control via front panel buttons and IR remote
Downloads
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@50/60Hz(YCbCr 4:4:4),4K2K@30Hz.All HDMI 3D TV format, etc. |
| Color Space | RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr4:4:4)] |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Optical Audio Formats | PCM2.0, Dolby Digital / Plus, DTS |
| L/R Audio Formats | PCM2.0CH (Note: If the ARC function is turned on, the audio port will mute.) |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

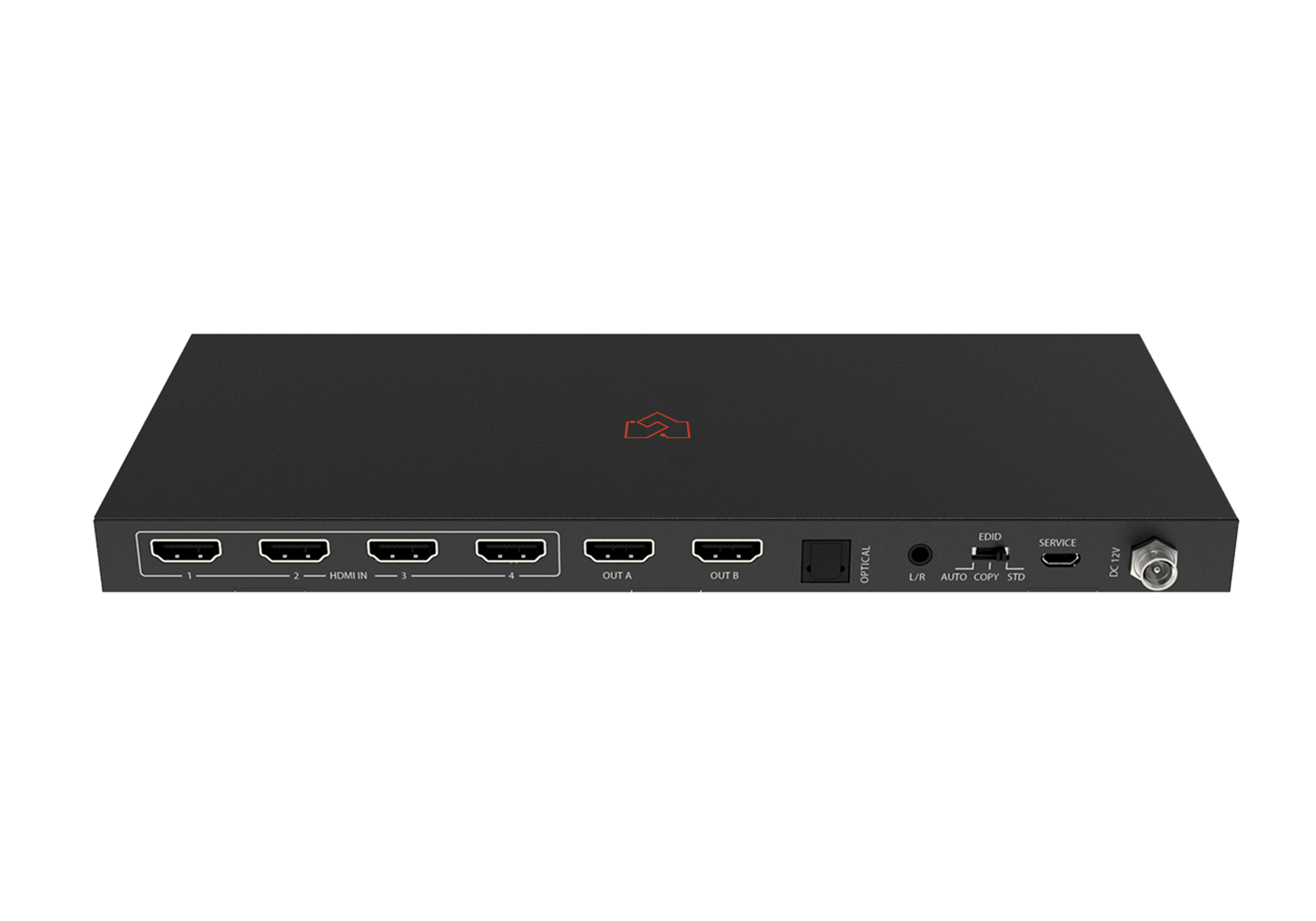

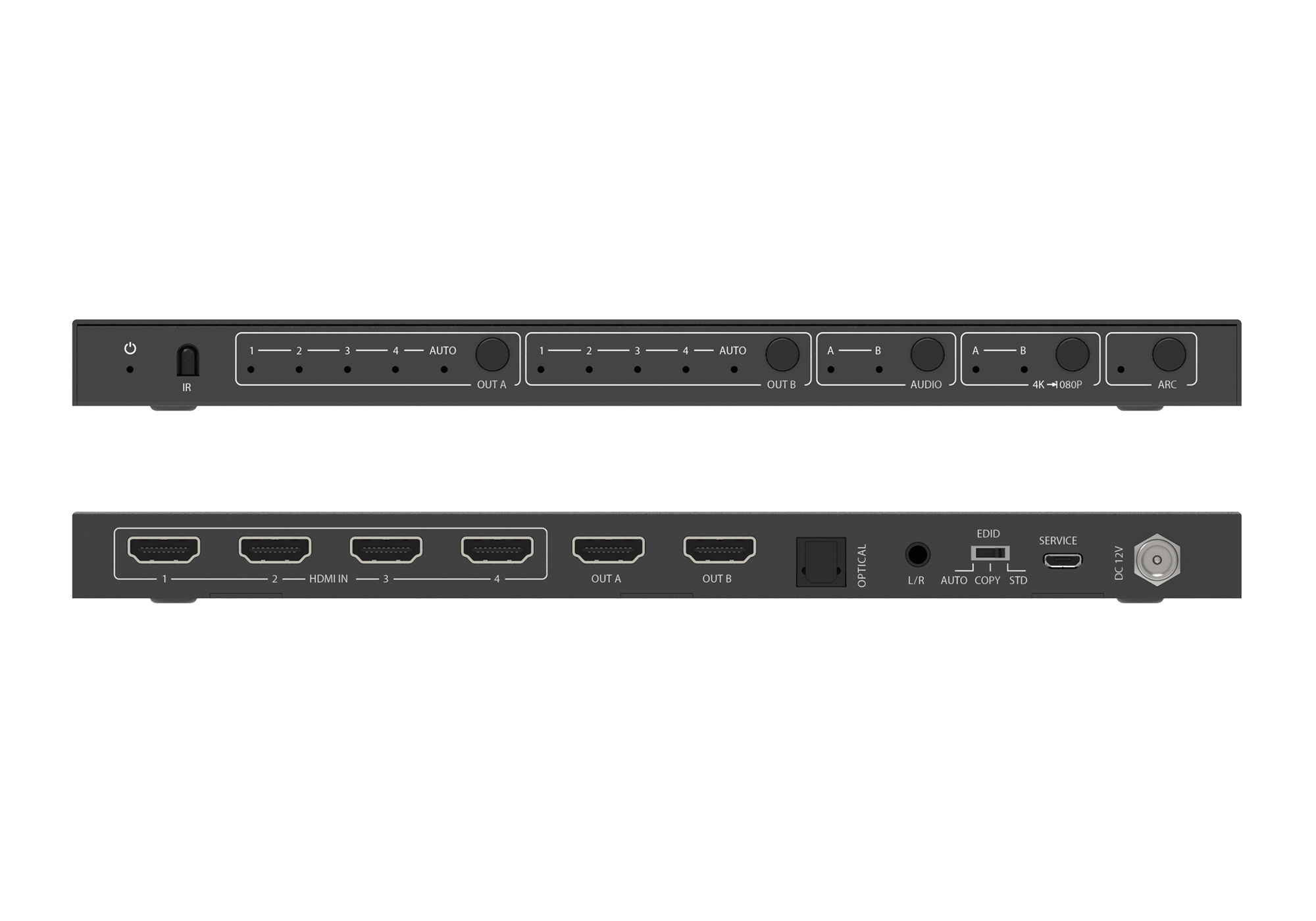

| Inputs | 4×HDMI Type A [19-pin female] |
| Outputs | 2×HDMI Type A [19-pin female] 1×L/R audio out [3.5mm Stereo Mini-jack] 1×OPTICAL audio out [S/PDIF] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 251mm(W)×105mm(D)×20mm(H) |
| Weight | 620g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC12V/1A |
| Power Consumption | 3.8W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
