HDBaseT 2.0 4K@60Hz 4:4:4 HDMI 2.0 Extender with USB, 150m 18Gbps

VLEX-HT2150U-TR

  • Extends 4K@60Hz 4:4:4 HDMI 2.0 video at 18Gbps up to 120m, or 1080p up to 150m, over a single CAT6/6A cable

  • USB 2.0 KVM extension for keyboard, mouse, and peripheral control across the run

  • Full HDR support including HDR10, HDR10+, and Dolby Vision pass-through

  • Two-way IR and Power over Cable (PoC) for single-cable control and simplified installation

Where to Buy
Six Year Warranty logo

Product Description

The VigilLink VLEX-HT2150U-TR is an advanced HDBaseT extender designed to deliver uncompressed HDMI, USB KVM, and control signals over long distances using a single CAT6 cable. Supporting full 18Gbps bandwidth and resolutions up to 4K@60Hz (YUV 4:4:4), it ensures pristine image quality and responsive control across extended AV setups.

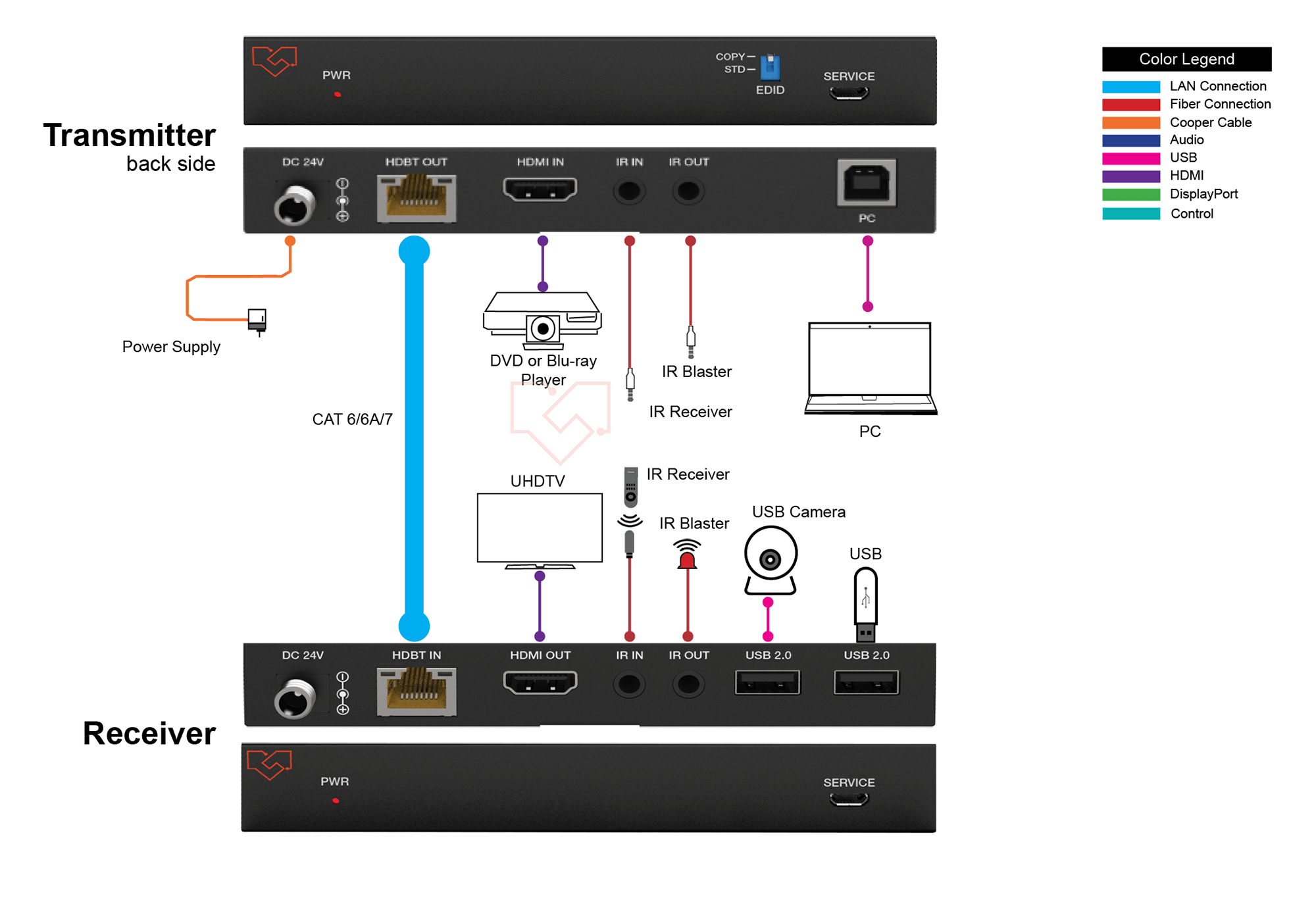

This extender converts HDMI signals into standard HDBaseT format for transmission up to 492 feet (150 meters), while enabling bi-directional IR pass-through for seamless control of either source or display devices. It also supports USB 2.0 transmission for keyboard, mouse, and other peripheral integration, making it ideal for KVM applications. Power over Cable (PoC) functionality simplifies installation by delivering power through the same CAT6 cable, eliminating the need for separate adapters at each end.

Engineered for reliability and ease of use, the VLEX-HT2150U-TR is ideal for video conferencing, HDMI signal distribution, multimedia broadcasting, and professional control environments requiring high-quality AV extension and remote interactivity.

Key Features

  • HDMI 2.0b and HDCP 2.2 compliant

  • Supports up to 4K@60Hz with 24-bit RGB / YCbCr (4:4:4)

  • HDR, HDR10, HDR10+, and Dolby Vision pass-through

  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

  • Extends up to 120m (4K) and 150m (1080p) using CAT6/6A cable

  • Two-way IR transmission

  • USB 2.0 transmission up to 480Mbps

  • EDID management

  • Two-way Power over Cable (PoC)

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.2
Video Bandwidth     18Gbps
Video Resolution     Up to 4K2K@60Hz YUV 4:4:4
USB Compliance     USB 2.0
IR Level     5Vp-p
IR Frequency     Wideband 20K-60KHz
Transmission Distance     1080P@60--150m, 4K60 --120m
Color Space     RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth     8-bit, 10-bit, 12-bit (1080P)

8-bit (4K60)

8-bit, 10-bit, 12-bit (4K24/30)
HDR     HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Format     LPCM 7.1CH, Dolby True HD, and DTS-HD Master
ESD Protection     Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection

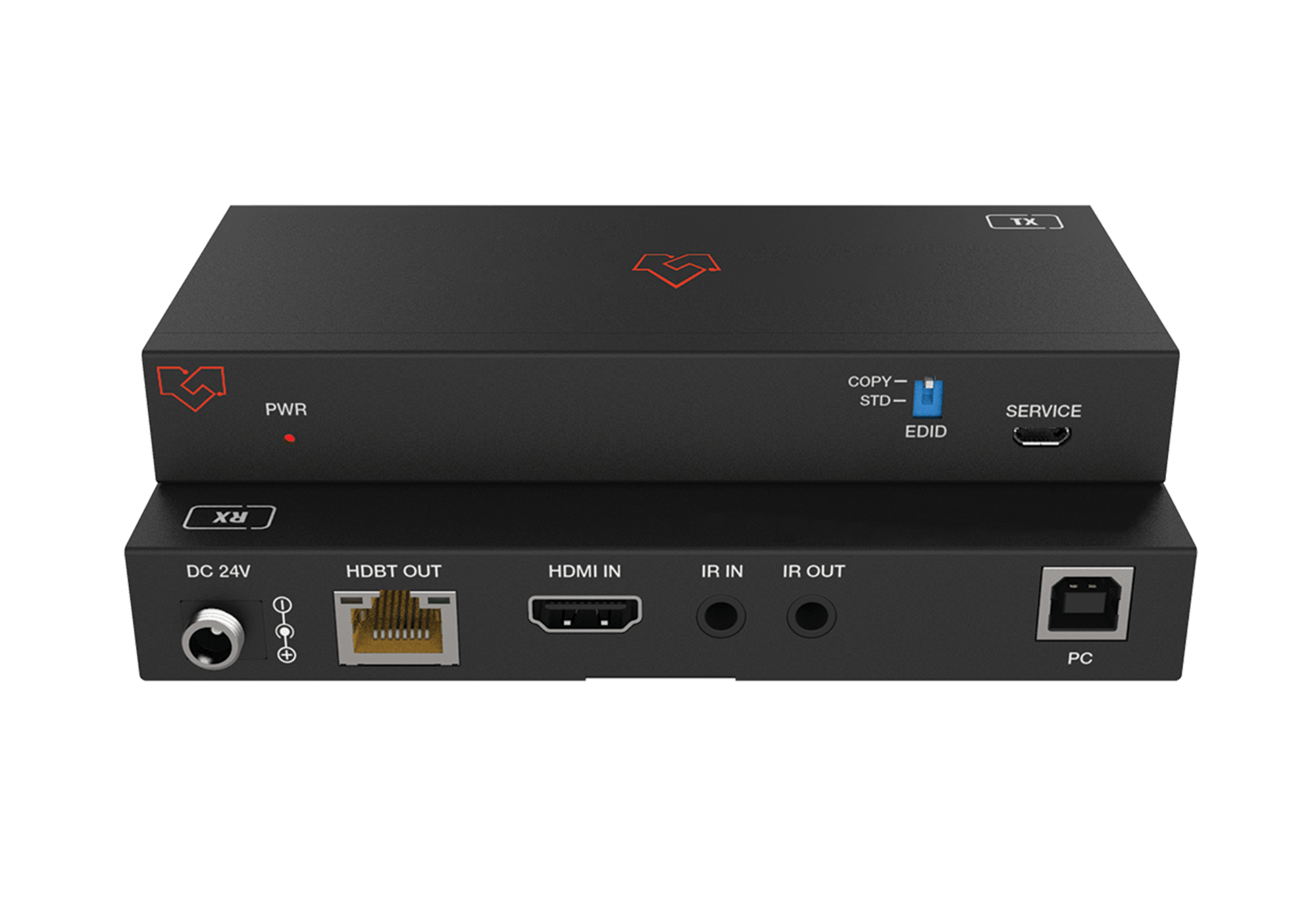

Transmitter         Input:    1× HDMI IN [Type A, 19-pin female]

              1× IR IN [3.5mm Stereo Mini-jack]

              1× SERVICE [Micro-USB jack]

              1× USB [USB-B, 4-pin female]

Output: 1×HDBT OUT [RJ45]

              1×IR OUT [3.5mm Stereo Mini jack]
Receiver         Input:    1× HDBT IN [RJ45 with light]

              1×IR IN [3.5mm Stereo Mini jack]

              1×SERVICE [Micro-USB jack]

Output: 1×HDMI OUT [Type A, 19-pin female]

              1×IR OUT [3.5mm Stereo Mini-jack]

              2×USB 2.0 [USB-A, 4-pin female]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H)
Weight     Transmitter: 245g,

Receiver: 249g
Power Supply     DC 24V/1A;

Support bi-directional POC function
Power Consumption     13.2W (Max.)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
