HDBaseT 1.0 4k@30Hz HDMI 1.4 Extender with IR and RS-232, 70m 10.2Gbps

VLEX-HT2070-TR

  • Extends 4K@30Hz HDMI 1.4 video up to 40m, or 1080p@60Hz up to 70m, over a single Cat5e/6 cable

  • Bi-directional IR pass-through for control of source or display from either end

  • Bi-directional RS-232 pass-through for system integration and remote control

  • Power over Cable (PoC) powers either end from a single 24V supply, under 10W consumption

Where to Buy
Six Year Warranty logo

Product Description

The VigilLink VLEX-HT2070-TR is a high-performance HDMI extender designed to transmit uncompressed HDMI signals over long distances using a single Cat5e or Cat6 cable. Leveraging HDBaseT technology, it delivers reliable signal transmission up to 230 feet (70 meters) to a remote display while maintaining high-definition video and audio quality.

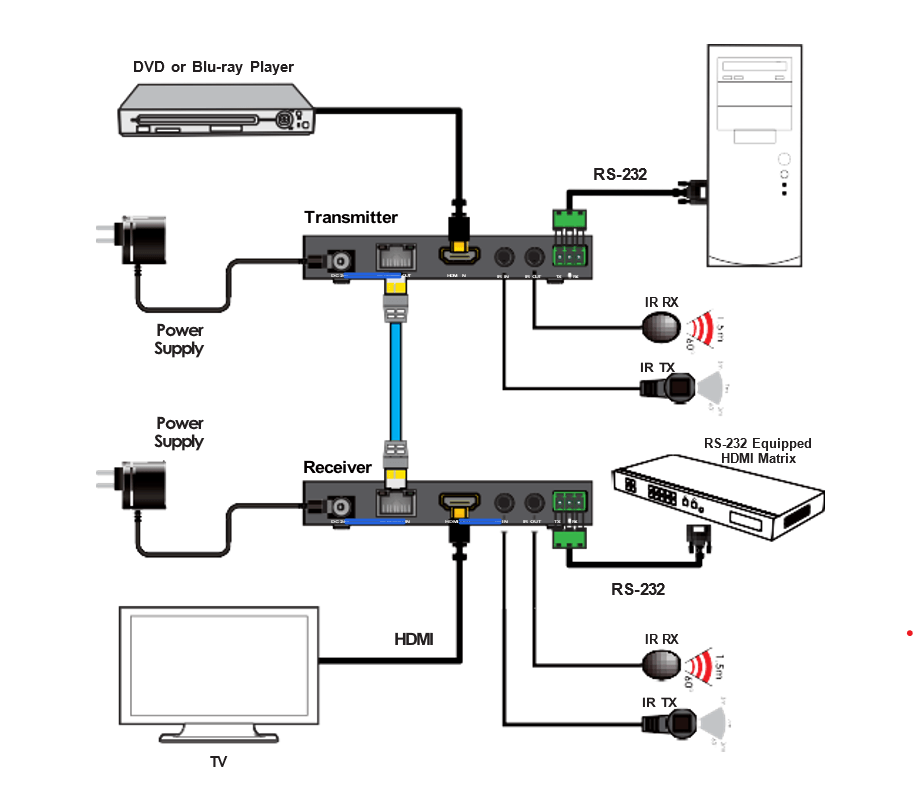

This extender converts HDMI signals into standard HDBaseT for transmission via LAN cable, offering installation flexibility and enhanced range without signal degradation. It supports bidirectional IR pass-through, allowing users to control both source and display devices from either end of the setup, up to the full extension distance.

Ideal for conference rooms, digital signage, classrooms, and residential AV systems, the VLEX-HT2070-TR ensures seamless connectivity and convenient control in any professional AV environment.

Key Features

  • Power over Cable (PoC) supported: power either the transmitter or receiver from a single 24V/1A supply, with the other end drawing no DC power; PoC consumption under 10W

  • Uses a single UTP LAN cable (Cat5e/6) for long-distance HDMI transmission with standard UTP termination

  • Transmission distances over Cat6 cable:

    • 70m: 1080p@60Hz 36-bit; 3D 1080p@30Hz 36-bit

    • 40m: 1080p@60Hz 48-bit; 1080p@120Hz 24-bit; 3D 1080p@60Hz 36-bit; 4K×2K@30Hz 24-bit

  • Supports display resolutions up to 4K×2K@30Hz

  • Full HD support: 1080p@60Hz 48-bit, 1080p@120Hz 24-bit, 3D 1080p@60Hz, and 4K×2K@30Hz 24-bit

  • Bi-directional IR control signal transmitted alongside the HDMI signal

  • Bi-directional RS-232 control signal transmitted alongside the HDMI signal

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
Frequency Bandwidth 297MHz[10.2Gbps]

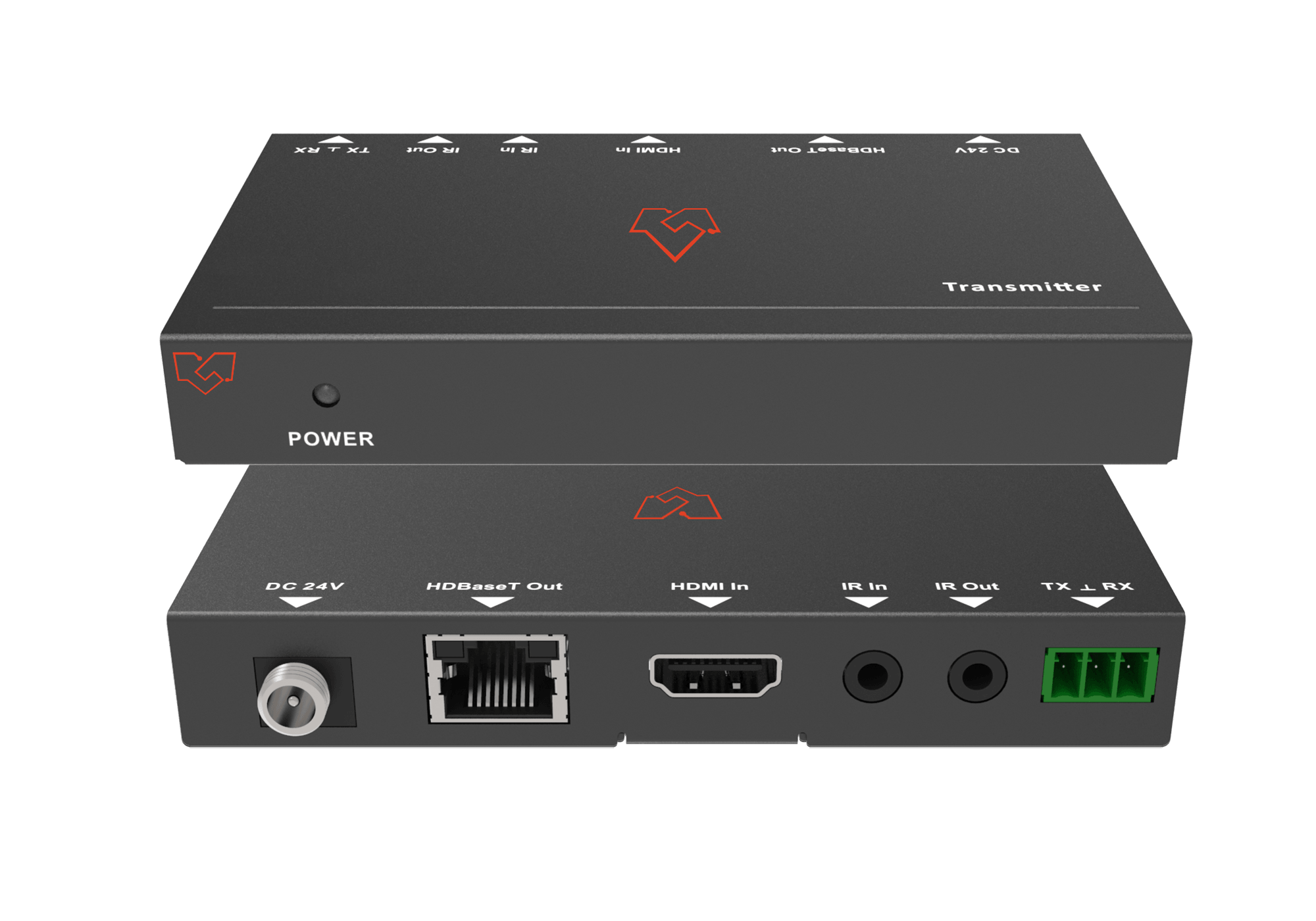

Transmitter Input/Output 1x HDMI Female port/1xCAT6

1x IR Tx/1x IR Rx/1xPhoenix

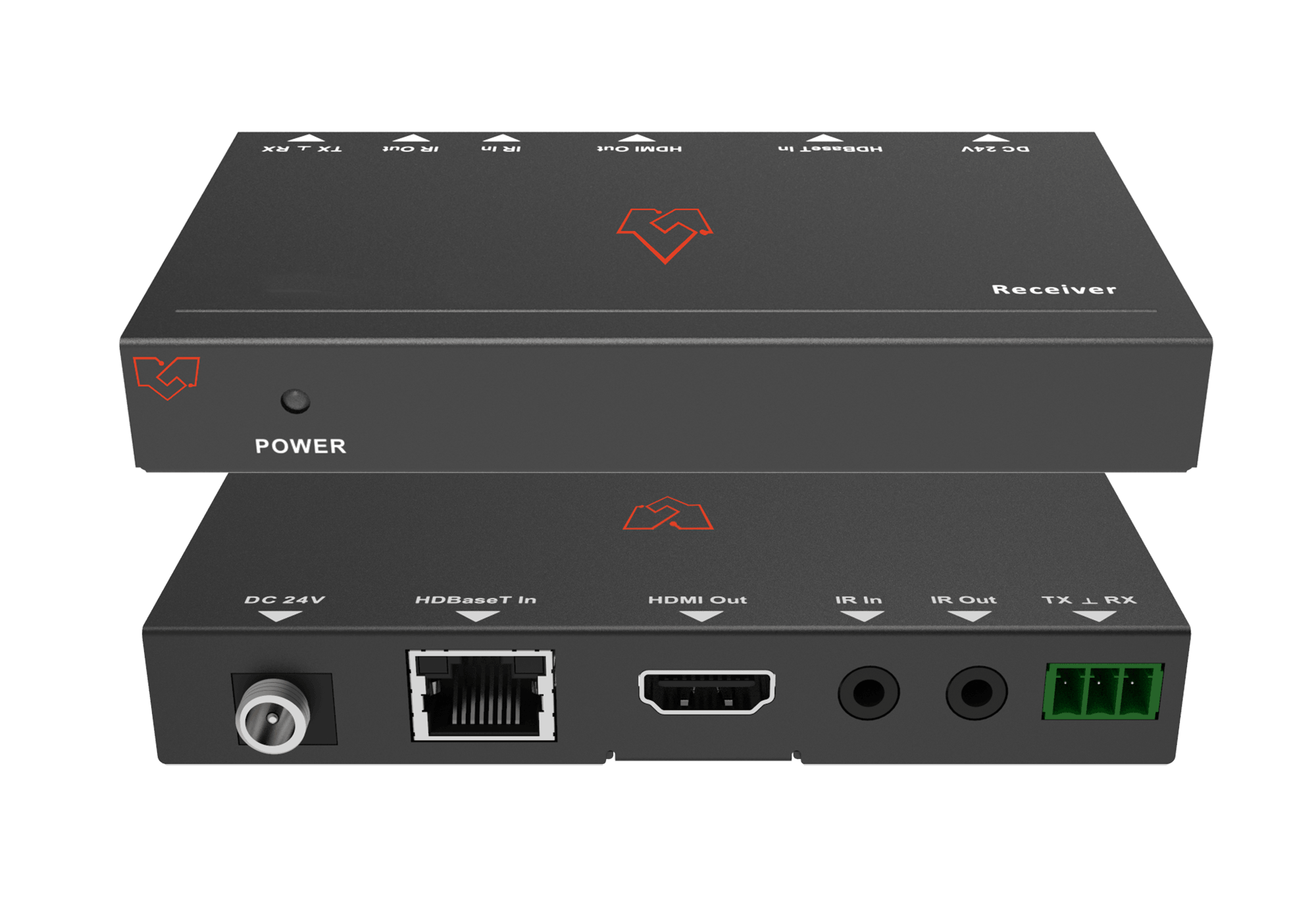

Receiver Input/Output Ports     1xHDMI Female port/1xCAT6

1x IR Tx/1x IR Rx/1xPhoenix
ESD Protection     Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Dimensions     65(W) X 115 (D) X 17 (H)
Weight    200g x 2
Power Consumption     20W (MAX)
Power Supply     DC 24V 1A
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (non-condensing)
