HDBaseT 1.0 1080p HDMI 1.3 Extender, 150m 6.75 Gbps

VLEX-HT2150A-TR

  • Extends 1080p@60Hz 4:4:4 HDMI 1.3 video up to 150m over a single Cat5e/6 cable

  • HDMI loop output on the transmitter for local monitoring alongside the extended run

  • Audio embedding on the transmitter and audio de-embedding on the receiver for flexible sound routing

  • Bi-directional IR, RS-232, and EDID management for full control and display compatibility

Where to Buy
Six Year Warranty logo

Product Description

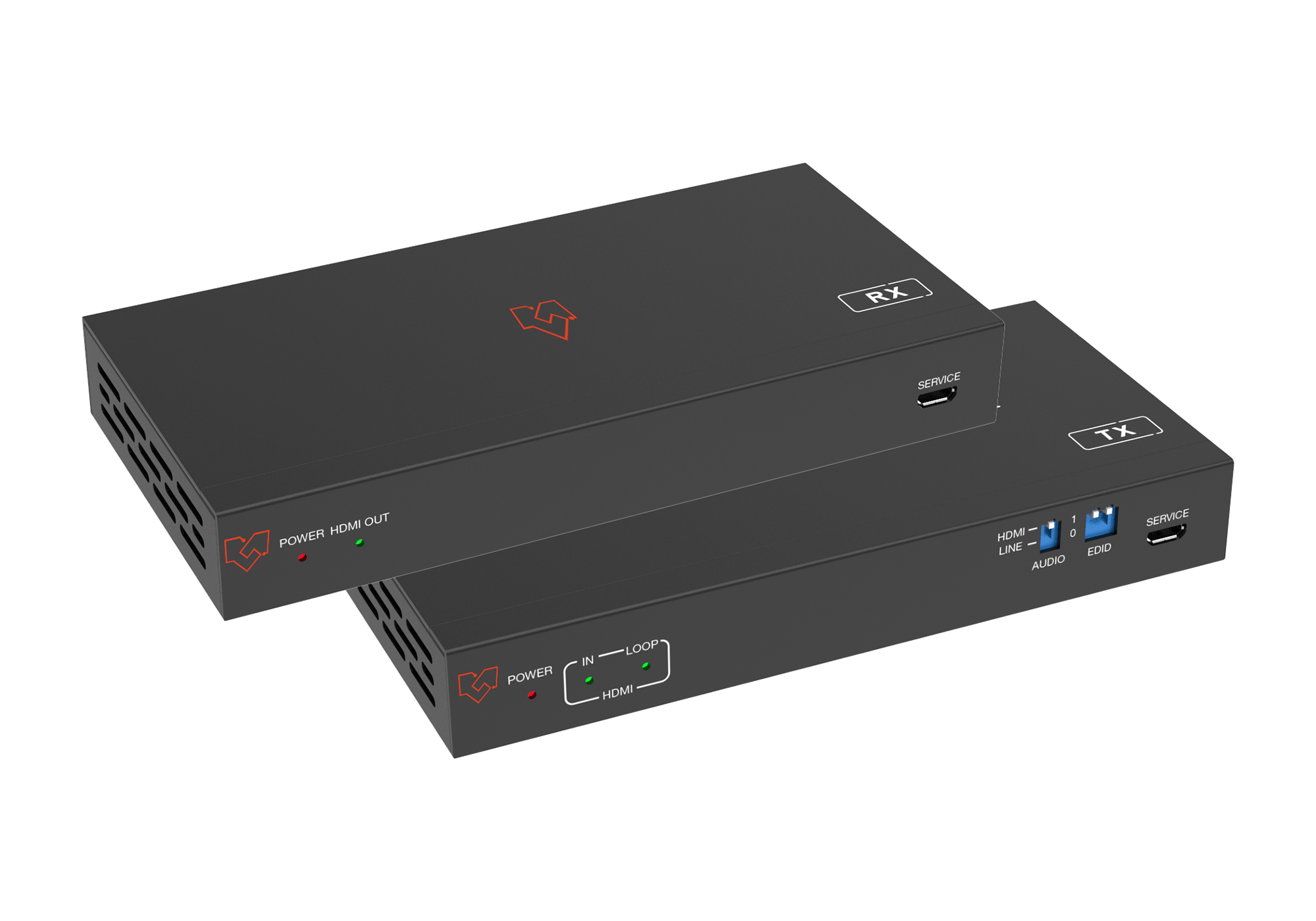

The VigilLink VLEX-HT2150A-TR extend HDMI signals from signal sources to display devices via CAT 5e/6 cable with a distance up to 150m/ 492ft and video resolution up to 1080P@60Hz YUV4:4:4. It supports bi- directional IR control, RS-232 control, EDID management, audio embedment (TX), and audio dis-embedment (RX). The transmitter supports HDMI signal loop out. Equipped with a powerful chip, the extender can continuously deliver stable work for 24 hours with low power consumption. It is easy to use, plug and play, which is widely applied in scenarios such as video conferences, and out-doors big-screen demonstrations.

Key Features

  • HDMI 1.3 and HDCP 1.4 compliant

  • Video resolution up to 1080p@60Hz YUV 4:4:4

  • Extends up to 150m/492ft via a single Cat5e/6 cable

  • Bi-directional IR, RS-232, and EDID management

  • Audio embedding on the transmitter and audio de-embedding on the receiver

  • One HDMI loop output on the transmitter

  • Bi-directional Power over Cable (PoC) function

  • Compact design for easy and flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 1.3
HDCP Compliance     HDCP 1.4
Video Bandwidth     6.75Gbps
Video Resolution     480i ~1080p50/60Hz;

Up to1200P@60Hz
Color Space     RGB, YCbCr 4:4:4 / 4:2:2
Color Depth     8-bit (1080P60Hz)
HDMI Audio Formats     LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Extension Distance     150m/492ft at 1080P@60
Connection

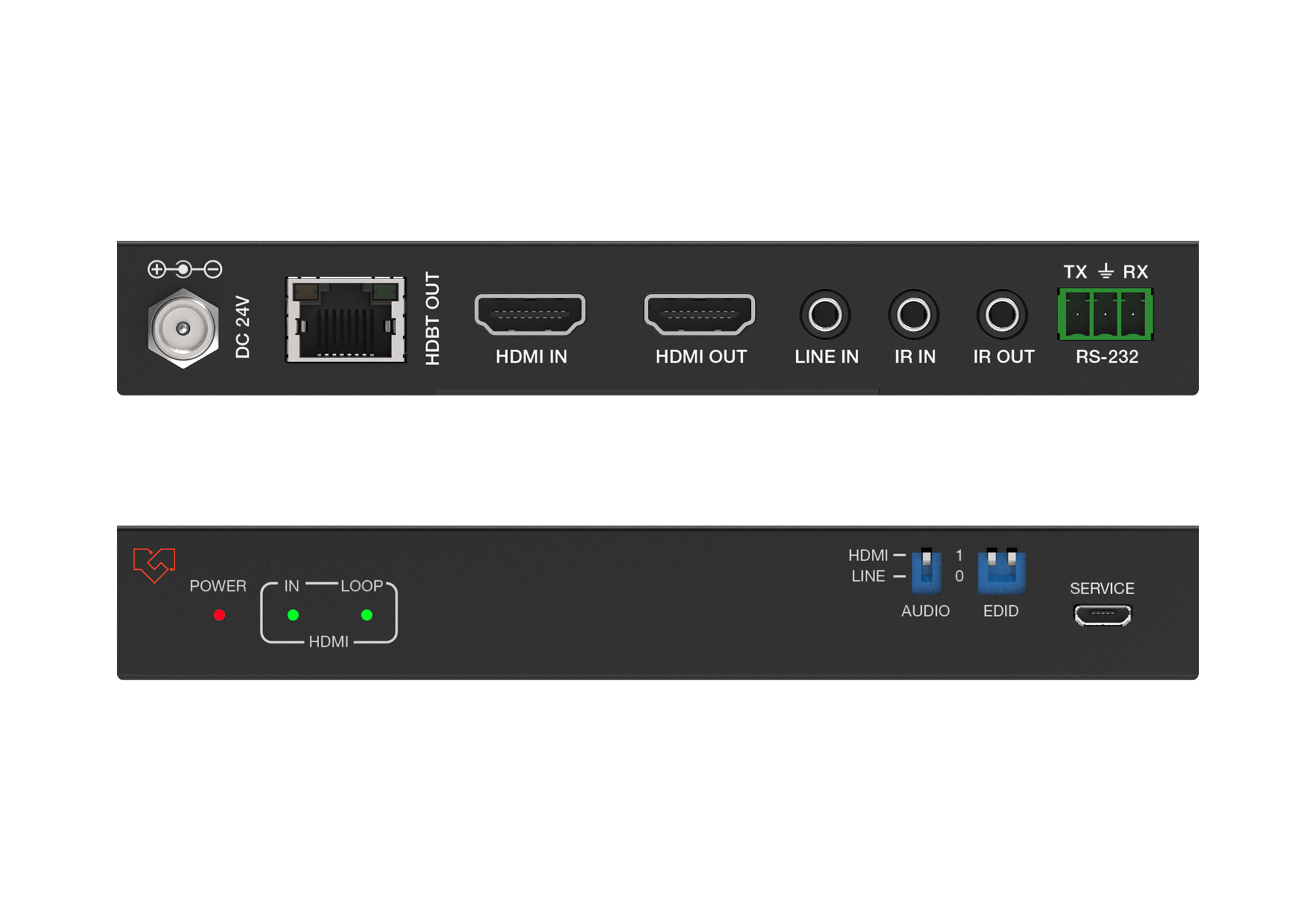

Transmitter         Input:       1×HDMI IN [TypeA 19-pin female]

                 1×LINE IN [3.5mm Stereo Mini-jack]

Output:    1×HDBT OUT [RJ45 8-pin female]

                 1×HDMI OUT [TypeA 19-pin female]

Control:   1×AUDIO DIP Switch [1 pin]

                 1×EDID DIP Switch [2-pin]

                 1×IR IN [3.5mm Stereo Mini-jack]

                 1×IR OUT [3.5mm Stereo Mini-jack]

                 1×RS-232 [Phoenix jack]

                 1×Service [Micro-USB jack]

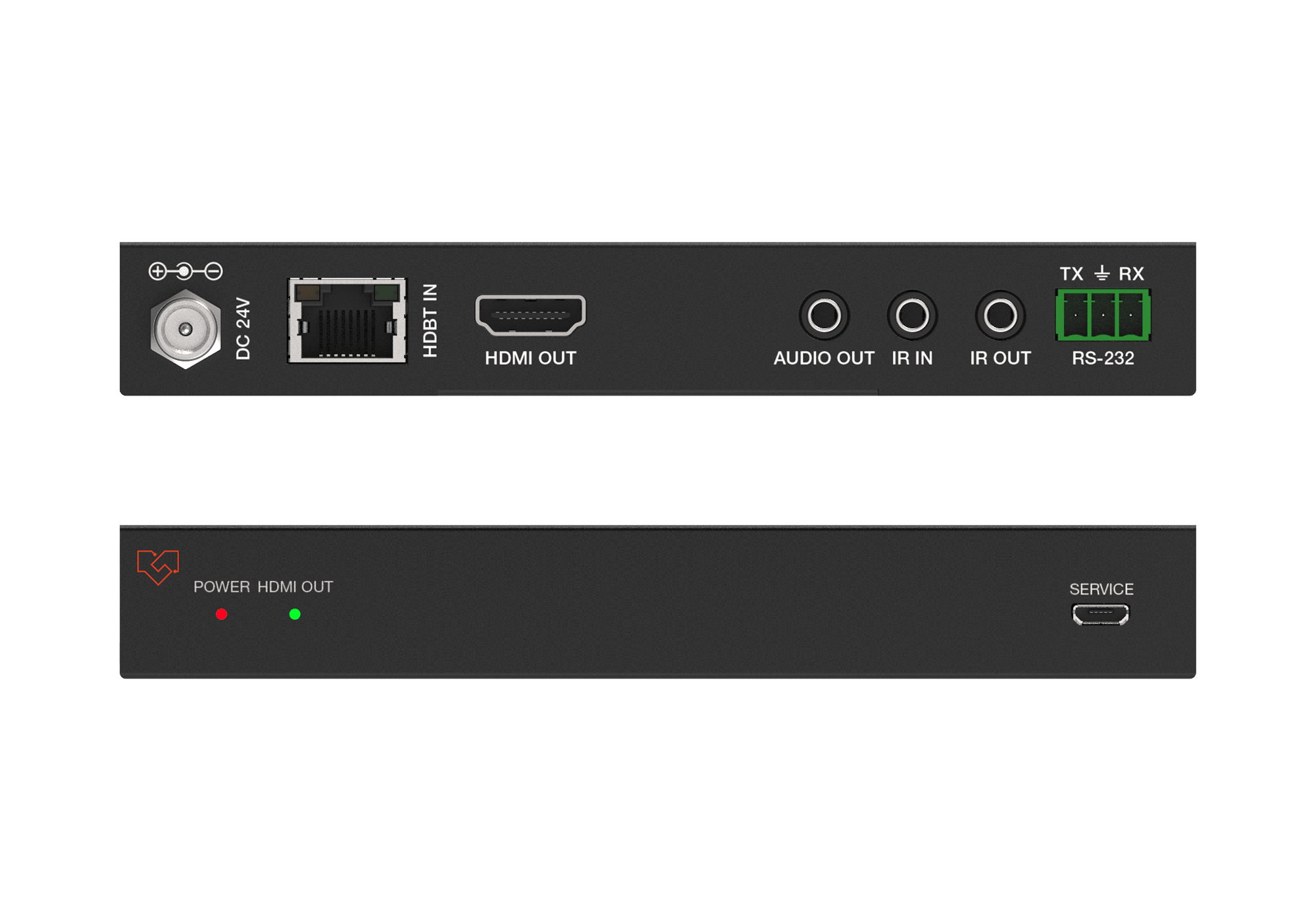

Receiver         Input:       1×HDBT IN [RJ45 8-pin female]

                 1×LINE IN [3.5mm Stereo Mini-jack]

Output:    1×HDMI OUT [TypeA 19-pin female]

                 1×AUDIO OUT [3.5mm Stereo Mini-jack]

Control:   1×RS-232 [Phoenix jack]

                 1×SERVICE [Micro-USB jack]

                 1×IR IN [3.5mm Stereo Mini-jack]

                 1×IR OUT [3.5mm Stereo Mini-jack]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     TX/ RX:146.7mm (W)×71.5mm (D)×21mm (H)
Weight     Transmitter: 287g,

Receiver: 249g
Power Supply     Input: AC100~240V 50/60Hz

Output: DC 24V/1A (Locking connector)
Power Consumption     8.4W (max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
