HDBaseT 2.0 4K@60Hz 4:4:4 HDMI 2.0 Extender, 150m 18Gbps

VLEX-HT2150-TR

  • Extends 4K@60Hz 4:4:4 HDMI video at 18Gbps up to 120m, or 1080p up to 150m, over a single Cat5e/6 cable

  • HDMI loop output on the transmitter for local display monitoring alongside the extended run

  • Audio de-embedding extracts analog L/R stereo at the receiver for independent routing

  • Bi-directional IR, RS-232, and CEC pass-through for full source and display control

Where to Buy
Six Year Warranty logo

Product Description

The VigilLink VLEX-HT2150-TR can extend high-definition video/audio signal, RS-232, and bi-directional IR. The distance is up to 492ft / 150 meters between the transmitter and receiver via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4, 18Gbps, and HDCP 2.2. One HDMI loop port is available for output. The extender also supports de-embedded audio for L/R audio output. In addition, the extender is equipped with a two-way IR pass-through, which allows for source and display control.

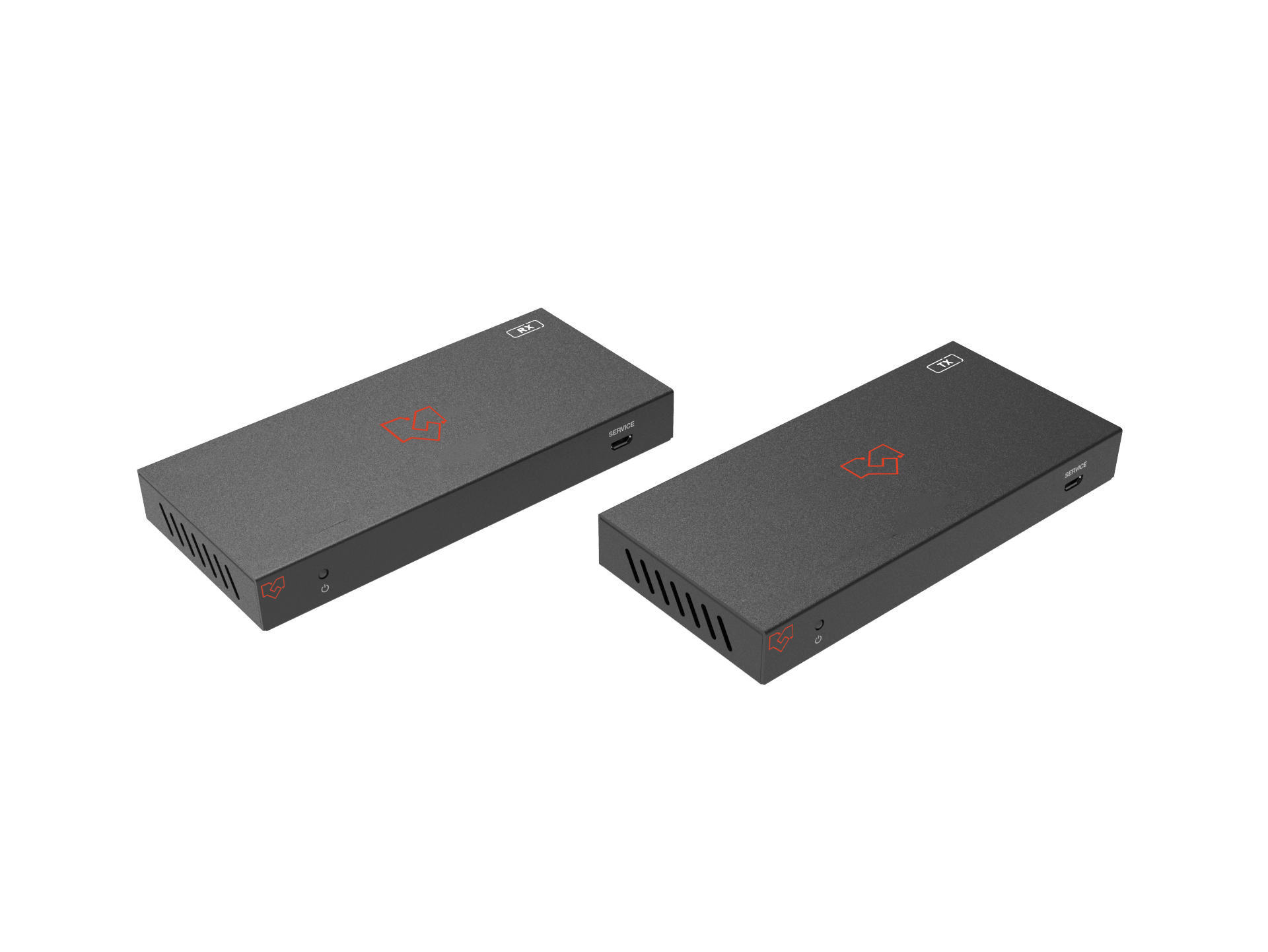

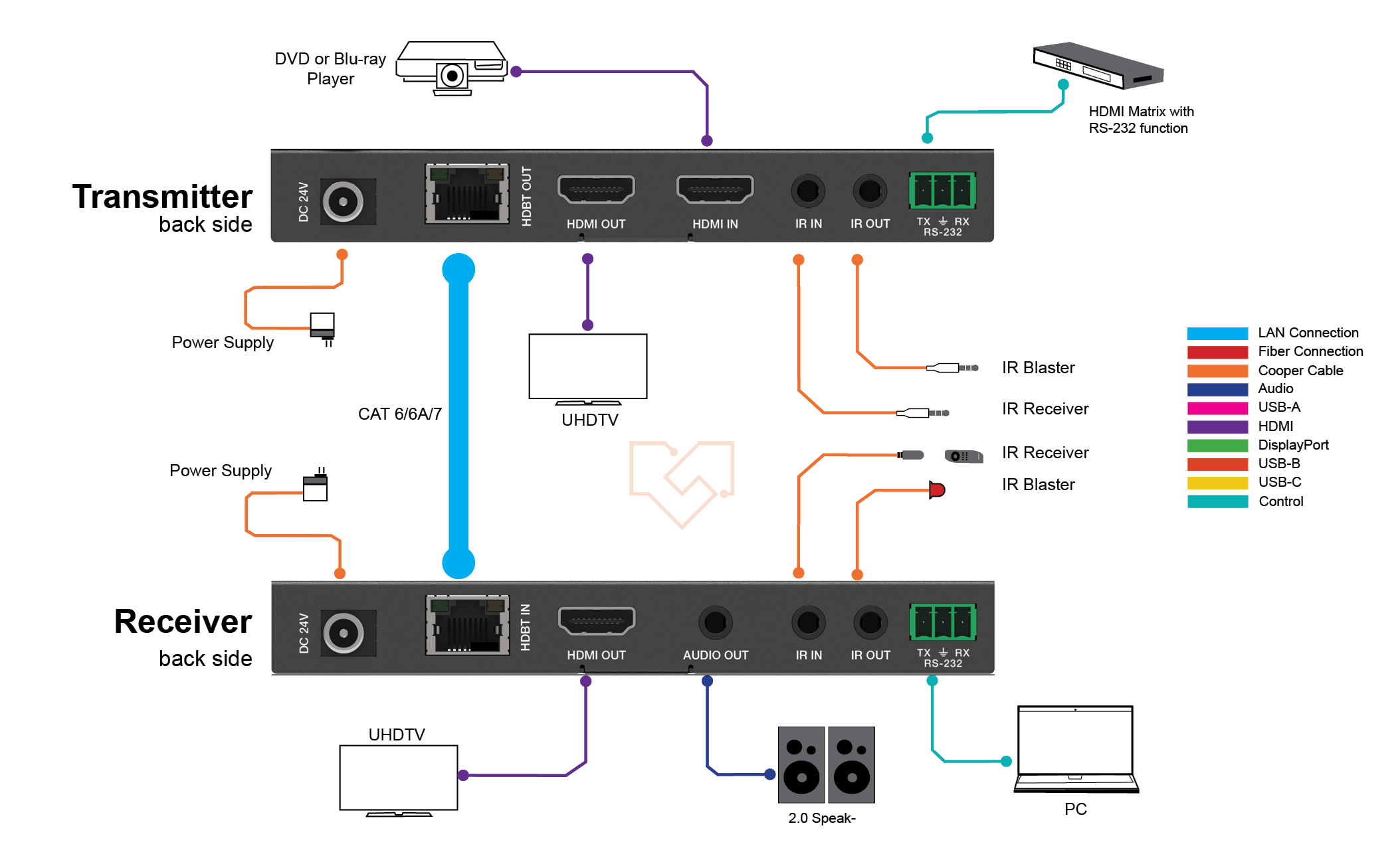

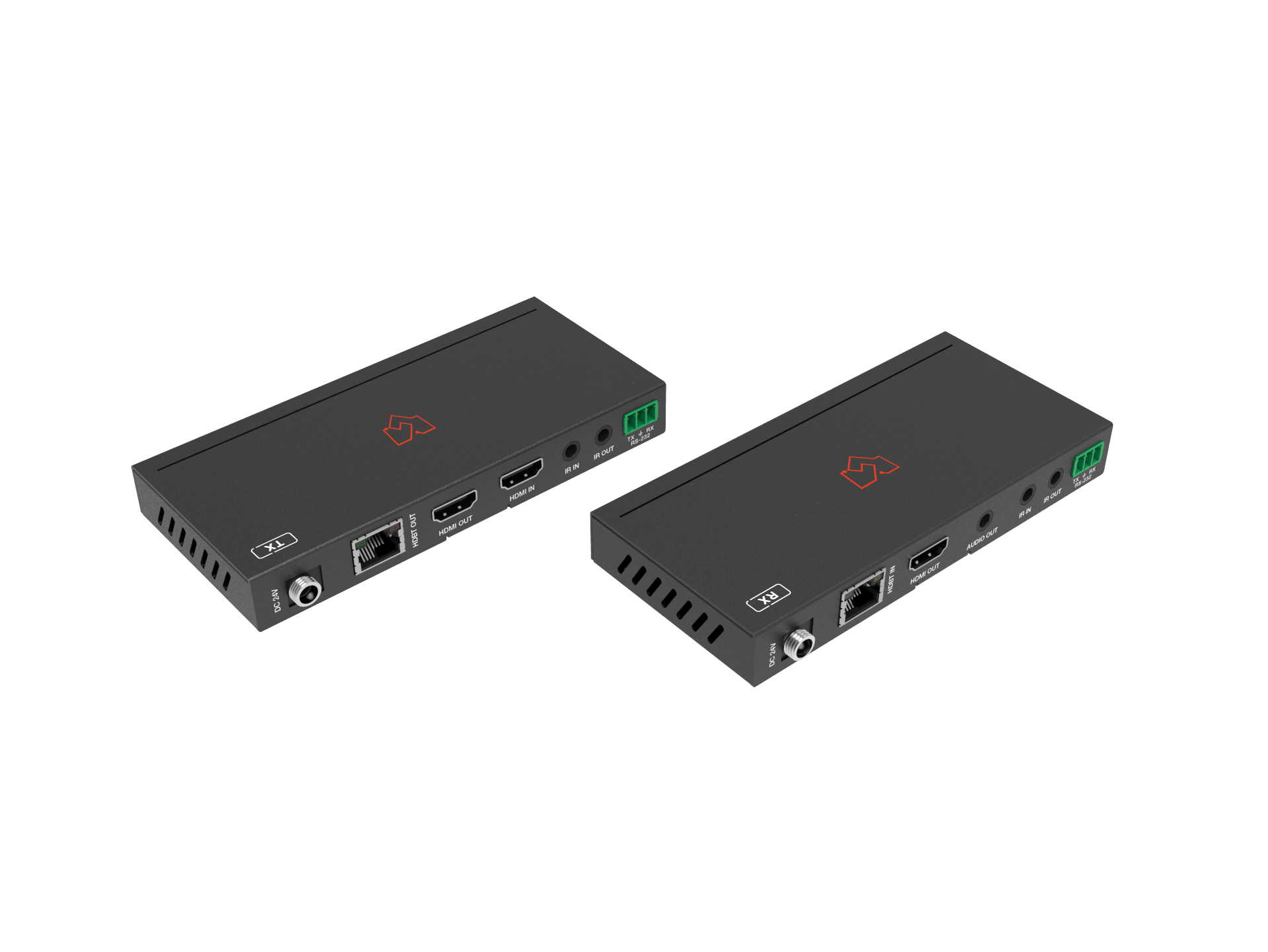

This HDMI extender includes two units: a transmitter unit and a receiver unit. The transmitter unit is responsible for capturing the HDMI input signal and carrying the sign via one cost-effective Cat5e/6 cable and transmitting/emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting/emitting the IR control signal.

The extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long-distance capability and is the perfect solution for any application.

Key Features

  • HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

  • Supports 18Gbps video bandwidth

  • Extends up to 120m/394ft at 4K@60Hz 4:4:4, or 150m/492ft at 1080p, via a single Cat5e/6 cable

  • One HDMI loop output on the transmitter

  • Audio de-embedding to analog L/R stereo output on the receiver

  • Bi-directional IR, RS-232, and CEC pass-through

  • HDR, HDR10+, Dolby Vision, and HLG supported

  • Power over Cable (PoC) function

  • Compact design for easy and flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDCP Compliance     HDCP 2.2 / HDCP 1.4
Video Bandwidth     18Gbps
Video Resolution     4K2K 50/60Hz 4:4:4

4K2K 50/60Hz 4:2:2

4K2K 50/60Hz 4:2:0

4K2K 30Hz 4:4:4

1080p, 1080i, 720p, 720i, 480p, 480i

All HDMI 3D TV formats

All PC resolutions, including 1920 x 1200
Color Depth     8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)

8-bit (4K60Hz 4:4:4 )
Color Space     RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDMI Audio Formats     LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats     PCM 2.0
ESD Protection     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter Inputs:     1x HDMI Type A [19-pin female]

Outputs:  1x HDMI Type A [19-pin female]

                 1x HDBT OUT [RJ45, 8-pin female]

Control:   1x IR IN [3.5mm Stereo Mini-jack]

                 1x IR OUT [3.5mm Stereo Mini-jack]

                 1x RS-232 [Phoenix jack]

                 1x SERVICE [Mini-USB, Update port]
Receiver     Inputs:     1x HDBT IN [RJ45, 8-pin female]

Outputs:  1x HDMI Type A [19-pin female]

                 1x AUDIO OUT [3.5mm Stereo Mini-jack]

Controls: 1x IR IN [3.5mm Stereo Mini-jack]

                 1x IR OUT [3.5mm Stereo Mini-jack]

                 1x RS-232 [Phoenix jack]

                 1x SERVICE [Mini-USB, Update port]
Mechanical
Housing     Metal enclosure
Color     Black
Dimensions     Transmitter / Receiver: 140mm [W] x 65mm [D] x 18mm [H]
Weight    Transmitter: 160g,

Receiver: 155g
Power Supply    Input: AC 100 - 240V 50/60Hz

Output: DC 24V/1A (Locking connector)
Power Consumption     9.36 W
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (No condensation)
Resolution / Distance
4K2K     394ft / 120M
1080P     492ft / 150M
Resolution /

Cable Length    		 4K60 -

Feet / Meters    		 4K30 -

Feet / Meters    		 1080P60 -

Feet / Meters
HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M

The use of the “Premium High-Speed HDMI” is highly recommended.
