HDBaseT 2.0 4K@60Hz 4:2:0 HDMI 2.0 and USB Extender, 35m 10.2Gbps

VLEX-CHT235-TR

  • Extends 4K@60Hz (4:2:0, 8-bit) HDMI 2.0 video and HD audio up to 35m over a single Cat.6A/7 cable

  • Full HDBaseT 2.0 signal set including bi-directional IR, RS-232, and analog audio pass-through

  • Built-in USB 2.0 extension across five device ports for a complete KVM configuration

  • Receiver powered directly by PoH from the transmitter, no separate power supply needed at the display

Where to Buy
Six Year Warranty logo

Product Description

This 4K UHD HDMI over HDBaseT transmitter and receiver pair uses HDBaseT 2.0 technology, and is the perfect solution for extending high bandwidth HDMI 4K@60Hz (4:2:0, 8-bit) video (10.2Gbps) with HD audio via a single run of Cat6A/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the HD audio and video, including bi-directional IR, RS-232, bi-directional analog audio, and USB 2.0.

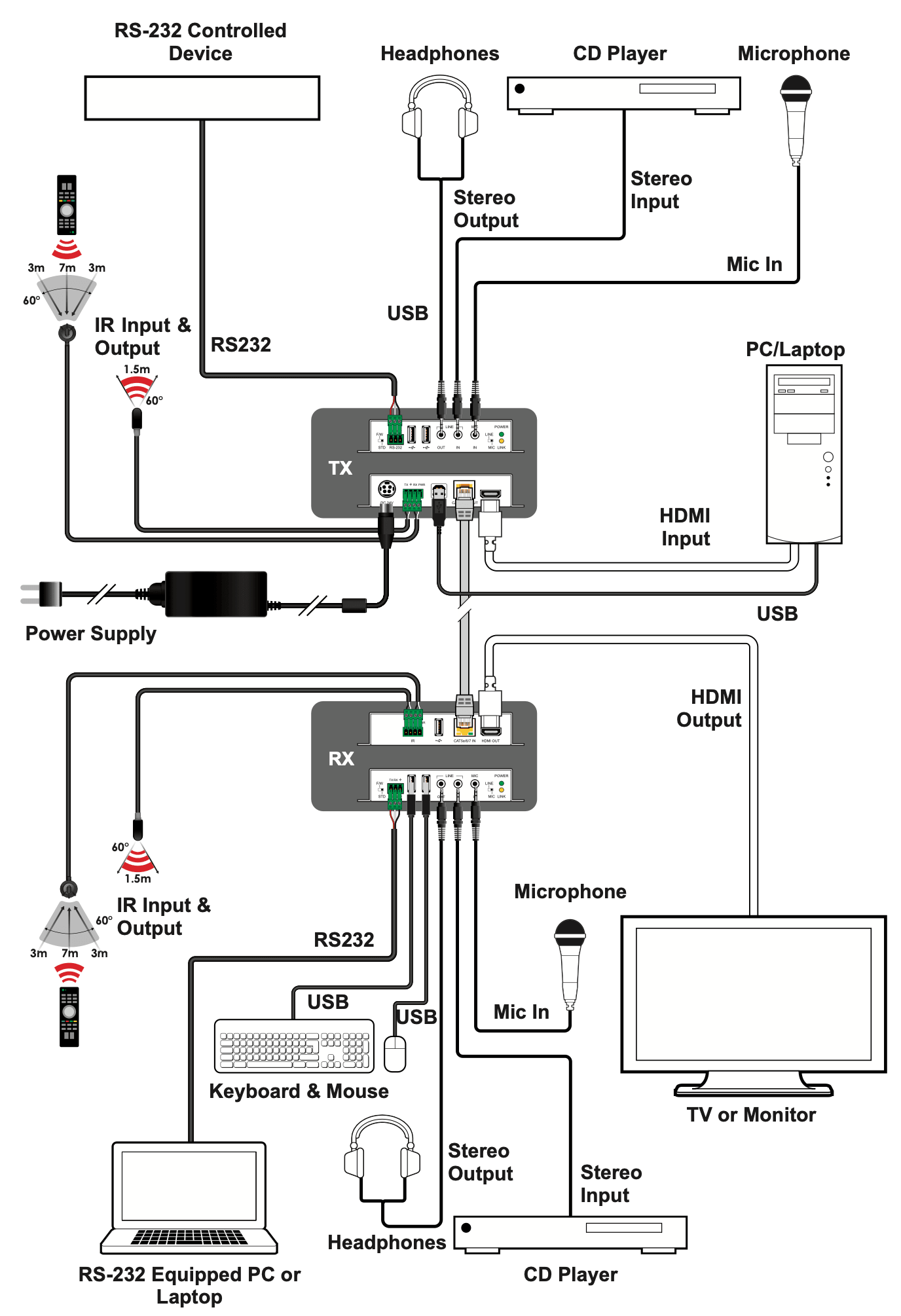

When the transmitter and receiver are used together, the USB 2.0 Type-B port on the transmitter can connect a single USB host (such as a laptop or PC) to devices on up to 5 USB 2.0 (Type-A) ports (2 on the transmitter, 3 on the receiver) forming a highly powerful KVM extension configuration. Additionally, the receiver is powered by PoH (Power over HDBaseT) provided by the transmitter, allowing for greater flexibility within different installation scenarios. This transmitter and receiver pair is ideal for use in any video extension scenario, but they excel when latency-free, uncompressed, high resolution video.

Key Features

  • HDMI 2.0 and DVI 1.0 compatible

  • HDCP 2.2 and HDCP 1.x compliant

  • HDBaseT 2.0 compliant (backwards compatible with 1.0)

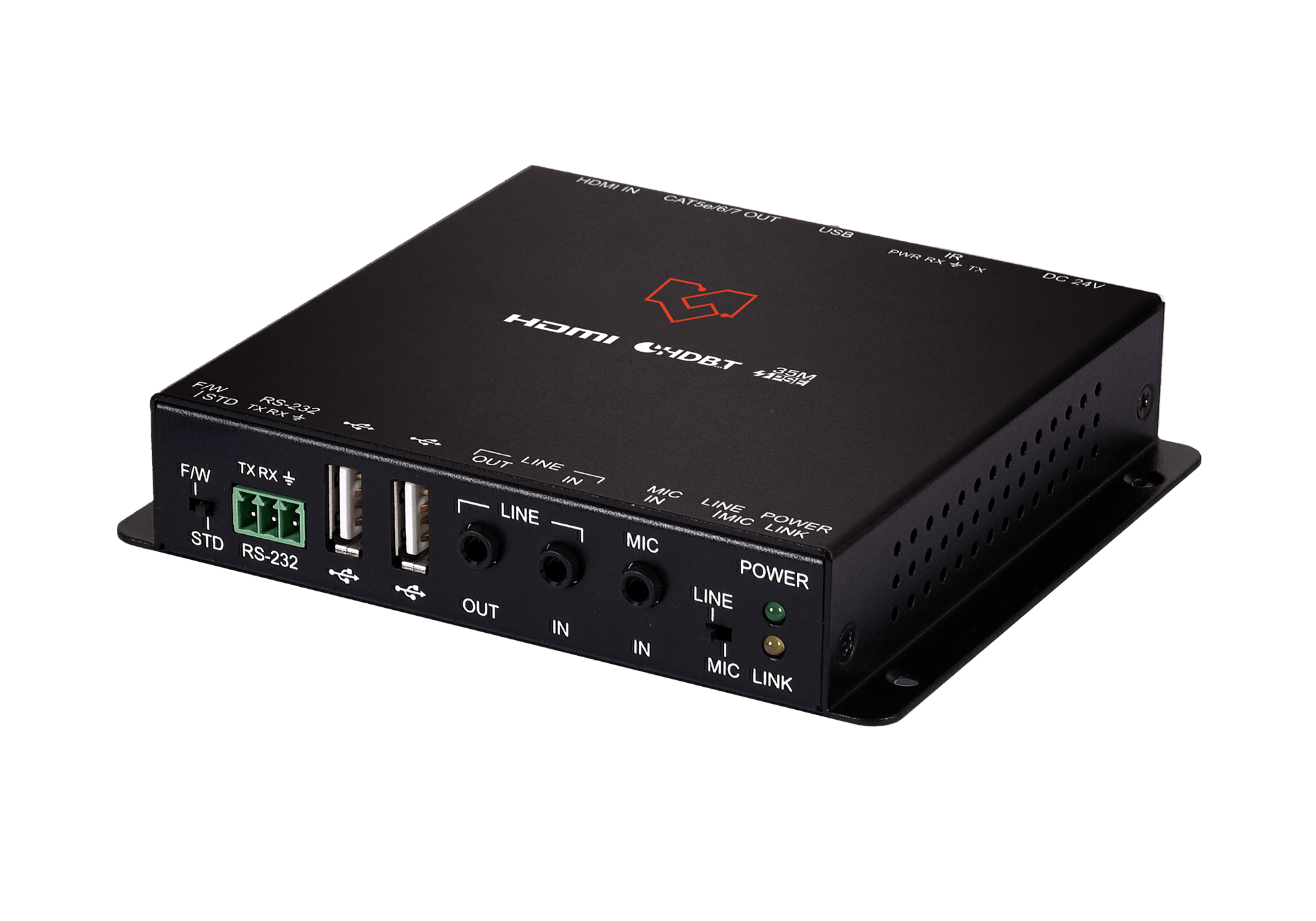

  • 1 HDMI input and 1 HDBaseT output (transmitter)

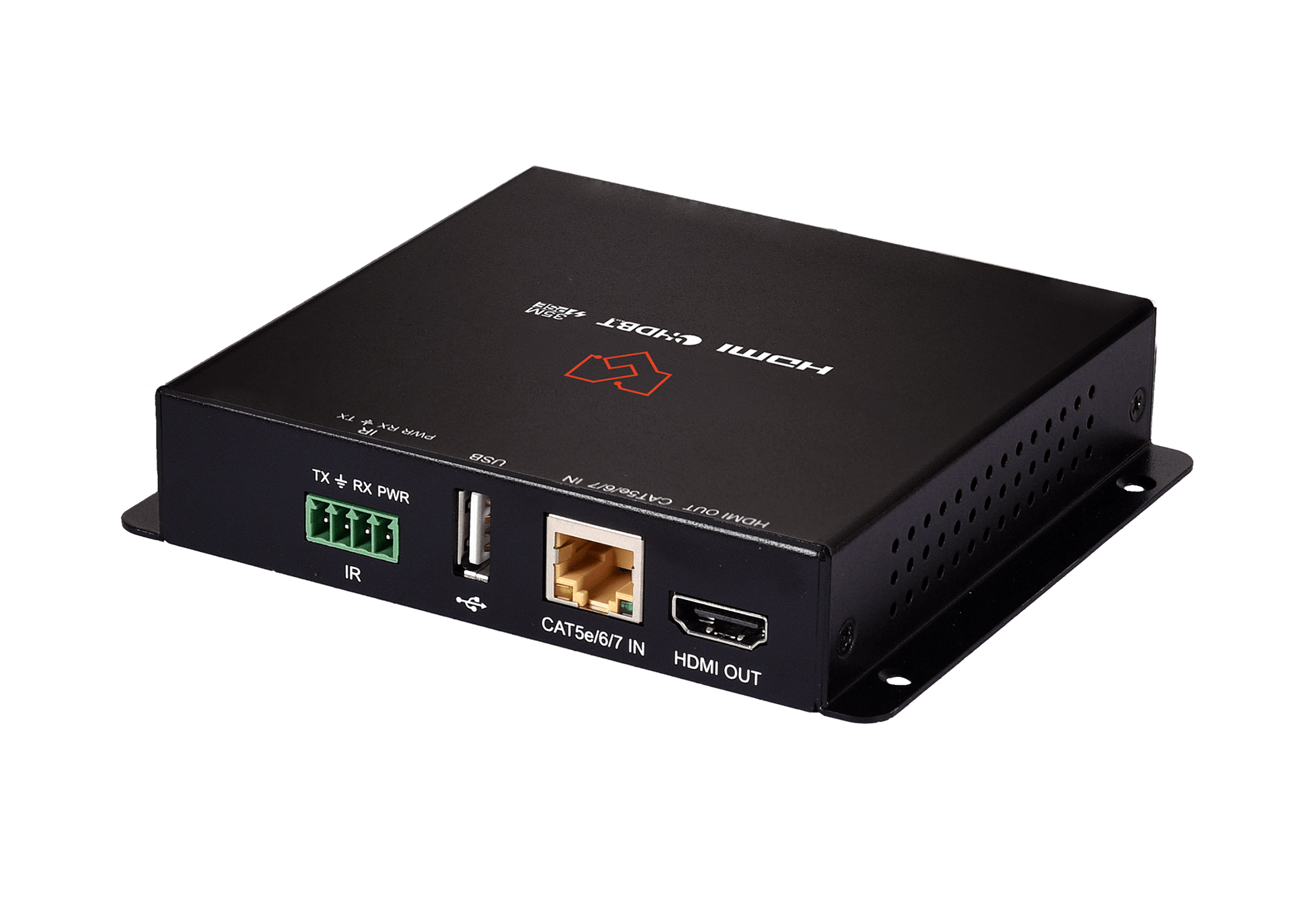

  • 1 HDMI output and 1 HDBaseT input (receiver)

  • Supports up to 4K UHD (10.2Gbps, 4K@60Hz 4:2:0, 8-bit) video input and output over both HDMI and HDBaseT

  • Supports Deep Color input and output up to 12-bit

  • Supports CEC bypass

  • Extends video, audio, and data over a single Cat.6A/7 cable up to 35m/115ft

  • HDBaseT feature support: HD video and audio, PoH (Tx to Rx), bi-directional analog audio, and control (bi-directional USB/IR/RS-232 pass-through)

  • 2 USB 2.0 Type-A device ports and 1 USB 2.0 Type-B host port (transmitter)

  • 3 USB 2.0 Type-A device ports (receiver)

  • Supports pass-through of digital audio formats including 8-channel LPCM, Bitstream, and HD Bitstream

  • Selectable stereo/microphone analog audio bypass functionality

  • Receiver is powered directly via PoH from the connected transmitter

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

TECHNICAL SPECIFICATIONS
HDMI Compliance HDMI 2.0 (DVI 1.0)
HDCP Compliance     2.x
Input Signal Type         4K@60 YUV 4:2:0
Output Signal Type         4K@60 YUV 4:2:0
HDMI Audio LPCM (2 Channels, 48KHz), Bitstream
CONNECTIONS
Transmitter     Input Port:

• HDMI(Type-A)

• RS-232(3.5mm)

Output Port:

• HDBaseT (RJ-45)

IR Extender(3.5mm)
Receiver     Input Port:

• HDBaseT (RJ-45)

• IR Extender(3.5mm)

Output Port:

• HDMI(Type-A)

• RS-232(3.5mm)
MECHANICAL SPECIFICATIONS
Housing Construction     Metal (Steel)
Device Dimension (W x H x D)    55 mm × 22.5 mm × 75.5 mm [Case Only]

55 mm × 22.5 mm × 82.2 mm [All Inclusive]
Weight     410g
Power Supply     24V/2.7A DC
Power Consumption     4.5W
Operating Temperature     0˚C – 50˚C/32˚F – 122˚F
Storage Temperature     -20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity     20 – 90% RH (Non-condensing)
ESD Protection     ±8kV (Air Discharge)

±4kV (Contact Discharge)
