HDBaseT 2.0 4k@60Hz 4:4:4 HDMI 2.0 Extender with KVM, 150m 18Gbps

VLEX-HT2150K-TR

  • Extends 4K@60Hz 4:4:4 HDMI 2.0 video at 18Gbps up to 120m, or 1080p up to 150m, over a single CAT6 cable

  • USB KVM extension for remote control of connected PCs or servers from either endpoint

  • Bi-directional IR pass-through for managing source or display devices from either end

  • Bi-directional Power over Cable (PoC) means a single power adapter and simplified installation

Where to Buy
Six Year Warranty logo

Product Description

The VigilLink VLEX-HT2150K-TR is a high-performance HDBaseT extender designed to transmit HDMI, USB KVM, and bi-directional control signals over a single CAT6 cable. Supporting 18Gbps bandwidth and video resolutions up to 4K@60Hz (YUV 4:4:4), it delivers stunning visual clarity and interactive control across distances up to 492 feet (150 meters).

By converting HDMI to standard HDBaseT, this extender transmits high-quality video and audio, along with USB KVM, for remote control of connected PCs or servers. Its bi-directional IR pass-through enables users to manage source or display devices from either endpoint, enhancing flexibility in AV environments. With Power over Cable (PoC) support, only one power adapter is required, simplifying installation and reducing clutter.

Ideal for video conferencing, multimedia broadcasting, and extended HDMI distribution, the VLEX-HT2150K-TR provides a robust and user-friendly solution for professional AV installations that require long-distance signal integrity and interactivity.

Key Features

  • HDMI 2.0b, HDCP 2.2, and USB 1.1 compliant

  • Supports 18Gbps video bandwidth

  • Supports video resolution up to 4K@60Hz YUV 4:4:4

  • Extends up to 150m/492ft at 1080p@60Hz, or 120m/394ft at 4K@60Hz 4:4:4, via a single CAT6 cable

  • Bi-directional IR and USB KVM signal pass-through

  • Bi-directional Power over Cable (PoC) function

  • Compact design for easy and flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.2
Video Bandwidth     18Gbps
Video Resolution     Up to 4K2K@60Hz YUV 4:4:4
USB Compliance     USB 1.1
IR Level     5Vp-p
IR Frequency     Wideband 20K-60KHz
Transmission Distance     1080P@60--150m, 4K60 --120m
Color Space     RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth     8-bit, 10-bit, 12-bit (1080P@60Hz)

8-bit (4K2K@60Hz YUV4:4:4)

8-bit, 10-bit, 12-bit (4K2K@30Hz)
HDR     HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats     LPCM 7.1CH, Dolby True HD, and DTS-HD Master
ESD Protection     Human body model — ±8kV (Air-gap discharge) & ±4KV (Contact discharge)
Connection

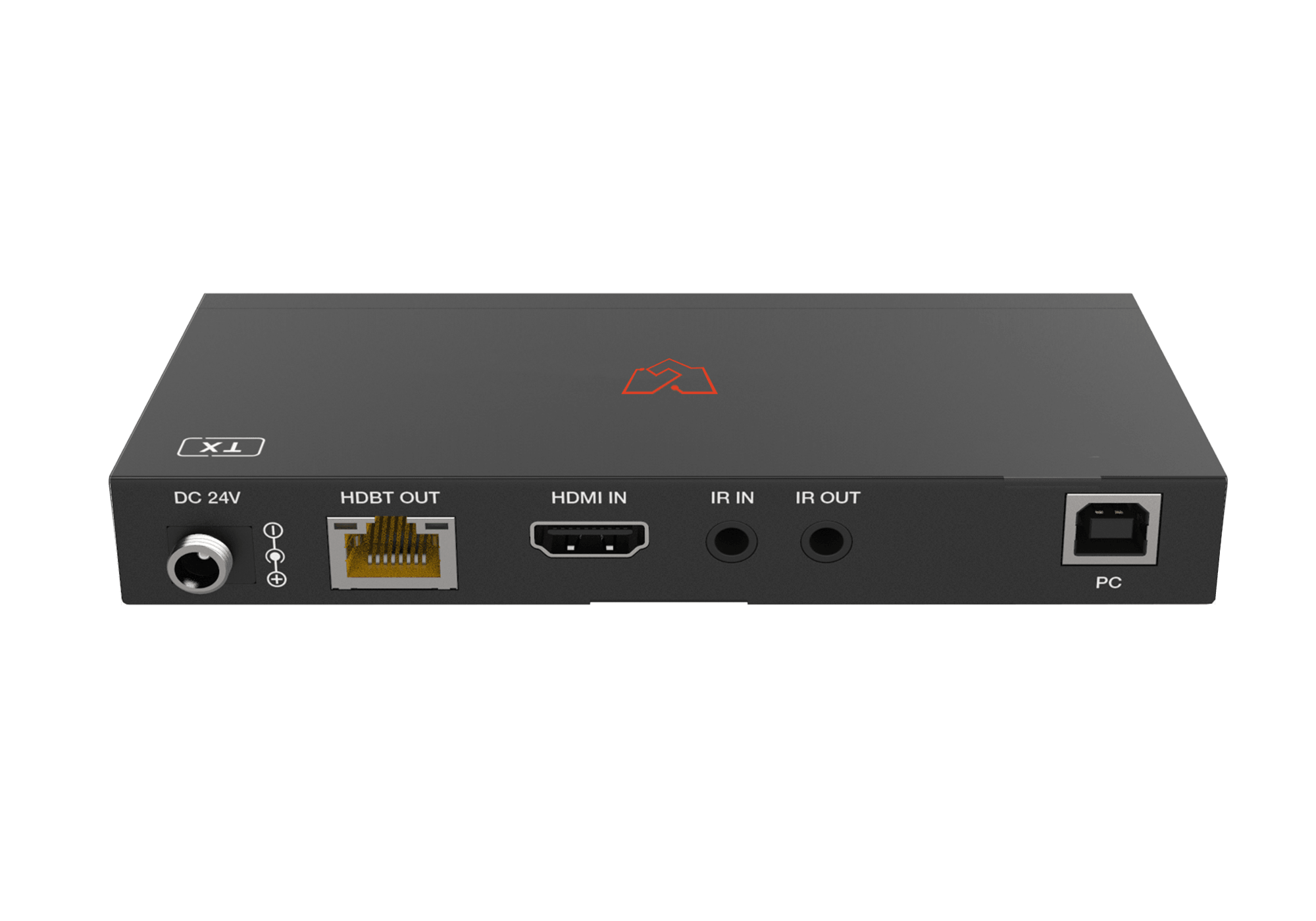

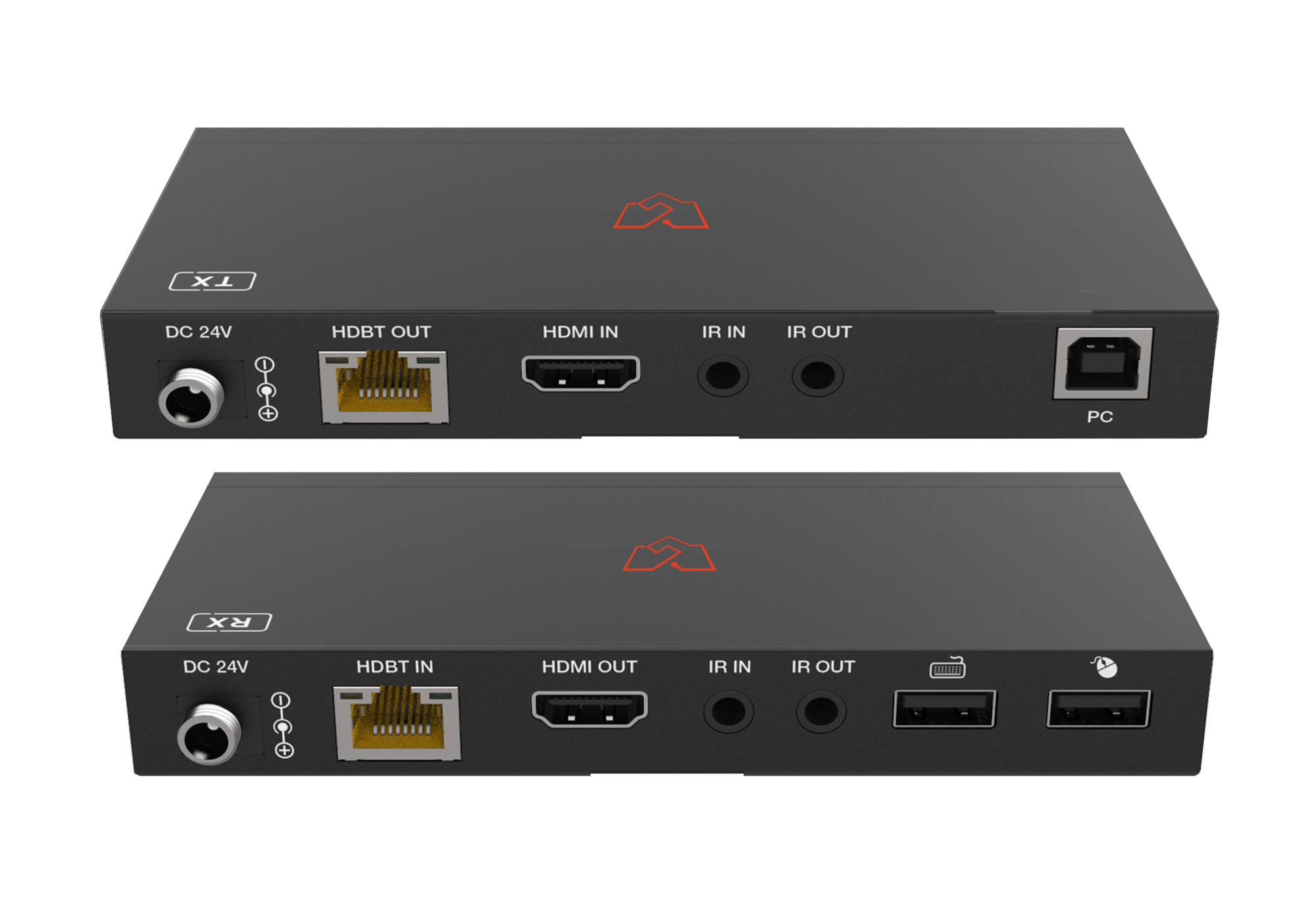

Transmitter         Input:       1×HDMI IN [TypeA, 19-pin female]

                 1× IR IN [3.5mm Stereo Mini-jack]

                 1× SERVICE [Micro-USB jack]

                 1× USB [USB-B, 4-pin female]

Output:    1× HDBT OUT [RJ45]

                 1× IR OUT [3.5mm Stereo Mini-jack]

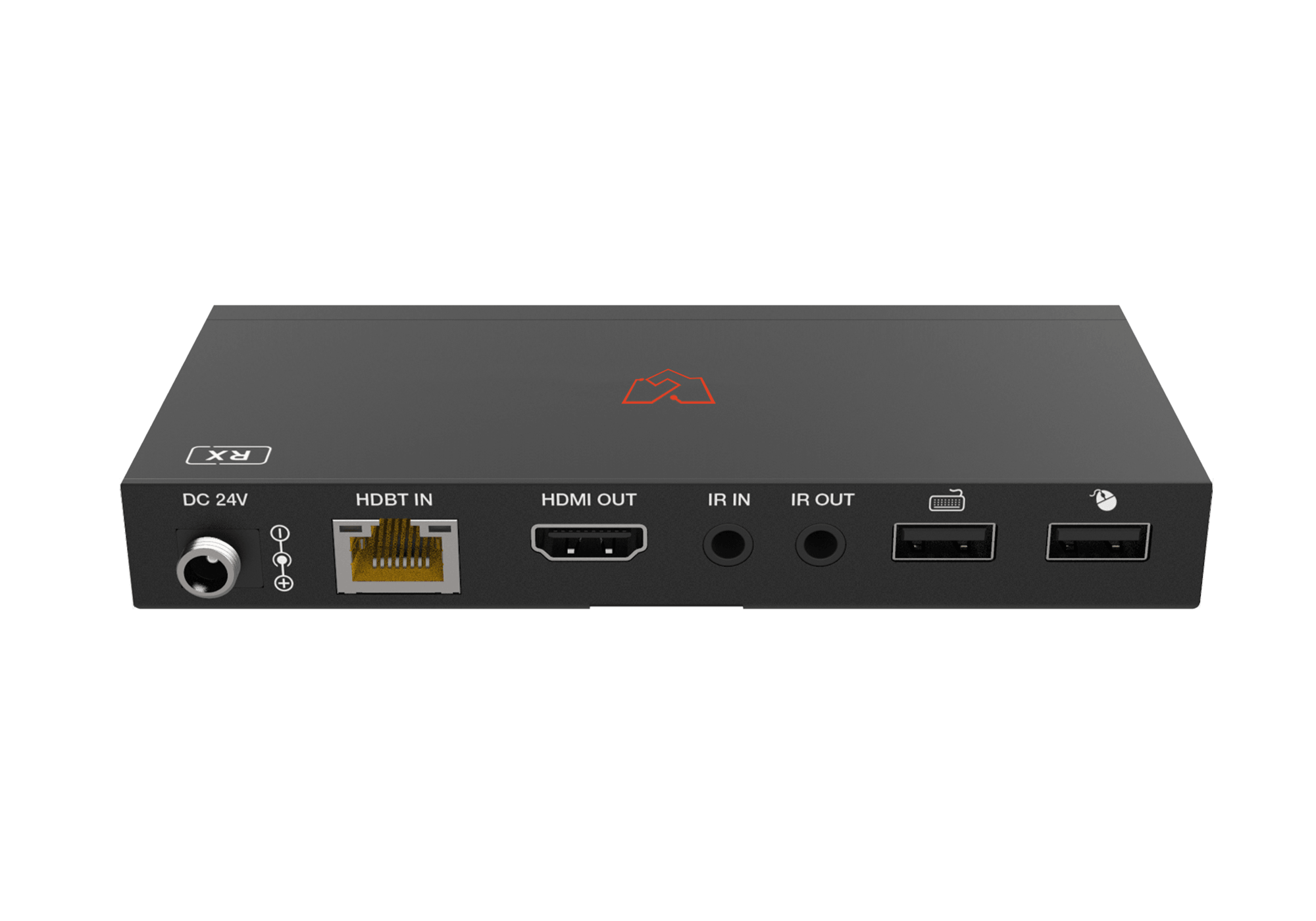

Receiver         Input:       1× HDBT IN [RJ45 with light]

                 1× IR IN [3.5mm Stereo Mini-jack]

                 1× SERVICE [Micro-USB jack]

Output:    1× HDMI OUT [TypeA, 19-pin female]

                 1× IR OUT [3.5mm Stereo Mini-jack]

                 2× USB [USB-A, 4-pin female]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H)
Weight     Transmitter: 246g,

Receiver: 246g
Power Supply     DC 24V/1A;

Support PoC function
Power Consumption     10W
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
