HDBaseT 2.0 4k@60Hz 4:4:4 DP 1.2 Extender with KVM, 150m 21.6 Gbps

VLEX-HT2150DPK-TR

  • Extends 4K@60Hz 4:4:4 DisplayPort 1.2 video at 21.6Gbps up to 100m, or 1080p up to 150m, over a single CAT6 cable

  • Full USB KVM extension for secure remote control of a DisplayPort PC from a local keyboard, video, and mouse console

  • Visually lossless smart compression preserves image clarity for medical imaging, control rooms, and digital signage

  • Bi-directional IR, RS-232, and Power over Cable (POC) for flexible, single-cable installation

Where to Buy
Six Year Warranty logo

Product Description

The VigilLink VLEX-HT2150DPK-TR is a high-performance DisplayPort extender engineered for long-distance, high-resolution signal transmission over a single CAT6 cable. Supporting visually lossless 4K@60Hz video up to 328 feet (100 meters) and 1080p up to 492 feet (150 meters), it delivers exceptional clarity and reliability for mission-critical AV installations.

Converting DisplayPort signals to standard HDBaseT, the extender supports DisplayPort 1.2 and transmits video alongside bi-directional IR, bi-directional RS-232, and USB KVM signals for full remote control of connected devices. It also supports advanced audio formats including Dolby TrueHD and DTS-HD, providing a rich and immersive sound experience. USB KVM functionality enables secure and efficient control of a remote DisplayPort-enabled PC from a local keyboard, video, and mouse console.

Designed for demanding environments such as medical imaging, digital signage, and control rooms, the VLEX-HT2150DPK-TR combines versatility, performance, and plug-and-play simplicity for professional-grade AV extension.

Key Features

  • DisplayPort 1.2a and HDCP 2.2 compliant for seamless compatibility

  • Supports up to 21.6Gbps video bandwidth

  • Delivers video resolution up to 4K@60Hz YUV 4:4:4

  • Extends up to 328ft/100m for 4K60 signals or 492ft/150m for 1080p signals via a single CAT6 cable

  • Supports LPCM 2.0 (96kHz), Dolby Digital Plus 5.1CH, and DTS-HD Master 7.1CH for immersive audio

  • Smart compression for visually lossless transmission quality

  • USB KVM control of a single DisplayPort PC, keyboard, and mouse

  • Bi-directional IR, RS-232, and USB KVM signal pass-through

  • Bi-directional Power over Cable (POC) function

  • Advanced EDID management for optimal display settings

  • Compact design for flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
DP Compliance     DP 1.2a
HDCP Compliance     HDCP 2.2
Video Bandwidth     21.6Gbps
Video Resolution     Up to 4K@60Hz YUV 4:4:4
USB Compliance     USB 1.1
IR Level     5Vp-p
IR Frequency     Wideband 20K-60KHz
Transmission Distance     1080P@60--492ft/150m, 4K60--328ft/100m
Color Space     RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth     8/10/12bit
HDR     HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Format     LPCM2.0 (96KHz), Dolby Digital Plus 5.1CH and DTS-HD Master 7.1CH
ESD Protection     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

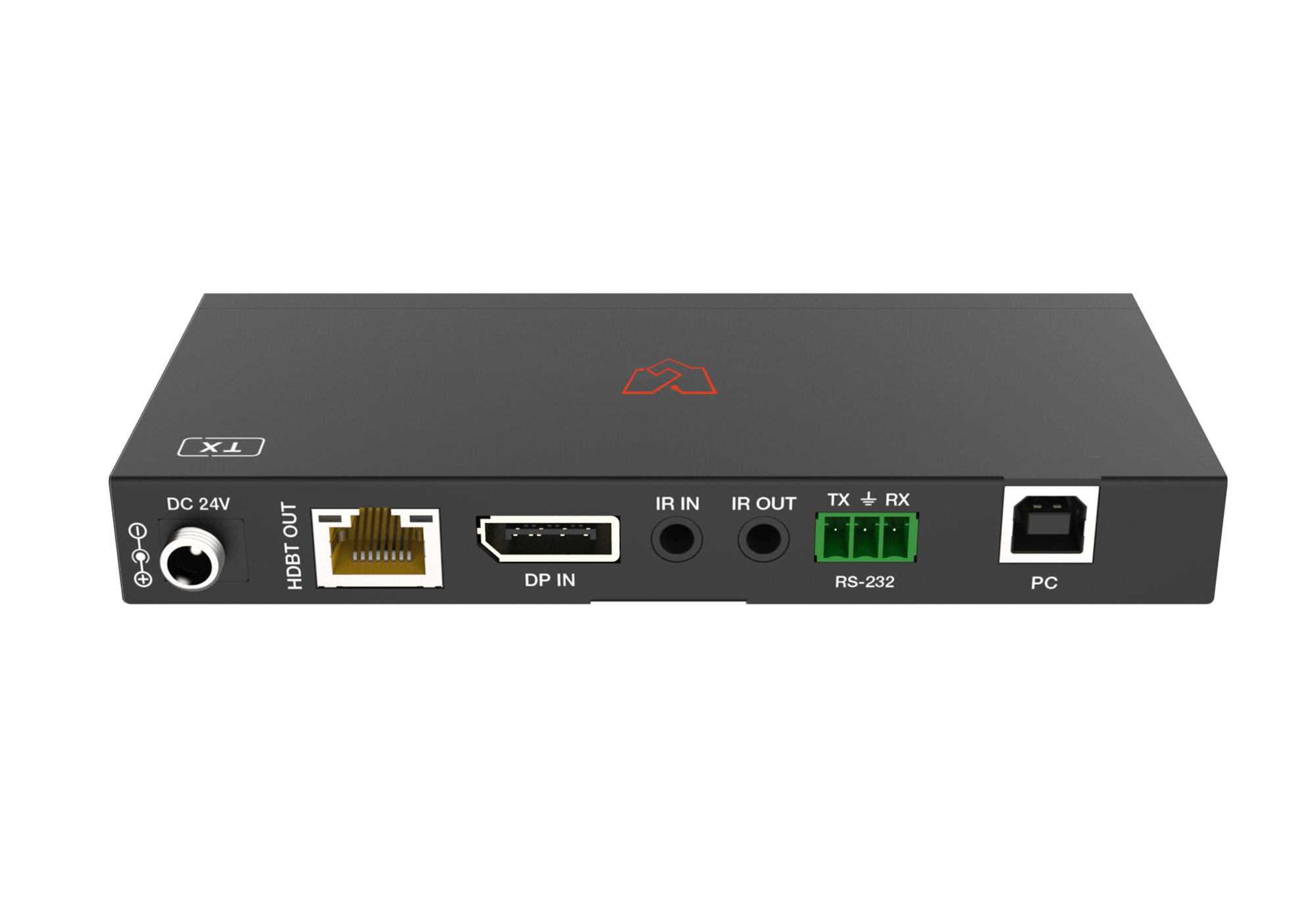

Transmitter Inputs:     1 × DP IN [20-pin female]

Outputs:     1 × HDBaseT OUT [RJ45 connector, 8-pin female]

Controls:     1 × IR IN [3.5mm Stereo Mini-jack]

                   1 × IR OUT [3.5mm Stereo Mini-jack]

                   1 × RS-232 [3pin-3.81mm Phoenix jack]

                  1 × PC [USB-B, 4-pin female]

                   1 × SERVICE [Micro USB]

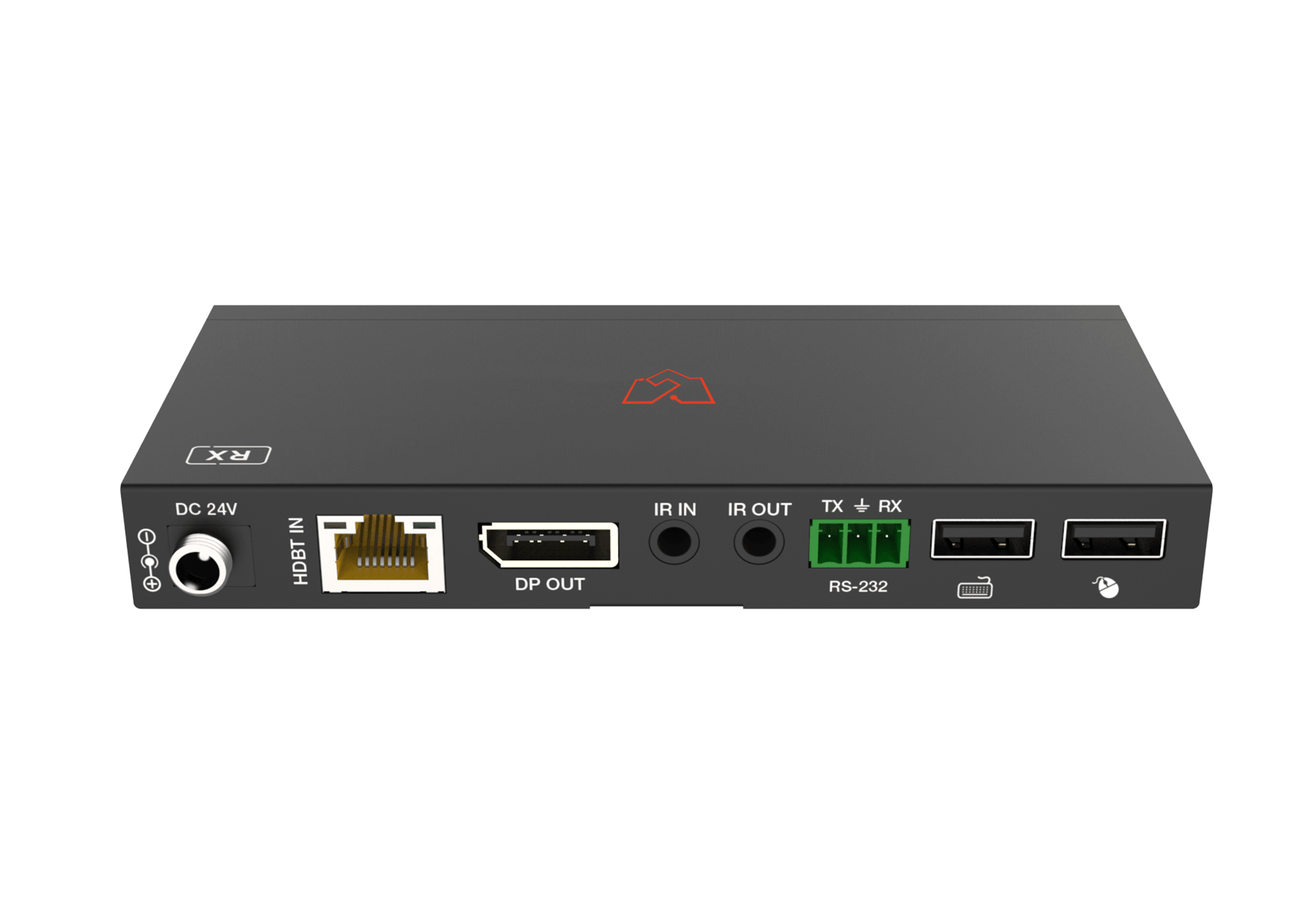

Receiver     Inputs:    1 × HDBaseT IN [RJ45, 8-pin female]

Outputs:     1 × DP OUT [20-pin female]

Controls:     1 × IR IN [3.5mm Stereo Mini-jack]

                   1 × IR OUT [3.5mm Stereo Mini-jack]

                   1 × RS-232 [3pin-3.81mm Phoenix jack]

                   1 × SERVICE [Micro USB]

                   2 × USB 1.1 [USB-A, 4-pin female]
EDID Setting     EDID DIP switch is used for EDID setting.

(Dial to COPY by default)

COPY: Copy the EDID of the DP OUT port of Receiver

STD: Default 1080P 2CH
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     Transmitter / Receiver: 140mm (W) × 65mm (D) × 18mm (H)
Weight    Transmitter: 241g, Receiver: 253g
Power Supply    DC 24V/1A; Support bi-directional POC function
Power Consumption     13.2W (Max.)
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (non-condensing)
