HDBaseT 2.0 4k@60Hz 4:4:4 HDMI 2.0 Extender with ARC, 70m 18Gbps

VLEX-HT2070R-TR

  • Extends 4K@60Hz 4:4:4 HDMI 2.0 video at 18Gbps up to 70m over a single CAT5e/6 cable

  • Audio Return Channel (ARC) sends display audio back to the source for simplified sound routing

  • Bi-directional IR and RS-232 control pass-through for remote operation of source or display

  • Power over Cable (PoC) delivers power over the same cable, eliminating separate adapters

Where to Buy
Six Year Warranty logo

Product Description

The VigilLink VLEX-HT2070R-TR is a versatile HDMI extender designed to transmit high-resolution audio and video signals along with control and return channel data over a single CAT5e/6 cable. Supporting transmission distances up to 230 feet (70 meters), it delivers 4K2K@60Hz video quality while maintaining stable performance and full control integration.

This extender converts HDMI signals into standard HDBaseT format for efficient transmission via LAN cable and supports bi-directional IR pass-through for remote operation of either the source or display device. It also features RS-232 control, Audio Return Channel (ARC), and Power over Cable (PoC), reducing the need for additional power sources.

Ideal for professional AV applications such as video conferencing, multimedia signal distribution, and HDMI signal extension, the VLEX-HT2070R-TR provides a robust and flexible solution for long-distance AV connectivity.

Key Features

  • HDMI 2.0b and HDCP 2.2 compliant

  • Supports 18Gbps video bandwidth

  • Supports video resolution up to 4K@60Hz RGB/YCbCr 4:4:4

  • Extends up to 70m/230ft via a single CAT5e/6 cable

  • Bi-directional IR and RS-232 control signal pass-through

  • ARC function with support for Dolby 5.1, DTS 5.1, and PCM 2.0 audio formats

  • Advanced EDID management

  • Power over Cable (PoC) function

  • Compact design for easy and flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.2
Video Bandwidth     18Gbps
Video Resolution     Up to 4K2K@60Hz RGB/YCbCr 4:4:4
IR Level     5Vp-p
IR Frequency     Wideband 20K-60KHz
Color Space     RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth     8-bit, 10-bit, 12-bit (1080P)

8-bit (4K60)

8-bit, 10-bit, 12-bit (4K24/30)
HDR     HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats     HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0
Connection

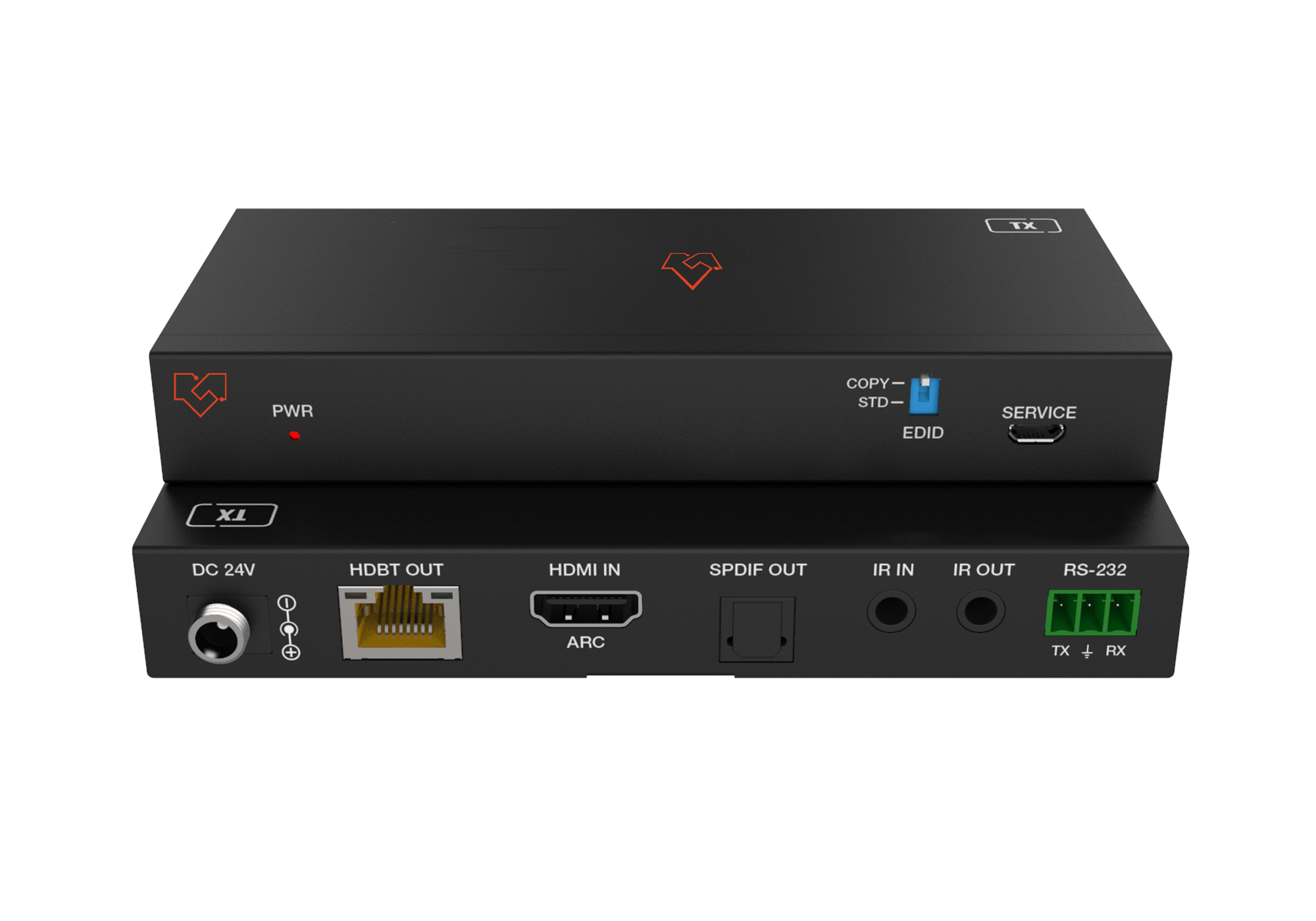

Transmitter         Input:       1×HDMI IN [TypeA, 19-pin female]

Output:    1×HDBT OUT [RJ45]

                 1×SPDIF OUT

Control:   1×RS-232 [3pin-3.81mm Phoenix connector]

                 1×SERVICE [Micro-USB jack]

                 1×IR IN [3.5mm Stereo Mini-jack]

                 1×IR OUT [3.5mm Stereo Mini-jack]

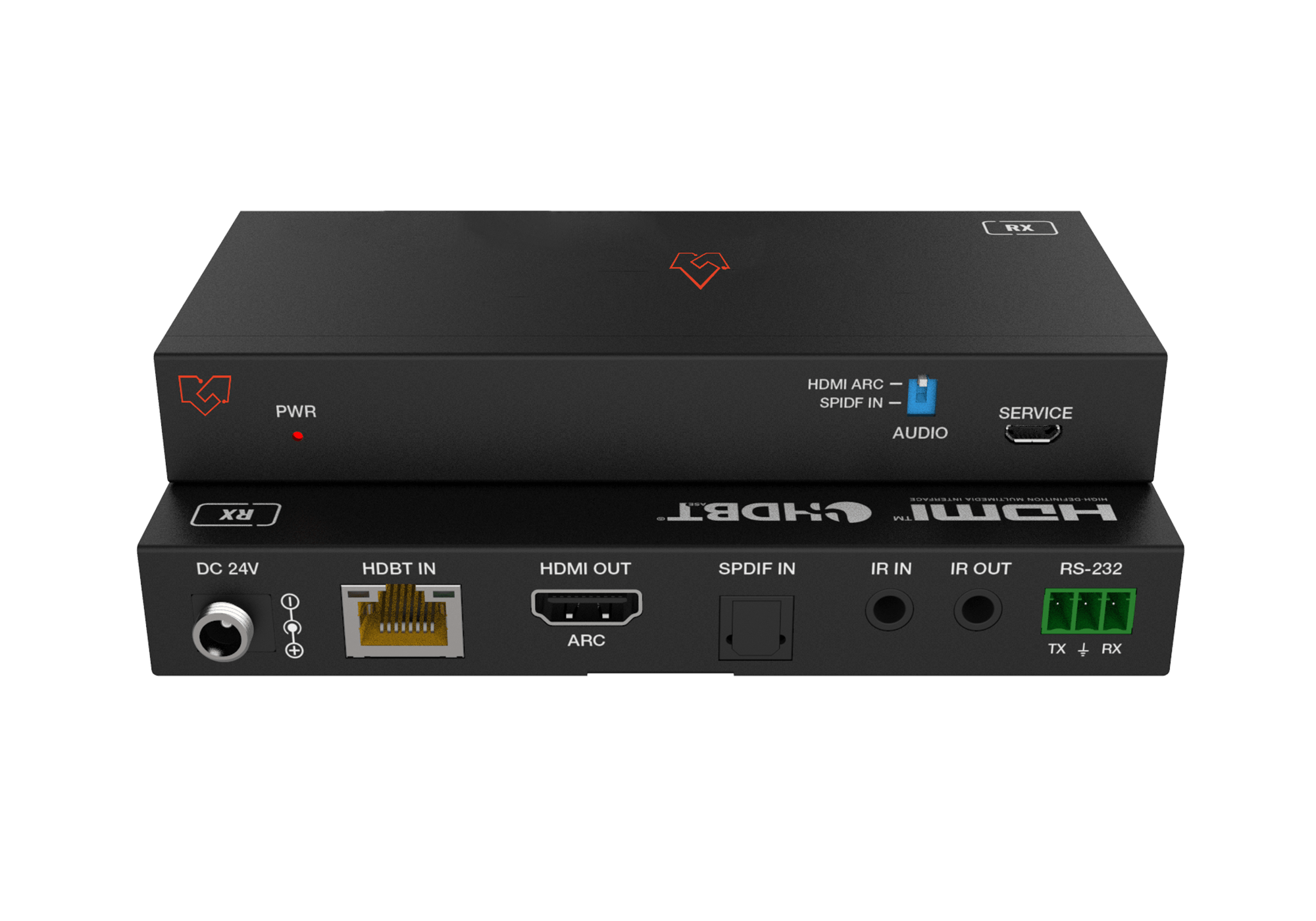

Receiver         Input:       1×HDBT IN [RJ45]

                 1×SPDIF IN

Output:    1×HDMI OUT [TypeA, 19-pin female]

Control:   1×RS-232 [3pin-3.81mm Phoenix connector]

                 1×SERVICE [Micro-USB jack]

                 1×IR IN [3.5mm Stereo Mini-jack]

                 1×IR OUT [3.5mm Stereo Mini-jack]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H)
Weight     Transmitter: 235g,

Receiver: 239g
Power Supply     DC 24V/1A

Support bi-directional PoC function
Power Consumption     9.6 W (max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
