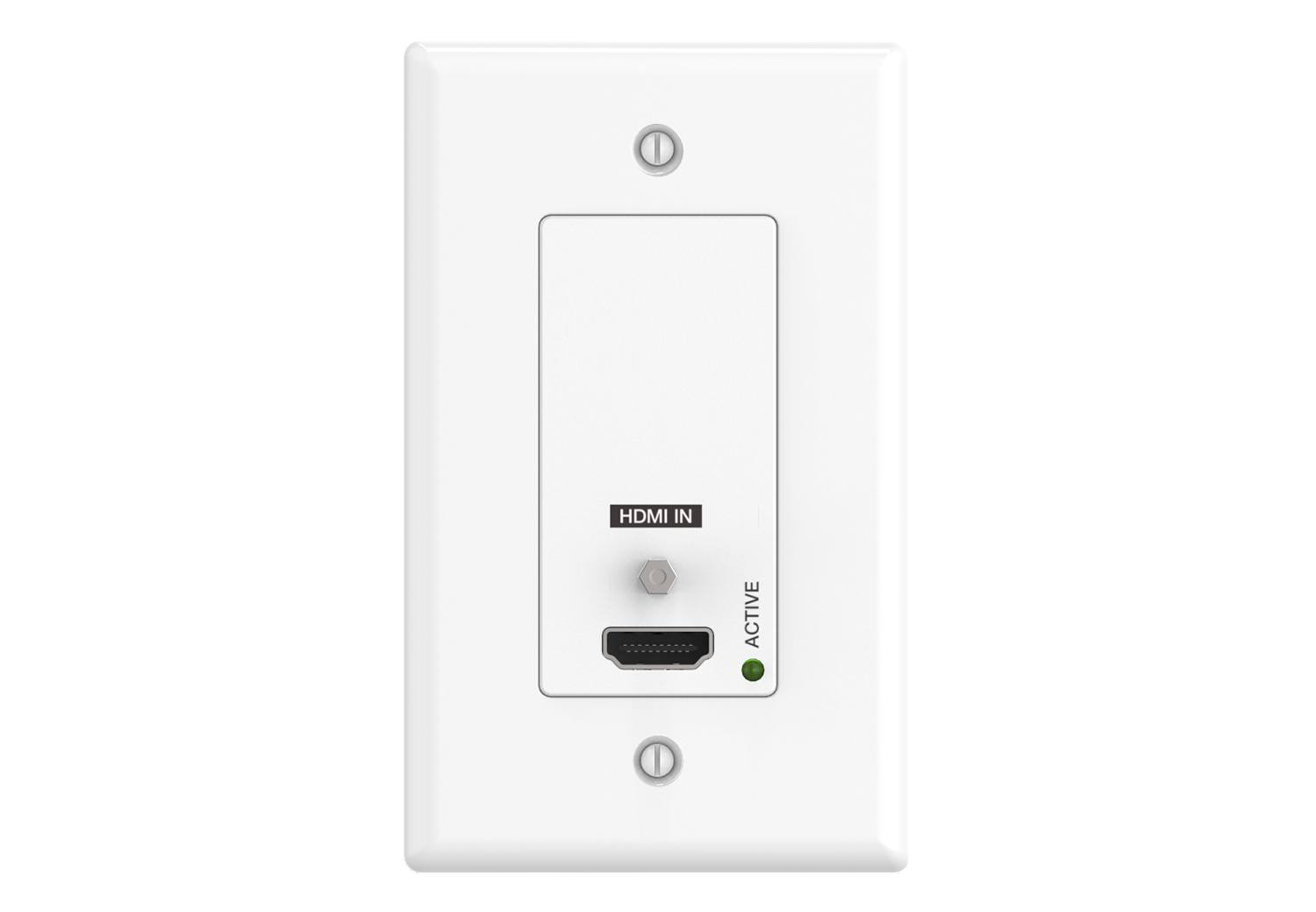

HDMI 2.0 with POC HDBaseT 2.0 Wall Plate Transmitter. 4K@60Hz 4:4:4 18Gbps up to 40m.

VLWP-HD70-TX

  • Single-gang US Decora HDMI wall plate transmitter for long-distance HDBaseT extension (receiver sold separately)

  • HDMI 2.0b (HDCP 2.2) at 18Gbps, up to 4K@60Hz 4:4:4, 4K@30Hz, 1080p@120Hz, and 1080p 3D, with up to 7.1-channel HD audio

  • Extension over a single CAT6/6A/7 cable up to 130ft (40m) at 4K@60 4:4:4 or 230ft (70m) at 1080p

  • Two-way IR and RS-232 pass-through alongside the HDMI signal, with PoC power (either end supplies 24V, under 10W)

Where to Buy
Six Year Warranty logo

Product Description

The VLWP-HD70-TX is a single-gang HDBaseT wall plate transmitter designed for reliable long-distance video transmission in streamlined AV installations. Capable of delivering resolutions up to 4K2K at 60Hz (4:4:4) over a single CAT6/6a/7 cable, the unit supports transmission distances of up to 130 feet (40 meters) for UHD signals and up to 230 feet (70 meters) for 1080p content, making it ideal for classrooms, conference rooms, and digital signage applications.

Engineered for flexibility and ease of integration, the VLWP-HD70-TX supports Power over Cable (PoC), eliminating the need for a local power supply by receiving power from a compatible HDBaseT receiver. The unit also supports two-way IR and RS-232 control, enabling full bidirectional communication for remote device management.

With its clean in-wall design and robust performance capabilities, the VLWP-HD70-TX offers a professional-grade solution for extending high-resolution signals in space-conscious environments.

Use in conjunction with VLWPT-HD70-RX HDBaseT 2.0 HDMI Receiver (sold separately)

Key Features

  • HDMI 2.0b at 18Gbps, HDCP 2.2 compliant

  • Up to 4K2K@60Hz 4:4:4, 4K2K@30Hz, and 1080p@120Hz

  • Up to 7.1 channels of HD audio

  • HDBaseT over a single CAT6/6a/7 cable up to 230ft/70m (1080p) or 130ft/40m (4K@60 4:4:4)

  • One HDMI input, 1-gang US Decora wall plate

  • Two-way IR and RS-232

  • PoC supported: either the TX or RX is powered by a 24V/1A supply and the other needs no DC power; PoC power draw is under 10W

  • Transfers bidirectional IR control alongside the HDMI signal

  • Transfers bidirectional RS-232 control alongside the HDMI signal

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.2
Video Bandwidth     18 Gbps
Video Resolution     up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space     RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth     10-bit, 12-bit
HDMI Audio Formats     LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD,

DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats     LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
ESD Protection     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter         Inputs:     1x HDMI Type A [19-pin female]

                 1x IR INPUT [Phoenix jack]

                 1x RS-232 [Phoenix jack]

Outputs:  1x HDBaseT Out [RJ45]

                 1x IR OUTPUT [Phoenix jack]

                 1x RS-232 [Phoenix jack]
Mechanical
Housing     Plastic-Front Panel, Metal-Rear Case
Color     White-Front Panel, Black-Rear Case
Dimensions     103.5mm [W] x 46mm [D] x 30mm [H]
Weight     163g
Power Supply     Input: AC100 - 240V 50/60Hz,

Output: DC 24V/1A

(US/EU standards, CE/FCC/UL certified)
Power Consumption     9W (Max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
