2x1 MiniDP/HDMI 2.0, POC Auto-Switching HDBaseT 2.0 Wall Plate Transmitter. 4K@60Hz 4:4:4 18Gbps up to 40m with included Rx.

VLWP-DHC-TR

  • Single-gang Decora-style wall plate transmitter with HDMI and Mini DisplayPort inputs and auto or manual switching, with a compact HDBaseT receiver included

  • HDMI 2.0b (HDCP 2.2) and DisplayPort 1.2a with 4K@60Hz 4:4:4, 18Gbps HDMI bandwidth, 3D, and HDR support

  • Extension over a single CAT5e/6 cable up to 115ft (35m) at 4K@60 or 164ft (50m) at 4K@24, powered by PoC from the receiver

  • Very low power draw (2.2W plate, 3.72W receiver), interchangeable black and white faceplates, with no local power needed

Where to Buy
Six Year Warranty logo

Product Description

The VLWP-DHC-TR is a 2x1 in-wall switcher and CAT transmitter designed to support both HDMI and Mini DisplayPort inputs with reliable long-distance signal transmission. Housed in a US one-gang enclosure compatible with Decora-style wall plate openings, it includes interchangeable black and white faceplates for a clean, adaptable installation across a range of environments.

Engineered for high-performance AV applications, the VLWP-DHC-TR supports video resolutions up to 4K@60Hz 4:4:4 (8-bit), ensuring sharp, color-accurate visuals. Its CAT output extends video up to 115 feet (35 meters) at 4K@60 and 164 feet (50 meters) at 4K@24, making it an ideal choice for classrooms, conference rooms, and collaborative workspaces requiring extended reach without compromising quality. The included receiver provides an HDMI output with de-embedded analog audio.

The unit is remotely powered via PoC by the connected receiver, simplifying setup by eliminating the need for local power. With flexible input options, high-resolution support, and an efficient in-wall design, the VLWP-DHC-TR delivers a dependable switching and transmission solution for modern AV systems.

Key Features

  • Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a

  • Supports 18Gbps video bandwidth

  • Video resolution up to 4K/UHD@60Hz 4:4:4

  • CAT6 output extends video transmission up to 164ft/50m for 4K@24 or 115ft/35m for 4K@60 4:4:4 via a single CAT5e/6 cable

  • Supports 3D and HDR; does not support CEC control

  • HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

  • Supports HDMI and Mini DisplayPort input

  • US one-gang enclosure for Decora-style wall plate openings

  • Input signal selection supports automatic and manual mode

  • Supports PoC (only from receiver to transmitter)

  • Available in white or black coating

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.2
DP Compliance     Display Port 1.2a
Video Bandwidth     DP: 5.4 Gbps

HDMI: 18 Gbps
Video Resolution     480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Color Space     RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth     8/10/12-bit (1080P@60Hz)

8-bit (4K@60Hz)
HDR     3D, HDR10 and Dolby Vision
HDMI Audio Formats     LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,

DTS High Res, DTS-HD Master Audio, DSD
Transmission Distance     Max distance (4K@24) : 164ft / 50m over CAT5e/6 Max distance (4K@60) :

115ft / 35m over CAT5e/6
ESD Protection     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter         Inputs:     1x HDMI Type A [19-pin female]

                 1 x miniDP [20-pin female]

Outputs:  1 x CAT6 OUT [RJ45, 8-pin female]

Controls: 1 x FW [Micro USB, Update port]

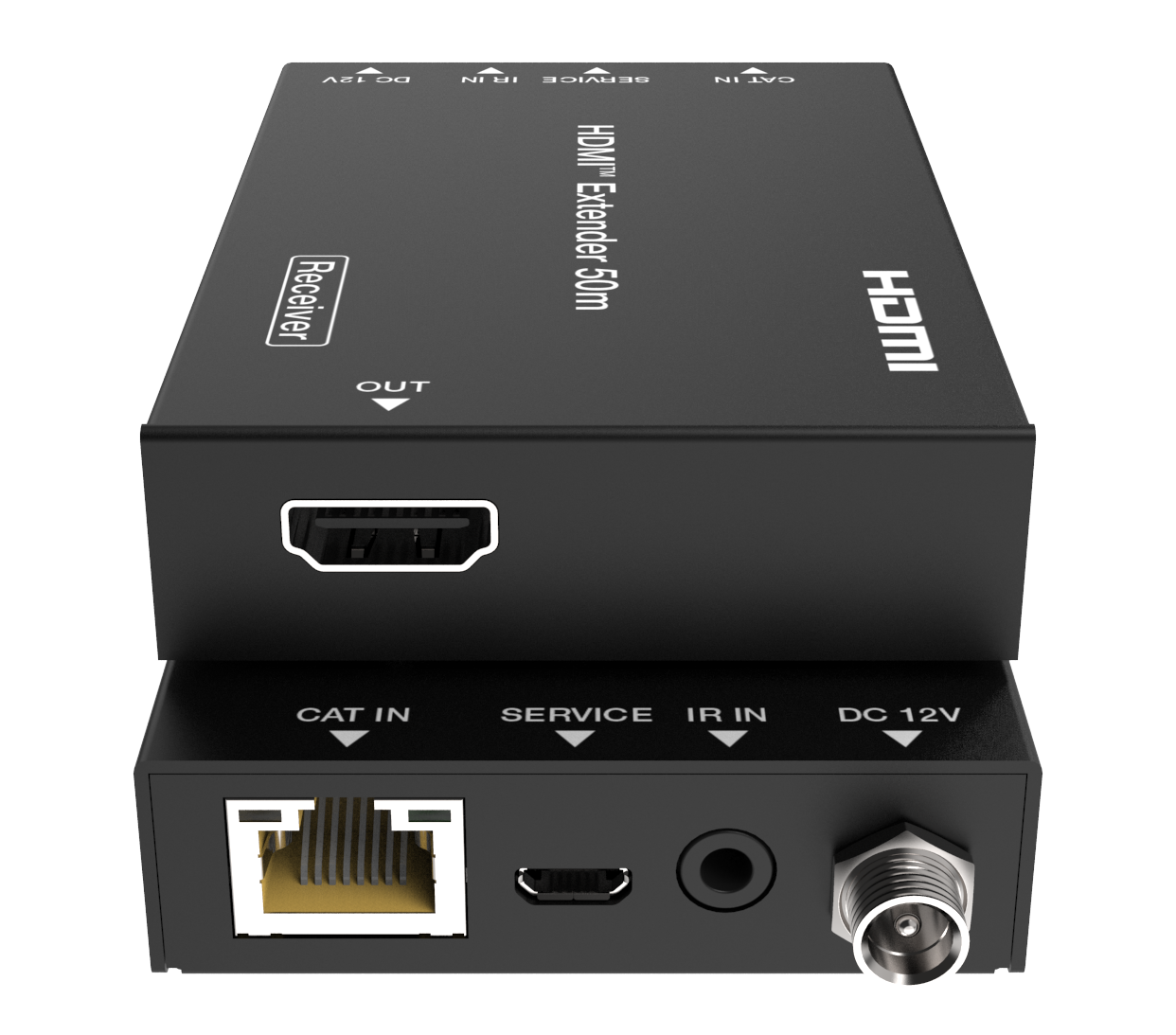

Receiver         Inputs:     1x CAT IN [RJ45, 8-pin female]

                 1x HDBaseT IN [RJ45, 8-pin female]

Outputs:  1x HDMI OUT [Type A, 19-pin female]

                 1x AUDIO OUT [Phoenix jack]

Controls: 1x IR IN [3.5mm Stereo Mini-jack]

                 1x SERVICE [Micro USB, Update port]
Mechanical
Housing     Metal Enclosure
Color     White / Black
Dimensions     Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H]

Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H]

Receiver: 88mm[W] × 61mm [D] × 18mm [H]
Weight     Wall plate: 175g,

Receiver: 155g
Power Supply     PoE (only from Receiver to Transmitter)
Power Consumption     Wall plate: 2.2W (Max), Receiver: 3.72W (Max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
