HDMI/USB 2.0 with KVM/ IR and RS-232 with POC HDBaseT 2.0 Receiver for use with VLWP-2HVG-TX Wall Plate. 4K@60Hz 4:4:4 18Gbps up to 40m.

VLWP-2HVG-RX

  • HDBaseT 2.0 receiver for the VLWP-2HVG-TX wall plate, delivering HDMI up to 4K@60Hz 4:4:4 with a USB KVM host connection

  • HDMI 2.0b (HDCP 2.2/1.x) and DVI 1.0 compliant at 18Gbps, extending 4K@60 4:4:4 up to 131ft (40m) or 1080p@60 up to 230ft (70m) over a single CAT6/6A cable

  • USB signal, USB KVM, and bidirectional IR and RS-232 pass-through for full remote device control

  • 24V PoC powered over the CAT cable, in a compact enclosure for flexible installation

Where to Buy
Six Year Warranty logo

Product Description

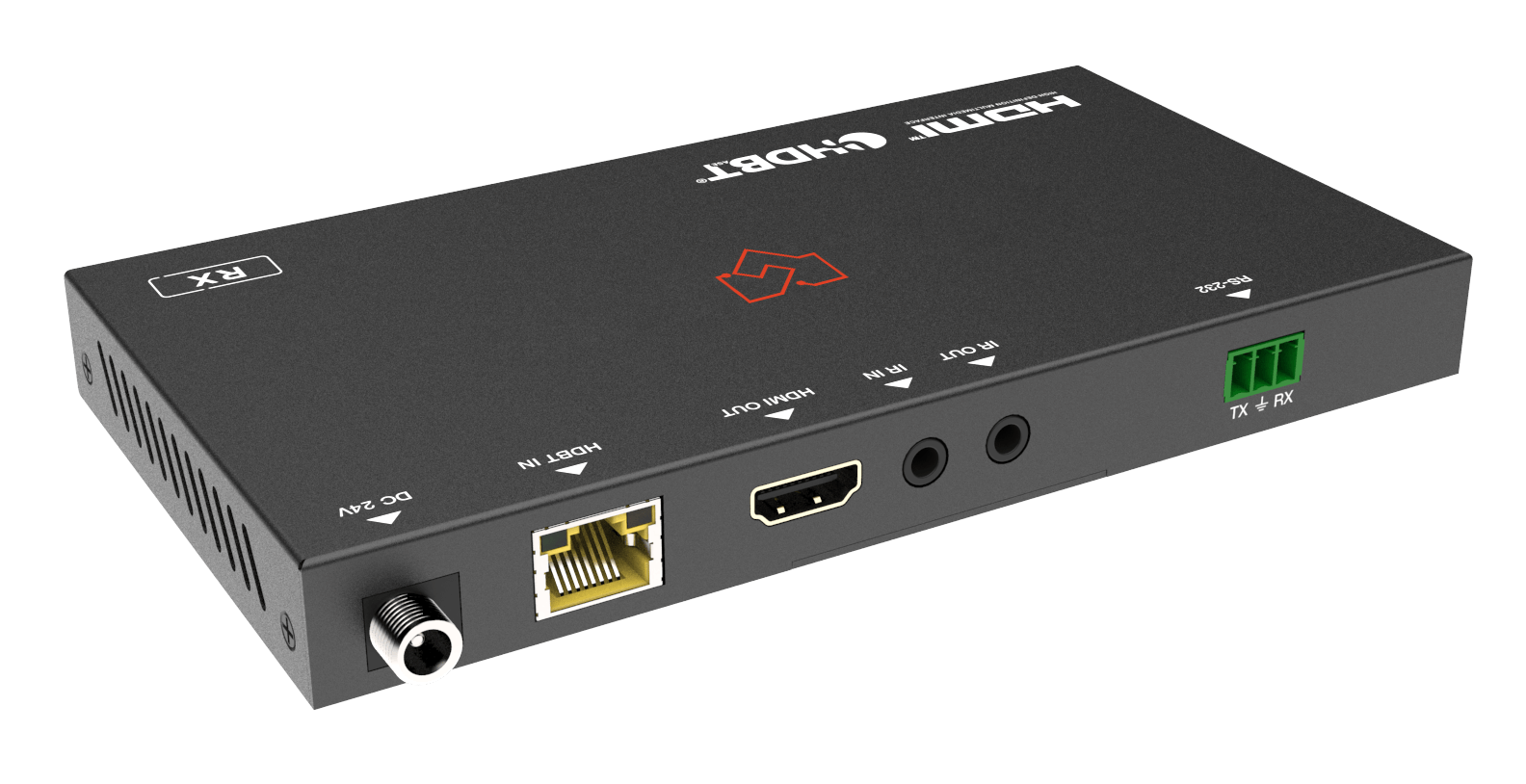

The VLWP-2HVG-RX is a compact HDBaseT 2.0 receiver designed to pair with the VLWP-2HVG-TX wall plate transmitter for reliable long-distance AV distribution. It receives HDMI signals over a single CAT6/6a cable at resolutions up to 4K@60Hz 4:4:4, extending video up to 131 feet (40 meters) at 4K@60 and up to 230 feet (70 meters) at 1080p@60.

Beyond video, the receiver supports USB KVM functionality along with bidirectional IR and RS-232 pass-through, enabling full control of connected devices from either end of the link. Powered by 24V PoC over the same CAT cable, it installs cleanly without a local power supply, making it an ideal endpoint for classrooms, conference rooms, and training environments.

Use with the VLWP-2HVG-TX - 2x1 VGA/HDMI 2.0, USB 2.0, POC Auto-Switching HDBaseT 2.0 Wall Plate Transmitter (sold separately)

Key Features

  • HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0 compliant

  • Supports 18Gbps video bandwidth

  • Video resolution up to 4K2K@60Hz YUV 4:4:4

  • Transmission up to 230ft/70m at 1080p@60Hz or 131ft/40m at 4K2K@60Hz 4:4:4 via a single CAT6/6a cable

  • Supports USB signal and bidirectional IR and RS-232 control pass-through

  • Supports USB KVM function

  • Supports PoC (Power over Cable)

  • Compact design for easy and flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2 / 1.x
Video Bandwidth18Gbps
Video ResolutionUp to 4K2K@60Hz YUV 4:4:4
USB ComplianceUSB 2.0
USB Transfer RateTransmission rate up to 480mb/s, USB1.1 compliant
Transmission Distance70m via a single CAT6 cable
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8-bit, 10-bit, 12-bit (1080P@60Hz)
8-bit (4K2K@60Hz YUV 4:4:4)
8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
HDRHDR10, HDR10+, HLG
HDMI Audio FormatLPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Connection
ReceiverInput:
1× HDBT IN [RJ45 with lights]
1× IR IN [3.5mm Stereo Mini-jack]
1× SERVICE [Micro-USB jack]
Output:
1× HDMI OUT [Type A, 19-pin female]
1× RS-232 [Phoenix jack]
1× IR OUT [3.5mm Stereo Mini-jack]
2× USB [USB-A, 4-pin female]
Mechanical
HousingMetal Enclosure
ColorBlack
Dimensions165mm (W) × 88.3mm (D) × 20mm (H)
Weight165g
Power SupplyDC 24V/1A; Support PoC function
Power Consumption7.5W (max)
Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity20~90% RH (non-condensing)
