HDMI/IR and RS-232 with POC HDBaseT 2.0 Receiver for use with VLWP-HD70-TX Wall Plate. 4K@60Hz 4:4:4 18Gbps up to 40m.
VLWP-HD70-RX
Data Sheet
User Manual
Product Description

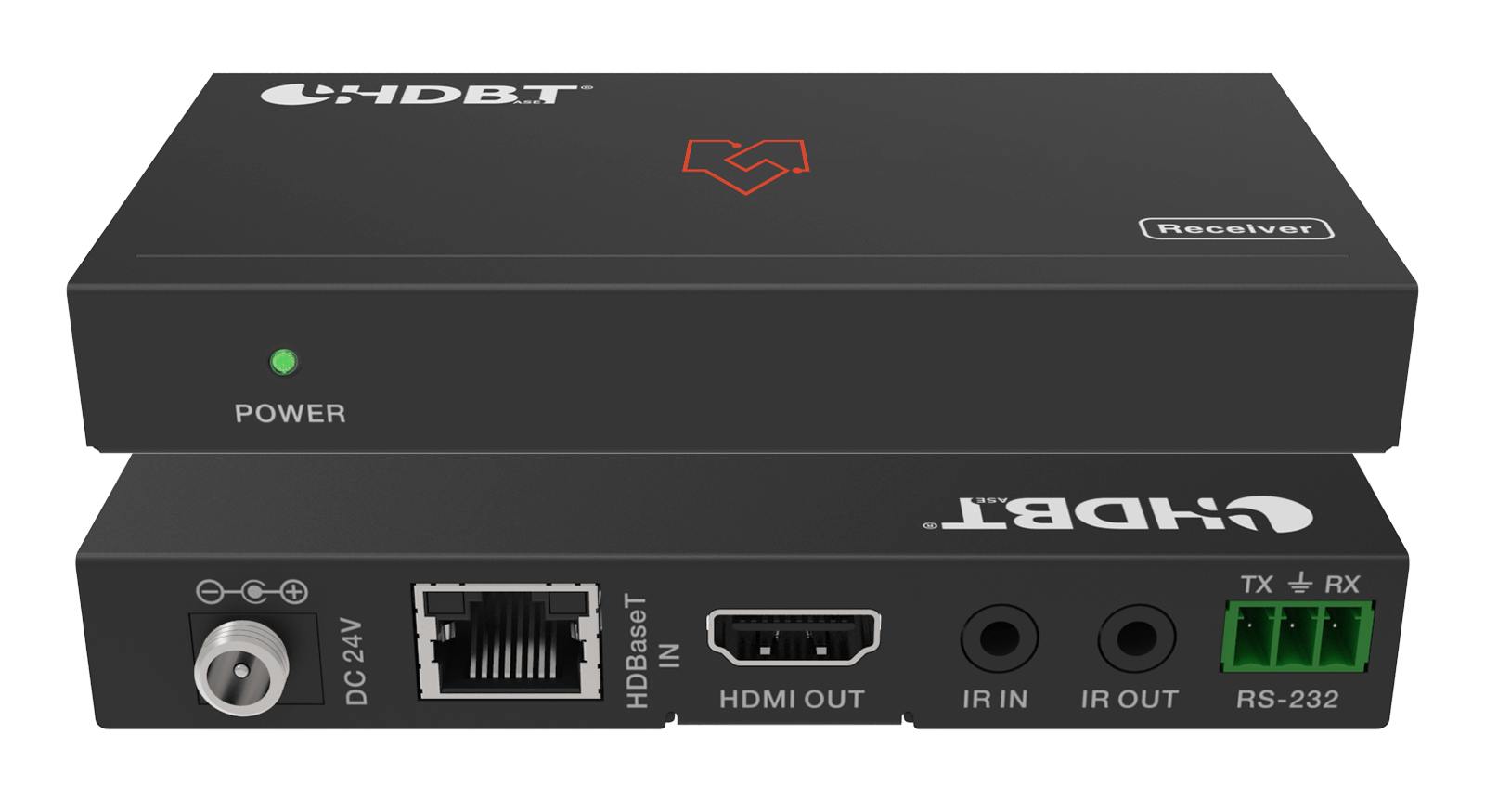

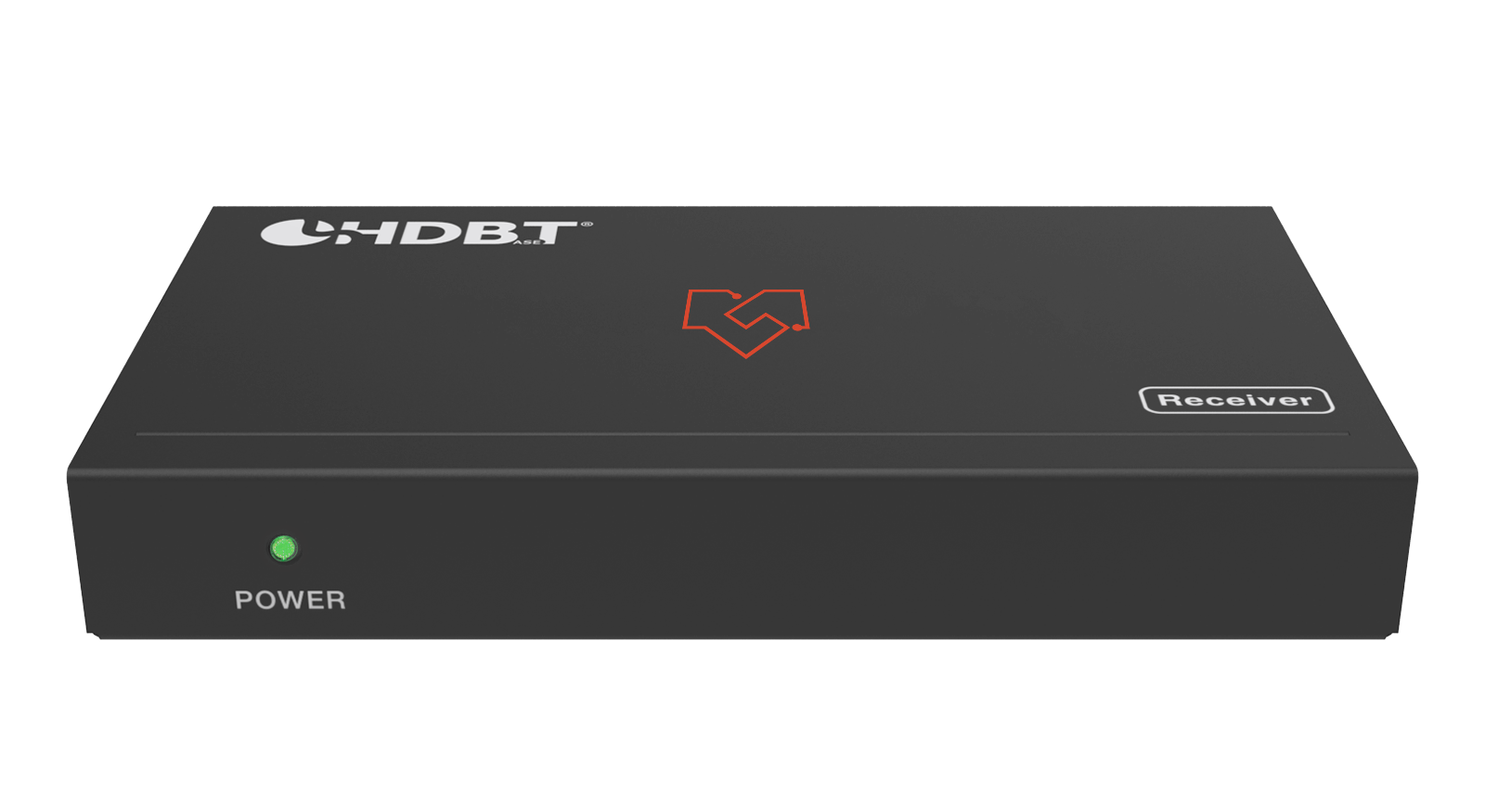

The VLWP-HD70-RX is a HDBaseT receiver can extend the HDMI signal to 230ft/70m to a compatible display and is made for use with VLWP-HD70-TX HDMI Wallplate.
It receieves standard HDBaseT signal which can be transmitted via LAN cable and is designed to convert HDMI signal. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the source or the sink at the remote end.
Featured Highlights
HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444), as specified in HDMI 2.0b
10bit HDR (High Dynamic Range) pass through
Supports HDMI High Bit Rate(HBR) audio pass through
Supports CEC bypass
Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
POC (Power Over Cable) function is supported
Transfer Bidirectional IR control
Transfer Bidirectional RS-232 control signal
Transmission distance over CAT6 cable
70m: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
40m: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit. 4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats | LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female]
1x IR INPUT [Phoenix jack] 1x RS-232 [Phoenix jack] Outputs: 1x HDBaseT Out [RJ45] 1x IR OUTPUT [Phoenix jack] 1x RS-232 [Phoenix jack] |
| Mechanical | |
| Housing | Plastic-Front Panel, Metal-Rear Case |
| Color | White-Front Panel, Black-Rear Case |
| Dimensions | 103.5mm [W] x 46mm [D] x 30mm [H] |
| Weight | 163g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 9W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
