2x1 Wall Plate 1-Gang w/Auto-SwitchingHDBaseT 2.0 4k@60Hz 4:4:4 Mini DP/HDMI 2.0, RS-232 with RX White 40m 18Gbps

VLWP-DHS-TR

Data Sheet

User Manual

Product Description

The VLWP-DHS-TR is a 2x1 in-wall switcher and HDBaseT transmitter designed to support HDMI and DisplayPort inputs in a sleek, space-efficient format. Engineered for flexibility and performance, the unit fits standard US one-gang Decora-style wall plate openings and includes interchangeable black and white faceplates to match various installation environments.

Capable of supporting video resolutions up to 4K2K at 50/60Hz 4:4:4, the VLWP-DHS-TR delivers sharp, high-quality visuals ideal for professional AV applications. It features bidirectional RS-232 pass-through, allowing control signals to be transmitted up to 131 feet (40 meters) alongside the video and audio signals. This simplifies system integration and provides additional flexibility for managing remote devices.

Powered via PoE from a connected receiver or HDBaseT-compatible device, the wall plate requires no local power, making installation cleaner and more efficient. The VLWP-DHS-TR is an ideal solution for boardrooms, classrooms, and collaborative workspaces that demand reliable signal switching and long-distance extension in a compact, in-wall design.

Featured Highlights

Compliant with HDMI 2.0b, HDCP 2.2, and Display Port 1.2a
Supports 18Gbps video bandwidth
Video resolution up to 4K2K@50/60Hz 4:4:4
HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P@60 or 131ft / 40m for 4K@60 via a single CAT6/6a/7 cable
Supports 3D, HDR10 and Dolby Vision
HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High-Res, DTS-HD Master Audio, DSD
Supports HDMI and MDP input
US one-gang enclosure for Decora-style wall plate openings
Input signal selection supports automatic mode and manual mode
Supports POE function (only from Receiver to Transmitter)
Available in white or black coating

Specifications


     Technical

     HDMI Compliance
     HDMI 2.0b

     HDCP Compliance
     HDCP 2.2

     DP Compliance
     Display Port 1.2a

     Video Bandwidth
     DP: 5.4 Gbps

  HDMI: 18 Gbps

     Video Resolution
     480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz

     Color Space
     RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0

     Color Depth
     8/10/12-bit (1080P@60Hz)

  8-bit (4K@60Hz)

     HDR
     3D, HDR10 and Dolby Vision

     HDMI Audio Formats
     LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res,

 DTS-HD Master Audio, DSD

     Transmission Distance
     Max distance (1080P) : 230ft / 70m over CAT6/6a/7 Max distance (4K):

 131ft / 40m over CAT6/6a/7

     ESD Protection
     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

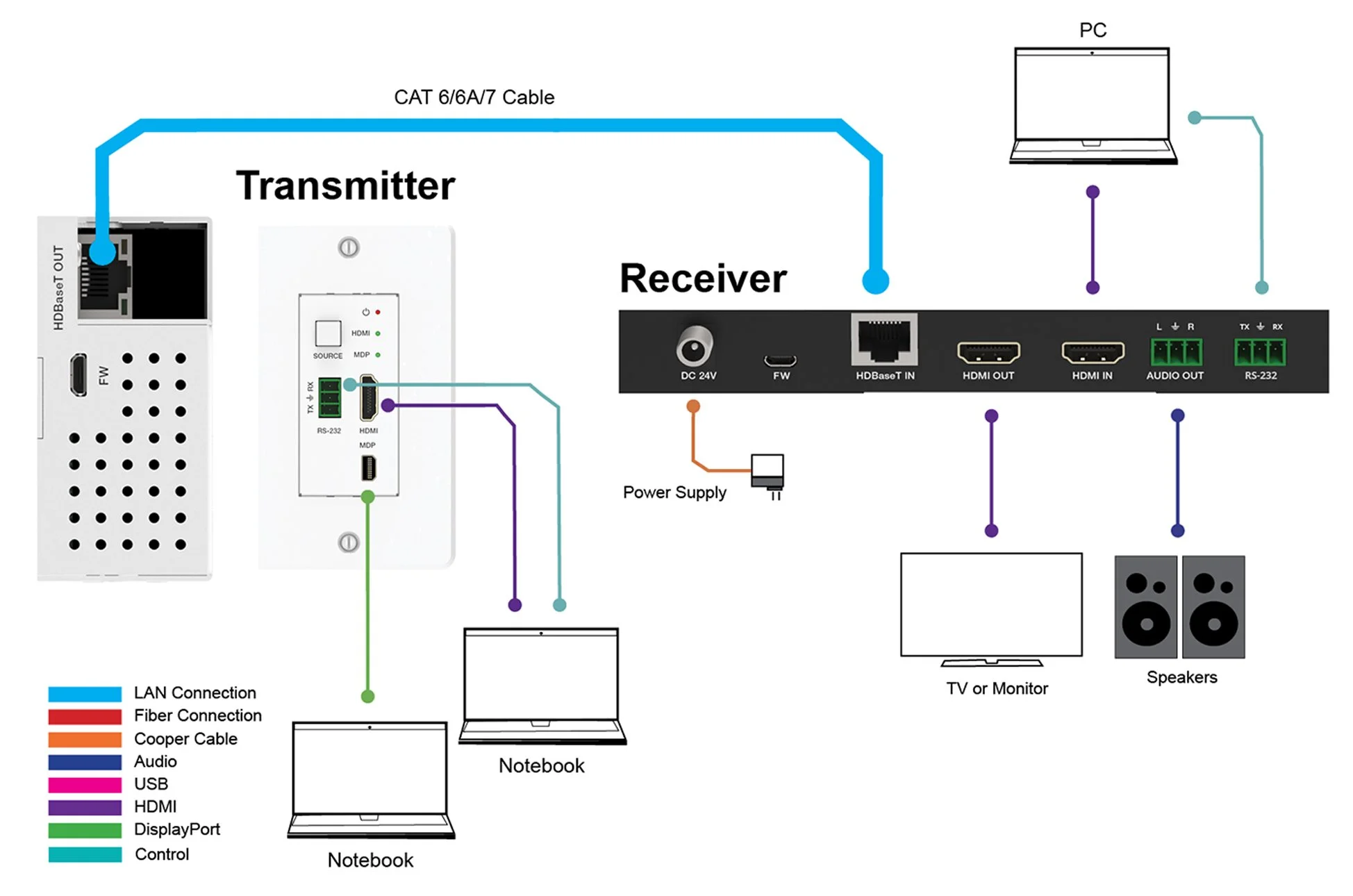

     Connection

    Transmitter
     Inputs:     1x HDMI Type A [19-pin female]

                  1 x miniDP [20-pin female]

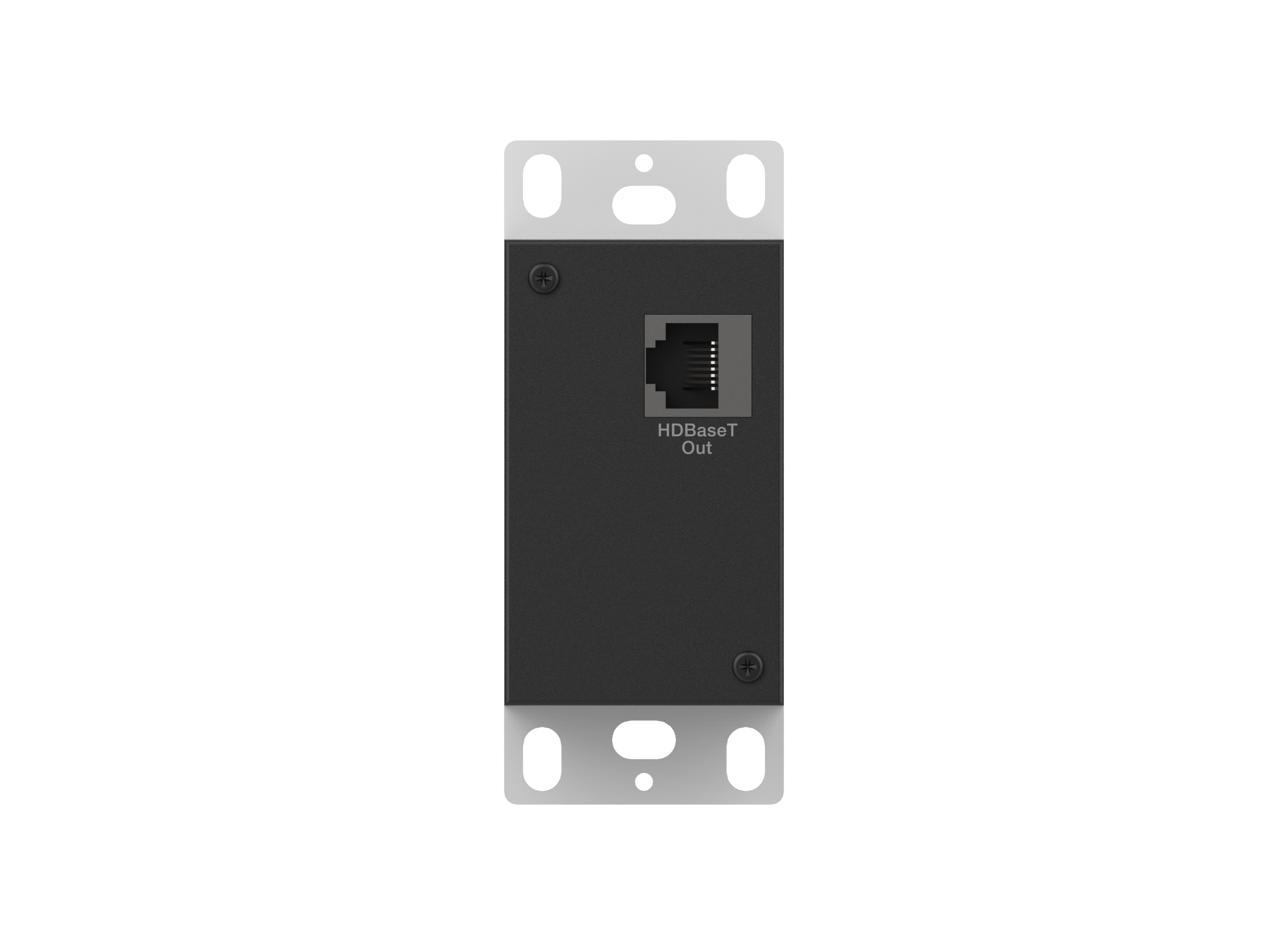

 Outputs:  1x HDBaseT Out [RJ45, 8-pin female]

 Controls: 1x RS-232 [3-pin phoenix connector]

                  1x FW [Micro USB, Update port]

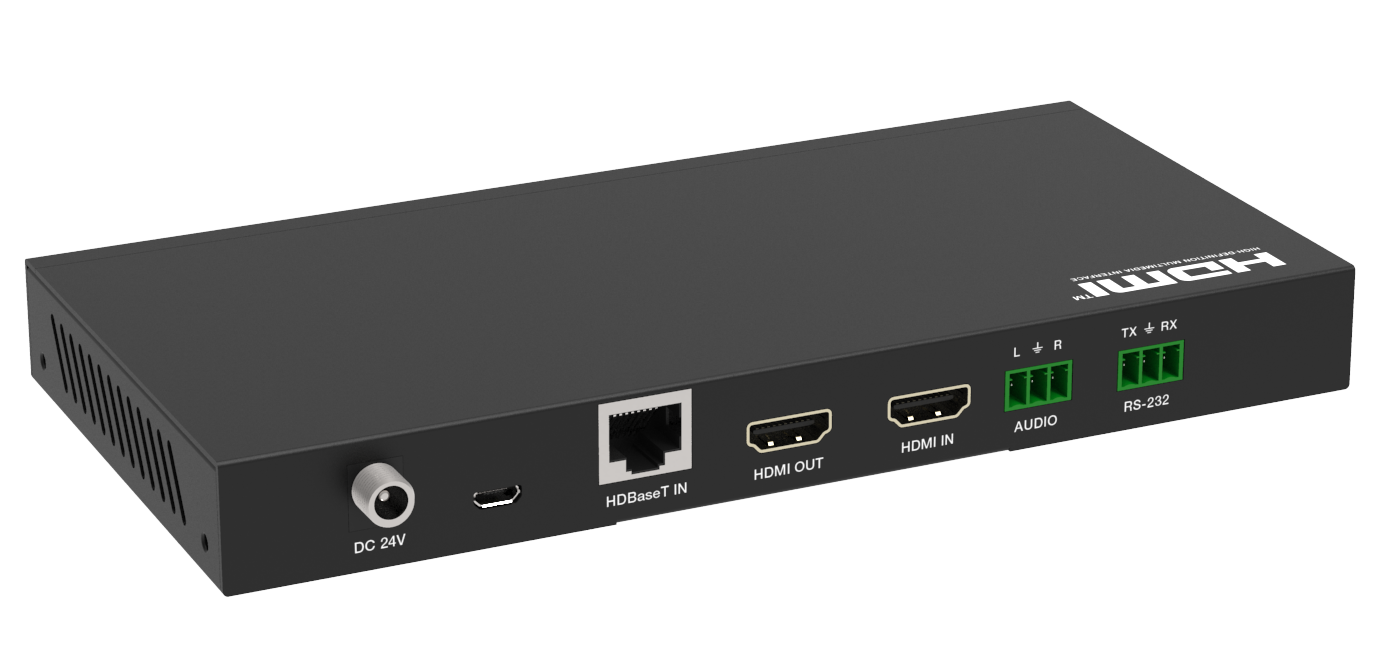

    Receiver
     Inputs:     1x HDMI IN [Type A, 19-pin female]

                 1x HDBaseT IN [RJ45, 8-pin female]

 Outputs:  1x HDMI OUT [Type A, 19-pin female]

                 1x AUDIO OUT [Phoenix jack]

 Controls: 1x RS-232 [3-pin phoenix connector]

                  1x FW [Micro USB, Update port]

     Mechanical

     Housing
     Metal Enclosure

     Color
     White / Black

     Dimensions
     Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H]

 Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H]

 Receiver: 200mm [W] x 102.8mm [D] x 22mm [H]

     Weight
     Wall plate: 189g,

 Receiver: 517g

     Power Supply
     PoE (only from Receiver to Transmitter)

     Power Consumption
     Wall plate: 8W (Max), Receiver: 6W (Max)

     Operating Temperature
      0°C ~ 40°C / 32°F ~ 104°F

     Storage Temperature
     -20°C ~ 60°C / -4°F ~ 140°F

     Relative Humidity
     20 - 90% RH (No condensation)
