SDVoE 10G HDMI 4K60 4:4:4 over IP with Videowall and Multi-view, USB HID Copper Transceiver, up to 328 ft (100 m)

VLIP-SDCPSC-TRX

Data Sheet

User Manual

Product Inquiry Form

Product Description

VLIP-SDCPSC-TRX 10G SDVoE copper transceiver provides a powerful, and scalable AVoIP extension and integration solution for any zero-frame latency and signal routing applications. With both the encoder and decoder configuration integrated, they can transmit and receive video simultaneously, with Videowall and Multi-view functionality.

VLIP-SDCPSC-TRX allows uncompressed UHD media to be switched and distributed over standard 10GbE Ethernet networks with a range up to 328 ft (100 m) over a single CAT6a cable or above. Features a USB extension module can switch between LEX and REX. Standard SDVoE extension features: bi-directional IR and RS-232, and independent analog audio input/output.

Common applications include ProAV, collaboration, digital signage, command & control centers, and medical.

Featured Highlights

Point-to-point transmission up to 328 ft (100 m) through the 10GbE copper port.
HDMI 2.0 and HDCP 2.2 compliant.
Lossless distribution of most timing formats.
Able to transmit and receive video simultaneously.
Bandwidth needed: 4K signals at about 6~8Gbps, 1080P signals at about 3.2 Gbps.
Light compression when the raw data rate exceeds the 10Gb Ethernet bandwidth.
Support input and output resolutions up to 4K@60Hz 4:4:4 8-bit, 4K@60Hz 4:2:2 10-bit and 4K@60Hz 4:2:0 12-bit (HDR)
Supports USB 1.1 extension with USB HID extension solution for control of keyboard and mouse.
Zero-frame latency and seamless switching.
Video wall and Multi-view support.
Local HDMI loopout.
Independent analog audio input and output at 2 channels, 24 bits@48 kHz/channel.
Support bi-directional IR and RS-232 allowing control of remote source and display devices.
Work with Windows PC configurator for device control and management.
Device upgrade via BlueRiver Manager Tool and/or SDVoE Product Updater.

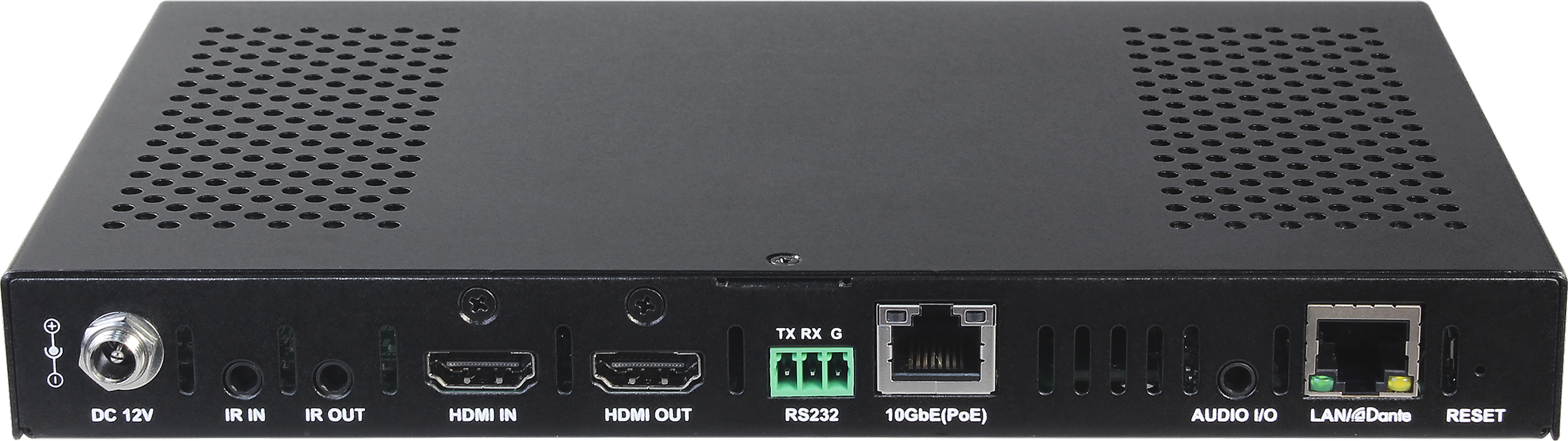

Specifications


      VIDEO

      Input Video Port
      1 x HDMI, 1 x RJ45 (10GBase-T)

      Input Video Type
      HDMI 2.0 with HDCP 2.2 (HDCP output follows input)

      Input Video Resolutions

        640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688, 1440x9008, 1440x10508, 1600x12008,

        720x4807(480i59), 720x4807(480p59), 720x5766(576i50), 720x5766(576p50),

        1280x7205(720p50), 1280x7207(720p59), 1280x7208(720p60),

        1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

        1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

        1920x10805(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

        3840x21601(2160p23), 3840x21602(2160p24), 3840x21604(2160p25), 3840x21604(2160p29),

        3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

        1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz

      Input Video Signal
      0.5~1.2 V p-p

      Input DDC Signal
      5 V p-p (TTL)

      Video Impedance
      100 Ω

      End-to-End Latency
      Zero-frame latency

      Output Video Port
      1 x HDMI, 1 x RJ45 (10GBase-T)

      Output Video Type
      4K UHD uncompressed or light compressed IP stream

      Output Video Resolutions
      Ethernet output: Same as Input Video Resolutions table above

      AUDIO

      Input Audio Port
      1 x HDMI, 1 x RJ45 (10GBase-T), 1 x 3.5mm jack

      Input Audio Format

        • HDMI/10GBase-T/10GBase-SR: LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz, Dolby True HD, DTS-HD Master, Dolby Digital AC-3, DTS version 1

        • 3.5 mm jack: Unbalanced stereo audio

      Output Audio Port
      • 1 x 10G BASE-T port
• 1 x 3.5 mm jack

      Output Audio Format

        • HDMI/10GBase-T/10GBase-SR: LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz, Dolby True HD, DTS-HD Master, Dolby Digital AC-3, DTS version 1

        • 3.5 mm jack: Unbalanced stereo audio

      CONTROL

      Control Method
      LAN, IP control box, PC Configurator, AptoVision BlueRiver API

      GENERAL

      Operating Temp.
      +32°F ~ +113°F (0°C ~ +45°C), 10% ~ 90%, non-condensing

      Storage Temperature
      -4°F ~ 140°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing

      Power Supply
      12V 2 A DC

      Power Consumption
      12W (MAX)

      ESD Protection
      Human body model: ±8kV (air-gap discharge) / ±4kV (contact discharge)

      Product Dimensions
      215mm x 25mm x 140.2mm (8.46” x 0.98” x 5.52”)

      Net Weight
      1.78lbs (0.81kg)

      TRANSMISSION DISTANCE

      CAT6 Copper
      98ft (30m)

      CAT6a/7 Copper
      328ft (100m)
