SDVoE 10G HDMI 2.0 Copper AV over IP Extender Set (VLIP-SDCP-TX + VLIP-SDCP-RX) with IR and RS-232, up to 328ft (100m)

VLIP-SDCP-EXT

Tx Data Sheet

Rx Data Sheet

Product Description

VLIP-SDCP-EXT is a high-performance SDVoE-based AVoIP extender Tx and Rx pair engineered for uncompromised 4K AV signal extension. With HDMI 2.0 input and 10GBase-T network output, it delivers crystal-clear 4K@60Hz (4:4:4) video with zero latency and zero compression, making it ideal for real-time applications where image integrity is critical for a complete end-to-end SDVoE distribution solution built for today’s most demanding AV networks.

Designed for flexibility and ease of use, the unit features LED indicators for quick visual status updates and EDID management to ensure seamless integration with a variety of source devices and displays. Its compact form factor and robust feature set make it a perfect fit for residential AV, corporate environments, and medical installations, where performance, reliability, and system flexibility are essential.

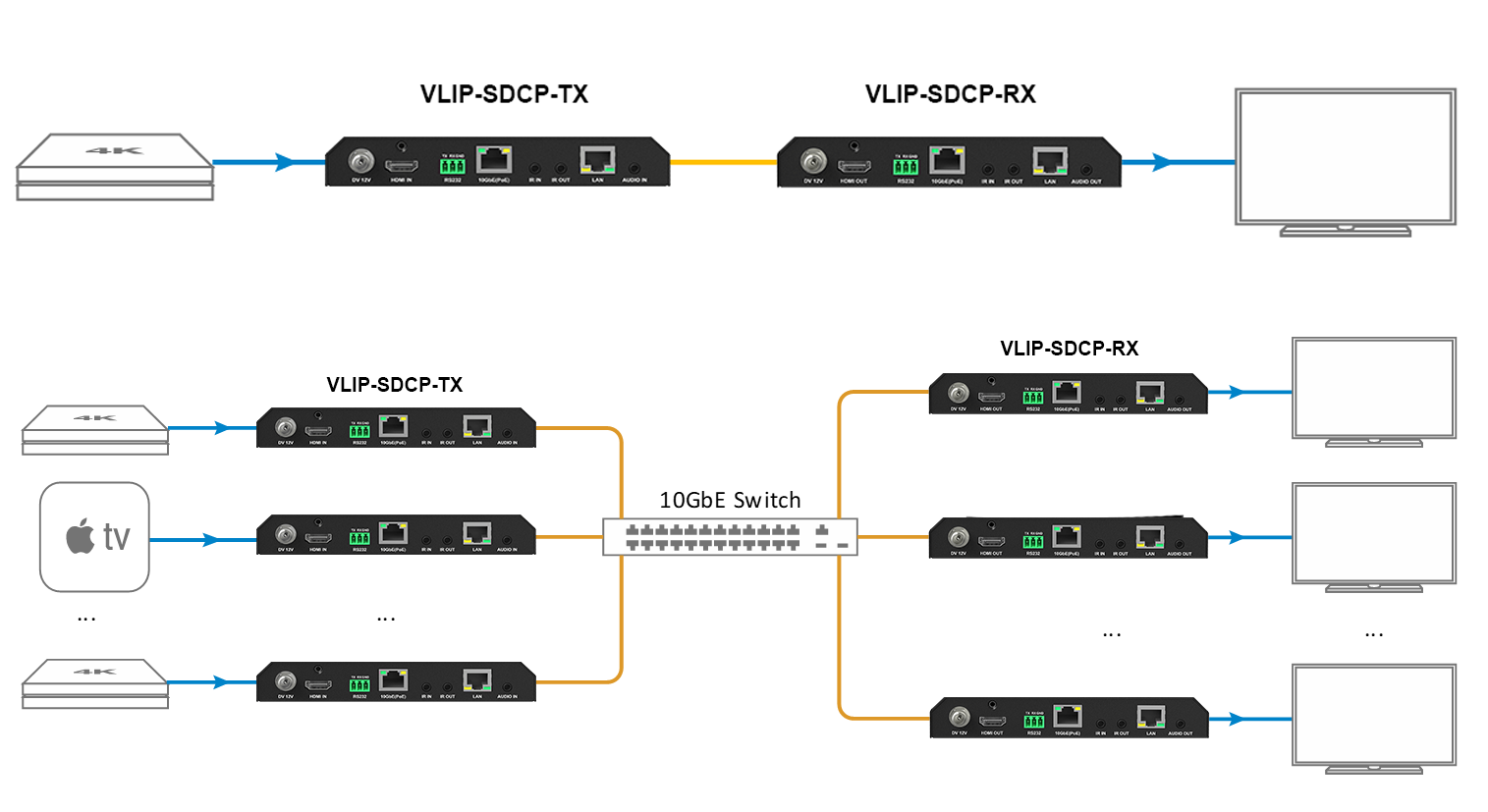

It supports a wide range of deployment scenarios, including point-to-point, matrix switching, and video wall applications via standard 10G Ethernet switches. This eliminates the need for proprietary switching hardware and enables greater scalability.

Includes VLIP-SDCP-TX and VLIP-SDCP-RX units.

Featured Highlights

  • HDMI 2.0b and HDCP 2.2 compliant

  • Support the input timing of up to 4096x2160@60Hz, 3840x2160@60Hz (4:4:4) and 3840x2160@60Hz (4:2:0 10-bit HDR)

  • Supports HDR10, Dolby Vision, HLG, 3D as well

  • Supports complete HDMI audio formats, up to Dolby TrueHD, Dolby Atmos, and DTS-HD, DTS:X

  • Supports Zero-Frame latency operating mode

  • The input bit rate is 3.2 Gbps for 1080p@60Hz, 6 Gbps for 3840x2160@30Hz or 12 Gbps for 3840x2160@60hz

  • Maximum extension distance is 100m between the Tx/Rx units

Specifications

VLIP-SDCP-TX VIDEO/AUDIO
Input Connectors    1 x HDMI 2.0

1 x Unbalanced stereo audio
Supported Input    HDMI in:


[Video]

640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

1440x10508, 1600x12008 , 720x4807(480i59), 720x4807(480p59),

720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;


[Audio]

LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)

DTS version 1 (DVD format)


Audio in:

Unbalanced stereo audio
Output Connectors     1 x 10GBase-T
Supported Output    Ethernet (10GBase-T):


[Video]

640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

1440x10508, 1600x12008 , 720x4807(480i59), 720x4807(480p59),

720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;


[Audio]

LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)

DTS version 1 (DVD format)
Control
Ethernet         PC Configurator: for configuring, controlling and upgrading
RS232         PC Configurator: for testing and upgrading
Mechanical
Operating Temperature 0 to + 40°C (32 to + 104 °F), 10% to 90%, non-condensing
Storage Temperature -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
Humidity    10% to 90%, non-condensing
Product Weight     To be measured
Power Supply    5V 2A DC
Transport Distance     100m
Product Dimension     145.2mm x 160mm x 25mm (L x W x H)
ESD Protection     Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact discharge)
VLIP-SDCP-RX VIDEO/AUDIO
Input Connectors    1 x 10GBase-T
Supported Input    Ethernet(10GBase-T):


[Video]

640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

1440x10508, 1600x12008 , 720x4807(480i59), 720x4807(480p59),

720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;


[Audio]

LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)
Output Connectors     1 x HDMI 2.0

1 x Unbalanced stereo audio
Supported Input    HDMI in:


[Video]

640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

1440x10508, 1600x12008 , 720x4807(480i59), 720x4807(480p59),

720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;


[Audio]

LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)

DTS version 1 (DVD format)


Audio in:

Unbalanced stereo audio
Control
Ethernet         PC Configurator: for configuring, controlling and upgrading
RS232         PC Configurator: for testing and upgrading
Mechanical
Operating Temperature 0 to + 40°C (32 to + 104 °F), 10% to 90%, non-condensing
Storage Temperature -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
Humidity    10% to 90%, non-condensing
Product Weight     To be measured
Power Supply    5V 2A DC
Transport Distance     100m
Product Dimension     145.2mm x 160mm x 25mm (L x W x H)
ESD Protection     Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact discharge)
