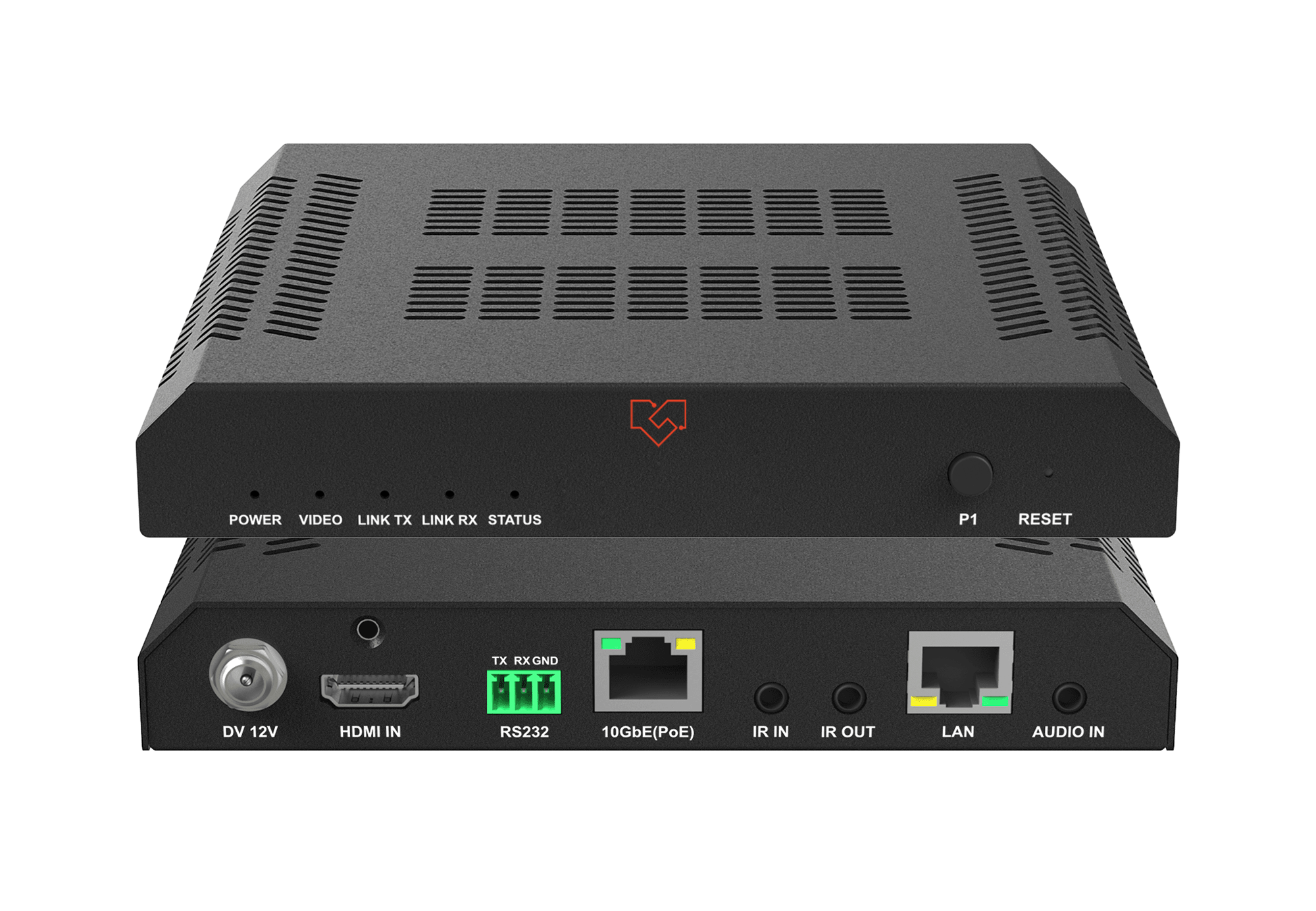

SDVoE 10G HDMI 2.0 AV over IP Transmitter with IR and RS-232

VLIP-SDCP-TX

Data Sheet

Product Inquiry Form

Company

Company name

Name

First Name

Last Name

Message

Product Description

VLIP-SDCP-EXT(TX) – 4K AVoIP Transmitter with Zero Latency

The VigilLink VLIP-SDCP-EXT(TX) is a high-performance SDVoE-based AVoIP transmitter engineered for uncompromised 4K AV signal distribution. With HDMI 2.0 input and 10GBase-T network output, it delivers crystal-clear 4K@60Hz (4:4:4) video with zero latency and zero compression, making it ideal for real-time applications where image integrity is critical.

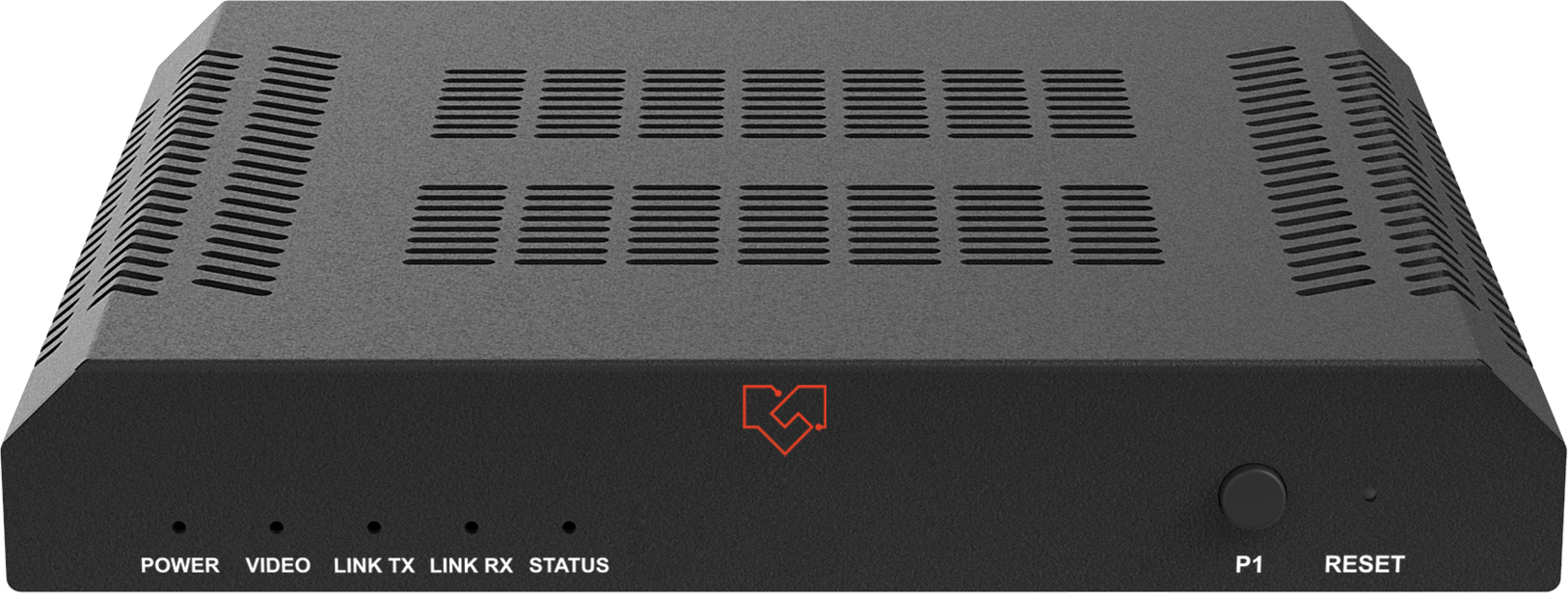

Designed for flexibility and ease of use, the unit features LED indicators for quick visual status updates and EDID management to ensure seamless integration with a variety of source devices and displays.

The VLIP-SDCP-EXT(TX) supports a wide range of deployment scenarios, including point-to-point, matrix switching, and video wall applications via standard 10G Ethernet switches. This eliminates the need for proprietary switching hardware and enables greater scalability.

Its compact form factor and robust feature set make it a perfect fit for residential AV, corporate environments, and medical installations, where performance, reliability, and system flexibility are essential.

Pair with the VLIP-SDCP-EXT(RX) for a complete end-to-end SDVoE distribution solution built for today’s most demanding AV networks.

Specifications


     VIDEO/AUDIO

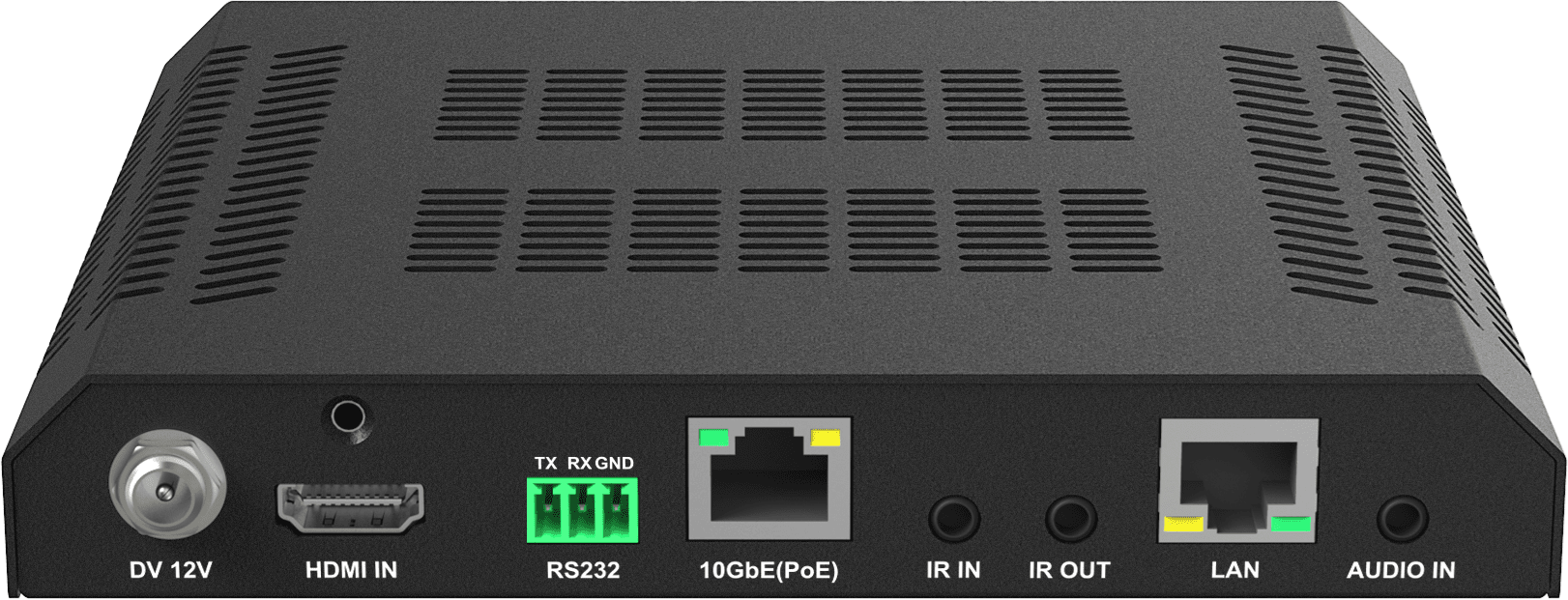

     Input Connectors
     1 x HDMI 2.0

1 x Unbalanced stereo audio

     Supported Input
     HDMI in:

[Video]

640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

 1440x10508, 1600x12008 , 720x4807(480i59),
720x4807(480p59),

 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

  1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

  1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

  1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

  3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

  3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at
30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;

[Audio]

 LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)

DTS version 1 (DVD format)

Audio in:

Unbalanced stereo audio

     Output Connectors
     1 x 10GBase-T

     Supported Output
     Ethernet (10GBase-T):

[Video]

640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

 1440x10508, 1600x12008 , 720x4807(480i59),
720x4807(480p59),

 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

  1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

  1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

  1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

  3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

  3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at
30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;

[Audio]

 LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)

DTS version 1 (DVD format)

     Control

    Ethernet
     PC Configurator:  for configuring, controlling and upgrading

    RS232
     PC Configurator:  for testing and upgrading

     Mechanical

     Operating Temperature
     0 to + 40°C (32 to + 104 °F), 10% to 90%, non-condensing

     Storage Temperature
     -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

     Humidity
     10% to 90%, non-condensing

     Product Weight
     To be measured

     Power Supply
     5V 2A DC

     Transport Distance
     100m

     Product Dimension
     145.2mm x 160mm x 25mm (L x W x H)

     ESD Protection
     Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact
discharge)

Featured Highlights

HDMI 2.0b and HDCP 2.2 compliant
Support the input timing of up to 4096x2160@60Hz, 3840x2160@60Hz (4:4:4) and 3840x2160@60Hz (4:2:0 10-bit HDR)
Supports HDR10, Dolby Vision, HLG, 3D as well
Supports complete HDMI audio formats, up to Dolby TrueHD, Dolby Atmos, and DTS-HD, DTS:X
Supports Zero-Frame latency operating mode
The input bit rate is 3.2 Gbps for 1080p@60Hz, 6 Gbps for 3840x2160@30Hz or 12 Gbps for 3840x2160@60hz
Between the device and the Ethernet switch or the receiver, the maximum transport distance is 100m
