AVoIP Controller for SDVoE

VLIP-SD10G-CTRL

Data Sheet

Product Description

VLIP-H51G-CTRL – Advanced IP Controller for Networked AV Systems

The VigilLink VLIP-H51G-CTRL is a compact yet powerful AV over IP controller designed to manage and control H.265/ H.264-based IP products across dual isolated 1G networks—separating control and multicast video traffic for enhanced performance and network security. Ideal for growing digital AV infrastructures, this controller supports a wide range of control protocols including Web GUI, TCP/IP, RS-232, IR, and GPIO, offering flexible system integration across commercial, enterprise, and educational environments. Its intuitive web-based interface allows for straightforward configuration, device management, and visual control workflows.

With built-in PoE support, the VLIP-H51G-CTRL eliminates the need for external power supplies, simplifying deployment in space-constrained installations. It also supports IR pass-through, allowing remote control of source devices across the network.

Designed to meet the increasing demand for flexible, IP-based AV control, the VLIP-H51G-CTRL offers the tools and connectivity needed to build responsive, scalable systems for today’s connected environments.

Featured Highlights

HTTPS, SSH, SFTP security compatible
Built-in Web GUI control interface, supporting Drag & Drop operations
Supports image preview
Supports video, audio, RS-232, IR, KVM control, and management of the distributed system
Dual network ports (VIDEO LAN port supports POE function) to isolate Controls and Multicast networks.
Supports LAN/RS-232 port control and third-party central control
Supports IR signal receiving (3.5mm audio jack, 12V level)
4-channel GPIO control ports (5V/12V optional level)
Multiple circuits protection, lightning protection, and ESD design
Reliable system design, ensuring 7*24 hours reliable and stable work

Specifications


     Technical

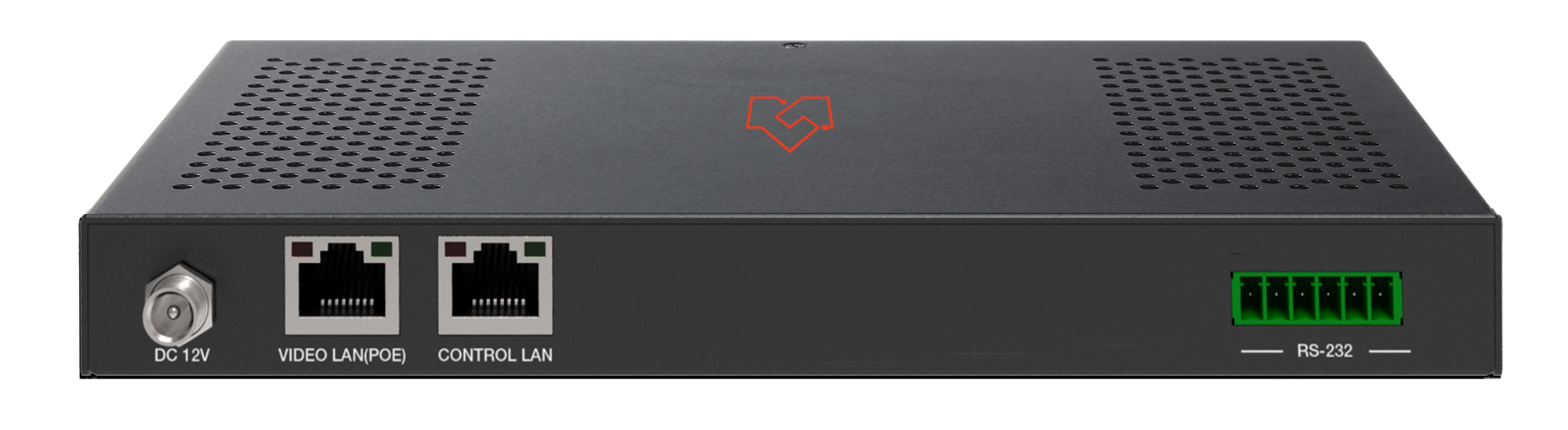

     Ports
     1 x USB 2.0 1A

1x USB 2.0 0.5A

1 x GE port with POE

1 x GE port

1 x 6-pin phoenix connector

1 x DC 12V/2A

     Control
     Web UI

     Dimensions
     215mm(W)×120mm(D)×25mm(H)

     Housing
     Sheet steel

     Color
     Black

     Weight
     To be measured

     Power Supply
     12V/2A

     Operating Temperature
     0°C ~ 40°C / 32°F ~ 104°F

     Storage Temperature
     -20°C ~ 60°C / -4°F ~ 140°F

     Relative Humidity
     20~90% RH (No condensation)
