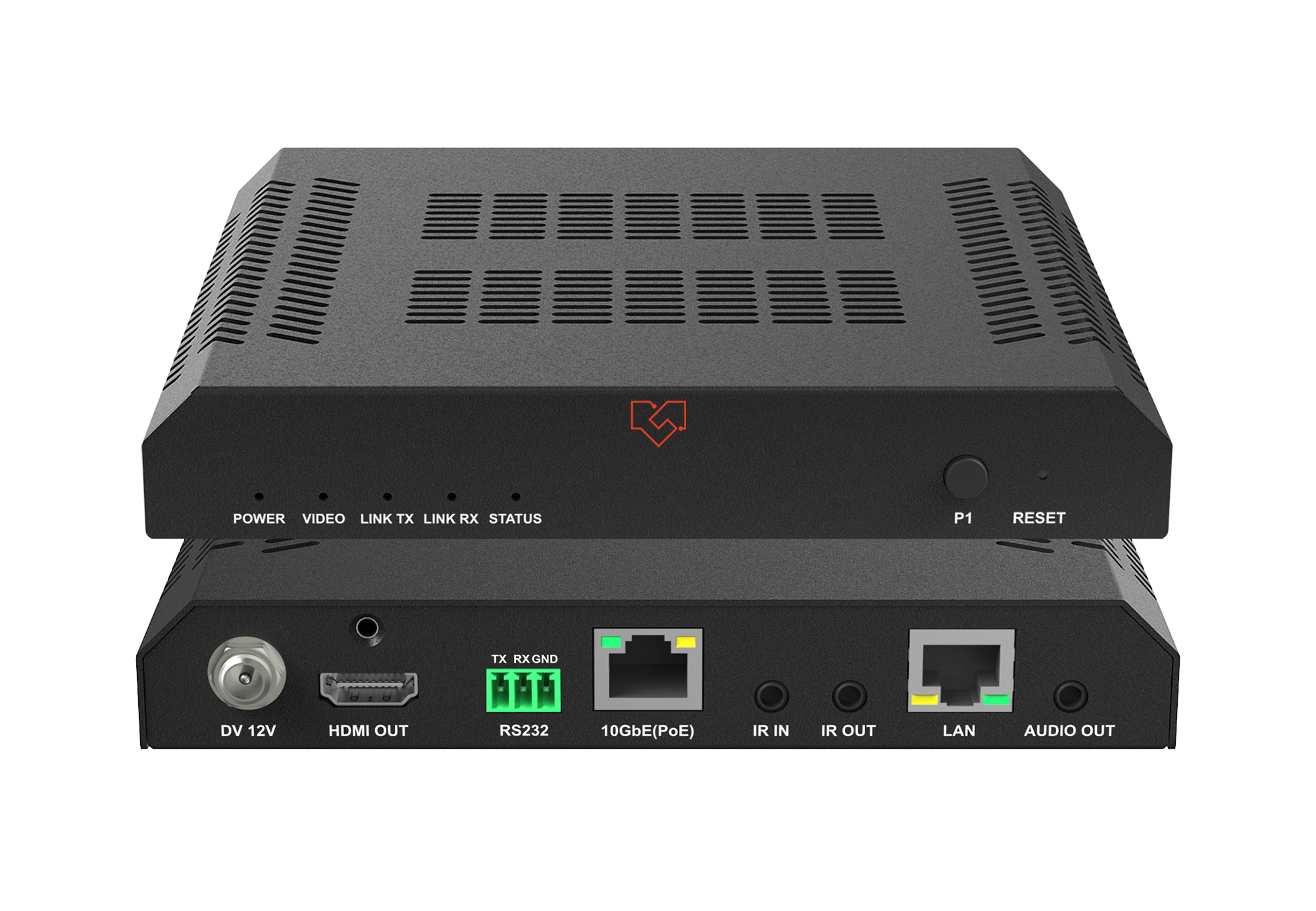

SDVoE 10G HDMI 2.0 AV over IP Receiver with IR and RS-232

VLIP-SDCP-RX

Data Sheet

VLIP-SDCP-RX is a high-performance SDVoE-based AVoIP receiver designed for uncompromised 4K signal distribution. Featuring 10GBase-T network input and HDMI 2.0 output, it delivers stunning 4K@60Hz (4:4:4) video with zero latency and zero compression—ideal for real-time applications where image integrity is critical. Pair with the VLIP-SDCP-TX for a complete end-to-end SDVoE distribution solution built for today’s most demanding AV networks.

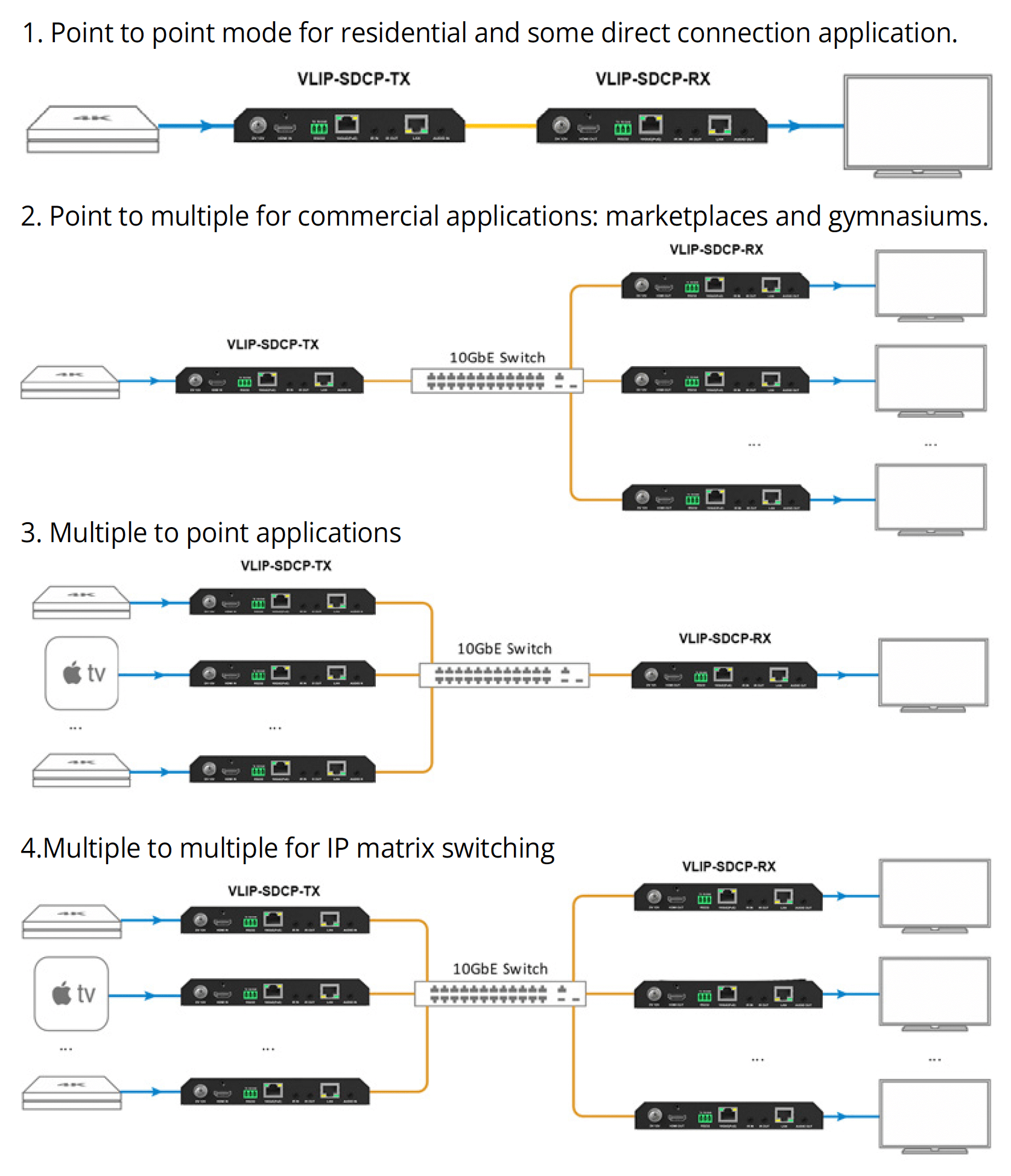

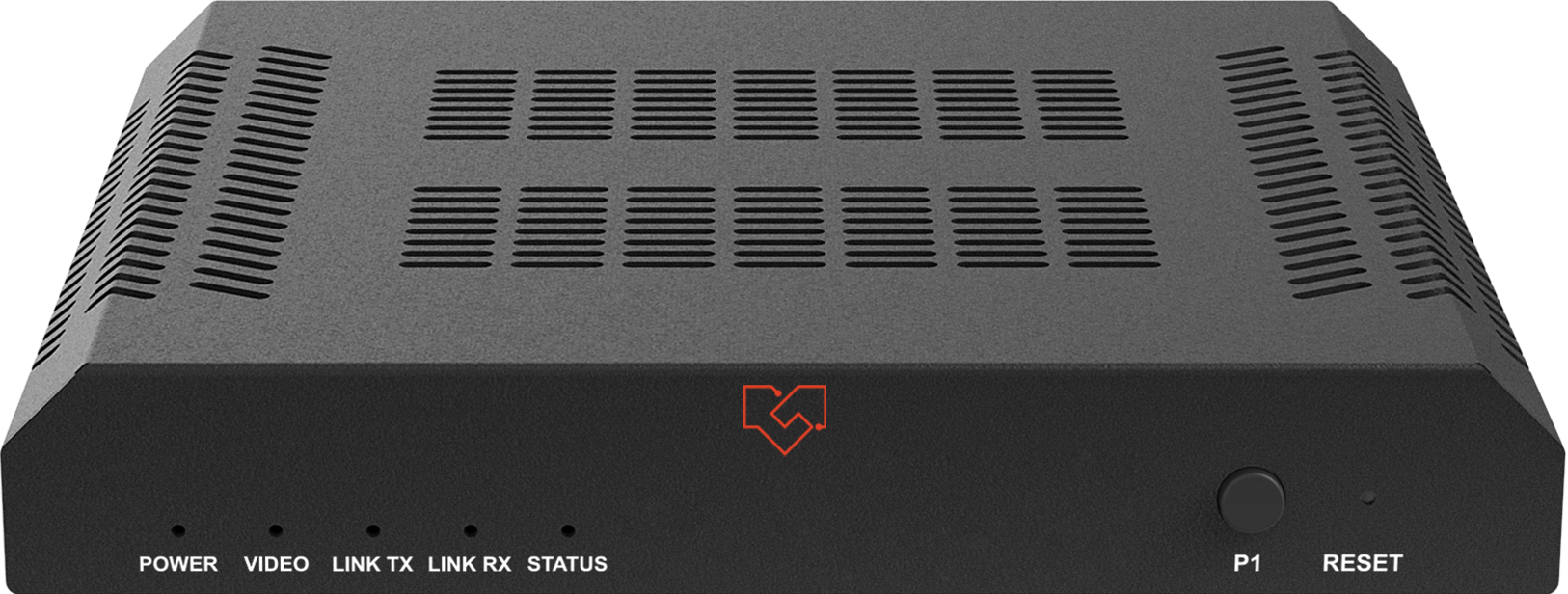

Engineered for flexibility and ease of use, the unit includes LED indicators for quick status checks and EDID management for seamless integration with diverse source devices and displays. It supports multiple deployment scenarios, including point-to-point, matrix switching, and video walls, all via standard 10G Ethernet switches—eliminating proprietary hardware and enabling scalable solutions.

Its compact form factor and robust feature set make it perfect for commercial, corporate, and medical installations where performance and reliability are essential.

Specifications


     VIDEO/AUDIO

     Input Connectors
     1 x 10GBase-T

     Supported Input
     Ethernet(10GBase-T):

[Video]

640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

 1440x10508, 1600x12008 , 720x4807(480i59),
720x4807(480p59),

 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

  1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

  1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

  1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

  3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

  3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at
30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;

[Audio]

 LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)

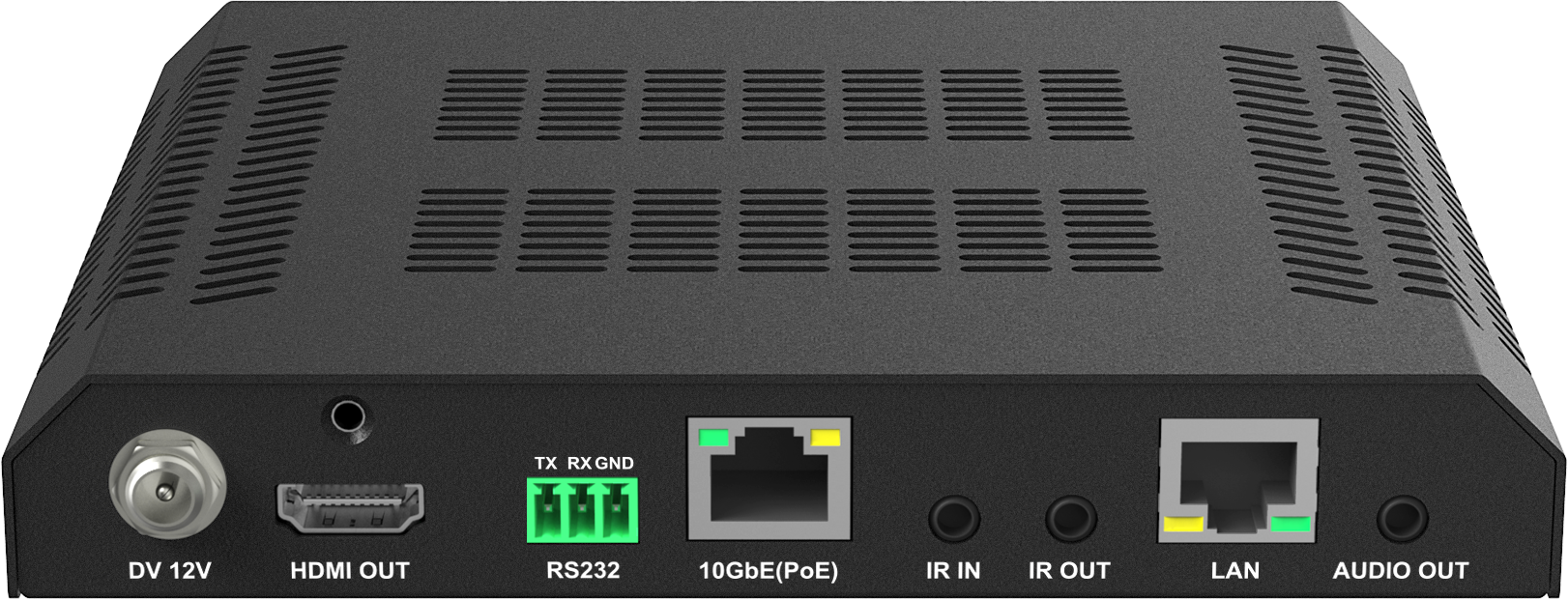

     Output Connectors
     1 x HDMI 2.0

1 x Unbalanced stereo audio

     Supported Input
     HDMI in:

[Video]

640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

 1440x10508, 1600x12008 , 720x4807(480i59),
720x4807(480p59),

 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

  1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

  1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

  1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

  3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

  3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at
30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;

[Audio]

 LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)

DTS version 1 (DVD format)

Audio in:

Unbalanced stereo audio

     Control

    Ethernet
     PC Configurator:  for configuring, controlling and upgrading

    RS232
     PC Configurator:  for testing and upgrading

     Mechanical

     Operating Temperature
     0 to + 40°C (32 to + 104 °F), 10% to 90%, non-condensing

     Storage Temperature
     -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

     Humidity
     10% to 90%, non-condensing

     Product Weight
     To be measured

     Power Supply
     5V 2A DC

     Transport Distance
     100m

     Product Dimension
     145.2mm x 160mm x 25mm (L x W x H)

     ESD Protection
     Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact
discharge)

Featured Highlights

Maximum transport distance is 100m (328ft) between the device and the Ethernet switch or the receiver
HDMI 2.0b and HDCP 2.2 compliant
Extends IR and RS-232 control signals
Support the input timing of up to 4096x2160@60Hz, 3840x2160@60Hz (4:4:4) and 3840x2160@60Hz (4:2:0 10-bit HDR)
Supports HDR10, Dolby Vision, HLG, 3D as well
Supports complete HDMI audio formats, up to Dolby TrueHD, Dolby Atmos, and DTS-HD, DTS:X
Supports Zero-Frame latency operating mode
The input bit rate is 3.2 Gbps for 1080p@60Hz, 6 Gbps for 3840x2160@30Hz or 12 Gbps for 3840x2160@60hz
