2x1 Dual USB-C Huddle Room Switcher, 4K@60Hz 4:4:4 to HDMI with 100W USB-C Charging, USB KVM

VLPT-21UUC

2x1 huddle room switcher with two full-featured USB-C inputs to a single HDMI output at 4K@60Hz 4:4:4 (18Gbps), HDCP 2.3 and DP 1.4a compliant
Each USB-C input supports DP Alt mode, USB 3.2 Gen 1 (5Gbps) data, 1G Ethernet pass-through, and up to 50W charging (100W total across both ports)
Full USB KVM switching with USB-C and dual USB-A device ports, plus balanced/unbalanced analog audio embedding and de-embedding
Fast auto and manual switching with signal and 5V detection; control via front panel, RS-232, TCP/IP, and web GUI, with CEC/IR/LAN/GPIO external-device control

Product Description

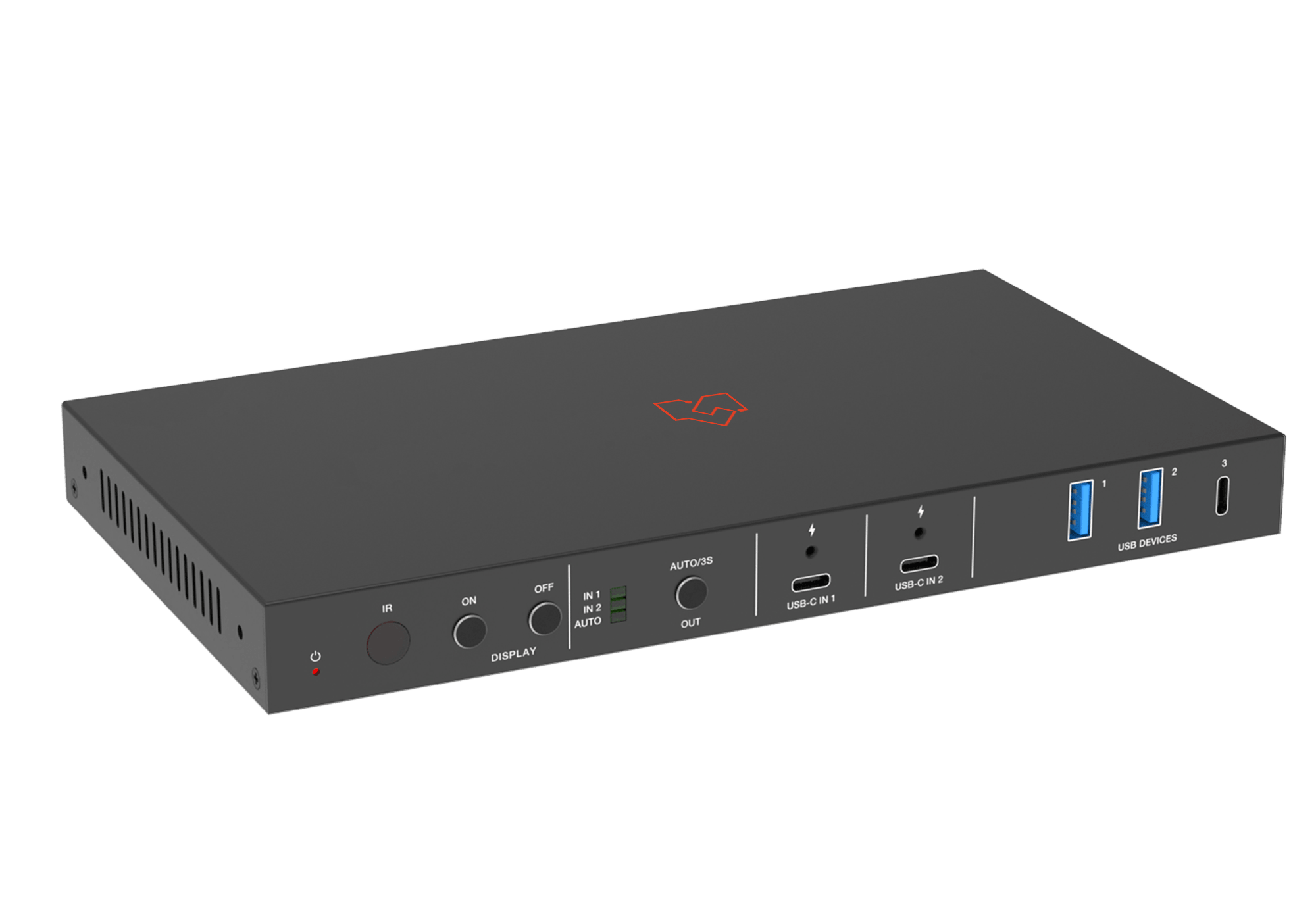

The VLPT-21UUC is a 2x1 dual USB-C huddle room switcher for meeting spaces where every source is a laptop. Two full-featured USB-C inputs sit on the front, each carrying 4K@60Hz 4:4:4 video over DisplayPort Alt Mode along with USB 3.2 Gen 1 (5Gbps) data, 1G Ethernet, and up to 50W of charging (100W total across both ports). Video is switched to a single HDMI output at up to 4K@60Hz 4:4:4 (18Gbps, HDMI 2.0b), preserving HDR10, HDR10+, Dolby Vision, and HLG.

It is a pure single-cable design: two presenters each dock with one USB-C cable for picture, shared USB devices, network, and power, with no dongles or separate supply. (The sibling VLPT-21HUC swaps one USB-C input for HDMI where a legacy source is still needed.) When a laptop disconnects, the switcher falls back to the other input automatically using signal and 5V detection, or an operator switches manually from the front panel.

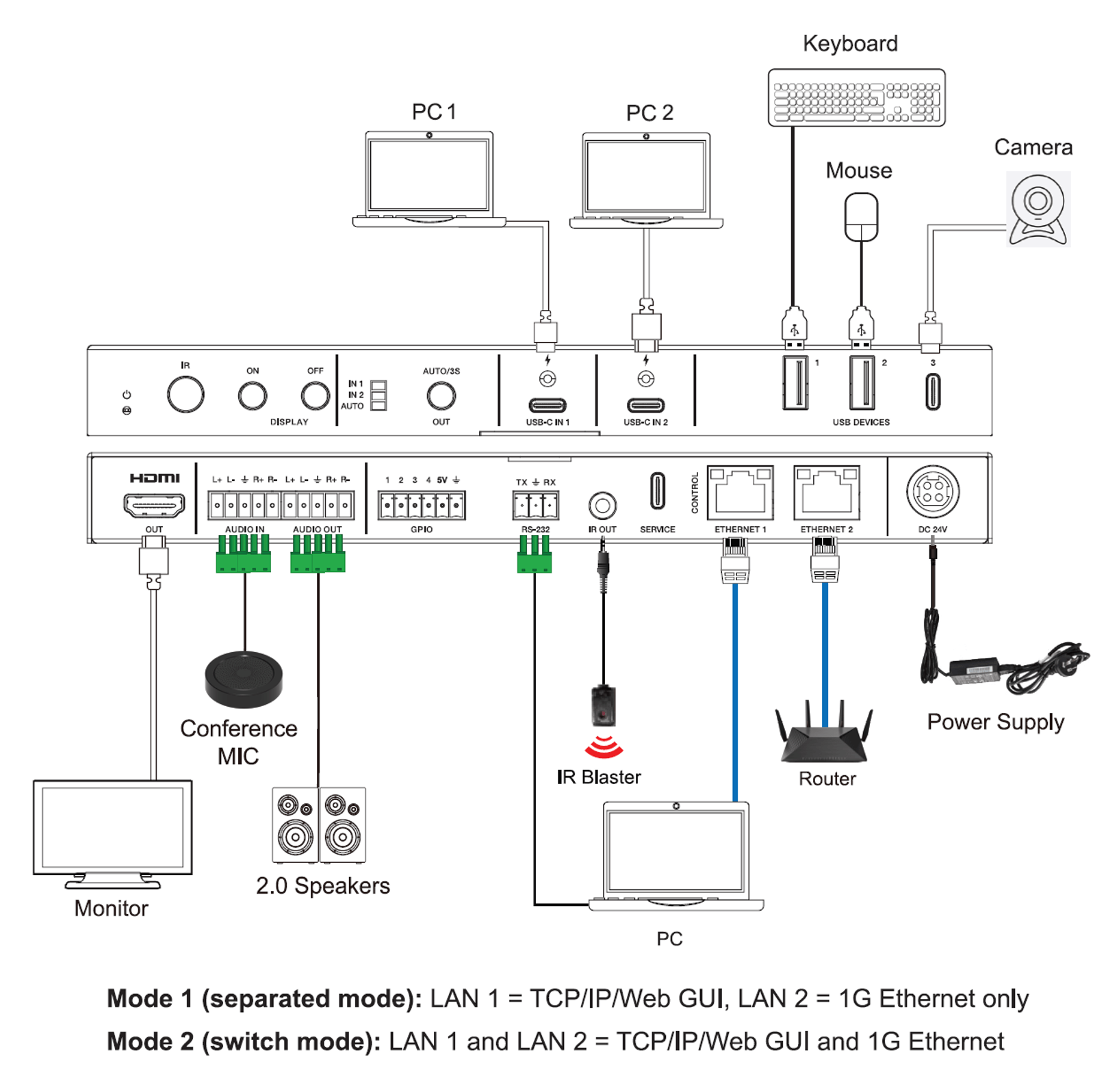

Beyond switching, the VLPT-21UUC works as a room hub. Its USB 3.2 Gen 1 KVM shares a USB-C and two USB-A device ports (5V/1.5A) with the active source, so a room camera and speakerphone follow the presenter between the two laptops. Balanced or unbalanced analog audio can be embedded into the USB stream or de-embedded from the USB or HDMI stream. Dual 1G Ethernet with 802.1x and VLAN, an IR eye, GPIO, RS-232, and CEC display control integrate the unit into a control system, managed from the front panel, RS-232, TCP/IP, or a built-in Web GUI.

Key Features

2x1 dual USB-C switching to one HDMI output at up to 4K@60Hz 4:4:4 (18Gbps, HDMI 2.0b), HDCP 2.3 and DP 1.4a compliant
Two full-featured USB-C inputs, each with DP Alt Mode 4K60 4:4:4 video, USB 3.2 Gen 1 (5Gbps) data, 1G Ethernet, and up to 50W charging (100W total across both ports)
Fast auto and manual switching with automatic signal detection and 5V detection, waking the full system including external devices
Integrated USB 3.2 Gen 1 KVM — host plus local hub, one USB-C and two USB-A device ports (5V/1.5A) shared between sources
Balanced/unbalanced analog audio embedding to the USB audio stream and de-embedding from the USB or HDMI audio stream
Advanced EDID management with user-defined welcome screen and no-signal display image
Dual 1G Ethernet ports with 802.1x and VLAN support
Full room control and automation — auto display on/off, external device control via CEC, IR, RS-232, LAN, and GPIO, with an IR eye for IR learning
Multiple management interfaces — front-panel buttons, RS-232, TCP/IP, and Web GUI
Compact metal enclosure (230 x 130 x 23 mm) with mounting ears
6-year VigilLink warranty

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Ideal Applications

Corporate Huddle Rooms & Small Meeting Spaces

The VLPT-21UUC suits two- to six-person huddle rooms standardized on USB-C laptops, where a wall display serves two docking positions. Two front-panel USB-C inputs give each presenter a table-accessible single-cable connection, and automatic switching means the display shows the active source without anyone touching a remote.

Fully USB-C BYOD / BYOM Conference Rooms

In organizations that have moved entirely to USB-C, a single cable connects each guest laptop for video, network, USB peripherals, and charging, while the built-in KVM hands the room camera and speakerphone to the active laptop for a bring-your-own-meeting session on Microsoft Teams, Zoom, or Google Meet. Two inputs let a host and a guest both stay docked and switch between them instantly.

Classrooms & Training Rooms

An instructor's laptop and a guest presenter's laptop share one projector or flat panel, each connecting over USB-C with power delivery so neither runs down mid-session. EDID management ensures a clean, correctly formatted image on every connection, and the user-defined welcome screen keeps a branded or instructional image on the display between sessions.

Hybrid Meeting Rooms

Because the USB KVM follows the active source, a shared PTZ camera and microphone work identically from either laptop. Balanced audio de-embedding sends program audio to a room amplifier or DSP, keeping the AV chain unified across in-room and remote participants.

Executive Offices, Focus Rooms & Telehealth Stations

In compact single-display spaces used by more than one device, the VLPT-21UUC replaces adapters and chargers with one under-desk unit serving two USB-C connection points. Dual 1G Ethernet with VLAN support keeps device traffic on the correct network segment, and up to 50W per port keeps connected laptops powered through long sessions.

Specifications


  Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.3
DP ComplianceDP 1.4a (USB-C input)
USB ComplianceUSB 3.2 Gen 1 (5Gbps)
Video Bandwidth18Gbps
Network Bandwidth1G
Video Resolution (Input & Output)Up to 4096x2160p60Hz and 3840x2160p60Hz 4:4:4; supports standard resolutions from 480i/480p through 1080p and 4K
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12-bit (8-bit at 4K@60Hz 4:4:4)
HDRHDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats (USB-C IN, HDMI OUT)LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS-HD High Res, DTS-HD Master Audio, DSD
Audio Formats (Analog Audio IN/OUT)LPCM 2CH (sample rate 32-192kHz)
IR Level5Vp-p
IR Frequency20K-60KHz
Transmission DistanceUSB 3.2 passive cable 1.5m / 4.9ft; HDMI passive cable 3m / 9.8ft
ESD ProtectionIEC 61000-4-2: +/-8kV air-gap discharge, +/-4kV contact discharge
Connections
Input Ports2x USB-C IN [24-pin female]; 1x L/R AUDIO IN [5-pin 3.5mm phoenix]
Output Ports1x HDMI OUT [Type A, 19-pin female]; 1x USB DEVICE [USB Type C, 24-pin female]; 2x USB DEVICE [USB Type A, 9-pin female]; 1x L/R AUDIO OUT [5-pin 3.5mm phoenix]
Control Ports1x RS-232 [3-pin 3.5mm phoenix]; 1x IR OUT [3.5mm stereo mini-jack]; 2x ETHERNET [RJ45]; 1x GPIO [6-pin 3.5mm phoenix]; 1x SERVICE [USB-C, FW update]
Mechanical
HousingMetal enclosure
ColorBlack
Dimensions230mm [W] x 130mm [D] x 23mm [H]
Weight796g
Power SupplyInput AC 100-240V 50/60Hz; Output DC 24V/7.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption37W (without USB-C charging); 145W (with 100W USB-C charging)
Operating Temperature32°F to 104°F / 0°C to 40°C
Storage Temperature-4°F to 140°F / -20°C to 60°C
Operating Humidity20% to 80% RH, non-condensing
Storage Humidity10% to 90% RH, non-condensing

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.3
DP Compliance	DP 1.4a (USB-C input)
USB Compliance	USB 3.2 Gen 1 (5Gbps)
Video Bandwidth	18Gbps
Network Bandwidth	1G
Video Resolution (Input & Output)	Up to 4096x2160p60Hz and 3840x2160p60Hz 4:4:4; supports standard resolutions from 480i/480p through 1080p and 4K
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit (8-bit at 4K@60Hz 4:4:4)
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats (USB-C IN, HDMI OUT)	LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS-HD High Res, DTS-HD Master Audio, DSD
Audio Formats (Analog Audio IN/OUT)	LPCM 2CH (sample rate 32-192kHz)
IR Level	5Vp-p
IR Frequency	20K-60KHz
Transmission Distance	USB 3.2 passive cable 1.5m / 4.9ft; HDMI passive cable 3m / 9.8ft
ESD Protection	IEC 61000-4-2: +/-8kV air-gap discharge, +/-4kV contact discharge
Connections
Input Ports	2x USB-C IN [24-pin female]; 1x L/R AUDIO IN [5-pin 3.5mm phoenix]
Output Ports	1x HDMI OUT [Type A, 19-pin female]; 1x USB DEVICE [USB Type C, 24-pin female]; 2x USB DEVICE [USB Type A, 9-pin female]; 1x L/R AUDIO OUT [5-pin 3.5mm phoenix]
Control Ports	1x RS-232 [3-pin 3.5mm phoenix]; 1x IR OUT [3.5mm stereo mini-jack]; 2x ETHERNET [RJ45]; 1x GPIO [6-pin 3.5mm phoenix]; 1x SERVICE [USB-C, FW update]
Mechanical
Housing	Metal enclosure
Color	Black
Dimensions	230mm [W] x 130mm [D] x 23mm [H]
Weight	796g
Power Supply	Input AC 100-240V 50/60Hz; Output DC 24V/7.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption	37W (without USB-C charging); 145W (with 100W USB-C charging)
Operating Temperature	32°F to 104°F / 0°C to 40°C
Storage Temperature	-4°F to 140°F / -20°C to 60°C
Operating Humidity	20% to 80% RH, non-condensing
Storage Humidity	10% to 90% RH, non-condensing

What’s in the Box

1x VLPT-21UUC 2x1 Dual USB-C Huddle Room Switcher
1x 24V/7.5A Power Supply
1x IR Blaster Cable (1.5m)
1x 3-pin 3.5mm Phoenix Connector (male)
2x 5-pin 3.5mm Phoenix Connector (male)
1x 6-pin 3.5mm Phoenix Connector (male)
4x Rubber Foot
2x Mounting Ear
4x Machine Screw (M3x5, for rubber feet)
4x Machine Screw (KM3x6, for mounting ears)
1x User Manual

Frequently Asked Questions

What is the VLPT-21UUC and what does it do?

The VLPT-21UUC is a 2x1 dual USB-C huddle room switcher. It takes two full-featured USB-C sources and switches them to a single HDMI display at up to 4K@60Hz 4:4:4. Beyond video switching, it shares USB peripherals between the two sources over KVM, charges connected laptops over USB-C, embeds and de-embeds analog audio, and controls the display and external devices through CEC, IR, RS-232, LAN, and GPIO.

How is the VLPT-21UUC different from the VLPT-21HUC?

Both are 2x1 huddle room switchers with a single HDMI output and identical control, KVM, audio, and network features. The difference is the inputs. The VLPT-21UUC has two full-featured USB-C inputs, delivering 50W of charging on each port (100W total), and is intended for rooms standardized on USB-C laptops. The VLPT-21HUC has one USB-C input and one HDMI input, with 100W of charging on its single USB-C port, and is intended for rooms that still need a legacy HDMI source alongside a USB-C laptop.

How much charging does each USB-C input provide?

Each of the two USB-C inputs delivers up to 50W of USB Power Delivery, for a combined 100W total across both ports. This keeps both a host and a guest laptop charged while docked. Total unit power draw is 37W without USB-C charging and up to 145W when delivering the full 100W.

What can the USB-C inputs do besides video?

Each USB-C input is a full-function connection. Over one cable it carries 4K@60Hz 4:4:4 video via DP Alt Mode, USB 3.2 Gen 1 (5Gbps) data to the switcher's USB hub, 1G Ethernet to the connected laptop, and USB Power Delivery charging. This provides a true single-cable docking experience at each of the two connection points.

What is USB KVM on the VLPT-21UUC and how does it work?

USB KVM means the switcher routes shared USB peripherals to whichever video source is currently selected. The unit has a USB host plus a local hub and three device ports (one USB-C, two USB-A at 5V/1.5A). A room camera, microphone, or keyboard and mouse connected to the device ports automatically follows the active source, so the same peripherals serve both connected laptops.

Can the VLPT-21UUC switch between sources automatically?

Yes. It supports both automatic and manual switching. Automatic switching uses signal detection and 5V detection to select an active source and can wake the whole system, including external devices, when a source appears. Manual switching is available from the front-panel button, and switching can also be driven over RS-232, TCP/IP, or the Web GUI.

How does the VLPT-21UUC handle audio?

It supports balanced or unbalanced analog audio on 5-pin phoenix connectors. Analog audio can be embedded into the USB audio stream, or de-embedded from the USB or HDMI stream out to a room amplifier or DSP. Analog audio is LPCM 2-channel at 32-192kHz, and the USB/HDMI path passes the full range of Dolby and DTS formats through to the display.

How is the VLPT-21UUC controlled and integrated into a room system?

The unit is managed from front-panel buttons, RS-232, TCP/IP, or a built-in Web GUI. It controls external devices and the display through CEC, IR (with an IR eye for IR learning), RS-232, LAN, and GPIO, and includes automatic display on/off, letting it power the room display on and off or hand off to a third-party control system.

What are the two Ethernet ports for?

The VLPT-21UUC has dual 1G Ethernet ports with 802.1x authentication and VLAN support. These provide wired network connectivity for the switcher and connected devices, including network passthrough for a laptop connected over USB-C, and management access to the Web GUI. VLAN support lets device and control traffic be segmented onto the correct network.

Does the VLPT-21UUC support HDR?

Yes. It passes HDR, HDR10, HDR10+, Dolby Vision, and HLG through from source to display without conversion, so high-dynamic-range content from a laptop reaches the display in its native format.
