5×1 Multiview Presentation Switch with 2x USB-C, 3x HDMI, HDBaseT 3.0 to 70m with included Rx, USB 2.0 KVM, Dante® 2x2 audio

VLPT-51HT70

5x1 seamless presentation switch that brings three HDMI and two USB-C sources to a single display, with Single, PIP, PBP, Triple, and Quad multiview layouts
Two USB-C inputs each carry 4K@60Hz video, USB 2.0 data, 100M Ethernet, and up to 60W laptop charging over one cable
HDMI output and mirrored HDBaseT 3.0 output extend uncompressed 4K60 4:4:4 to 40m and 4K30/1080p to 70m over a single Cat6A cable, with the receiver included and PoE-powered
Built-in 3x3 audio matrix with Dante® 2x2 networking, analog embed and de-embed, plus USB 2.0 KVM with RS-232 and IR pass-through

Product Description

The VLPT-51HT70 is a 5x1 seamless presentation switch that combines three HDMI and two USB-C inputs onto a single display at up to 4K@60Hz 4:4:4, with a built-in scaler that outputs a consistent, room-friendly resolution regardless of source. Beyond one-source-at-a-time seamless switching, it runs a fast multiview engine with Single, PIP, PBP, Triple, and Quad layouts, so several inputs can appear on one screen at once.

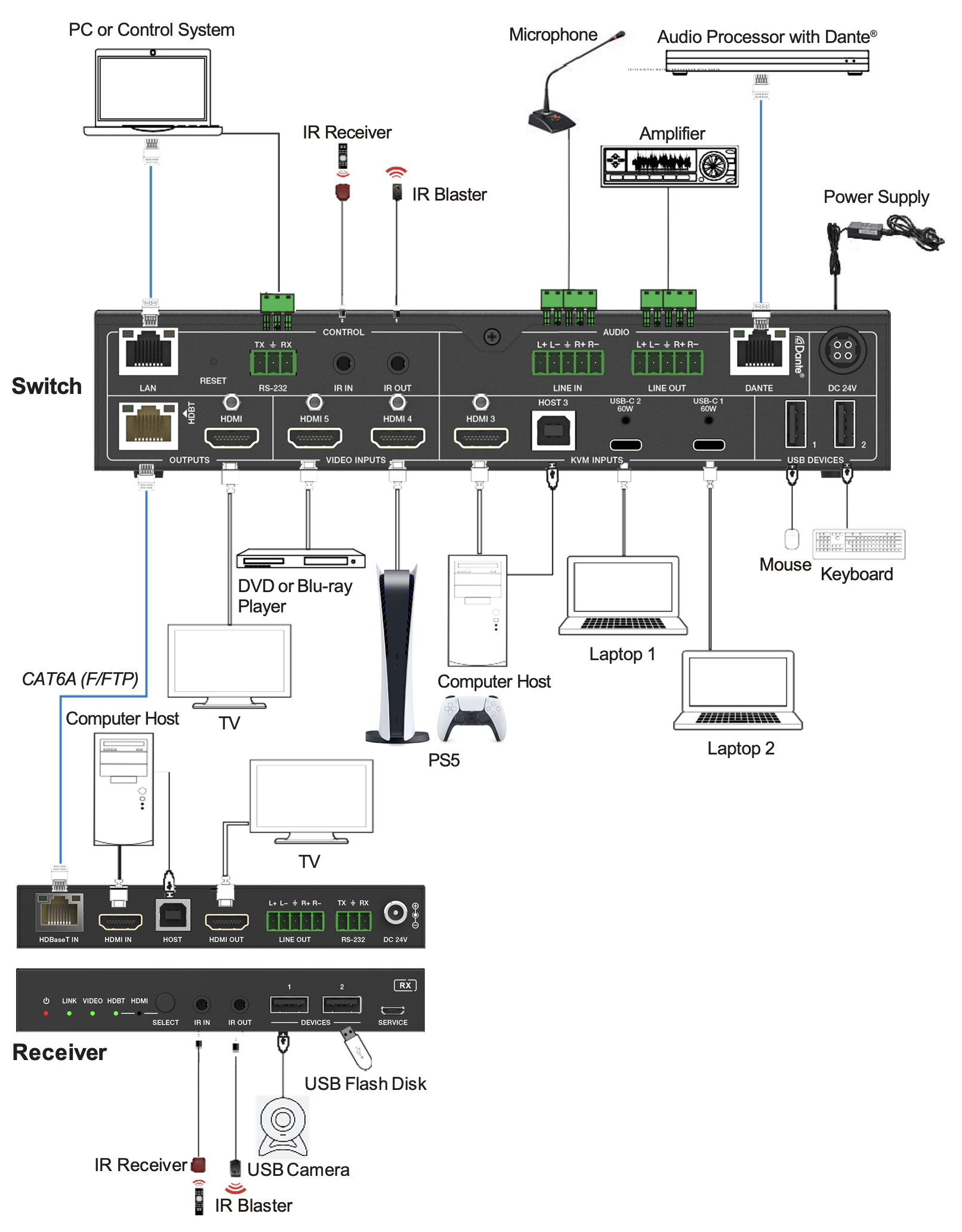

Each USB-C input is a single-cable laptop connection: DisplayPort Alt Mode A/V, USB 2.0 data, 100M Ethernet for network access, and up to 60W of power to charge the source device. Local USB 2.0 KVM switching lets a shared keyboard and mouse control the connected computers, and a local hub plus HDBaseT USB pass-through carries USB from the transmitter to the receiver for cameras and peripherals in a software video conference. Bi-directional RS-232 and IR pass-through are supported end to end.

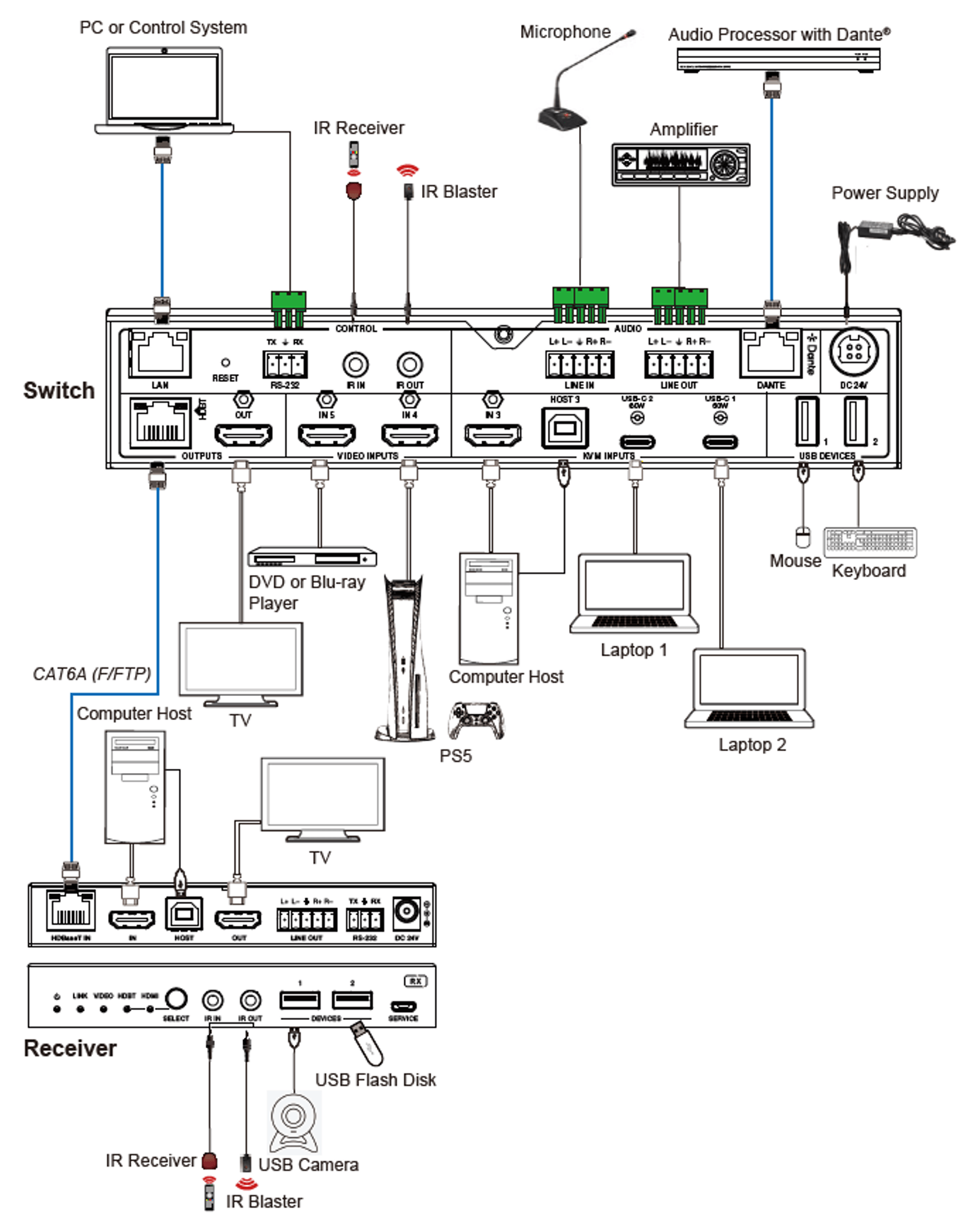

The switch has one HDMI output and one HDBaseT 3.0 output, mirrored so a local monitor and a distant display show the same content. Over a single Cat6A (F/FTP) cable, HDBaseT 3.0 carries uncompressed 4K60 4:4:4 to 40m (131ft) and 4K30/1080p to 70m (230ft), and delivers PoE from the transmitter to the included receiver (TX_PSE / RX_PD). Audio is handled by a 3x3 matrix with independent EQ, volume, and delay, plus analog and Dante® embedding and de-embedding, and Dante® 2x2 audio in and out to connect the room to a networked audio system.

Control is available from front-panel buttons, the IR remote, RS-232, or TCP/IP, and a built-in web server / GUI handles A/V control, automatic display control, and input EDID management. With five source inputs, multiview, single-cable USB-C connectivity, and networked audio, the VLPT-51HT70 suits source-rich conference and classroom spaces built around a single display.

Key Features

Video resolution up to 4K@60Hz 4:4:4, per HDMI 2.0b
HDCP 2.2 and DP 1.2 compliant
18Gbps video bandwidth
5x1 seamless switching (single screen) plus fast multiview switching
Up to five multiview display modes: Single / PIP / PBP / Triple / Quad
Manual and automatic switching modes
Inputs: 2x USB-C, 3x HDMI, 1x analog audio, 1x Dante® 2-channel
Outputs: 1x HDMI and 1x HDBaseT mirrored (PoE), 1x analog audio, 1x Dante® 2-channel
USB-C supports DisplayPort Alt Mode A/V, USB 2.0, 100M Ethernet, and 60W charging
Local USB 2.0 KVM switching with USB 2.0 extension over HDBaseT 3.0
Local hub and HDBaseT USB pass-through from transmitter to receiver
Bi-directional RS-232 and IR control signal pass-through
Uncompressed 4K60 4:4:4 over HDBaseT 3.0 up to 40m (131ft) via a single Cat6A (F/FTP) cable
Uncompressed 4K30 / 1080p over HDBaseT 3.0 up to 70m (230ft) via a single Cat6A (F/FTP) cable
3x3 audio matrix with independent EQ, volume, and delay
Analog and Dante® audio embedding and de-embedding
Dante® 2x2 audio input and output
CEC / RS-232 control of external device power ON/OFF
Advanced EDID management
Standard PoE from transmitter to receiver (TX_PSE, RX_PD)
Control via front panel, IR remote, RS-232, TCP/IP, or web GUI

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Ideal Applications

Software-Based Video Conference Rooms
Built for Zoom, Teams, and Google Meet rooms with a single display and several sources. Connect the room PC on HDMI, two guest laptops over USB-C, and the room camera and speakerphone at the remote receiver, routed back over USB to the computer driving the call. Multiview lets the room show a presenter's content and reference material together, while the USB-C laptops connect and charge with one cable.

Source-Rich Boardrooms and Meeting Spaces
Ideal where a fixed PC and multiple bring-your-own-device laptops share one display. Three HDMI and two USB-C inputs cover a busy table, seamless switching keeps the screen clean during handoffs, and local USB 2.0 KVM lets a single keyboard and mouse drive the connected computers. The mirrored HDMI-plus-HDBaseT output feeds a local confidence monitor and a distant display at once.

Higher Education and Training Rooms
Suited to classrooms and labs where an instructor station and several student sources feed one projector or display. The built-in scaler locks the output to a resolution the room display accepts, PIP and PBP show an instructor's content alongside a reference source, and EDID management keeps every input stable. HDBaseT PoE places the display up to 70m away without a separate power supply at the far end.

AV-over-Dante® Meeting Spaces
Designed for rooms whose audio lives on a Dante® network. A 3x3 audio matrix handles routing with independent EQ, volume, and delay, while Dante® 2x2 in/out sends presentation and conference audio directly to networked DSPs, amplifiers, or processors. Analog line in and out remain available for local microphones and speakers, with embedding and de-embedding in both directions.

Multi-Purpose and Divisible Rooms
Effective in flexible spaces that switch between presentation, collaboration, and conferencing. The mirrored output drives a local monitor and a remote display together, PoE powers the receiver over the same Cat6A run, and control by RS-232, TCP/IP, or web GUI lets the switch join a room automation or VigilLynx™ control system.

Specifications


  Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2
DP VersionDP 1.2
Video Bandwidth18Gbps
USB BandwidthTX USB DEVICES to TX HOST/USB-C: 480Mbps. RX USB DEVICES to TX HOST/USB-C: 350Mbps. RX USB DEVICES to RX HOST: 480Mbps
Network Bandwidth (LAN and USB-C Connection)100Mbps
Input Video Resolution480i ~ 1080p50/60Hz, 4K×2K@24/30Hz, 4K2K@50/60Hz 4:4:4
Output Video ResolutionAuto, 3840×2160p60, 3840×2160p50, 4096×2160p60, 4096×2160p50, 3840×2160p30, 3840×2160p25, 1920×1200p60RB, 1920×1080p60, 1920×1080p50, 1360×768p60, 1280×800p60, 1280×720p60, 1280×720p50, 1024×768p60
IR Level12Vp-p
IR FrequencyWideband 20K-60KHz
Color DepthInput: 8/10/12-bit, 8-bit (4K60Hz 4:4:4). Output: 8-bit
Color SpaceRGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Audio FormatsLPCM 2.0
Audio Sample Rate48KHz
Transmission Distance1080p & 4K30: 230ft/70m. 4K60: 131ft/40m
HDRInput supports HDR; output does not support HDR
ESD ProtectionIEC 61000-4-2: ±8kV (air-gap discharge), ±4kV (contact discharge)
TX Analog Audio
Input Impedance10K Ohms
Output Impedance330 Ohms
Line Input Level (Maximum)8.2dBu (2Vrms) @ balanced or unbalanced audio
Line Output Level (Maximum)8.2dBu (2Vrms) @ balanced audio; 2.2dBu (1Vrms) @ unbalanced audio
Frequency Response(+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay0 to 50ms
Audio S/N Ratio93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N< 0.1% @ 0dBV, 1kHz
RX Analog Audio
Output Impedance330 Ohms
Line Output Level (Maximum)8.2dBu (2Vrms) @ balanced audio; 2.2dBu (1Vrms) @ unbalanced audio
Frequency Response(+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay0 to 50ms
Audio S/N Ratio93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N< 0.1% @ 0dBV, 1kHz
Dante® Audio
Audio FormatsLPCM 2.0
Sample Rate44.1 / 48 / 88.2 / 96KHz at 24 bits
Audio Delay2 / 3 / 4 / 5 / 10ms
Network Bandwidth100Mbps

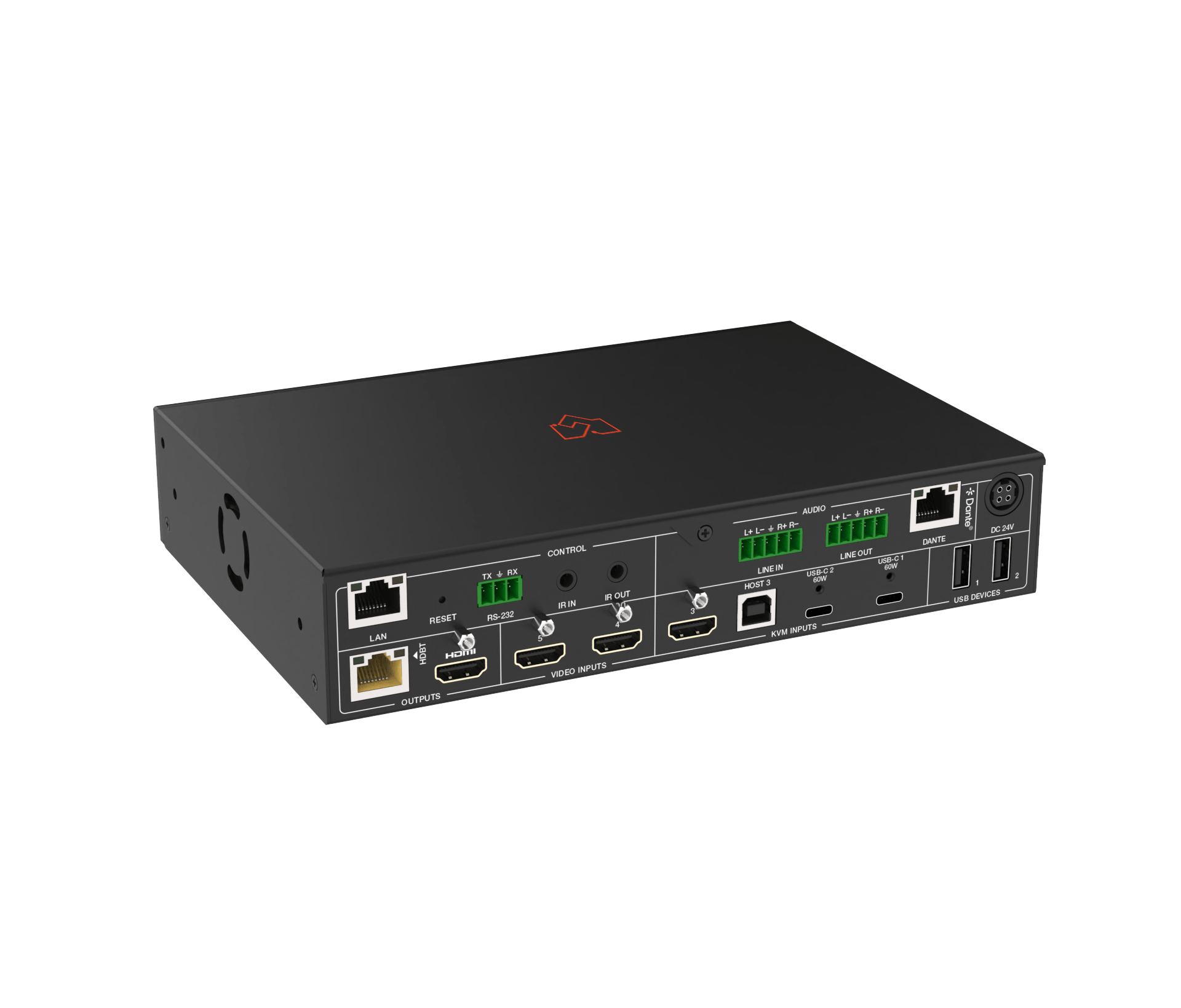

Connections — Transmitter
Inputs3x HDMI IN [Type A, 19-pin female];
2x USB-C [24-pin female];
1x LINE IN [5-pin 3.5mm phoenix];
1x DANTE [RJ45]
Outputs1x HDMI OUT [Type A, 19-pin female];
1x HDBT OUT [RJ45];
1x LINE OUT [5-pin 3.5mm phoenix]
Control / USB / IR1x RS-232 [3-pin 3.5mm phoenix];
1x LAN [RJ45];
1x USB HOST [USB Type B];
2x USB DEVICE [USB Type A]; 1x IR IN [3.5mm mini-jack]; 1x IR OUT [3.5mm mini-jack]
Connections — Receiver
Inputs1x HDMI IN [Type A, 19-pin female];
1x HDBaseT IN [RJ45]
Outputs1x HDMI OUT [Type A, 19-pin female];
1x LINE OUT [5-pin 3.5mm phoenix]
Control / USB / IR1x RS-232 [3-pin 3.5mm phoenix];
1x USB HOST [USB Type B];
2x USB DEVICE [USB Type A];
1x SERVICE [Micro USB];
1x IR IN [3.5mm mini-jack];
1x IR OUT [3.5mm mini-jack]
Mechanical
HousingFront panel: aluminum; rear case: metal enclosure
ColorBlack
DimensionsTransmitter: 220mm [W] × 150mm [D] × 44mm [H].

Receiver: 140mm [W] × 105mm [D] × 21.5mm [H]
WeightTransmitter: 1.21Kg; Receiver: 424g
Power SupplyInput: AC100-240V 50/60Hz. Output: DC 24V/8A (US/EU standard, CE/FCC/UL certified)
Power Consumption150W (Max)
Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature-20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity20% ~ 80% (relative humidity, non-condensing)
Storage Humidity10% ~ 90% (relative humidity, non-condensing)

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
DP Version	DP 1.2
Video Bandwidth	18Gbps
USB Bandwidth	TX USB DEVICES to TX HOST/USB-C: 480Mbps. RX USB DEVICES to TX HOST/USB-C: 350Mbps. RX USB DEVICES to RX HOST: 480Mbps
Network Bandwidth (LAN and USB-C Connection)	100Mbps
Input Video Resolution	480i ~ 1080p50/60Hz, 4K×2K@24/30Hz, 4K2K@50/60Hz 4:4:4
Output Video Resolution	Auto, 3840×2160p60, 3840×2160p50, 4096×2160p60, 4096×2160p50, 3840×2160p30, 3840×2160p25, 1920×1200p60RB, 1920×1080p60, 1920×1080p50, 1360×768p60, 1280×800p60, 1280×720p60, 1280×720p50, 1024×768p60
IR Level	12Vp-p
IR Frequency	Wideband 20K-60KHz
Color Depth	Input: 8/10/12-bit, 8-bit (4K60Hz 4:4:4). Output: 8-bit
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Audio Formats	LPCM 2.0
Audio Sample Rate	48KHz
Transmission Distance	1080p & 4K30: 230ft/70m. 4K60: 131ft/40m
HDR	Input supports HDR; output does not support HDR
ESD Protection	IEC 61000-4-2: ±8kV (air-gap discharge), ±4kV (contact discharge)
TX Analog Audio
Input Impedance	10K Ohms
Output Impedance	330 Ohms
Line Input Level (Maximum)	8.2dBu (2Vrms) @ balanced or unbalanced audio
Line Output Level (Maximum)	8.2dBu (2Vrms) @ balanced audio; 2.2dBu (1Vrms) @ unbalanced audio
Frequency Response	(+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay	0 to 50ms
Audio S/N Ratio	93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N	< 0.1% @ 0dBV, 1kHz
RX Analog Audio
Output Impedance	330 Ohms
Line Output Level (Maximum)	8.2dBu (2Vrms) @ balanced audio; 2.2dBu (1Vrms) @ unbalanced audio
Frequency Response	(+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay	0 to 50ms
Audio S/N Ratio	93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N	< 0.1% @ 0dBV, 1kHz
Dante® Audio
Audio Formats	LPCM 2.0
Sample Rate	44.1 / 48 / 88.2 / 96KHz at 24 bits
Audio Delay	2 / 3 / 4 / 5 / 10ms
Network Bandwidth	100Mbps
Connections — Transmitter
Inputs	3x HDMI IN [Type A, 19-pin female]; 2x USB-C [24-pin female]; 1x LINE IN [5-pin 3.5mm phoenix]; 1x DANTE [RJ45]
Outputs	1x HDMI OUT [Type A, 19-pin female]; 1x HDBT OUT [RJ45]; 1x LINE OUT [5-pin 3.5mm phoenix]
Control / USB / IR	1x RS-232 [3-pin 3.5mm phoenix]; 1x LAN [RJ45]; 1x USB HOST [USB Type B]; 2x USB DEVICE [USB Type A]; 1x IR IN [3.5mm mini-jack]; 1x IR OUT [3.5mm mini-jack]
Connections — Receiver
Inputs	1x HDMI IN [Type A, 19-pin female]; 1x HDBaseT IN [RJ45]
Outputs	1x HDMI OUT [Type A, 19-pin female]; 1x LINE OUT [5-pin 3.5mm phoenix]
Control / USB / IR	1x RS-232 [3-pin 3.5mm phoenix]; 1x USB HOST [USB Type B]; 2x USB DEVICE [USB Type A]; 1x SERVICE [Micro USB]; 1x IR IN [3.5mm mini-jack]; 1x IR OUT [3.5mm mini-jack]
Mechanical
Housing	Front panel: aluminum; rear case: metal enclosure
Color	Black
Dimensions	Transmitter: 220mm [W] × 150mm [D] × 44mm [H]. Receiver: 140mm [W] × 105mm [D] × 21.5mm [H]
Weight	Transmitter: 1.21Kg; Receiver: 424g
Power Supply	Input: AC100-240V 50/60Hz. Output: DC 24V/8A (US/EU standard, CE/FCC/UL certified)
Power Consumption	150W (Max)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity	20% ~ 80% (relative humidity, non-condensing)
Storage Humidity	10% ~ 90% (relative humidity, non-condensing)

What’s in the Box

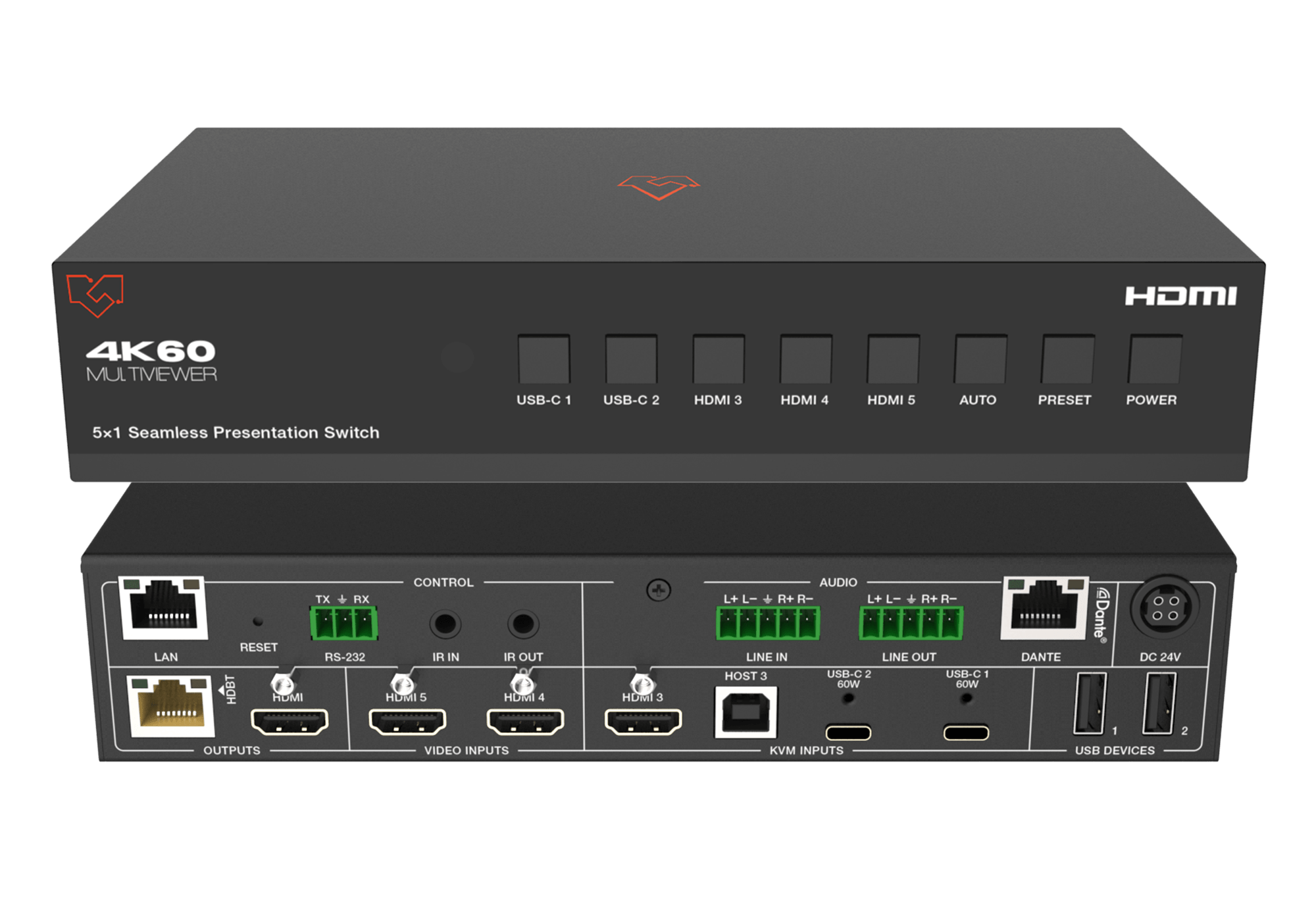

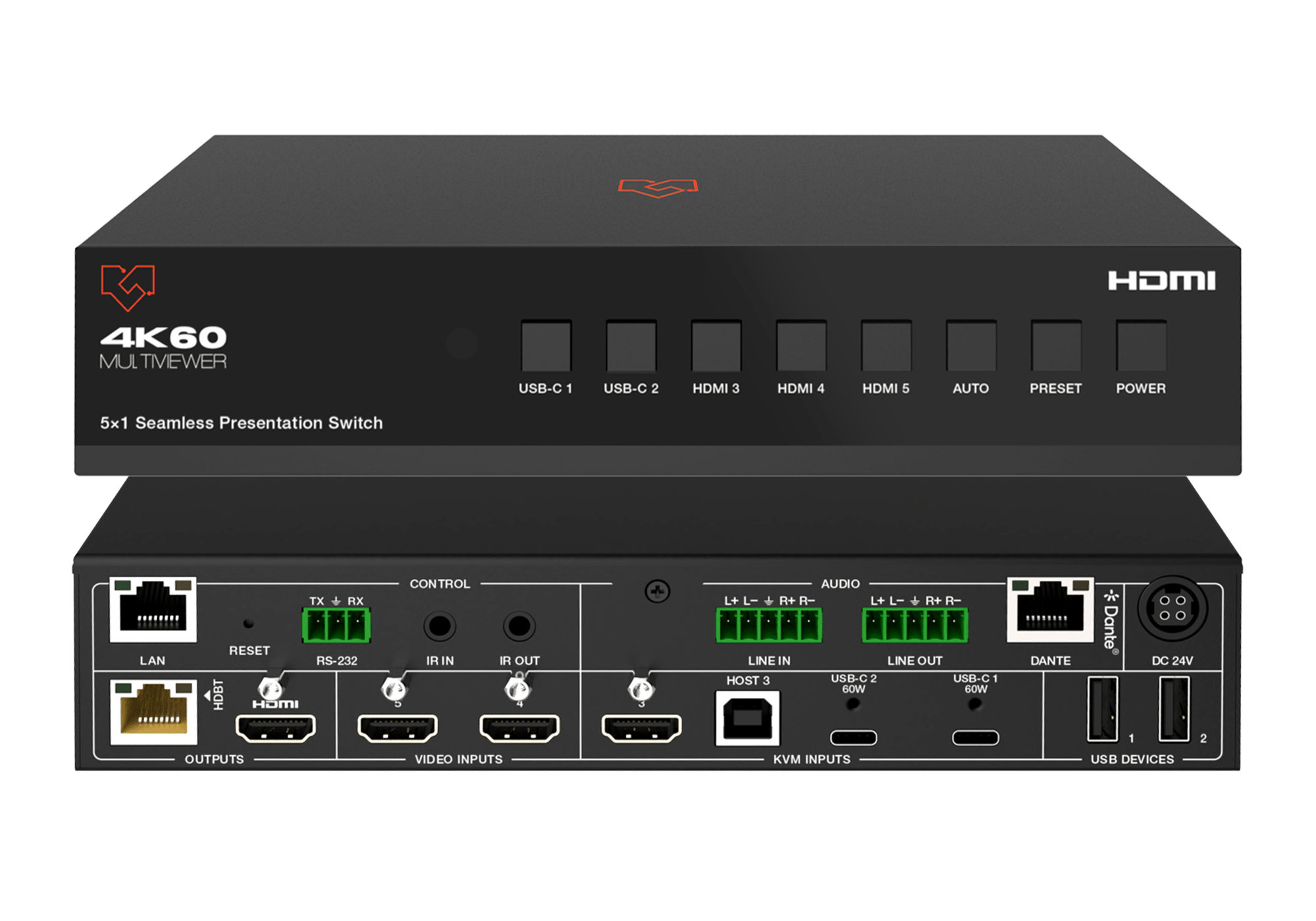

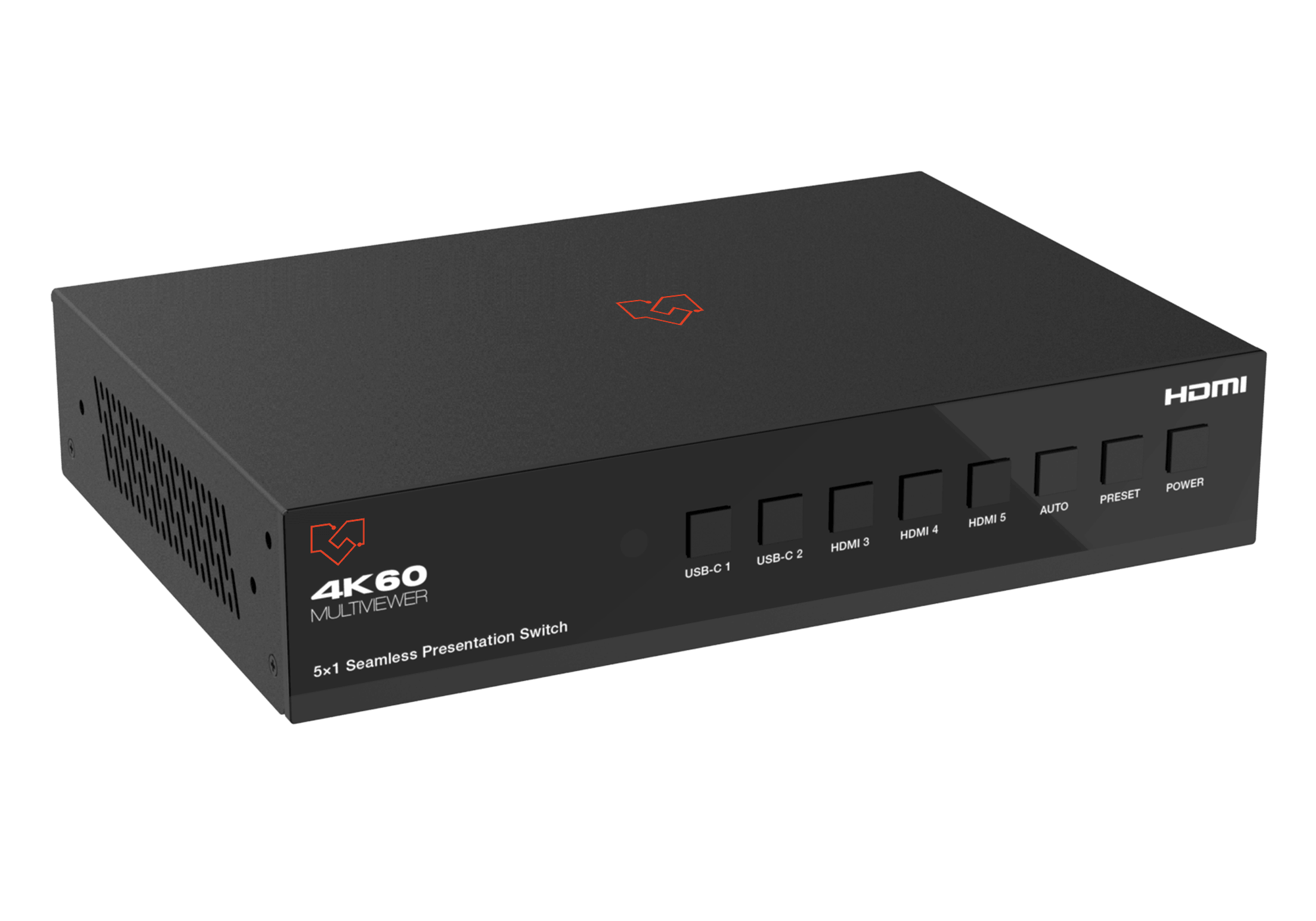

1 × VLPT-51HT70 5x1 Seamless Presentation Switch

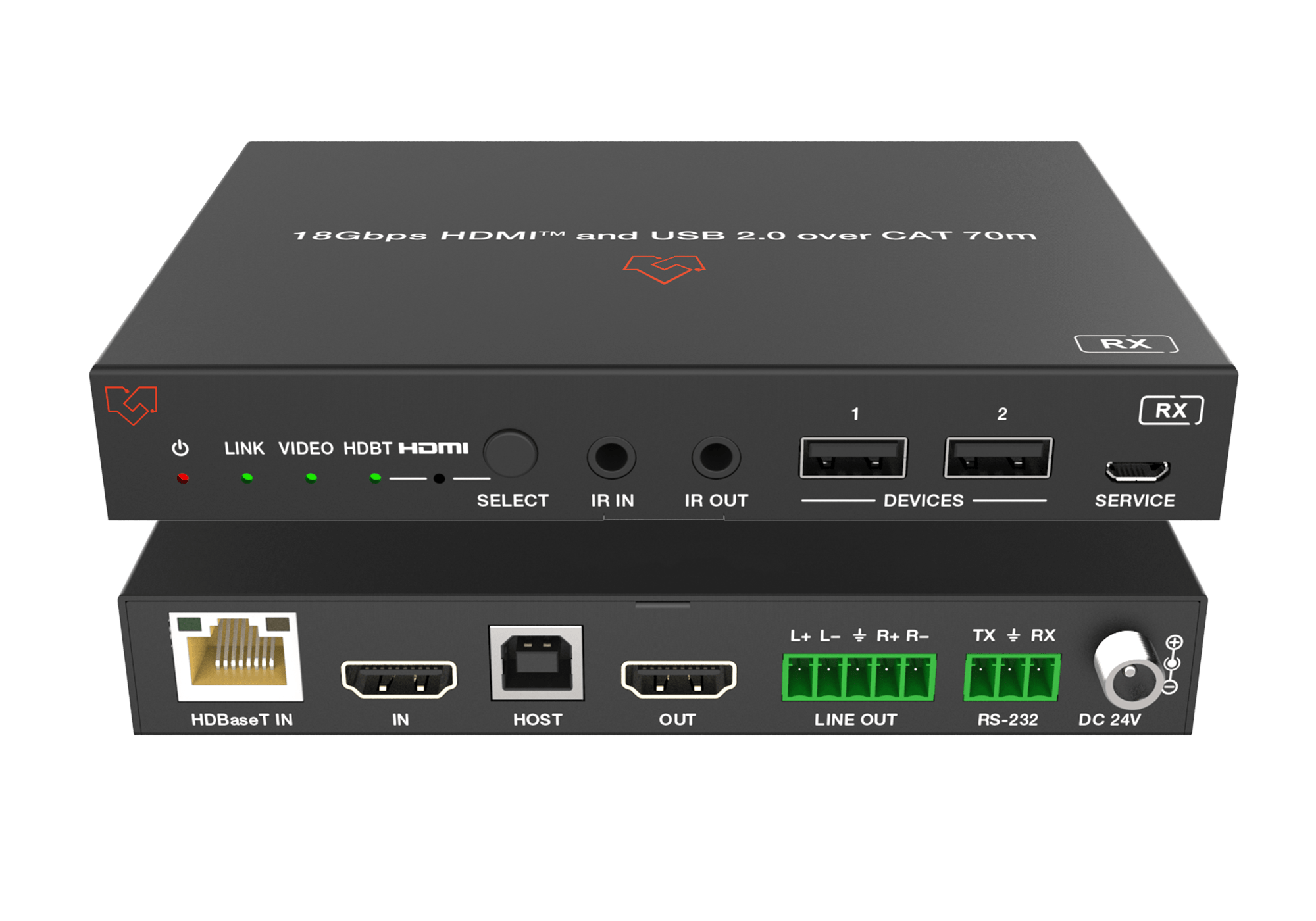

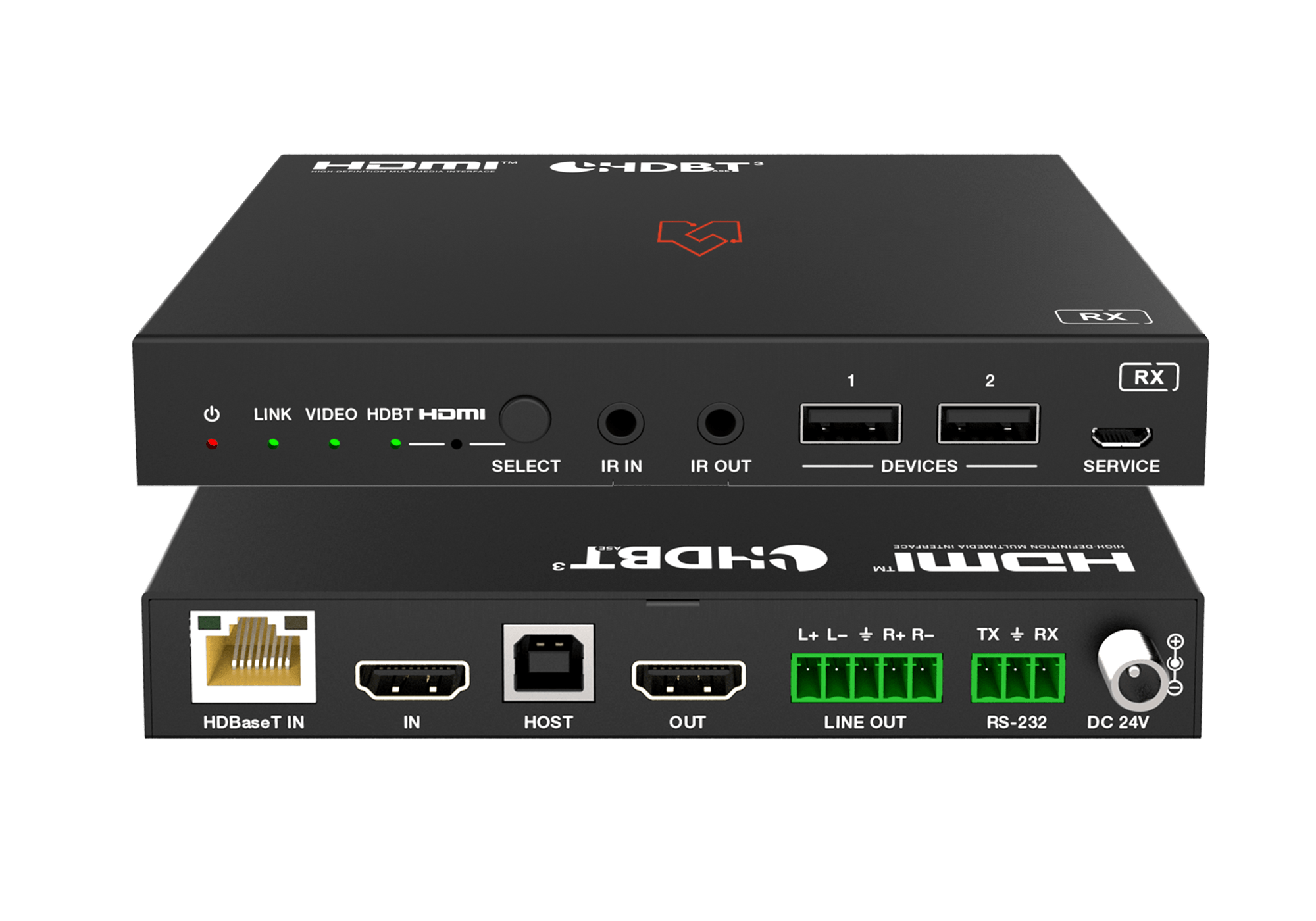

1 × HDBaseT Receiver
1 × IR Blaster Cable (1.5m)
1 × IR Wideband Receiver Cable (1.5m)
2 × 3-pin 3.5mm Phoenix Connector (male)
3 × 5-pin 3.5mm Phoenix Connector (male)
4 × Mounting Ear
8 × Machine Screw
1 × 24V/8A Desktop Power Supply
1 × AC Power Cord (1.5m)
1 × IR Remote
1 × User Manual
