4x2 Multiview Presentation Switch with 2x USB-C, 2x HDMI, HDBaseT 3.0 to 70m with included Rx, USB KVM, Dante® 2x2 audio

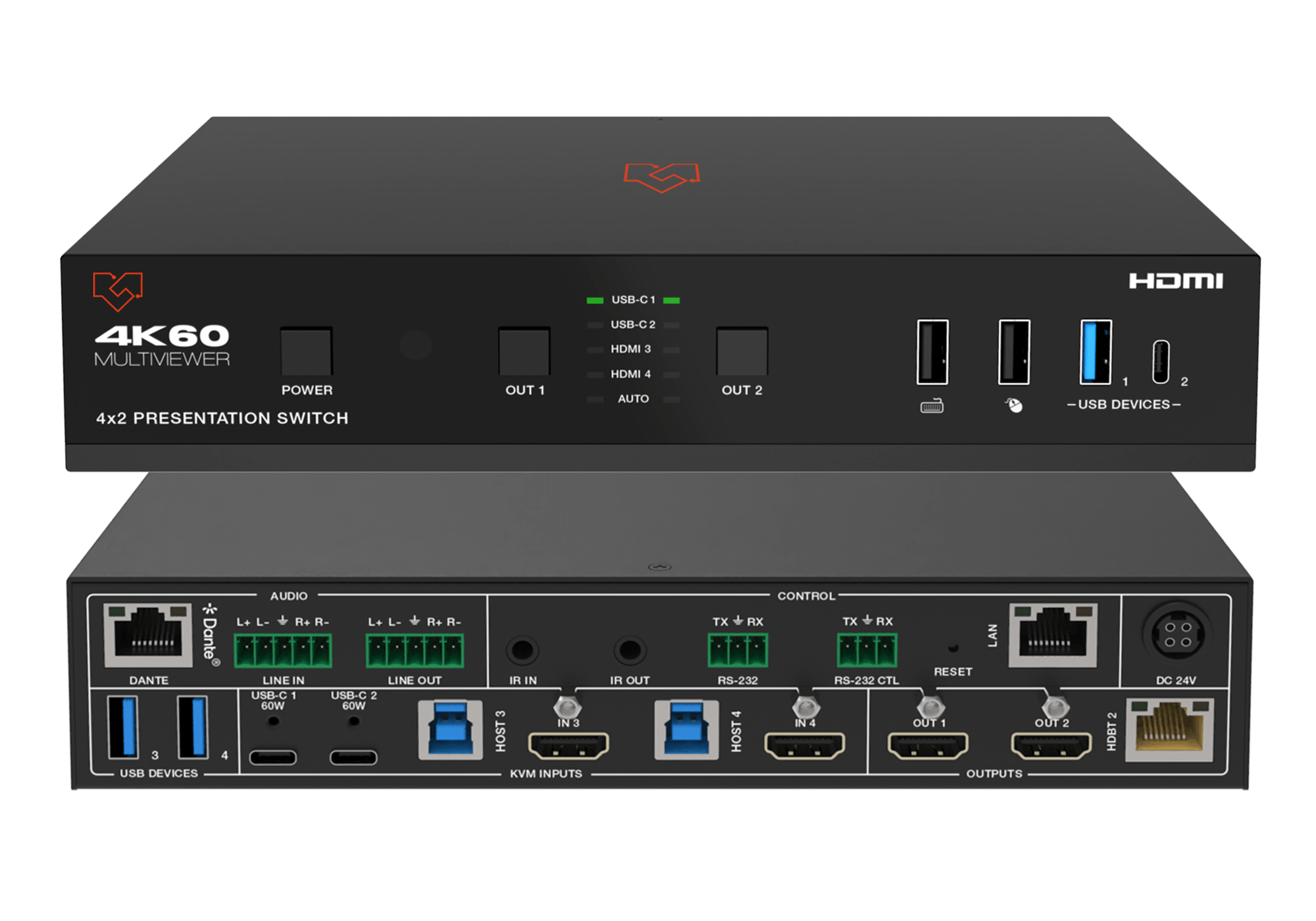

VLPT-42MVDKH

4x2 seamless presentation switch that displays up to four USB-C and HDMI sources on a single screen, with Auto, Single, PIP, PBP, Triple, Quad, and Custom multiview layouts
Two USB-C inputs each carry 4K@60Hz video, USB 3.2 Gen 1 5Gbps data, 1Gbps Ethernet, and up to 60W laptop charging over one cable
HDBaseT 3.0 output extends uncompressed 4K60 4:4:4 to 40m and 4K30/1080p to 70m over a single Cat6A cable, with the receiver included in the box
Built-in audio DSP with Dante® 2x2 networking, local USB KVM switching, and control by front panel, IR, RS-232, TCP/IP, or web GUI

Product Description

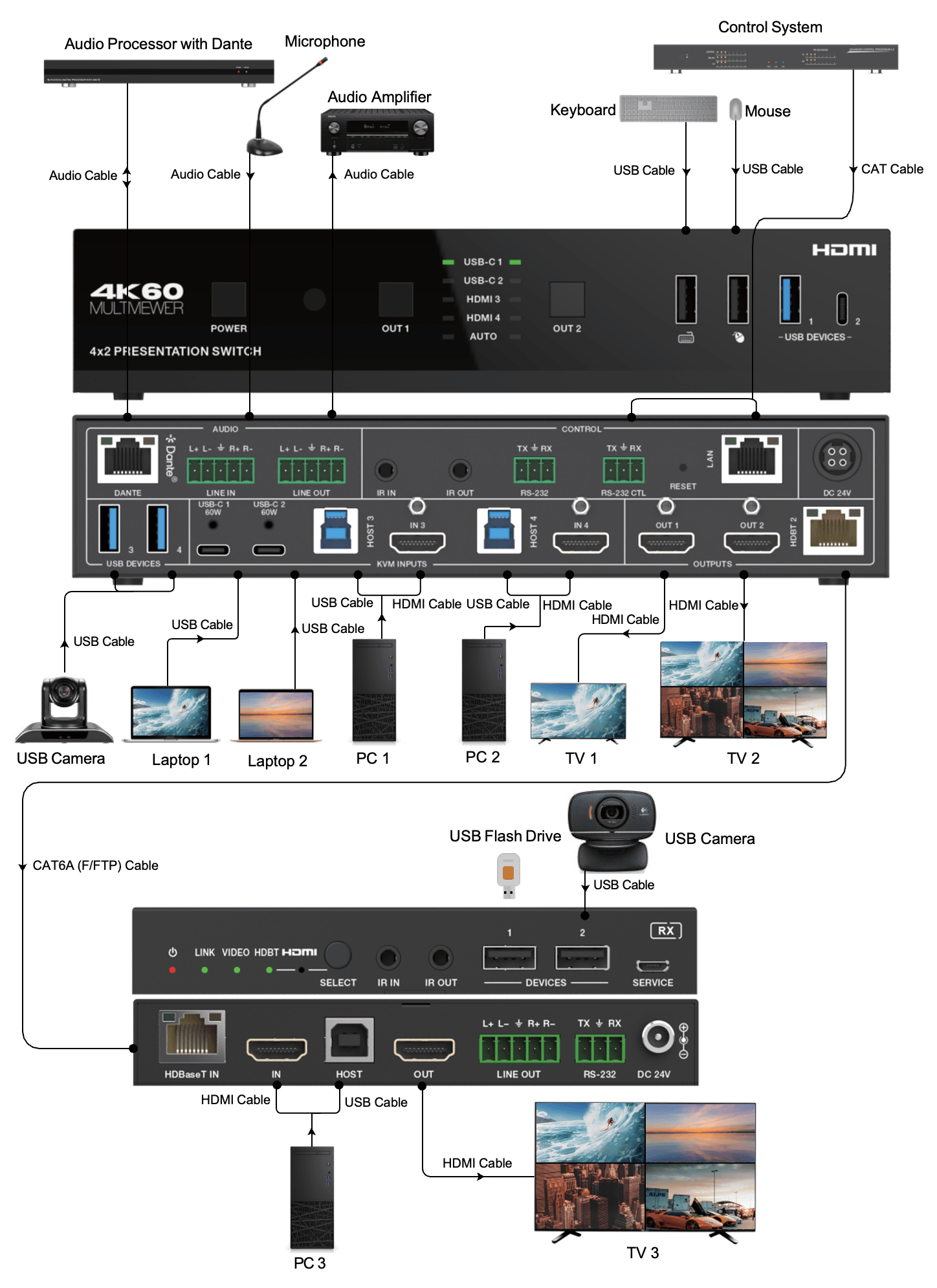

The VLPT-42MVDKH is a 4x2 seamless presentation switch that brings four sources — two USB-C and two HDMI — onto a single display at up to 4K@60Hz 4:4:4 8-bit, with HDCP 2.3 compliance. Beyond one-source-at-a-time seamless switching, it runs a fast multiview engine with Auto, Single, PIP, PBP, Triple, Quad, and Custom layouts, so a room can show several inputs on one screen at once.

Each USB-C input is a single-cable connection for a laptop: DisplayPort Alt Mode A/V up to 4K@60Hz 4:4:4, USB 3.2 Gen 1 data at 5Gbps, 1Gbps Ethernet for network access, and up to 60W of power to charge the source device. Local USB 3.2 KVM switching lets a shared keyboard and mouse control the connected computers, and USB 2.0 extends over HDBaseT 3.0 so cameras or peripherals at the remote receiver can join a software video conference.

The switch has two HDMI outputs plus an HDBaseT 3.0 output mirrored with HDMI OUT2. Over a single Cat6A cable, HDBaseT 3.0 carries uncompressed 4K60 4:4:4 to 40m (131ft) and 4K30/1080p to 70m (230ft), and supplies PoE from the transmitter to the included receiver (TX_PSE / RX_PD). Audio is fully flexible: embed and de-embed, an internal DSP for mixing, matrixing, and independent EQ, volume, and delay, plus Dante® 2x2 audio in and out to connect the room to an existing Dante® audio system.

Control is available from front-panel buttons, the IR remote, RS-232, or TCP/IP, and a built-in web server / GUI handles A/V control, automatic display control, and input EDID management. With multiview, single-cable USB-C connectivity, networked audio, and an included HDBaseT receiver, the VLPT-42MVDKH is built for software-based video conference rooms.

Key Features

Video resolution up to 4K@60Hz 4:4:4, per HDMI 2.0b
HDCP 2.3, DP 1.4, and HDBaseT 3.0 compliant
4x2 seamless switching (single screen) plus fast multiview switching
Multiview modes: Auto / Single / PIP / PBP / Triple / Quad / Custom
Manual or auto switching modes
Inputs: 2x USB-C, 2x HDMI, 1x analog audio, 1x Dante® 2-channel
Outputs: 1x HDMI, 1x HDMI mirrored with HDBaseT, 1x analog audio, 1x Dante® 2-channel
USB-C supports DisplayPort Alt Mode A/V, USB 3.2 Gen 1 5Gbps, 1Gbps LAN, and 60W charging
Local USB 3.2 KVM switching with hotkey and mouse switching
USB 2.0 extension over HDBaseT 3.0 for remote cameras and peripherals
Uncompressed 4K60 4:4:4 over HDBaseT 3.0 up to 40m (131ft) via a single Cat6A cable
Uncompressed 4K30 / 1080p over HDBaseT 3.0 up to 70m (230ft) via a single Cat6A cable
Audio embedding and de-embedding
Audio DSP for gain, equalizer, volume, and delay
Dante® 2x2 audio input and output
CEC / RS-232 control of external device power ON/OFF
Advanced EDID management
Standard PoE from transmitter to receiver (TX_PSE, RX_PD)
Control via front panel, IR remote, RS-232, TCP/IP, or web GUI

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Ideal Applications

Software-Based Video Conference Rooms
Purpose-built for Zoom, Teams, and Google Meet rooms where the room PC and guest laptops share one display. Connect the room camera and speakerphone at the remote HDBaseT receiver and route them back over USB 2.0 to whichever computer is driving the call, while USB-C laptops join with a single cable that also charges the device. Multiview lets the room show a presenter's slides alongside the far-end video on one screen.

Corporate Boardrooms and Huddle Spaces
Ideal for meeting rooms that mix a fixed PC with bring-your-own-device laptops. Two USB-C and two HDMI inputs cover the common source set, seamless switching keeps the display clean during handoffs, and local USB KVM lets a single keyboard and mouse drive multiple connected computers. The included HDBaseT receiver places the display up to 70m away without a separate extender purchase.

Higher Education and Training Rooms
Suited to classrooms and lab spaces where an instructor station and student laptops feed one projector or display. PIP and PBP layouts allow an instructor's content and a reference source to be shown together, and 1Gbps Ethernet over USB-C gives connected laptops network access through the same cable. EDID management keeps every source outputting a resolution the room display accepts.

AV-over-Dante® Meeting Spaces
Designed for rooms whose audio is managed on a Dante® network. The built-in DSP handles mixing, matrixing, and per-channel EQ, volume, and delay, while Dante® 2x2 in/out routes presentation and conference audio directly to networked DSPs, amplifiers, or processors without a separate audio interface. Analog line in and out remain available for local microphones and speakers.

Multi-Purpose and Divisible Rooms
Effective in flexible spaces that reconfigure for presentation, collaboration, and conferencing. The mirrored HDMI-plus-HDBaseT output feeds a local monitor and a distant display at the same time, PoE powers the remote receiver over the same Cat6A run, and control by RS-232, TCP/IP, or web GUI lets the switch integrate into a room automation or VigilLynx™ control system.

Specifications


  Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.3
DP VersionDP 1.4
Video Bandwidth18Gbps
USB BandwidthUSB 3.2 Gen 1 up to 5Gbps
Network Bandwidth (LAN and USB-C Connection)1Gbps
Video ResolutionUp to 4K@60Hz 4:4:4
IR Level12Vp-p
IR FrequencyWideband 20K-60KHz
Color Depth8/10/12-bit
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio FormatsUSB-C/HDMI/HDBT: Digital audio, 32-192kHz/24bit, LPCM 2CH. LINE IN: Analog audio, balanced/unbalanced 2CH, max input level 2Vrms. LINE OUT: Analog audio, balanced 2CH (max 2Vrms) / unbalanced 2CH (max 1Vrms). DANTE: Digital audio 2x2 in/out, LPCM 2CH, 44.1K-96KHz, 16/24bit
Transmission DistanceHDBT: 230ft/70m (1080p & 4K30), 131ft/40m (4K60). HDMI: 9.8ft/3m. USB-C: 9.8ft/3m
ESD ProtectionIEC 61000-4-2: ±8kV (air-gap discharge), ±4kV (contact discharge)
TX Analog Audio
Input Impedance10K Ohms
Output Impedance330 Ohms
Line Input Level (Maximum)8.2dBu (2Vrms) @ balanced or unbalanced audio
Line Output Level (Maximum)8.2dBu (2Vrms) @ balanced audio; 2.2dBu (1Vrms) @ unbalanced audio
Frequency Response(+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay< 1ms
Audio S/N Ratio93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N< 0.1% @ 0dBV, 1kHz
RX Analog Audio
Output Impedance330 Ohms
Line Output Level (Maximum)8.2dBu (2Vrms) @ balanced audio; 2.2dBu (1Vrms) @ unbalanced audio
Frequency Response(+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay0 to 50ms
Audio S/N Ratio93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N< 0.1% @ 0dBV, 1kHz
Dante® Audio
Audio FormatsLPCM 2CH
Sample Rate44.1 / 48 / 88.2 / 96KHz at 24 bits
Audio Delay2 / 3 / 4 / 5 / 10ms
Network Bandwidth100Mbps

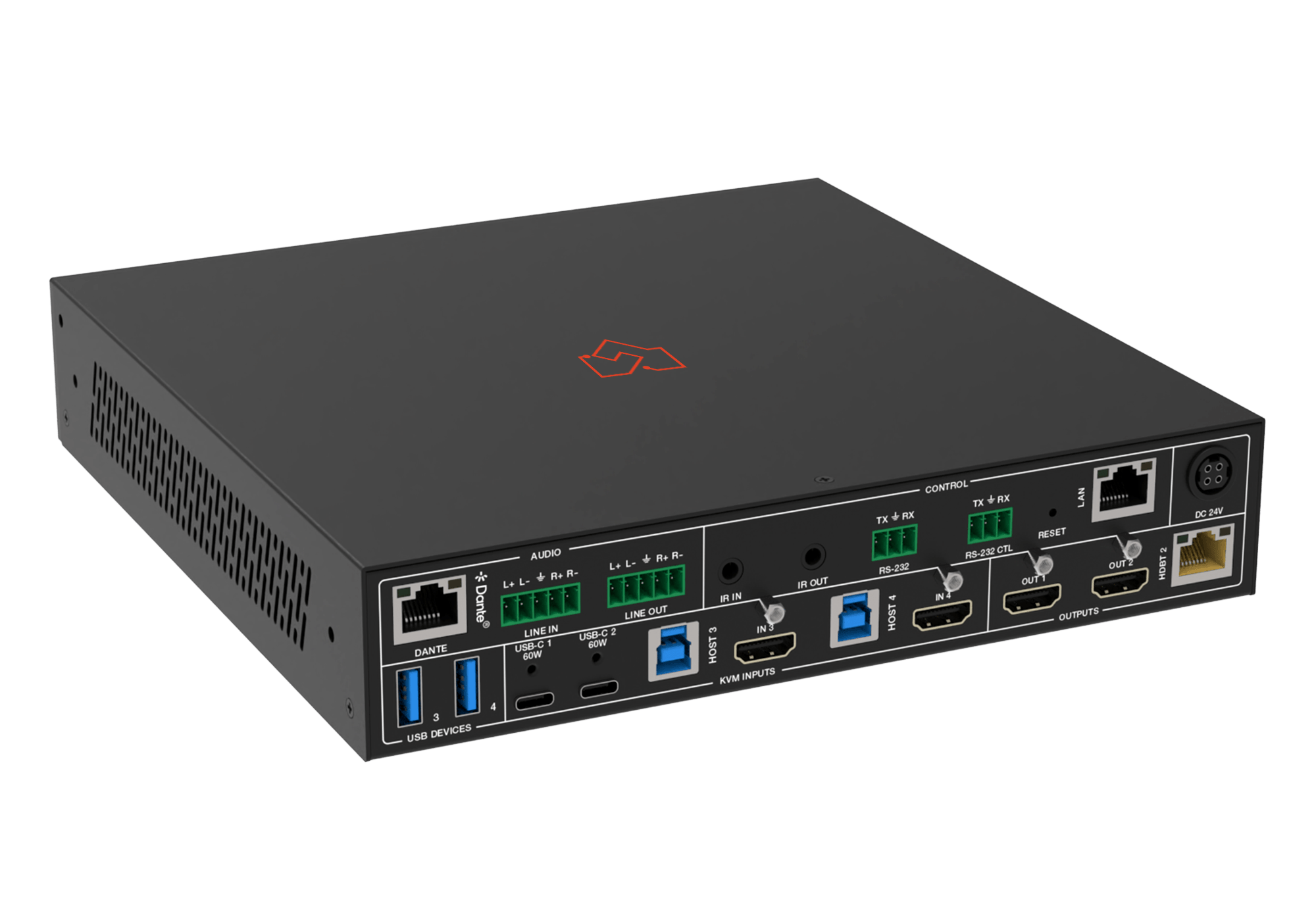

Connections — Main Unit - Transmitter
Inputs2x HDMI IN [Type A, 19-pin female];
2x USB-C IN [Type C, 24-pin female];
1x LINE IN [5-pin 3.5mm phoenix]; 1x DANTE IN [RJ45]
Outputs2x HDMI OUT [Type A, 19-pin female];
1x HDBT OUT [RJ45, 48V PoE/PSE];
1x LINE OUT [5-pin 3.5mm phoenix]
Control1x RS-232 [3-pin 3.5mm phoenix];
1x RS-232 CTL [3-pin 3.5mm phoenix];
1x LAN [RJ45]
USB2x USB 3.2 HOST [Type B, 9-pin female];
3x USB 3.2 DEVICE [Type A, 9-pin female];
2x USB 1.1 KVM [Type A, 4-pin female];
1x USB-C DEVICE [Type C, 24-pin female]
IR1x IR IN [3.5mm jack, 12V level];
1x IR OUT [3.5mm jack, 12V level]

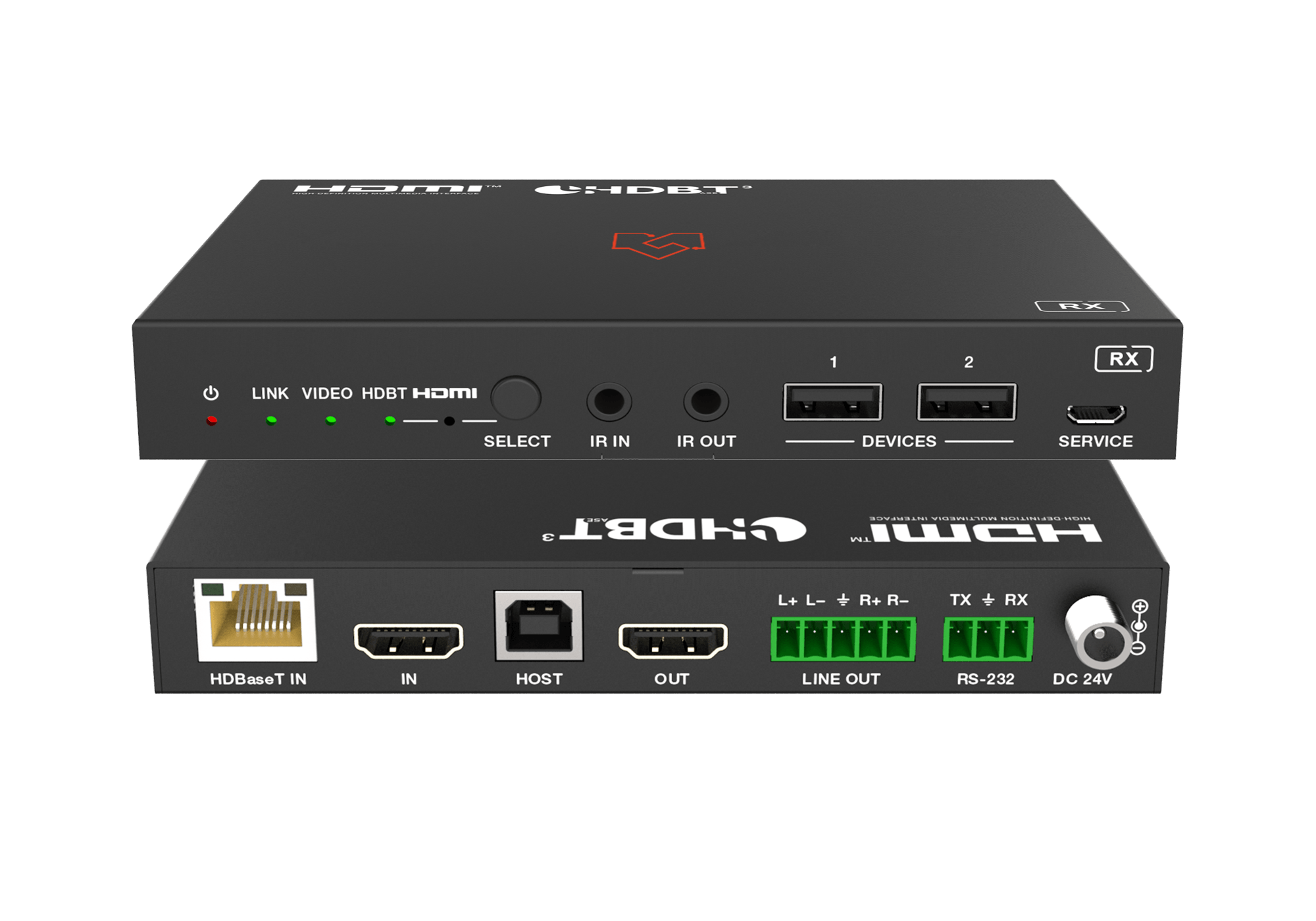

Connections — Receiver
Inputs1x HDMI IN [Type A, 19-pin female];
1x HDBaseT IN [RJ45, 48V PoE/PD]
Outputs1x HDMI OUT [Type A, 19-pin female];
1x LINE OUT [5-pin 3.5mm phoenix]
Control / USB / IR1x RS-232 [3-pin 3.5mm phoenix];
1x USB HOST [Type B, 4-pin female];
2x USB DEVICE [Type A, 4-pin female];
1x SERVICE [Micro USB, 5-pin female];
1x IR IN [3.5mm jack, 12V level]; 1x IR OUT [3.5mm jack, 12V level]
Mechanical
HousingFront panel: aluminum; rear case: metal enclosure
ColorBlack
DimensionsTransmitter: 220mm [W] × 220mm [D] × 44.5mm [H].

Receiver: 140mm [W] × 105mm [D] × 21.5mm [H]
WeightTransmitter: 1.78Kg; Receiver: 424g
Power SupplyInput: AC100-240V 50/60Hz. Output: DC 24V/8A (US/EU standard, CE/FCC/UL certified)
Power Consumption170W (Max)
Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature-40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity20% ~ 80% (relative humidity, non-condensing)
Storage Humidity10% ~ 90% (relative humidity, non-condensing)

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.3
DP Version	DP 1.4
Video Bandwidth	18Gbps
USB Bandwidth	USB 3.2 Gen 1 up to 5Gbps
Network Bandwidth (LAN and USB-C Connection)	1Gbps
Video Resolution	Up to 4K@60Hz 4:4:4
IR Level	12Vp-p
IR Frequency	Wideband 20K-60KHz
Color Depth	8/10/12-bit
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio Formats	USB-C/HDMI/HDBT: Digital audio, 32-192kHz/24bit, LPCM 2CH. LINE IN: Analog audio, balanced/unbalanced 2CH, max input level 2Vrms. LINE OUT: Analog audio, balanced 2CH (max 2Vrms) / unbalanced 2CH (max 1Vrms). DANTE: Digital audio 2x2 in/out, LPCM 2CH, 44.1K-96KHz, 16/24bit
Transmission Distance	HDBT: 230ft/70m (1080p & 4K30), 131ft/40m (4K60). HDMI: 9.8ft/3m. USB-C: 9.8ft/3m
ESD Protection	IEC 61000-4-2: ±8kV (air-gap discharge), ±4kV (contact discharge)
TX Analog Audio
Input Impedance	10K Ohms
Output Impedance	330 Ohms
Line Input Level (Maximum)	8.2dBu (2Vrms) @ balanced or unbalanced audio
Line Output Level (Maximum)	8.2dBu (2Vrms) @ balanced audio; 2.2dBu (1Vrms) @ unbalanced audio
Frequency Response	(+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay	< 1ms
Audio S/N Ratio	93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N	< 0.1% @ 0dBV, 1kHz
RX Analog Audio
Output Impedance	330 Ohms
Line Output Level (Maximum)	8.2dBu (2Vrms) @ balanced audio; 2.2dBu (1Vrms) @ unbalanced audio
Frequency Response	(+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay	0 to 50ms
Audio S/N Ratio	93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N	< 0.1% @ 0dBV, 1kHz
Dante® Audio
Audio Formats	LPCM 2CH
Sample Rate	44.1 / 48 / 88.2 / 96KHz at 24 bits
Audio Delay	2 / 3 / 4 / 5 / 10ms
Network Bandwidth	100Mbps
Connections — Main Unit - Transmitter
Inputs	2x HDMI IN [Type A, 19-pin female]; 2x USB-C IN [Type C, 24-pin female]; 1x LINE IN [5-pin 3.5mm phoenix]; 1x DANTE IN [RJ45]
Outputs	2x HDMI OUT [Type A, 19-pin female]; 1x HDBT OUT [RJ45, 48V PoE/PSE]; 1x LINE OUT [5-pin 3.5mm phoenix]
Control	1x RS-232 [3-pin 3.5mm phoenix]; 1x RS-232 CTL [3-pin 3.5mm phoenix]; 1x LAN [RJ45]
USB	2x USB 3.2 HOST [Type B, 9-pin female]; 3x USB 3.2 DEVICE [Type A, 9-pin female]; 2x USB 1.1 KVM [Type A, 4-pin female]; 1x USB-C DEVICE [Type C, 24-pin female]
IR	1x IR IN [3.5mm jack, 12V level]; 1x IR OUT [3.5mm jack, 12V level]
Connections — Receiver
Inputs	1x HDMI IN [Type A, 19-pin female]; 1x HDBaseT IN [RJ45, 48V PoE/PD]
Outputs	1x HDMI OUT [Type A, 19-pin female]; 1x LINE OUT [5-pin 3.5mm phoenix]
Control / USB / IR	1x RS-232 [3-pin 3.5mm phoenix]; 1x USB HOST [Type B, 4-pin female]; 2x USB DEVICE [Type A, 4-pin female]; 1x SERVICE [Micro USB, 5-pin female]; 1x IR IN [3.5mm jack, 12V level]; 1x IR OUT [3.5mm jack, 12V level]
Mechanical
Housing	Front panel: aluminum; rear case: metal enclosure
Color	Black
Dimensions	Transmitter: 220mm [W] × 220mm [D] × 44.5mm [H]. Receiver: 140mm [W] × 105mm [D] × 21.5mm [H]
Weight	Transmitter: 1.78Kg; Receiver: 424g
Power Supply	Input: AC100-240V 50/60Hz. Output: DC 24V/8A (US/EU standard, CE/FCC/UL certified)
Power Consumption	170W (Max)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity	20% ~ 80% (relative humidity, non-condensing)
Storage Humidity	10% ~ 90% (relative humidity, non-condensing)

What’s in the Box

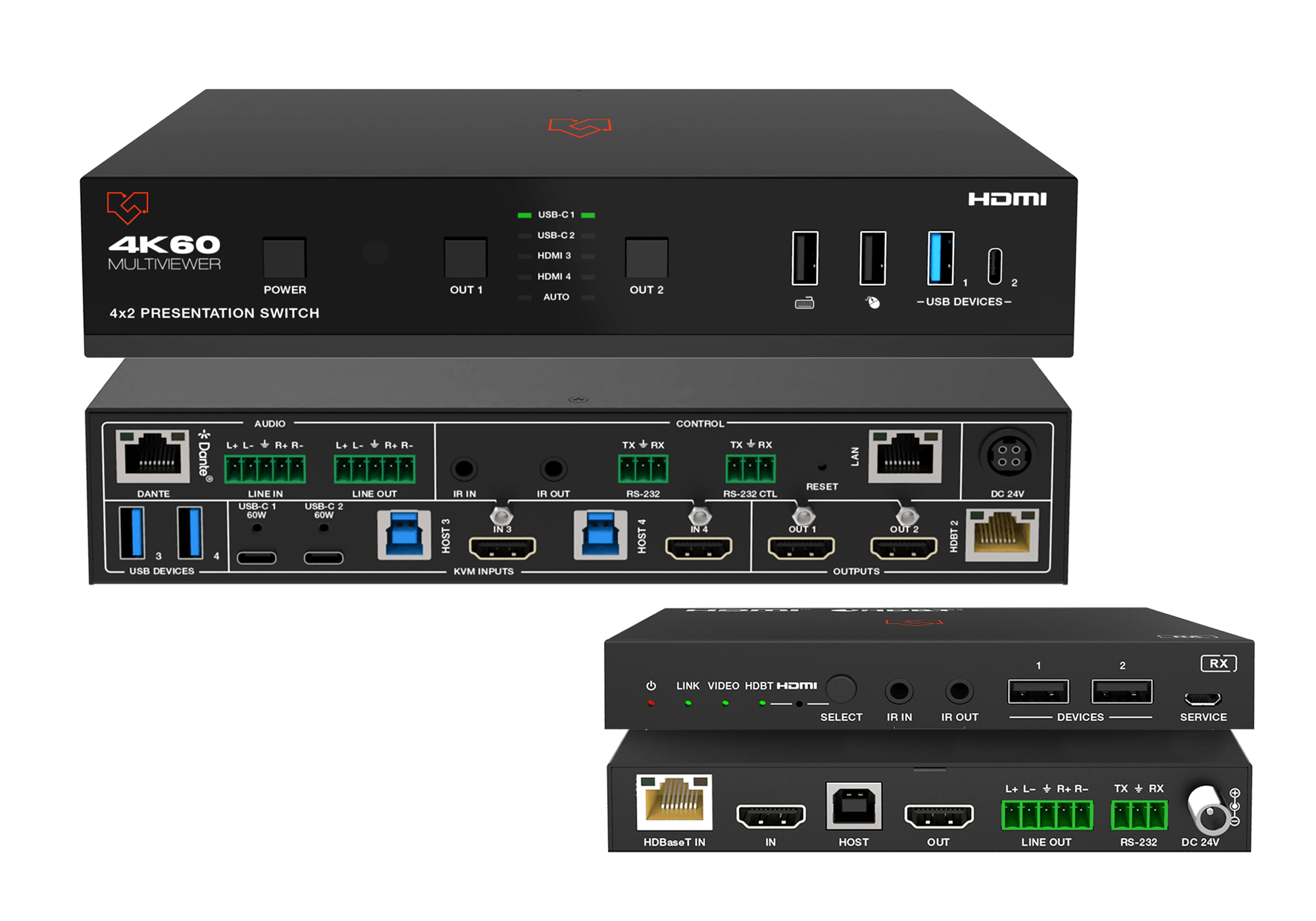

1 × VLPT-42MVDKH 4x2 Seamless Presentation Switch
1 × HDBaseT Receiver
1 × IR Blaster Cable (1.5m)
1 × IR Wideband Receiver Cable (1.5m)
3 × 3-pin 3.5mm Phoenix Connector (male)
3 × 5-pin 3.5mm Phoenix Connector (male)
4 × Mounting Ear
8 × Machine Screw
1 × 24V/8A Desktop Power Supply
1 × AC Power Cord (1.5m)
1 × IR Remote
1 × User Manual

Frequently Asked Questions

How far can the VLPT-42MVDKH extend video over HDBaseT?
Over a single Cat6A cable, the HDBaseT 3.0 output carries uncompressed 4K@60Hz 4:4:4 up to 40m (131ft) and 4K@30Hz or 1080p up to 70m (230ft). The HDBaseT output is mirrored with HDMI OUT2, so a local monitor and a remote display can show the same content at the same time. The matching receiver is included in the box.

What can each USB-C input do at the same time?
Every USB-C input carries four functions over one cable: DisplayPort Alt Mode video up to 4K@60Hz 4:4:4, USB 3.2 Gen 1 data at 5Gbps, 1Gbps Ethernet for network access, and up to 60W of power to charge the connected laptop. That lets a guest connect video, data, network, and charging with a single cable.

Does the VLPT-42MVDKH support multiview?
Yes. In addition to 4x2 seamless single-screen switching, it runs a fast multiview engine with Auto, Single, PIP, PBP, Triple, Quad, and Custom layouts, so up to four sources can be shown on one display simultaneously.

Does it include Dante® audio?
Yes. The switch provides Dante® 2x2 audio input and output (LPCM 2CH, 44.1/48/88.2/96KHz at 24-bit) so presentation and conference audio can be routed to and from a Dante® network. A built-in DSP adds mixing, matrixing, and independent EQ, volume, and delay, alongside standard audio embedding and de-embedding.

How does KVM work on this switch?
Local USB 3.2 KVM switching lets a shared keyboard and mouse control the connected computers, with hotkey and mouse switching supported. USB 2.0 also extends over HDBaseT 3.0, so cameras or USB peripherals connected at the remote receiver can be used by the room's computer for a software video conference.

Does the switch power the receiver, or does the receiver need its own supply?
The transmitter supplies PoE to the included HDBaseT receiver over the same Cat6A cable (TX_PSE / RX_PD), so no separate power supply is required at the display end.

How is the VLPT-42MVDKH controlled?
Control is available from front-panel buttons, the IR remote, RS-232, and TCP/IP. A built-in web server / GUI handles A/V control, automatic display control, and input EDID management, and CEC/RS-232 can switch connected displays and devices on or off.

Is switching seamless?
Yes. The switch performs 4x2 seamless switching in single-screen mode so the display stays clean during source changes, and uses fast switching in multiview mode. Manual and automatic switching modes are both supported.

How does the VLPT-42MVDKH differ from the VLPT-42MCSDH?
Both are 4x2 collaboration switches with USB-C, HDBaseT, and Dante® audio. The VLPT-42MVDKH adds a multiview engine (PIP/PBP/Triple/Quad/Custom) and local USB KVM switching, and ships with the HDBaseT receiver included. Choose the VLPT-42MVDKH when a room needs several sources on one screen at once plus shared keyboard/mouse control; choose the VLPT-42MCSDH for a master collaboration switch focused on networked audio and VigilLynx™ control.
