Presentation & Collaboration Switchers
About Presentation & Collaboration Switchers
VigilLink's Presentation & Collaboration Switcher range provides professional multi-input source switching for conference rooms, classrooms, and AV-integrated spaces — combining HDMI 2.0, USB-C (DisplayPort Alt Mode), and HDBaseT 3.0 inputs in single rack-unit form factors designed for permanent installation. Models span 4-input and 5-input configurations with single or dual outputs, multiview display, HDBaseT extension to 70m and 100m, and KVM for PC switching, with Dante® 2x2 audio networking on the VLPT-42MVDKH, VLPT-51HT70, and the VLPT-42MCSDH flagship. All models support 4K@60Hz throughout and ship with VigilLink's 6-year warranty.
Choosing the Right Presentation Switcher
4x2 Multiview with Dante® Audio and KVM (VLPT-42MVDKH): A 4x2 seamless presentation switch that shows up to four USB-C and HDMI sources on one screen with PIP, PBP, Triple, Quad, and Custom multiview layouts. Each USB-C input carries 4K60 video, USB 3.2 (5Gbps) data, 1Gbps Ethernet, and 60W charging, and the unit adds local USB KVM and Dante® 2x2 audio with an included HDBaseT receiver. Choose it for dual-output rooms that need several sources on screen at once plus networked audio.

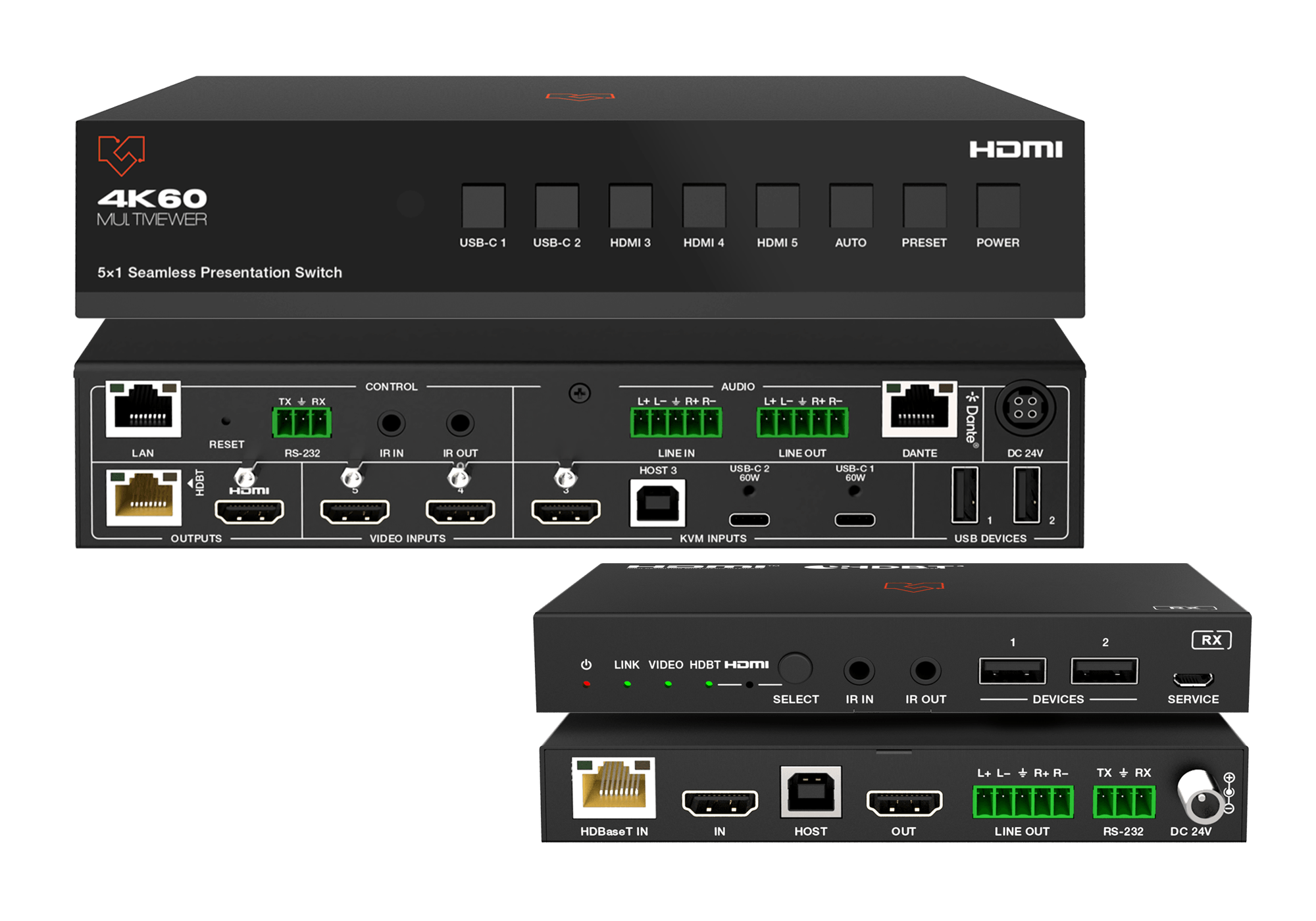

5-Input Multiview with Dante® Audio (VLPT-51HT70): A 5x1 seamless switch with three HDMI and two USB-C inputs routing to a single mirrored HDMI/HDBaseT output to 70m, with Single, PIP, PBP, Triple, and Quad multiview modes. USB-C carries DP Alt Mode video, USB 2.0, 100M Ethernet, and 60W charging; local USB 2.0 KVM and Dante® 2x2 audio are built in, and the HDBaseT receiver is included. Suited to source-rich single-display rooms where several sources route to one display at distance.
4x2 with Included HDBaseT 3.0 Receiver (VLPT-42H100): A 4x2 collaboration switch with HDMI 2.0 and USB-C inputs and an HDBaseT 3.0 output extending to 100m — with an included receiver unit in the box. This is the correct choice for rooms where a complete switcher-plus-table-box solution is required in a single purchase, without the Dante® complexity of the VLPT-42MCSDH.
Flagship with Dante® Audio (VLPT-42MCSDH / VLPT-42MCSDH-RX): The VLPT-42MCSDH is a 4x2 master collaboration switch with USB-C, HDMI 2.0, HDBaseT 3.0, and full Dante® audio network integration — the right choice for AV/IT-converged environments where room audio is managed over a Dante® network. It pairs with the VLPT-42MCSDH-RX, a standalone HDBaseT 3.0 transceiver that acts as the remote table box or wall-plate endpoint.
Frequently Asked Questions
What is seamless switching in a presentation switcher?
Seamless switching means the transition between sources occurs without a black screen or signal interruption — the display continues to show content from the previous source until the new source is fully ready, then cuts cleanly. This is important in live presentation and meeting environments where a momentary black screen between source changes would be disruptive. All VigilLink VLPT-series switchers with seamless switching capability are marked accordingly in their model descriptions.
What USB-C input standard do the VigilLink presentation switchers use?
VigilLink presentation switchers with USB-C inputs use USB-C DisplayPort Alternate Mode (DP Alt Mode), which carries DisplayPort video signals over the USB-C connector. This is compatible with modern laptops from Apple, Dell, HP, Lenovo, and most other manufacturers that output video over USB-C. The same USB-C connection may also carry USB data for collaboration touchscreens and peripherals depending on the model.
What is the HDBaseT transmission distance and what cable is required?
Over a single shielded Cat6A (F/FTP) cable, VigilLink's HDBaseT switchers extend uncompressed 4K@60Hz 4:4:4 up to 40m and 4K@30Hz or 1080p up to 70m; 100m-rated models reach that distance at 4K@30Hz/1080p. Use shielded Cat6A with 568B termination and a direct (non-crossover) run for the rated distance. The HDBaseT link also carries PoE to power the included receiver, plus USB and RS-232/IR control on the same cable.
Can I use the VLPT-42MCSDH without a Dante® audio network?
Yes. The VLPT-42MCSDH functions as a standard HDMI/USB-C/HDBaseT presentation switcher regardless of whether a Dante® network is present. The Dante® audio port can remain unused if no Dante® infrastructure exists. If the room has a Dante®-based audio system, the VLPT-42MCSDH's Dante® integration allows audio from presentation sources to be routed directly to Dante® DSPs, amplifiers, or processors without a separate audio interface.
What is the difference between the VLPT-42H100 and the VLPT-42MCSDH?
Both are 4x2 collaboration switches with HDBaseT output. The VLPT-42H100 includes an HDBaseT 3.0 receiver in the box and is optimized for straightforward multi-source rooms. The VLPT-42MCSDH is the advanced flagship with Dante® audio network integration and full VigilLynx™ control compatibility — suited for AV/IT-converged room designs. The VLPT-42H100 is the value choice for standard conference rooms; the VLPT-42MCSDH is for integrations requiring networked audio and advanced control.
