2x1 HDMI/USB-C Huddle Room Switcher, 4K@60Hz 4:4:4 with USB-C 100W Charging and USB KVM

VLPT-21HUC

2x1 huddle room switcher with one HDMI 2.0b and one USB-C input to a single HDMI output at 4K@60Hz 4:4:4 (18Gbps), HDCP 2.3 and DP 1.4a compliant
USB-C input with DP Alt mode, USB 3.2 Gen 1 (5Gbps) data, 1G Ethernet pass-through, and 100W laptop charging over a single cable
Full USB KVM switching with USB-C and dual USB-A device ports, plus balanced/unbalanced analog audio embedding and de-embedding
Fast auto and manual switching with signal and 5V detection; control via front panel, RS-232, TCP/IP, and web GUI, with CEC/IR/LAN/GPIO external-device control

Product Description

The VLPT-21HUC is a 2x1 HDMI and USB-C huddle room switcher for small meeting spaces: a fixed in-room source and a guest laptop, switched to one display, with the camera, microphone, and peripherals shared between them. Both inputs sit on the front of the unit, so a presenter connects at the table without reaching behind a rack. Video is switched to a single HDMI output at up to 4K@60Hz 4:4:4 (18Gbps, HDMI 2.0b), preserving HDR10, HDR10+, Dolby Vision, and HLG.

The USB-C input anchors the design. Over DP Alt Mode it carries 4K@60Hz 4:4:4 video, USB 3.2 Gen 1 (5Gbps) data, 1G Ethernet, and up to 100W of charging on one cable, so a presenter plugs in once for picture, peripherals, network, and power. When the laptop disconnects, the switcher falls back to the HDMI source automatically using signal and 5V detection, or an operator switches manually from the front panel.

Beyond switching, the VLPT-21HUC works as a room hub. Its USB 3.2 KVM shares a USB-C and two USB-A device ports with the active source, so a room camera and speakerphone follow the presenter between the in-room PC and a BYOM laptop. Balanced or unbalanced analog audio can be embedded into or de-embedded from the HDMI or USB stream. Dual 1G Ethernet with 802.1x and VLAN, an IR eye, GPIO, RS-232, and CEC display control integrate the unit into a control system, and it is managed from the front panel, RS-232, TCP/IP, or a built-in Web GUI.

Key Features

2x1 HDMI + USB-C switching to one HDMI output at up to 4K@60Hz 4:4:4 (18Gbps, HDMI 2.0b), HDCP 2.3 and DP 1.4a compliant
USB-C input with DP Alt Mode delivering 4K60 4:4:4 video, USB 3.2 Gen 1 (5Gbps) data, 1G Ethernet, and 100W USB-C charging over a single cable
Fast auto and manual switching with automatic signal detection and 5V detection, waking the full system including external devices
Integrated USB 3.2 Gen 1 KVM — USB host plus local hub, one USB-C and two USB-A device ports (5V/1.5A) shared between sources
Balanced/unbalanced analog audio embedding and de-embedding to and from the USB or HDMI audio stream
Advanced EDID management with user-defined welcome screen and no-signal display image
Dual 1G Ethernet ports with 802.1x and VLAN support
Full room control and automation — auto display on/off, external device control via CEC, IR, RS-232, LAN, and GPIO, with an IR eye for IR learning
Multiple management interfaces — front-panel buttons, RS-232, TCP/IP, and Web GUI
Compact metal enclosure (230 x 130 x 23 mm) with mounting ears
6-year VigilLink warranty

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Ideal Applications

Corporate Huddle Rooms & Small Meeting Spaces

The VLPT-21HUC is purpose-built for two- to six-person huddle rooms where a wall display serves both a fixed room PC and visiting laptops. Front-panel USB-C and HDMI inputs give presenters a table-accessible connection point, and automatic switching means the display shows the active source without anyone touching a remote.

BYOD / BYOM Conference Rooms

A single USB-C cable connects a guest laptop for video, network, USB peripherals, and charging, while the built-in KVM hands the room camera and speakerphone to that laptop for a bring-your-own-meeting session on Microsoft Teams, Zoom, or Google Meet. When the meeting ends and the laptop unplugs, control returns to the in-room source automatically.

Classrooms & Training Rooms

An instructor's laptop and a lectern PC share one projector or flat panel, with EDID management ensuring a clean, correctly formatted image on every connection. The user-defined welcome screen keeps a branded or instructional image on the display between sessions, and RS-232/CEC display control powers the screen on at the start of class and off at the end.

Hybrid Meeting Rooms

Because the USB KVM follows the active source, a shared PTZ camera and microphone work identically whether the meeting is hosted from the room PC or a personal device. Balanced audio de-embedding sends program audio to a room amplifier or DSP, keeping the AV chain unified across in-room and remote participants.

Executive Offices, Focus Rooms & Telehealth Stations

In compact single-display spaces, the VLPT-21HUC replaces a pile of adapters and a separate charger with one under-desk unit. The 100W USB-C charge keeps a clinician's or executive's laptop powered through long sessions, while dual 1G Ethernet with VLAN support keeps device traffic on the correct network segment.

Specifications


  Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.3
DP ComplianceDP 1.4a (USB-C input)
USB ComplianceUSB 3.2 Gen 1 (5Gbps)
Video Bandwidth18Gbps
Video Network Bandwidth1G
Video Resolution (Input & Output)Up to 4096x2160p60Hz and 3840x2160p60Hz 4:4:4; supports standard resolutions from 480i/480p through 1080p and 4K
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12-bit (8-bit at 4K@60Hz 4:4:4)
HDRHDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats (HDMI/USB-C IN, HDMI OUT)LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS-HD High Res, DTS-HD Master Audio, DSD
Audio Formats (Analog Audio IN/OUT)LPCM 2CH (sample rate 32-192kHz)
IR Level5Vp-p
IR Frequency20K-60KHz
Transmission DistanceUSB 3.2 passive cable 1.5m / 4.9ft; HDMI passive cable 3m / 9.8ft
ESD ProtectionIEC 61000-4-2: +/-8kV air-gap discharge, +/-4kV contact discharge
Connections
Input Ports1x HDMI IN2 [Type A, 19-pin female]; 1x USB-C IN1 [24-pin female]; 1x HOST [USB Type B, 9-pin female]; 1x L/R AUDIO IN [5-pin 3.5mm phoenix]
Output Ports1x HDMI OUT [Type A, 19-pin female]; 1x USB DEVICE [USB Type C, 24-pin female]; 2x USB DEVICE [USB Type A, 9-pin female]; 1x L/R AUDIO OUT [5-pin 3.5mm phoenix]

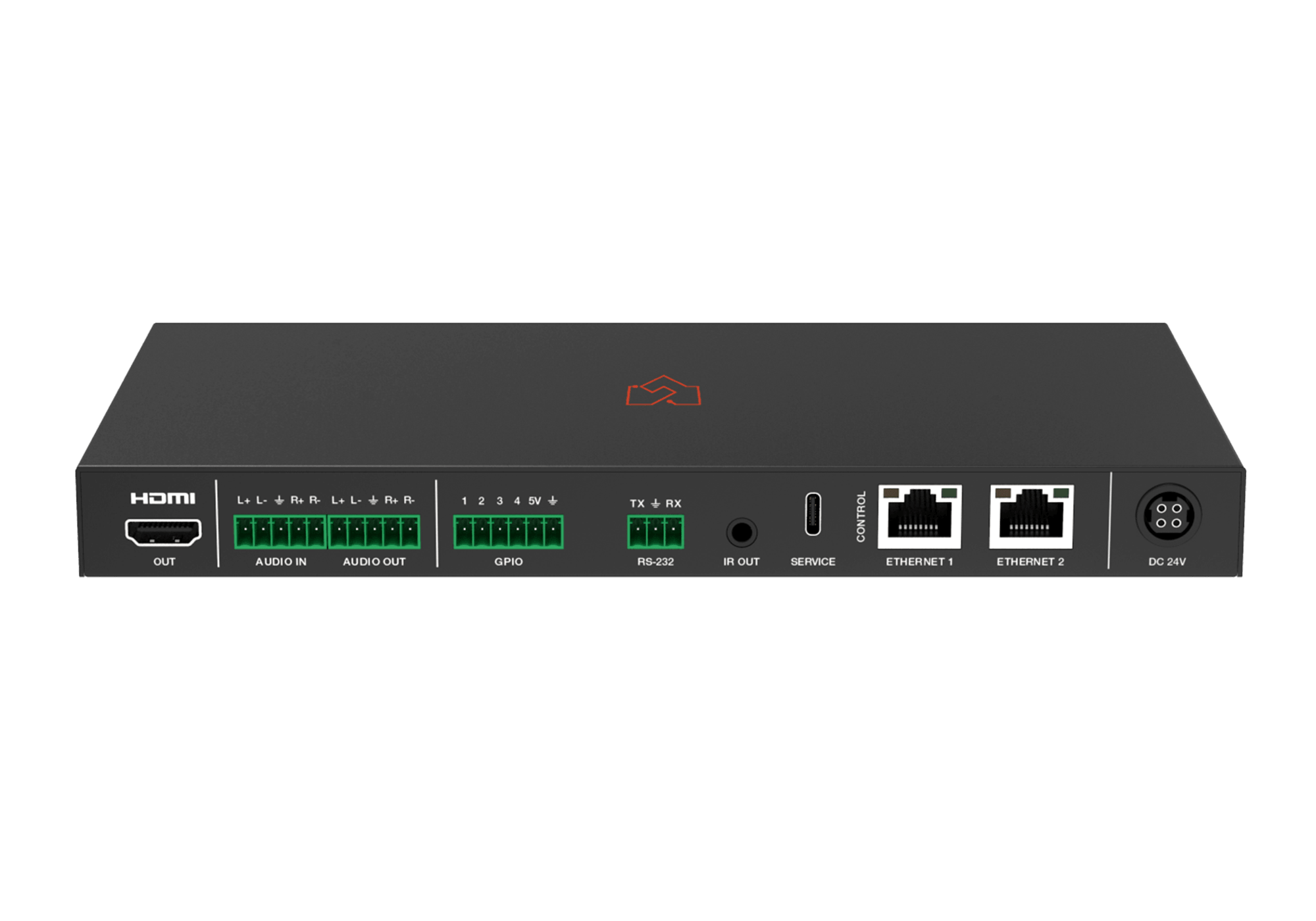

Control Ports1x RS-232 [3-pin 3.5mm phoenix]; 1x IR OUT [3.5mm stereo mini-jack]; 2x LAN [RJ45]; 1x GPIO [6-pin 3.5mm phoenix]; 1x SERVICE [USB-C, FW update]
Mechanical
HousingMetal enclosure
ColorBlack
Dimensions230mm [W] x 130mm [D] x 23mm [H]
Weight796g
Power SupplyInput AC 100-240V 50/60Hz; Output DC 24V/7.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption37W (without USB-C charging); 145W (with 100W USB-C charging)
Operating Temperature32°F to 104°F / 0°C to 40°C
Storage Temperature-4°F to 140°F / -20°C to 60°C
Operating Humidity20% to 80% RH, non-condensing
Storage Humidity10% to 90% RH, non-condensing

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.3
DP Compliance	DP 1.4a (USB-C input)
USB Compliance	USB 3.2 Gen 1 (5Gbps)
Video Bandwidth	18Gbps
Video Network Bandwidth	1G
Video Resolution (Input & Output)	Up to 4096x2160p60Hz and 3840x2160p60Hz 4:4:4; supports standard resolutions from 480i/480p through 1080p and 4K
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit (8-bit at 4K@60Hz 4:4:4)
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats (HDMI/USB-C IN, HDMI OUT)	LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS-HD High Res, DTS-HD Master Audio, DSD
Audio Formats (Analog Audio IN/OUT)	LPCM 2CH (sample rate 32-192kHz)
IR Level	5Vp-p
IR Frequency	20K-60KHz
Transmission Distance	USB 3.2 passive cable 1.5m / 4.9ft; HDMI passive cable 3m / 9.8ft
ESD Protection	IEC 61000-4-2: +/-8kV air-gap discharge, +/-4kV contact discharge
Connections
Input Ports	1x HDMI IN2 [Type A, 19-pin female]; 1x USB-C IN1 [24-pin female]; 1x HOST [USB Type B, 9-pin female]; 1x L/R AUDIO IN [5-pin 3.5mm phoenix]
Output Ports	1x HDMI OUT [Type A, 19-pin female]; 1x USB DEVICE [USB Type C, 24-pin female]; 2x USB DEVICE [USB Type A, 9-pin female]; 1x L/R AUDIO OUT [5-pin 3.5mm phoenix]
Control Ports	1x RS-232 [3-pin 3.5mm phoenix]; 1x IR OUT [3.5mm stereo mini-jack]; 2x LAN [RJ45]; 1x GPIO [6-pin 3.5mm phoenix]; 1x SERVICE [USB-C, FW update]
Mechanical
Housing	Metal enclosure
Color	Black
Dimensions	230mm [W] x 130mm [D] x 23mm [H]
Weight	796g
Power Supply	Input AC 100-240V 50/60Hz; Output DC 24V/7.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption	37W (without USB-C charging); 145W (with 100W USB-C charging)
Operating Temperature	32°F to 104°F / 0°C to 40°C
Storage Temperature	-4°F to 140°F / -20°C to 60°C
Operating Humidity	20% to 80% RH, non-condensing
Storage Humidity	10% to 90% RH, non-condensing

What’s in the Box

1x VLPT-21HUC 2x1 HDMI and USB-C Huddle Room Switcher
1x 24V/7.5A Power Supply
1x IR Blaster Cable (1.5m)
1x 3-pin 3.5mm Phoenix Connector (male)
2x 5-pin 3.5mm Phoenix Connector (male)
1x 6-pin 3.5mm Phoenix Connector (male)
4x Rubber Foot
2x Mounting Ear
4x Machine Screw (M3x5, for rubber feet)
4x Machine Screw (KM3x6, for mounting ears)
1x User Manual

Frequently Asked Questions

What is the VLPT-21HUC and what does it do?

The VLPT-21HUC is a 2x1 huddle room switcher. It takes one HDMI 2.0b source and one USB-C source and switches them to a single HDMI display at up to 4K@60Hz 4:4:4. Beyond video switching, it acts as a room hub: it shares USB peripherals between the two sources over KVM, charges a connected laptop up to 100W over USB-C, embeds and de-embeds analog audio, and controls the display and external devices through CEC, IR, RS-232, LAN, and GPIO.

What video resolutions does the VLPT-21HUC support?

Both inputs and the output support up to 4K@60Hz 4:4:4 (3840x2160 and 4096x2160) at 18Gbps, consistent with HDMI 2.0b. It also handles standard resolutions from 480i and 480p through all common HD and 4K formats, and passes HDR10, HDR10+, Dolby Vision, and HLG.

Does the USB-C input charge a connected laptop?

Yes. The USB-C input supports USB Power Delivery up to 100W, so a laptop stays charged through the meeting on the same cable that carries video, USB data, and 1G Ethernet. Total unit power draw is 37W without USB-C charging and up to 145W when delivering the full 100W charge.

What is USB KVM on the VLPT-21HUC and how does it work?

USB KVM means the switcher routes shared USB peripherals to whichever video source is currently selected. The unit has a USB host input plus a local hub and three device ports (one USB-C, two USB-A at 5V/1.5A). A room camera, microphone, or keyboard/mouse connected to the device ports automatically follows the active source, so the same peripherals serve both the in-room PC and a BYOM laptop.

Can the VLPT-21HUC switch between sources automatically?

Yes. It supports both automatic and manual switching. Automatic switching uses signal detection and 5V detection to select an active source, and it can wake the whole system, including external devices, when a source appears. Manual switching is available from the front-panel button, and switching can also be driven over RS-232, TCP/IP, or the Web GUI.

How does the VLPT-21HUC handle audio?

It supports balanced or unbalanced analog audio on 5-pin phoenix connectors. Analog audio can be embedded into the HDMI or USB audio stream, or de-embedded from that stream out to a room amplifier or DSP. Analog audio is LPCM 2-channel at 32-192kHz sample rates, and the HDMI/USB path passes the full range of Dolby and DTS formats through to the display.

How is the VLPT-21HUC controlled and integrated into a room system?

The unit itself is managed from front-panel buttons, RS-232, TCP/IP, or a built-in Web GUI. It controls external devices and the display through CEC, IR (with an IR eye for IR learning), RS-232, LAN, and GPIO, and includes automatic display on/off. This lets it power the room display on and off, trigger a projector screen, or hand off to a third-party control system.

What are the two Ethernet ports for?

The VLPT-21HUC has dual 1G Ethernet ports with 802.1x authentication and VLAN support. These provide wired network connectivity for the switcher and connected devices, including network passthrough for a laptop connected over USB-C, and management access to the Web GUI. VLAN support lets device and control traffic be segmented onto the correct network.

Does the VLPT-21HUC support HDR?

Yes. It passes HDR, HDR10, HDR10+, Dolby Vision, and HLG through from source to display without conversion, so high-dynamic-range content from a laptop or media source reaches the display in its native format.

What is included in the box and how is it mounted?

The unit ships with a 24V/7.5A power supply, an IR blaster cable, a full set of phoenix connectors, rubber feet, and two mounting ears with screws. The compact 230 x 130 x 23 mm metal enclosure can sit on a surface with the rubber feet or be fixed under a table or on a rack shelf using the mounting ears.
