4K60 USB-C IN/OUT Extender over HDBaseT 3.0 with USB 2.0, 40m

VLEX-HT3UTU40

  • Extends USB-C source video and data to a USB-C receiver up to 40m (4K@60Hz) or 70m (4K@30Hz)

  • Both transmitter and receiver terminate in USB-C, ideal for all-USB-C display chains

  • USB-C input carries DP-Alt Mode video, USB 2.0 data, and up to 100W of charging

  • Bidirectional RS-232 pass-through and 24V PoC power over a single Cat6A/7 cable

Where to Buy

Product Description

The VLEX-HT3UTU40 is a compact 18Gbps HDBaseT 3.0 extender that keeps a USB-C signal chain intact from source to display. The transmitter accepts a USB-C source over DP-Alt Mode (v1.2a), and the receiver outputs a USB-C connection carrying both video and USB 2.0 data, so USB-C-native displays, touch panels, or docking monitors can sit at the far end of a Cat6A/7 run without an HDMI adapter in between.

Uncompressed 4K@60Hz (4:4:4 8-bit) extends up to 130ft/40m, with 4K@30Hz reaching 230ft/70m over the same cable. The transmitter includes a dedicated USB-C charging port and two local USB-A ports, while the receiver adds a USB-C device port and two more USB-A ports, so peripherals at either end have somewhere to connect. USB 2.0 passes through the HDBaseT link at up to 70m, supporting up to three USB devices at the receiver.

RS-232 pass-through and bidirectional 24V PoC round out the design, so either end can power the link and existing control systems keep working across the extended connection.

Key Features

  • HDBaseT 3.0 extender with USB-C input and output

  • 18Gbps video bandwidth, video resolution up to 4K@60Hz (4:4:4 8-bit)

  • Extends uncompressed 4K60Hz (4:4:4 8-bit) up to 130ft/40m, or 4K30Hz up to 230ft/70m, over Cat6A/7

  • HDR, HDR10+, Dolby Vision LLM, and HLG pass-through

  • HDCP 2.2 compliant for secure source-to-display connections

  • Transmitter features 1x USB-C input, 1x dedicated USB-C charging port, and 2x local USB devices

  • USB-C input supports DP-Alt Mode (v1.2a) for A/V, USB 2.0 data, and power charging up to 100 watts

  • Receiver features 1x USB-C output (video and USB 2.0 data) and 3x USB 2.0 devices

  • USB 2.0 high speed pass-through over HDBaseT 3.0

  • Each USB-A port provides power up to 5V/1A

  • USB 2.0 pass-through over HDBaseT up to 230ft/70m, connecting up to 3 USB devices at the receiver

  • RS-232 signal pass-through

  • Audio pass-through: LPCM 2.0/5.1/7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X

  • Bidirectional 24V PoC, so either end can power the other without a separate power supply

  • Compact design for easy, flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Ideal Applications

Corporate Boardrooms & Conference Rooms
All-USB-C rooms, where the display, touch controller, or docking monitor is USB-C native, get an end-to-end USB-C path instead of converting to HDMI partway through.

Higher Education Classrooms & Lecture Capture
Newer USB-C interactive panels used for annotation or lecture capture connect natively without an HDMI adapter, keeping the signal chain simpler to troubleshoot.

Healthcare & Telemedicine Suites
USB-C clinical touch displays paired with a USB-C laptop or workstation at the source end stay in a single connector standard end to end.

Command Centers & Control Rooms
Operator consoles using USB-C monitors connect directly without adapters, and RS-232 pass-through keeps existing control automation working across the extended link.

Broadcast & Production Facilities
USB-C reference monitors in edit bays or preview stations connect straight from a USB-C source workstation, with HDR and Dolby Vision pass-through preserving grading.

Hospitality & Digital Signage
USB-C interactive kiosks or touch displays in lobbies and common areas connect natively to a USB-C media player or laptop at the source end.

Specifications

Technical
HDCP ComplianceHDCP 2.2
USB ComplianceUSB 2.0
Video Bandwidth18Gbps
Input/Output Video ResolutionUp to 4096x2160p60Hz (4K2K@60Hz), including standard formats from 640x480p60Hz through 1080p and 4K/UHD rates
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12bit
HDRHDR, HDR10, HDR10+, Dolby Vision, HLG
Audio FormatsUSB-C passthrough: LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio, DTS:X
Transmission Distance4K60Hz (4:4:4 8bit): up to 130ft/40m
4K30Hz (4:4:4 8bit): up to 230ft/70m
USB 2.0 pass through: up to 230ft/70m, connecting up to 3 USB devices at the receiver
ESD ProtectionIEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connections

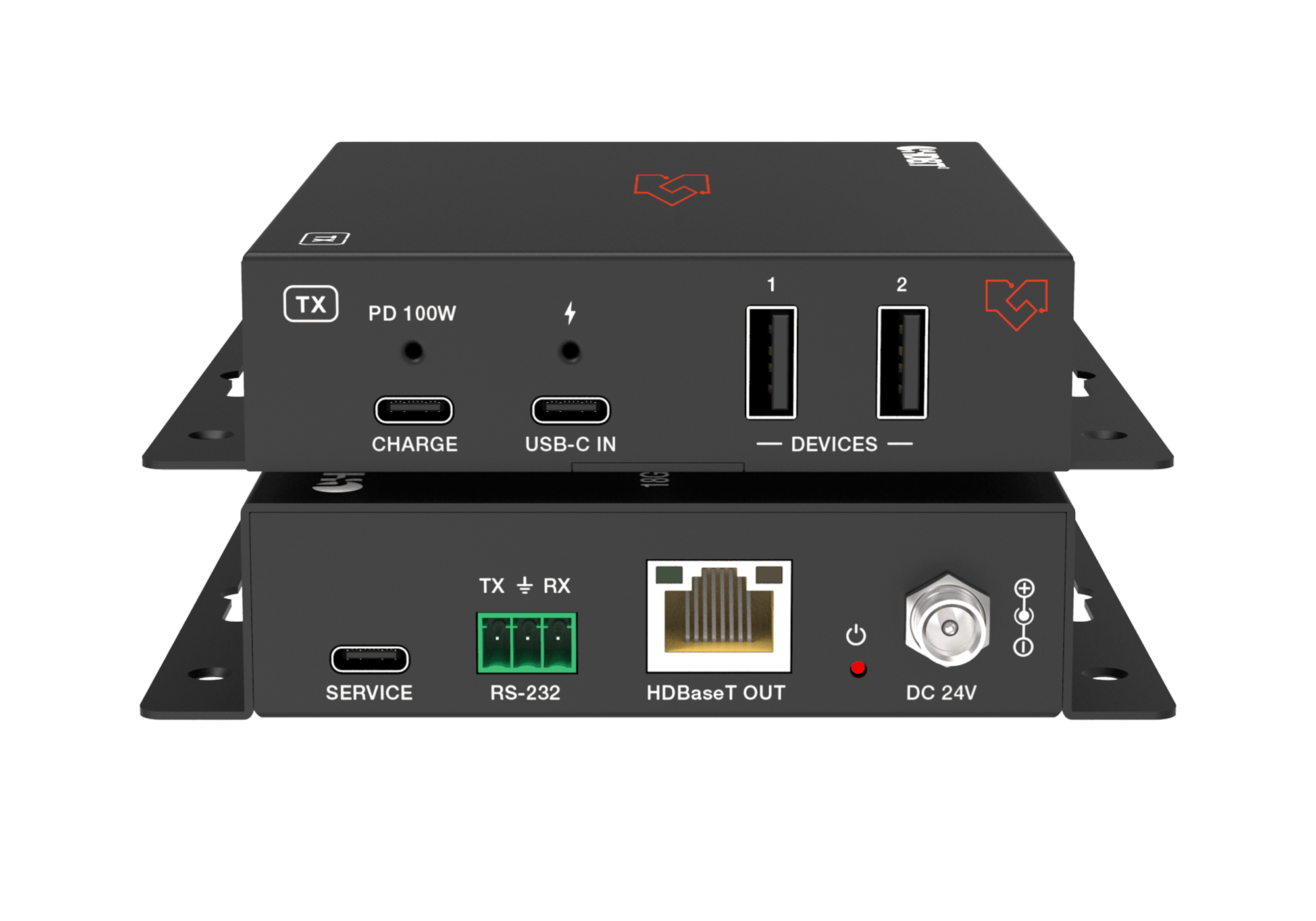

TransmitterFront Panel: 1x CHARGE [USB Type C, 24-pin female], 1x USB-C IN [USB Type C, 24-pin female], 2x USB 2.0 DEVICES [USB Type A, 4-pin female]
Rear Panel: 1x SERVICE [USB-C with USB 2.0 only, 12-pin female, firmware upgrade port], 1x RS-232 [3-pin phoenix with 3.5mm pitch], 1x HDBaseT OUT [RJ45 connector, 24V PoC], 1x Power LED [Red LED], 1x DC 24V [24V/2.7A, 19mm locking connector]
Side Panel: 1x PoC ON/OFF [1-pin DIP switch]

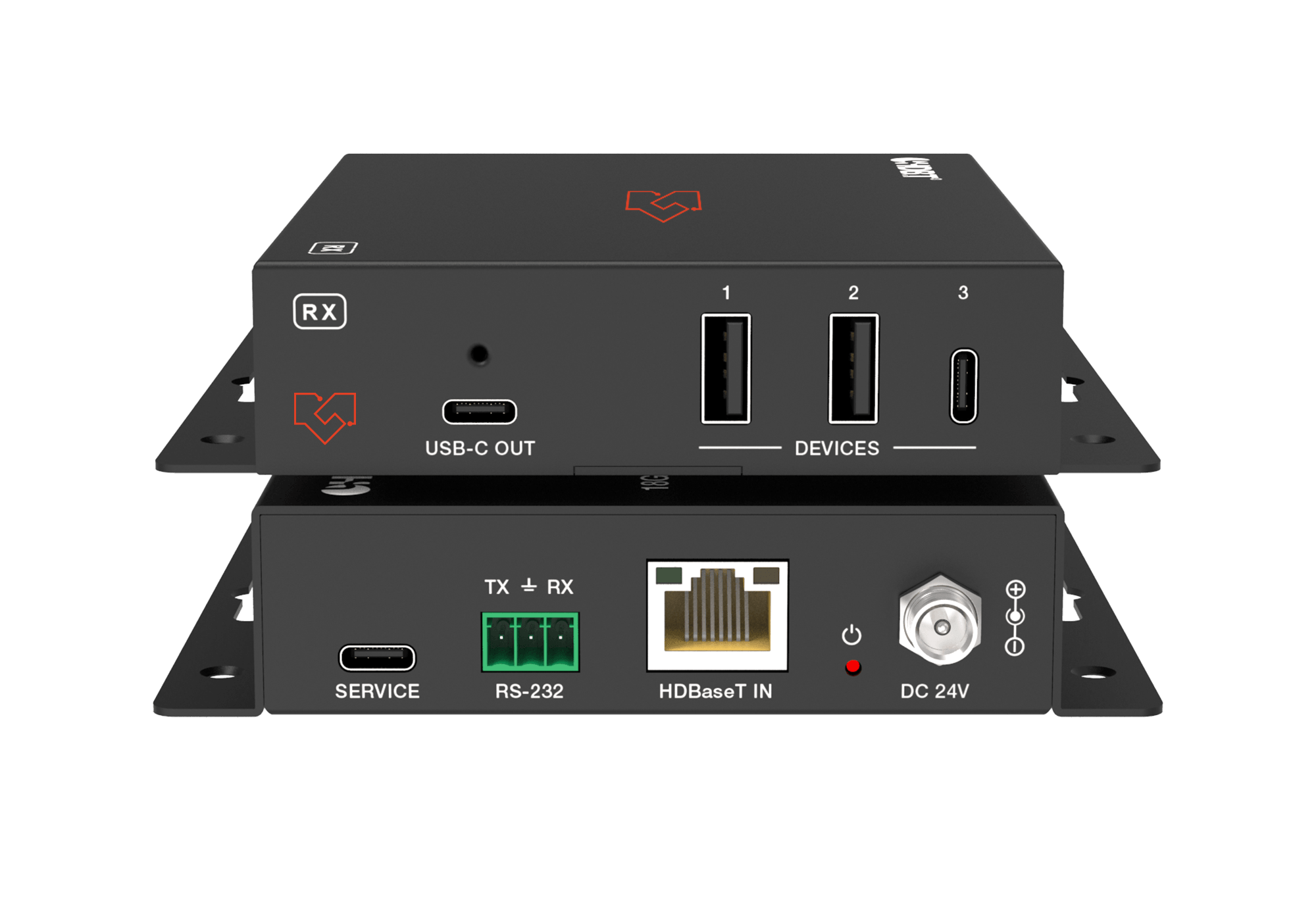

ReceiverFront Panel: 1x USB-C OUT [USB Type C, 12-pin female], 1x USB 2.0 DEVICES [USB Type C, 12-pin female], 2x USB 2.0 DEVICES [USB Type A, 4-pin female]
Rear Panel: 1x SERVICE [USB-C with USB 2.0 only, 12-pin female, firmware upgrade port], 1x RS-232 [3-pin phoenix with 3.5mm pitch], 1x HDBaseT IN [RJ45 connector, 24V PoC], 1x Power LED [Red LED], 1x DC 24V [24V/2.7A, 19mm locking connector]
Side Panel: 1x PoC ON/OFF [1-pin DIP switch]
Mechanical
HousingMetal Enclosure
ColorBlack
DimensionsTx/Rx: 120mm (W) x 113mm (D) x 25.5mm (H)
WeightTx: 353g, Rx: 352g
Power SupplyInput: AC 100-240V 50/60Hz; Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified)
Power ConsumptionTX/RX with full USB devices (each 5V/1A): 46.8W; TX/RX without USB devices: 16.08W
Operating Temperature32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature-4°F ~ 140°F / -20°C ~ 60°C
Operating Humidity20% ~ 80% relative humidity, non-condensing
Storage Humidity10% ~ 90% relative humidity, non-condensing

What’s in the Box

  • 1 × VLEX-HT3UTU40 Transmitter

  • 1 × VLEX-HT3UTU40 Receiver

  • 2 × 3pin-3.5mm Phoenix Connector (male)

  • 1 × 24V/2.7A Desktop Power Supply

  • 1 × User Manual

Frequently Asked Questions

What's the difference between this and the VLEX-HT3UTH40?
Both accept the same USB-C source at the transmitter. The VLEX-HT3UTU40's receiver outputs USB-C (video plus USB 2.0 data), while the VLEX-HT3UTH40's receiver outputs HDMI. Pick this model when the far-end display or panel is USB-C native.

Does the receiver's USB-C output work with a standard USB-C monitor?
It should, provided the monitor accepts DisplayPort-Alt-Mode video over USB-C, which is standard for USB-C monitors that support video input over that connector.

How many USB devices can I connect at the receiver end?
The receiver has one USB-C device port and two USB-A device ports (three total), and up to three USB devices can be supported over the extended USB 2.0 pass-through at up to 70m.

Can this extender output HDMI instead of USB-C?
No, the receiver on the VLEX-HT3UTU40 outputs USB-C only. For an HDMI output, use the VLEX-HT3UTH40 instead.

How much power can the transmitter supply to a connected laptop?
Up to 100 watts through the USB-C input port via DP-Alt Mode power delivery, with a separate dedicated USB-C charging port available for a second device.

Is power consumption different from the VLEX-HT3UTH40?
Yes, slightly. With all USB devices connected, the VLEX-HT3UTU40 draws 46.8W maximum versus 51.36W on the VLEX-HT3UTH40, reflecting the different receiver-side port
