4K60 USB-C to HDMI Extender over HDBaseT 3.0 with USB 2.0, 40m

VLEX-HT3UTH40

  • Extends USB-C source video to an HDMI display up to 40m (4K@60Hz) or 70m (4K@30Hz)

  • Transmitter's USB-C input carries DP-Alt Mode video, USB 2.0 data, and up to 100W of charging

  • Compact 120mm-square enclosure for tight equipment spaces

  • Bidirectional RS-232 pass-through and 24V PoC power over the same Cat6A/7 cable

Where to Buy

Product Description

The VLEX-HT3UTH40 is a compact 18Gbps HDBaseT 3.0 extender purpose-built for USB-C laptops connecting to HDMI displays. The transmitter accepts a single USB-C source over DP-Alt Mode (v1.2a), extends the video to an HDMI receiver, and carries USB 2.0 data both directions for peripherals at either end. A dedicated USB-C charging port and two local USB-A ports at the transmitter let a laptop charge and connect accessories without extra cabling.

Uncompressed 4K@60Hz (4:4:4 8-bit) extends up to 130ft/40m over a single Cat6A/7 cable, with 4K@30Hz (4:4:4 8-bit) reaching 230ft/70m on the same run. The receiver outputs HDMI along with four USB 2.0 device ports, so mice, keyboards, or dongles at the display end stay connected through the same cable that carries video.

RS-232 signal pass-through and bidirectional 24V PoC round out the feature set, letting either end power the link and integrate with existing room control systems. Its compact, boxy enclosure fits equipment mounts and wall boxes where a full-size extender doesn't.

Key Features

  • HDBaseT 3.0 extender with USB-C input

  • 18Gbps video bandwidth, video resolution up to 4K@60Hz (4:4:4 8-bit) per HDMI 2.0b

  • Extends uncompressed 4K60Hz (4:4:4 8-bit) up to 130ft/40m, or 4K30Hz up to 230ft/70m, over Cat6A/7

  • HDR, HDR10+, Dolby Vision LLM, and HLG pass-through

  • HDCP 2.3 compliant for secure source-to-display connections

  • Transmitter features 1x USB-C input, 1x dedicated USB-C charging port, and 2x local USB devices

  • USB-C input supports DP-Alt Mode (v1.2a) for A/V, USB 2.0 data, and power charging up to 100 watts

  • Receiver features 1x HDMI output and 4x USB 2.0 devices

  • USB 2.0 high speed pass-through over HDBaseT 3.0

  • Each USB-A port provides power up to 5V/1A

  • RS-232 signal pass-through

  • Audio pass-through: LPCM 2.0/5.1/7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X

  • Bidirectional 24V PoC, so either end can power the other without a separate power supply

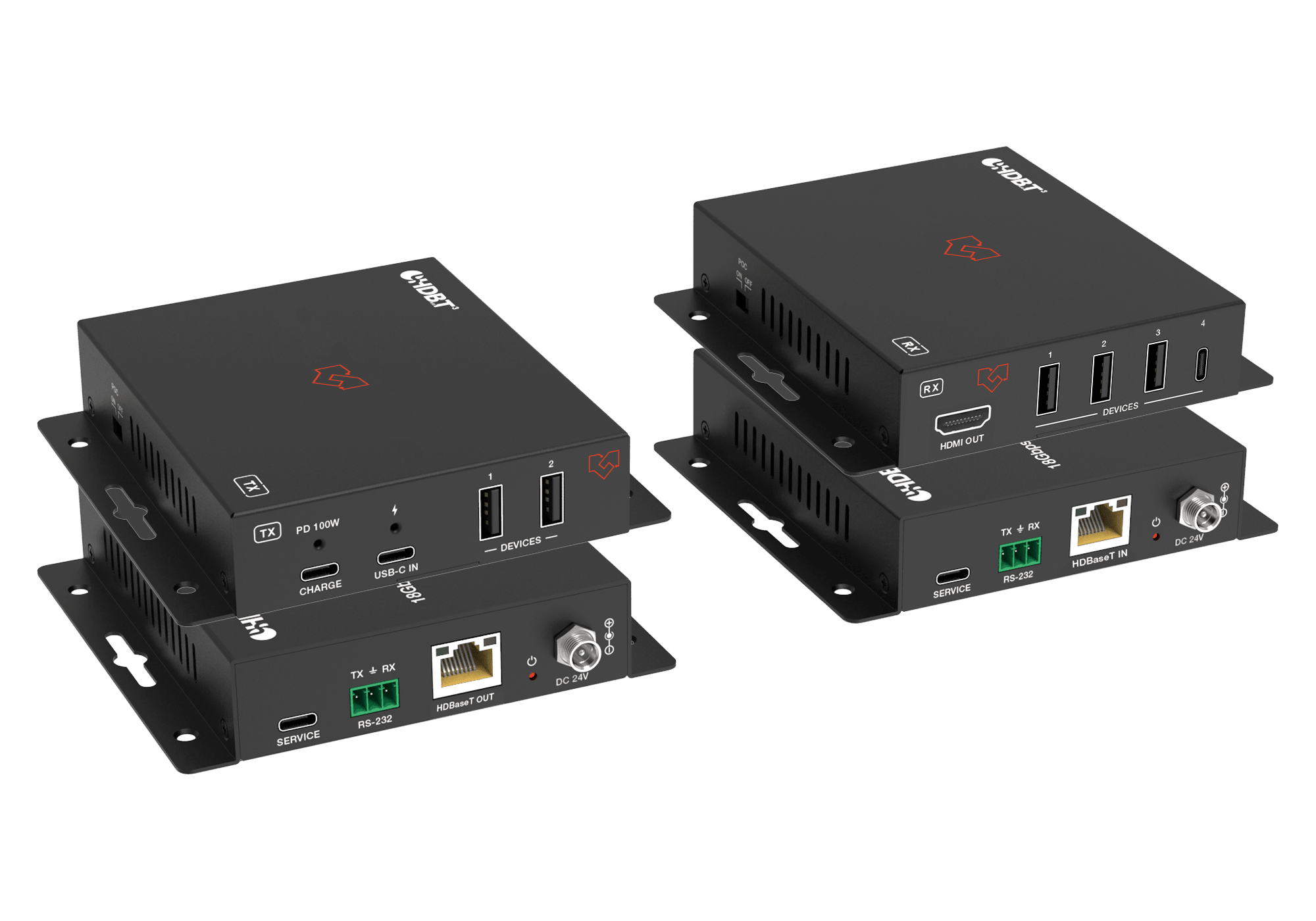

  • Compact design for easy, flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Ideal Applications

Corporate Boardrooms & Conference Rooms
BYOD huddle rooms where nearly every laptop connects via USB-C get a dedicated single-cable path to the room's HDMI display, with charging built into the transmitter so presenters don't need a separate power brick.

Higher Education Classrooms & Lecture Capture
Modern lecture capture podiums built around USB-C laptops connect directly to classroom projectors or displays without an HDMI adapter dongle in the chain.

Healthcare & Telemedicine Suites
Compact exam-room carts with limited space benefit from the small enclosure size, while the 100W charging keeps tablets or ultrabooks powered through long shifts.

Command Centers & Control Rooms
Operator positions running USB-C laptops or thin clients connect straight to wall-mounted HDMI monitors, with RS-232 pass-through tying into existing control automation.

Broadcast & Production Facilities
Preview stations built around USB-C laptops get a clean single-cable path to HDMI confidence monitors, with HDR and Dolby Vision pass-through preserving graded output.

Hospitality & Digital Signage
Compact signage control points where a USB-C media player or laptop drives an HDMI display benefit from the small footprint and bidirectional PoC wiring.

Specifications

Technical
HDCP ComplianceHDCP 2.3
USB ComplianceUSB 2.0
Video Bandwidth18Gbps
Video ResolutionUp to 4K@60Hz (4:4:4 8bit)
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12bit
HDRHDR, HDR10, HDR10+, Dolby Vision, HLG
Audio FormatsUSB-C/HDMI passthrough: LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio, DTS:X
Transmission Distance4K60Hz (4:4:4 8bit): up to 130ft/40m
4K30Hz (4:4:4 8bit): up to 230ft/70m
USB 2.0 pass through: up to 230ft/70m, connecting up to 4 USB devices at the receiver
ESD ProtectionIEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

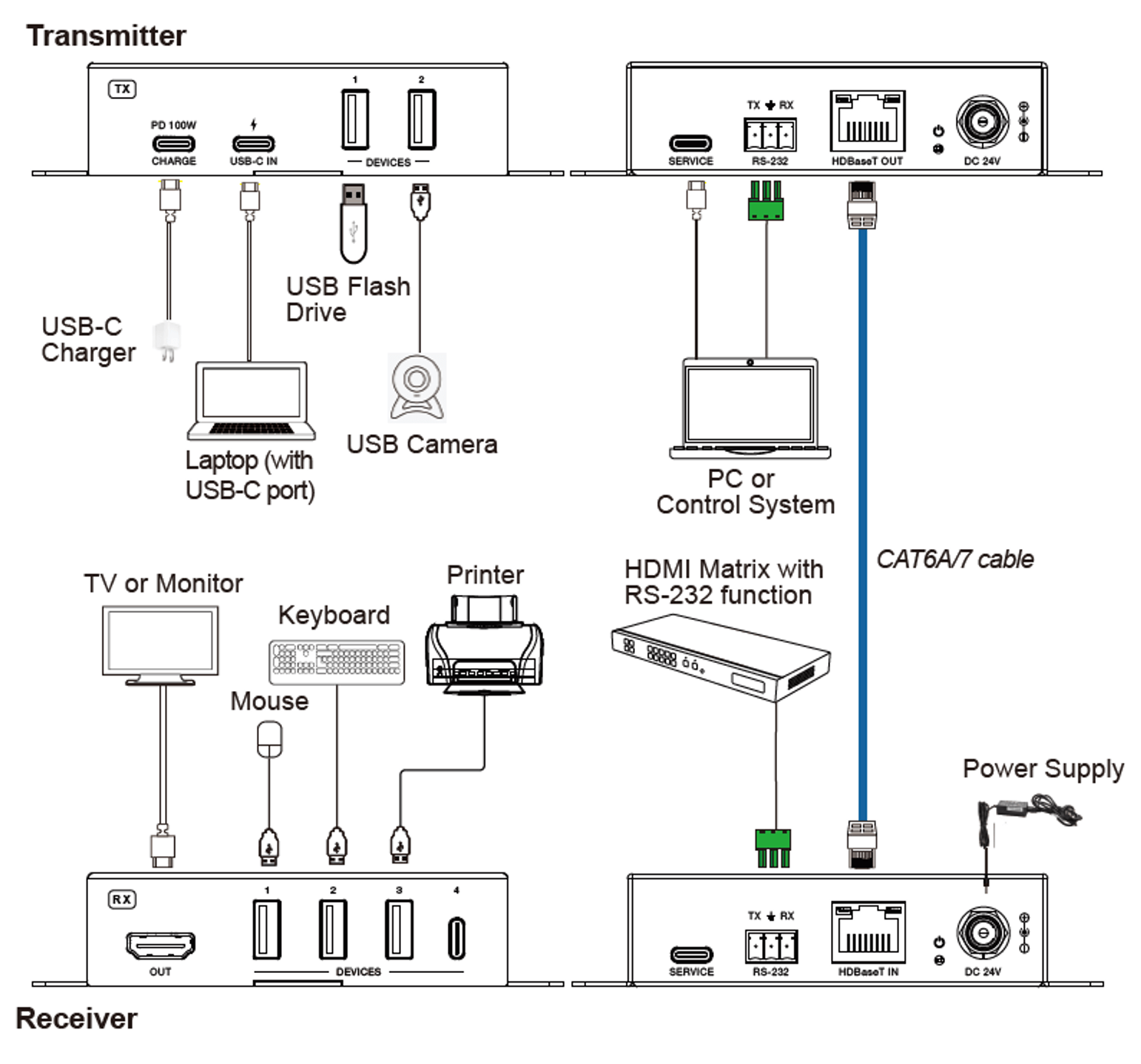

Connections

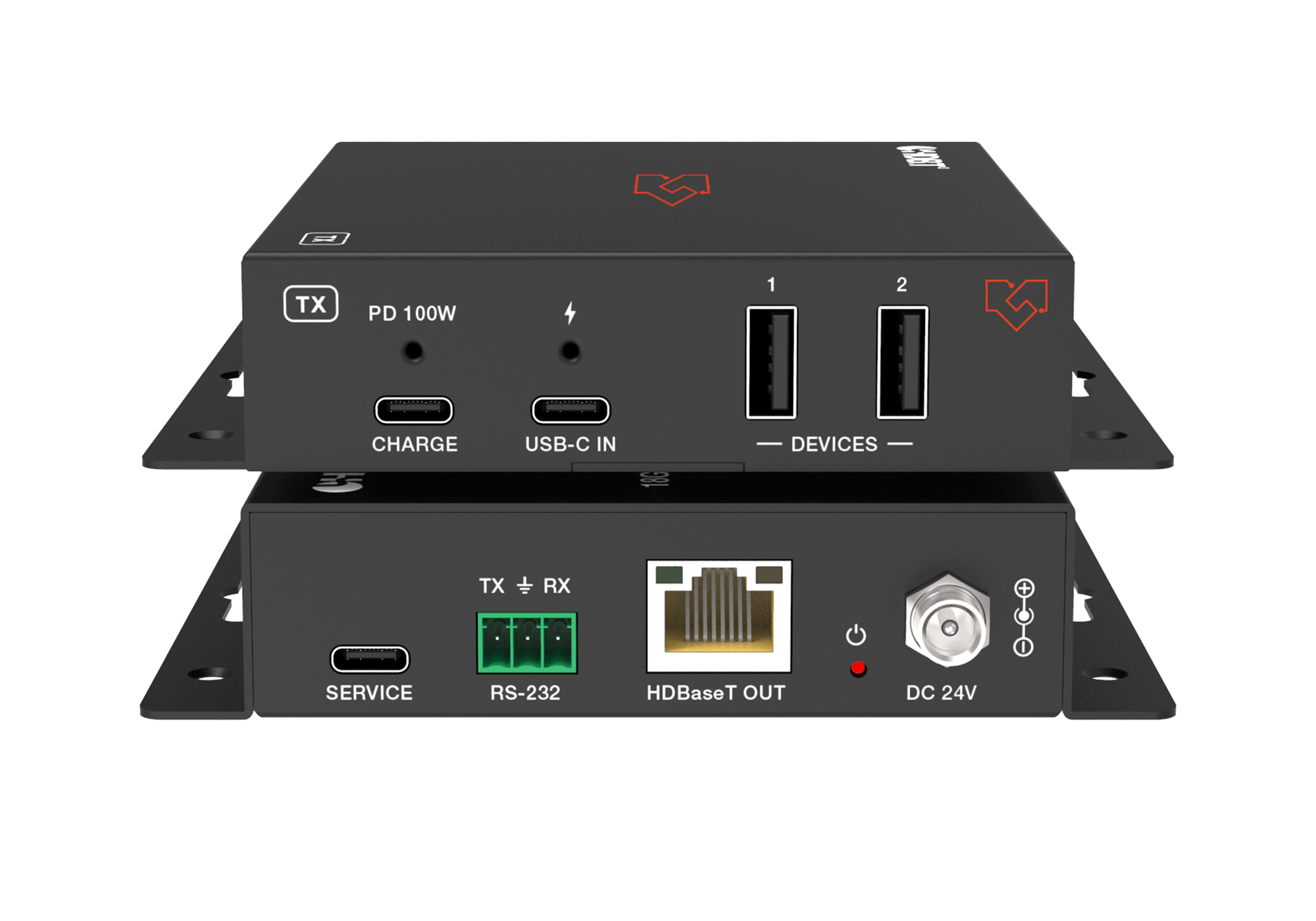

TransmitterFront Panel: 1x CHARGE [USB Type C, 24-pin female], 1x USB-C IN [USB Type C, 24-pin female], 2x USB 2.0 DEVICES [USB Type A, 4-pin female]
Rear Panel: 1x SERVICE [USB-C with USB 2.0 only, 12-pin female, firmware upgrade port], 1x RS-232 [3-pin phoenix with 3.5mm pitch], 1x HDBaseT OUT [RJ45 connector, 24V PoC], 1x Power LED [Red LED], 1x DC 24V [24V/2.7A, 19mm locking connector]
Side Panel: 1x PoC ON/OFF [1-pin DIP switch]

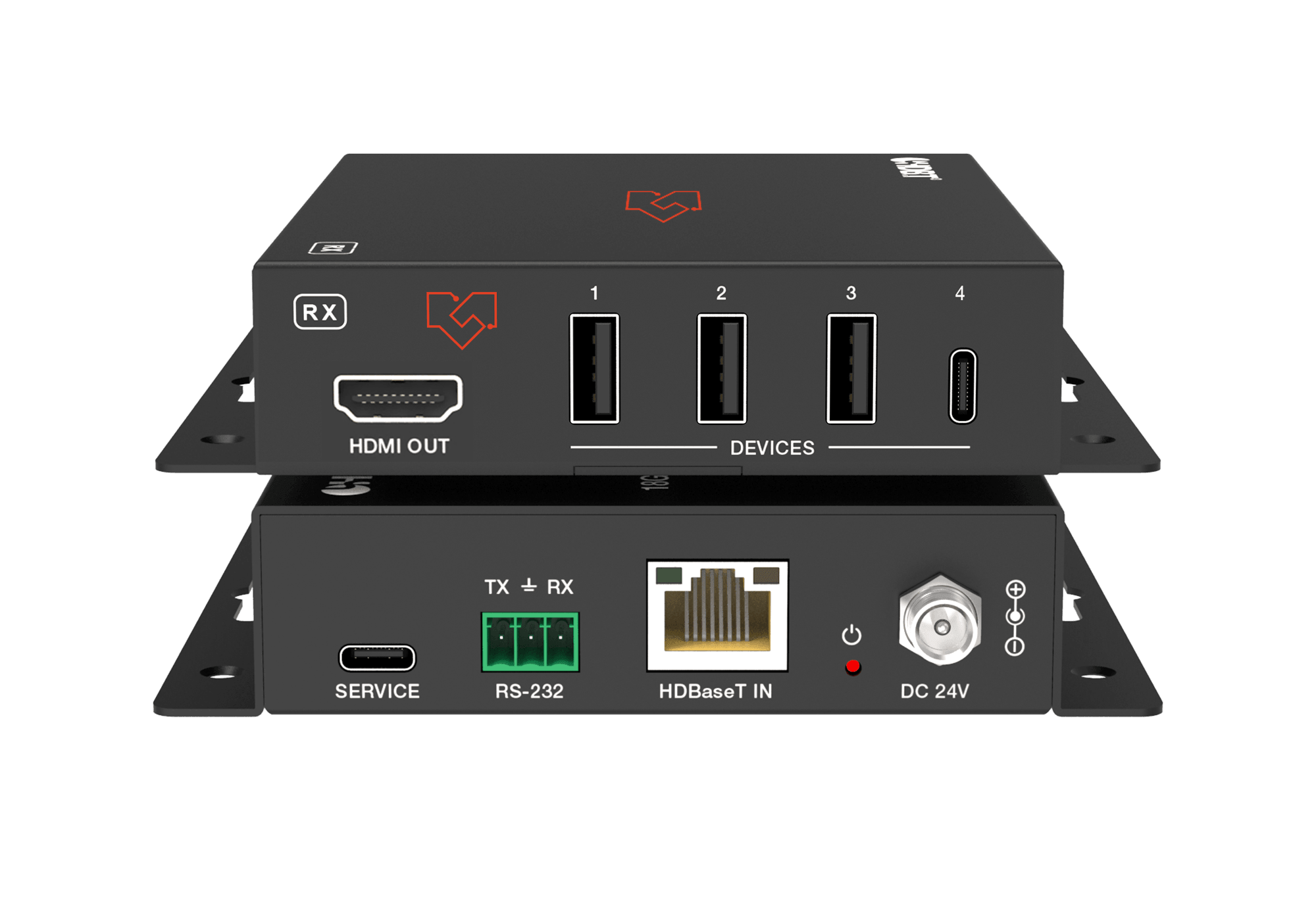

ReceiverFront Panel: 1x HDMI OUT [HDMI Type A, 19-pin female], 1x USB 2.0 DEVICES [USB Type C, 12-pin female], 3x USB 2.0 DEVICES [USB Type A, 4-pin female]
Rear Panel: 1x SERVICE [USB-C with USB 2.0 only, 12-pin female, firmware upgrade port], 1x RS-232 [3-pin phoenix with 3.5mm pitch], 1x HDBaseT IN [RJ45 connector, 24V PoC], 1x Power LED [Red LED], 1x DC 24V [24V/2.7A, 19mm locking connector]
Side Panel: 1x PoC ON/OFF [1-pin DIP switch]
Mechanical
HousingMetal Enclosure
ColorBlack
DimensionsTx/Rx: 120mm (W) x 113mm (D) x 25.5mm (H)
WeightTx: 353g, Rx: 352g
Power SupplyInput: AC 100-240V 50/60Hz; Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified)
Power ConsumptionTX/RX with full USB devices: 51.36W; TX/RX without USB devices: 10.08W
Operating Temperature32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature-4°F ~ 140°F / -20°C ~ 60°C
Operating Humidity20% ~ 80% relative humidity, non-condensing
Storage Humidity10% ~ 90% relative humidity, non-condensing

What’s in the Box

  • 1 × VLEX-HT3UTH40 Transmitter

  • 1 × VLEX-HT3UTH40 Receiver

  • 2 × 3pin-3.5mm Phoenix Connector (male)

  • 1 × 24V/3.75A Desktop Power Supply

  • 1 × User Manual

Frequently Asked Questions

Can this extender accept an HDMI source instead of USB-C?
No. The VLEX-HT3UTH40 transmitter only accepts USB-C (DP-Alt Mode) input. If you need to support both HDMI and USB-C sources, the VLEX-HT3HUTH40 accepts either.

How much charging power is available at the transmitter?
The USB-C input port supports DP-Alt Mode power delivery up to 100 watts, and there's a separate dedicated USB-C charging port for a second device.

What's the difference between this and the VLEX-HT3UTU40?
Both accept the same USB-C input at the transmitter. The VLEX-HT3UTH40 outputs HDMI at the receiver, while the VLEX-HT3UTU40 outputs USB-C (video plus USB 2.0 data) instead of HDMI, for displays or panels that require a USB-C connection.

Does the receiver support USB peripherals like a wireless mouse or keyboard receiver?
Yes. The receiver provides four USB 2.0 device ports (one USB-C, three USB-A), each supplying up to 5V/1A, suitable for USB peripherals and dongles.

Can I power just the receiver end and have it feed power back to the transmitter?
Yes, PoC is bidirectional; whichever end has power connected can supply the other over the same Cat6A/7 cable. A PoC on/off switch is provided at each unit if you need to disable this.

What audio formats pass through to the HDMI output?
LPCM 2.0/5.1/7.1 channel, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X all pass through from the USB-C source to the HDMI output.
