4K60 HDMI/USB-C Extender over HDBaseT 3.0 with USB 2.0, 40m

VLEX-HT3HUTH40

  • Extends HDMI and USB-C video up to 40m (4K@60Hz) or 70m (4K@30Hz) over a single Cat6A/7 cable

  • Auto-switching HDMI/USB-C input with USB-C DP-Alt Mode and up to 60W charging

  • Bidirectional RS-232 and IR pass-through for full control-room integration

  • Bidirectional 24V PoC lets either end power the link, with no separate power supply needed at both ends

Where to Buy

Product Description

The VLEX-HT3HUTH40 is an 18Gbps HDBaseT 3.0 extender that carries HDMI or USB-C video, USB 2.0, RS-232, and bidirectional IR over a single Cat6A/7 cable, eliminating the separate video, control, and USB runs that longer installs otherwise require. The transmitter accepts either an HDMI source or a USB-C source with DP-Alt Mode video and up to 60 watts of charging, and switches between the two automatically based on signal detection or manually as needed.

Uncompressed 4K@60Hz (4:4:4 8-bit) video extends up to 40 meters, with 4K@30Hz reaching 70 meters over the same Cat6A/7 run. The receiver outputs HDMI along with two USB 2.0 device ports, so USB peripherals at the display end stay connected without a separate USB extender. Both transmitter and receiver support 3.5mm analog audio de-embedding, EDID management, and bidirectional RS-232 and IR pass-through for room control systems.

Bidirectional 24V PoC (Power over Cable) means whichever end is plugged into power can supply the other, simplifying installs where running a second power outlet to the display side isn't practical. The compact form factor and HDCP 2.3 compliance make the VLEX-HT3HUTH40 a straightforward fit for BYOD conference rooms and classrooms that need both HDMI and USB-C source flexibility on one link.

Key Features

  • Compliant with HDMI 2.0b and HDCP 2.3 at 18Gbps video bandwidth

  • Extends uncompressed 4K@60Hz (4:4:4 8-bit) up to 40m, or 4K@30Hz up to 70m, over Cat6A/7

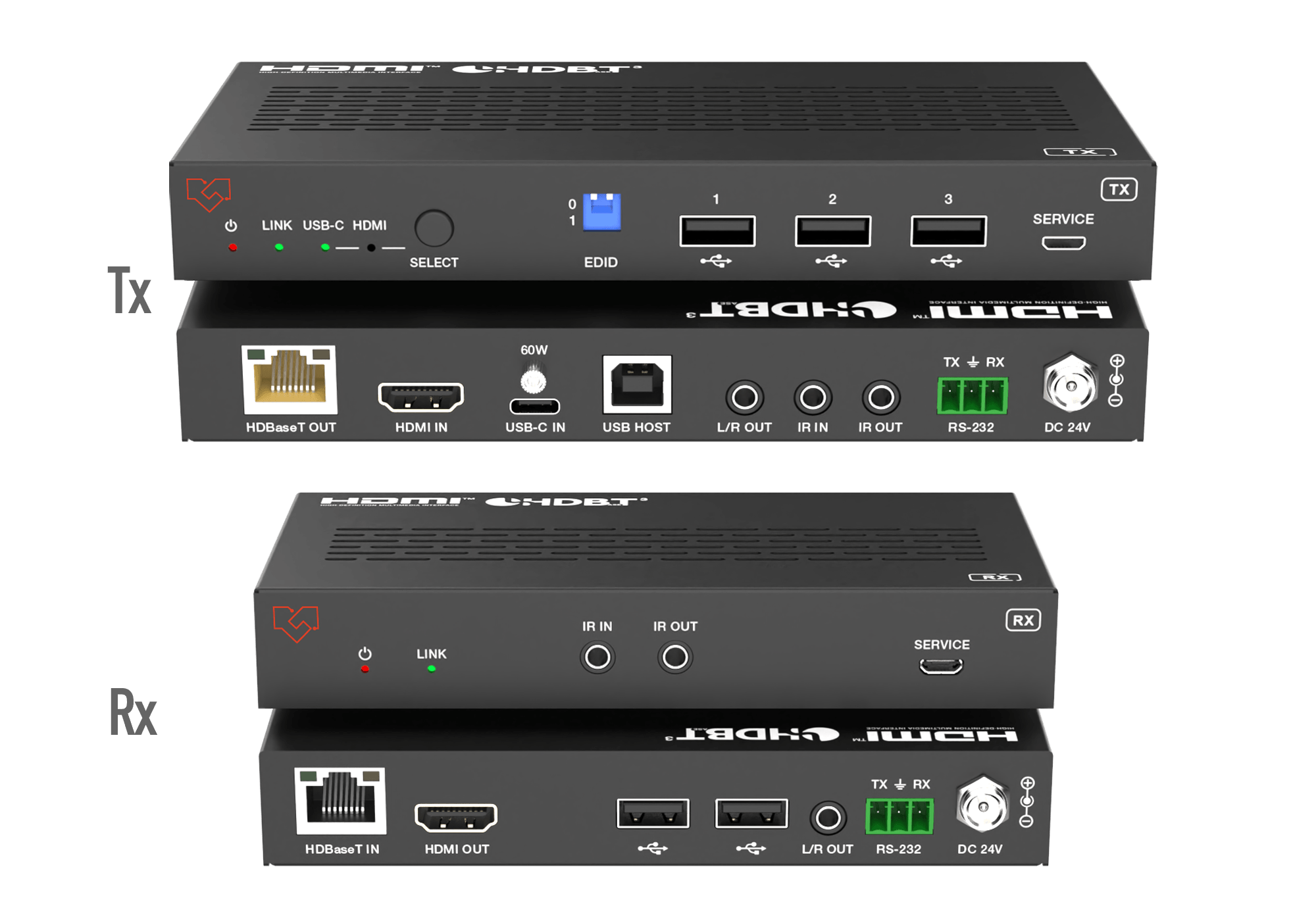

  • Transmitter features 1x HDMI input, 1x USB-C input, 1x USB 2.0 host, and 3x USB 2.0 device ports

  • Receiver features 1x HDMI output and 2x USB 2.0 device ports

  • Auto or manual switching between HDMI and USB-C inputs

  • USB-C input supports DP-Alt Mode (v1.2a) video, USB 2.0 data, and charging up to 60 watts

  • HDR, HDR10, HDR10+, Dolby Vision LLM, and HLG pass-through

  • 4K to 1080p downscaling on HDMI output with no frame rate conversion

  • 3.5mm analog audio de-embedding at transmitter and receiver

  • Bidirectional RS-232 signal pass-through with guest-mode control

  • Bidirectional IR signal pass-through, wideband 20kHz-60kHz

  • Advanced EDID management

  • Bidirectional 24V PoC with PoC on/off switch

  • Compact design for flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Ideal Applications

Corporate Boardrooms & Conference Rooms
A compact HDBaseT 3.0 extender fits boardrooms and huddle spaces where both a laptop's HDMI port and its USB-C port need a home. The auto-switching input means presenters can plug in either cable without touching a control panel, while the 60W USB-C charging keeps a laptop topped off during long meetings.

Higher Education Classrooms & Lecture Capture
Instructor stations that mix HDMI-only laptops with newer USB-C machines get single-cable support for both, with RS-232 pass-through for classroom AV control systems and IR pass-through for legacy display remotes.

Healthcare & Telemedicine Suites
The bidirectional 24V PoC design simplifies wiring in exam rooms and consult suites where running power to both the source and display side isn't always convenient, and the compact enclosure fits tight equipment carts.

Command Centers & Control Rooms
40m of extension over Cat6A/7 covers typical operator-to-wall-display distances in NOCs and monitoring rooms, while RS-232 and IR pass-through keep existing control automation intact.

Broadcast & Production Facilities
HDR, HDR10+, Dolby Vision, and HLG pass-through preserve source grading through the extension link for review monitors and preview displays in edit bays and production suites.

Hospitality & Digital Signage
Front-desk and lobby displays that need occasional laptop or tablet hookup benefit from the dual HDMI/USB-C input and analog audio de-embedding for local speaker feeds.

Specifications

Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.3
USB ComplianceUSB 2.0
Video Bandwidth18Gbps
Video ResolutionUp to 4K@60Hz 4:4:4
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12bit
IR Level12Vp-p
IR FrequencyWideband 20K-60KHz
HDRHDR, HDR10, HDR10+, Dolby Vision, HLG
Audio FormatsHDMI/USB-C/HDBT: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
3.5mm Analog Audio: LPCM 2CH
Transmission Distance4K60: 131ft/40m (CAT6A/7)
4K30/1080P: 230ft/70m (CAT6A/7)
ESD ProtectionIEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

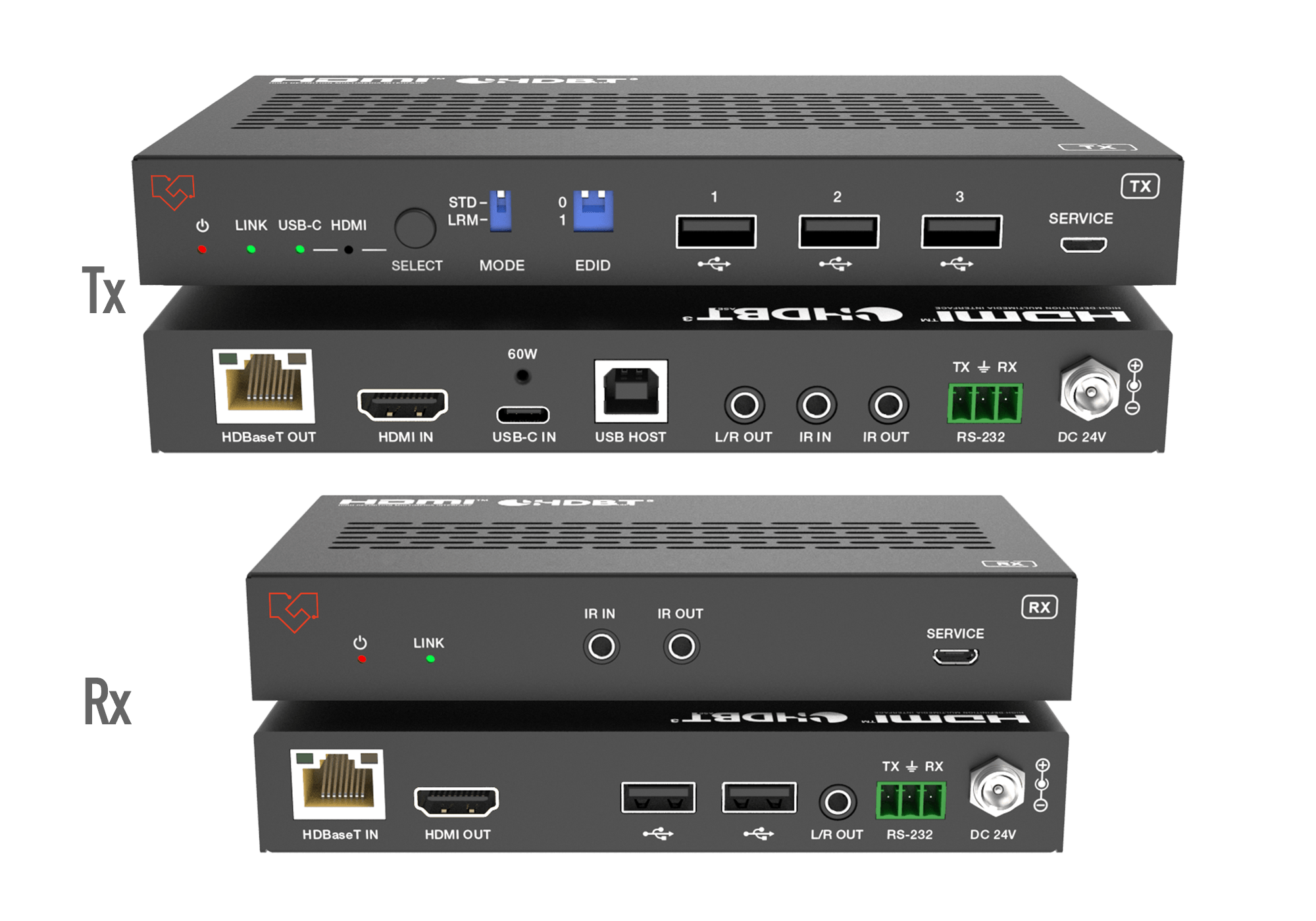

Connections
TransmitterInput: 1x HDMI IN [Type A, 19-pin female], 1x USB-C IN [USB Type C, 24-pin female]
Output: 1x HDBaseT OUT [RJ45, 8-pin female]
1x L/R OUT [3.5mm Stereo Mini-jack]
Control: 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack], 1x RS-232 [3pin-3.81mm phoenix connector]
1x SERVICE [Micro USB, 5-pin female]
1x USB HOST [USB Type B, 4-pin female], 3x USB Devices [USB Type A, 4-pin female]
ReceiverInput: 1x HDBaseT IN [RJ45, 8-pin female]
Output: 1x HDMI OUT [Type A, 19-pin female], 1x L/R OUT [3.5mm Stereo Mini-jack]
Control: 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack], 1x RS-232 [3pin-3.81mm phoenix connector]
1x SERVICE [Micro USB, 5-pin female]
2x USB Devices [USB Type A, 4-pin female]
Mechanical
HousingMetal Enclosure
ColorBlack
DimensionsTx: 170mm (W) x 102mm (D) x 22mm (H); Rx: 144mm (W) x 78mm (D) x 23mm (H)
WeightTx: 484g, Rx: 318g
Power SupplyInput: AC 100-240V 50/60Hz; Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified)
Power Consumption (Max)94.32W (power supply from TX, 60W USB-C charging, PoC to RX); 10.8W (power supply from TX or RX, without USB-C charging)
Operating Temperature32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity20% ~ 90% RH (no condensation)
Recommended HDMI Cable Length
4K6026ft/8m
4K2439ft/12m
1080P6050ft/15m
Use of "Premium High Speed HDMI" cable is highly recommended.

What’s in the Box

  • 1 × VLEX-HT3HUTH40 Transmitter

  • 1 × VLEX-HT3HUTH40 Receiver

  • 1 × IR Blaster Cable (1.5m)

  • 1 × IR Wideband Receiver Cable (1.5m)

  • 2 × 3pin-3.81mm Phoenix Connector (male)

  • 4 × Mounting Ear

  • 8 × Machine Screw (KM3×4)

  • 1 × 24V/3.75A Desktop Power Supply

  • 1 × User Manual

Frequently Asked Questions

Does the VLEX-HT3HUTH40 support both HDMI and USB-C sources at the same time?
No. The transmitter accepts one active source at a time and switches between the HDMI and USB-C inputs automatically based on signal or 5V detection, or manually if preferred. It doesn't combine or mix both inputs simultaneously.

How much can the USB-C input charge a connected laptop?
The USB-C input supports DP-Alt Mode (v1.2a) power delivery up to 60 watts, enough for most ultrabooks and thin laptops to charge while presenting.

What's the difference in reach between 4K@60Hz and 4K@30Hz?
Uncompressed 4K@60Hz (4:4:4 8-bit) reaches 40 meters (131ft) over Cat6A/7, while dropping to 4K@30Hz or 1080p extends that to 70 meters (230ft) on the same cable.

Can I power the receiver end without running a separate power supply there?
Yes. The VLEX-HT3HUTH40 supports bidirectional 24V PoC, so whichever end has the power supply connected can power the other end over the Cat6A/7 link. A PoC on/off switch is provided for installs where you want to disable this.

Does it pass through RS-232 and IR control signals?
Yes, both directions. RS-232 pass-through supports guest-mode control, and IR pass-through covers a wideband 20kHz-60kHz range for compatibility with most consumer and commercial remotes.

What audio formats pass through the HDBaseT link?
Digital audio via HDMI/USB-C/HDBT supports LPCM up to 7.1 channels, Dolby Digital/Plus/EX, Dolby TrueHD, DTS variants including DTS-HD Master Audio, and DSD. The 3.5mm analog audio de-embed output carries 2-channel LPCM.
