2 Channel Dante XLR Output Adapter

VLDT-DT2XL

  • Dante two-channel digital audio to balanced or unbalanced XLR analog output, on the Dante Ultimo 2x2 platform

  • Two XLR outputs on 30cm captive cables, with +18dBu maximum balanced output and better than 100dB dynamic range

  • Five-level output gain adjustment (+24dBu, +4dBu, 0dBu, 0dBV, -10dBV) for matching mixers, amplifiers, and analog equipment

  • Dante input at 44.1/48/88.2/96kHz 24-bit with configurable 1/2/5ms latency, powered by PoE (802.3af Class 0) or USB-C

Where to Buy
Dante® brand
Six Year Warranty logo

Product Description

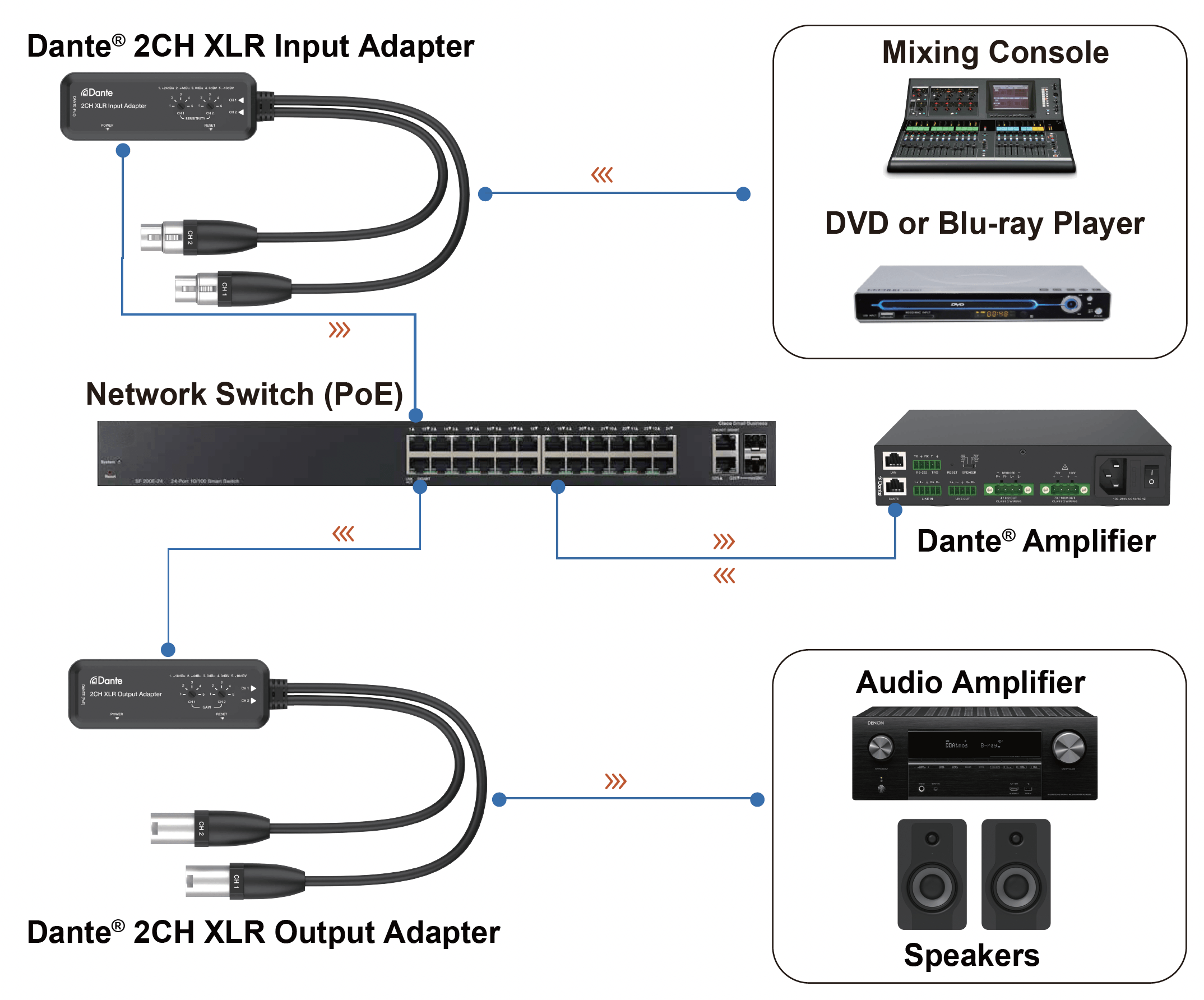

VigilLink Dante® 2CH XLR Output Adapter is a professional Dante®-to-Analog Audio Interface with Selectable Output Gain. It is a compact, high-performance audio receiver that converts 2-channel Dante® digital audio into balanced or unbalanced XLR analog output, seamlessly bridging networked audio systems with traditional analog equipment.

Powered by the proven Dante® Ultimo 2x2 platform, this adapter ensures accurate, low-latency audio delivery with support for sample rates up to 96kHz and configurable output delay settings. It features five levels of analog output gain adjustment, providing precise control for line-level and consumer-level devices.

Designed for flexible deployment, the adapter supports both Power over Ethernet (PoE) and local USB-C power. Its slim profile makes it an ideal solution for commercial AV, broadcast, live events, and any environment requiring reliable Dante®-to-analog conversion in a space-saving form factor.

Key Features

  • Dante® 2CH digital audio to two-channel XLR analog audio

  • Balanced/unbalanced analog audio output

  • Dante® audio sampling rate supports 44.1/48/88.2/96KHz@24bit

  • Analog audio output supports 5-level sensitivity adjustment (+18dBu, +4dBu, 0dBu, 0dBv, -10dBv)

  • Dante® audio delay supports 1/2/5ms (configurable)

  • Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)

  • Compact design for easy and flexible installation

Downloads

VLDT-DT2XL DATA SHEET (PDF)
VLDT-DT2XL USER MANUAL (PDF)

Specifications

Technical
Input     Dante® 2CH digital audio
Output     Two-channel balanced/unbalanced XLR analog audio
Control Method     Dante® Controller
Network Bandwidth     100M
Audio Latency     Configurable Dante® device latency

(Supports 1, 2 or 5ms configurable using Dante® Controller)
Audio Formats     DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit]

XLR OUT [Analog audio output, Balanced/unbalanced 2CH, Max input level +24dBu]
Audio XLR Analog Audio Out
    Output Impedance: 600 Ohm balanced

                                  300 Ohm unbalanced

Line Input Level (Maximum): +18dBu (6.15Vrms) @balanced audio

                                                    +12dBu (3.08Vrms) @unbalanced audio

Frequency Response: 20Hz to 20kHz (-/+0.5dB)

Dynamic Range: >100dB@0dBu, 1kHzA-weighted

Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted

Audio THD+N: < 0.01% at +4dBu, 1KHz

Audio Output Sync Delay: <10ms
Transmission Distance     328ft/100m (CAT6/6A/7)
ESD Protection     IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input ports         1x DANTE [RJ45 connector, PoE]

1x POWER [USB-C with USB power only, 12-pin female]
Output ports     2x CH1/CH2 XLR OUT [XLR male plug, with 30cm cable]
Others     1x RESET button [System reboot button]

2x GAIN knob [5-level dip switch]
Mechanical
Housing     Plastic Enclosure
Color     Black
Dimensions     115mm [L] × 40mm [W] × 28mm [H]
Weight     173g
Power Supply     USB input: 5V/500mA

PoE input: PoE IEEE802.3af Class 0
Power Consumption     1.25W (Max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -4 ~ 140°F / -20 ~ 60°C
Operating Humidity     20 - 80% RH (relative humidity, non-condensing)
Storage Humidity     10% ~ 90% RH (relative humidity, non-condensing)
