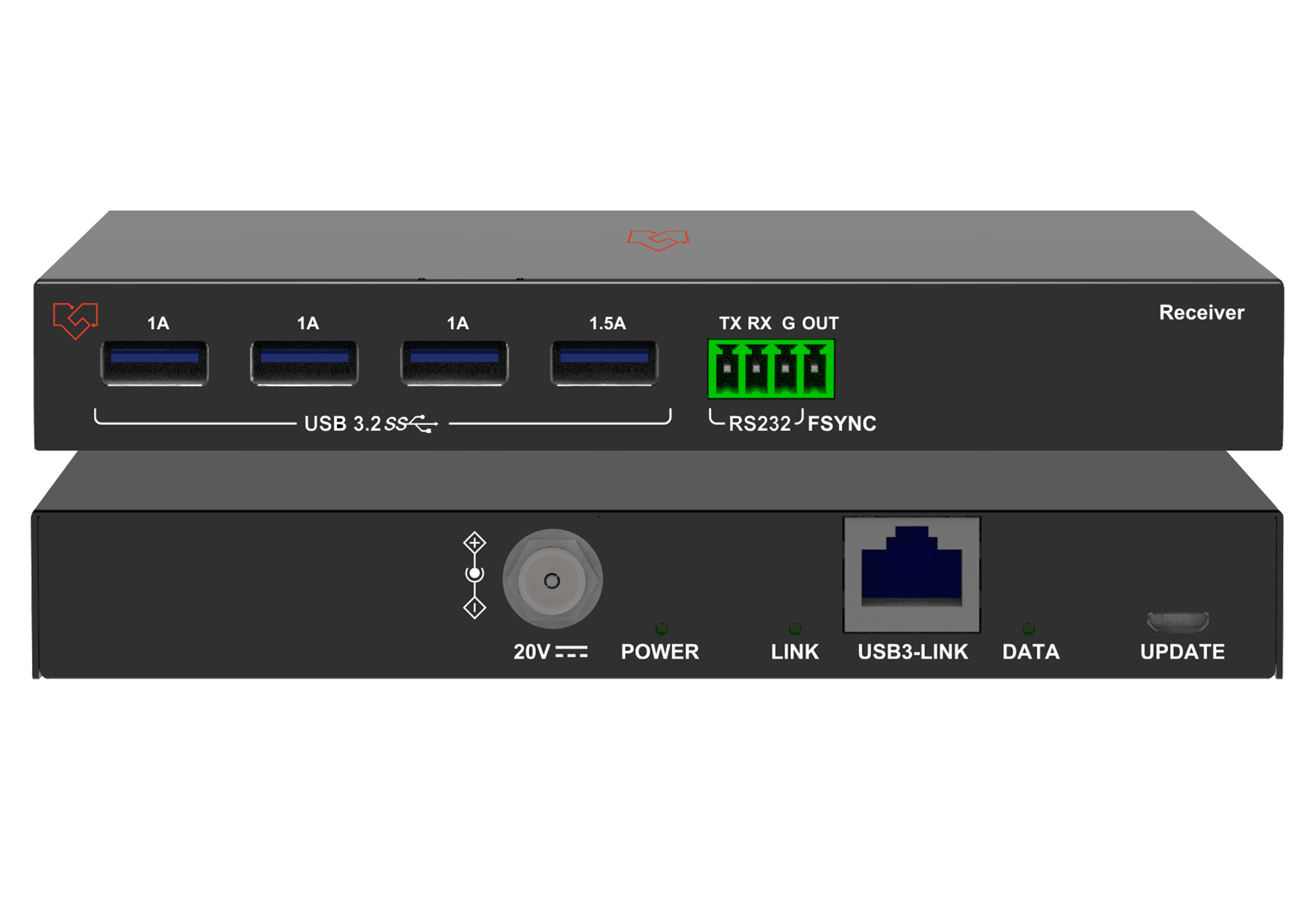

USB 3.2 Gen 1 Extender Receiver, 4-Port Hub, RS-232 & FSYNC, POH+ over CAT6A/7 to 100m

Industrial Automation & Machine Vision

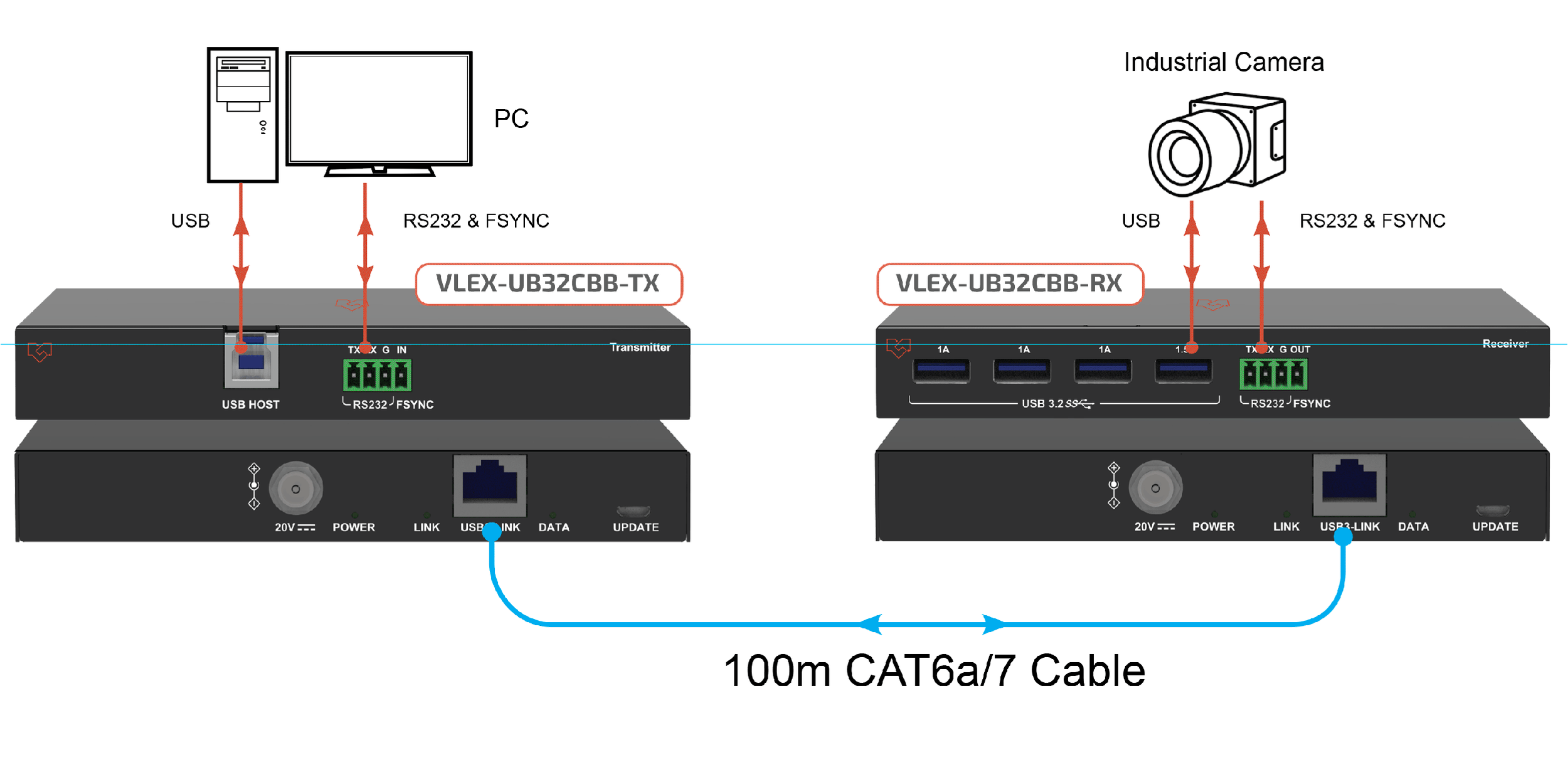

On the production line or inspection station, the VLEX-UB32CBB-RX provides USB 3.2 Gen 1 connectivity for machine vision cameras, barcode readers, and industrial input devices. FSYNC GPIO passthrough arrives at the receiver in sync with USB data, enabling precise camera trigger control at the point of capture without a second cable run. The hardware-only architecture avoids driver conflicts in controlled industrial OS environments, and the slim enclosure mounts to machine frames, DIN rails, or panel cutouts.

Outdoor Surveillance & Security

In remote enclosures, rooftop housings, or guard post installations where AC power is unavailable, the VLEX-UB32CBB-RX draws power from the VLEX-UB32CBB-TX over the Cat cable via two-way PoH+ — no local AC supply needed. The four USB ports accommodate cameras, access control readers, intercoms, and other USB security devices simultaneously. ESD protection rated at ±8kV air-gap and ±4kV contact discharge provides resilience against electrical transients common in outdoor cable runs.

Medical Imaging & Clinical Environments

At the point-of-care workstation, diagnostic suite, or imaging cart, the VLEX-UB32CBB-RX provides USB 3.2 Gen 1 device connectivity without requiring a host computer at the clinical location. Keyboard, input device, imaging peripheral, and storage can all connect simultaneously across the four USB ports, with the 1.5A high-power port handling high-draw diagnostic accessories. Plug-and-play operation means clinical staff can connect and disconnect devices without IT involvement, and the slim profile allows clean installation inside casework or on cart mounting rails.

Corporate AV & Conference Rooms

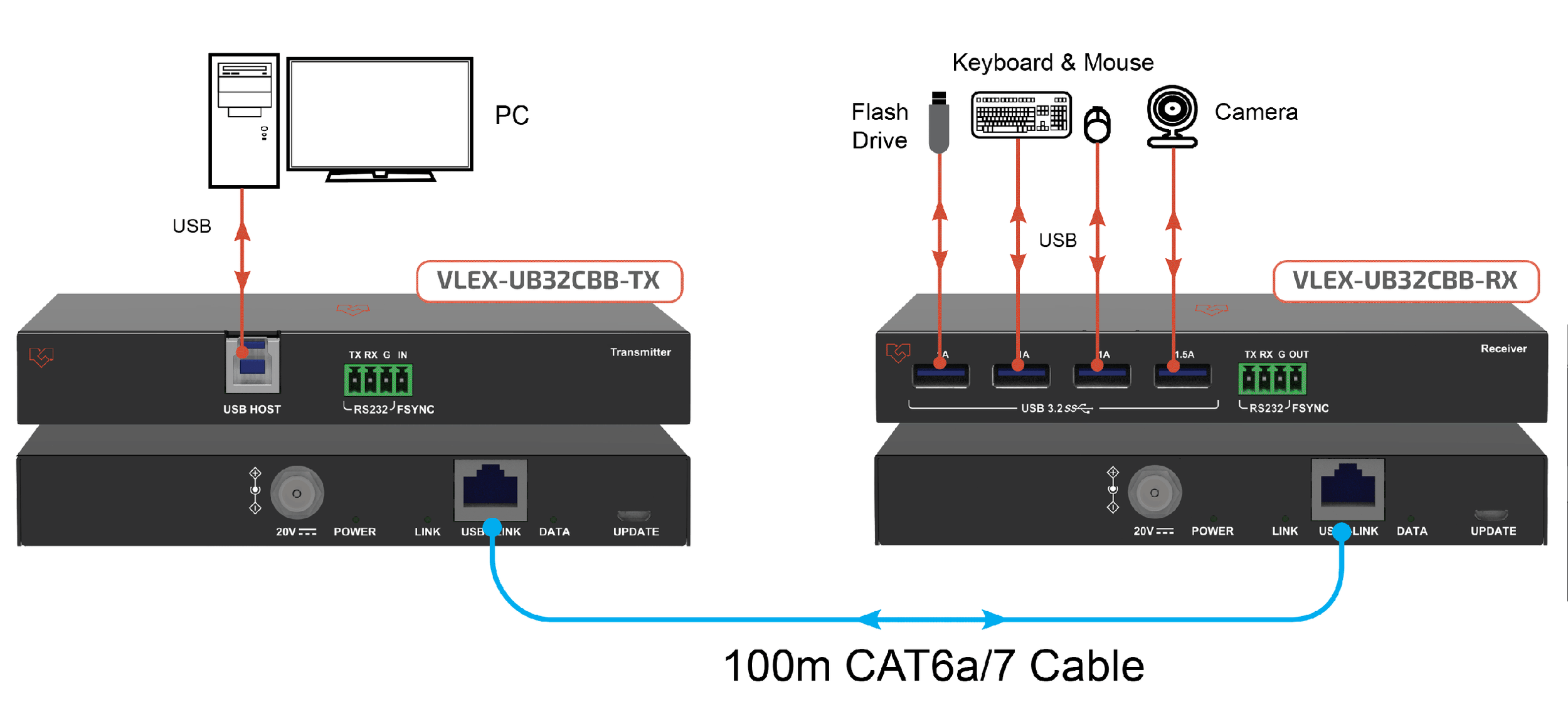

The VLEX-UB32CBB-RX mounts at the conference table, ceiling, or display location — wherever USB peripherals need to connect. Its four USB ports accommodate a speakerphone, webcam, room control touchscreen, and USB input device simultaneously, while the 1.5A high-power port handles any peripherals that require extra current. Since the unit occupies only one USB hub tier, system designers can add a downstream hub without bumping against USB topology limits. Two-way PoH+ means no power outlet is required at the table or ceiling — the VLEX-UB32CBB-TX in the rack supplies power across the Cat cable.

Broadcast & Production Facilities

At the camera position, studio floor, or remote production station, the VLEX-UB32CBB-RX terminates the Cat run from the production desk and presents USB ports for capture devices, control surfaces, and storage. RS-232 and FSYNC GPIO signals arrive transparently at the RX, so camera operators can connect PTZ controllers and frame sync equipment directly to the standard 3.5mm Phoenix connector without running a separate RS-232 cable from the control room. The 1.5A high-power port supports USB-powered broadcast accessories that exceed standard port current limits.
