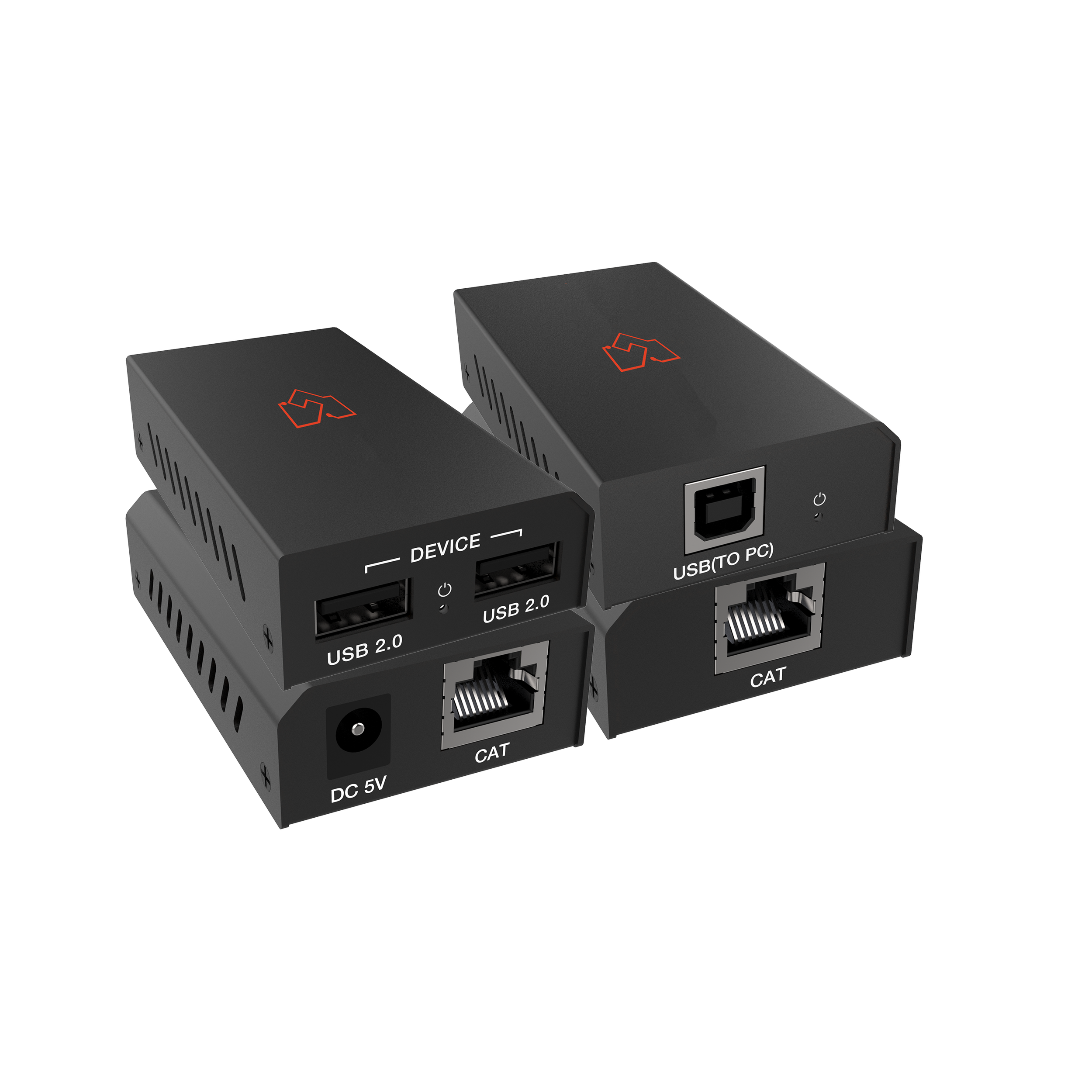

USB 2.0 Extender 50m 480Mbps over Cat5/5e/6

VLEX-U2CT050-TR

  • Extends USB 2.0 signals up to 50m over a single Cat5/5e/6 cable at up to 480Mbps

  • One USB-B host port on the transmitter, two USB 2.0 device ports on the receiver

  • True plug-and-play with no drivers or configuration required

  • Receiver powered by an included 5V/1A supply for stable performance across the full run

Where to Buy
Six Year Warranty logo

Product Description

The VigilLink VLEX-U2CT050-TR is a compact USB 2.0 extender designed to transmit USB signals up to 164 feet (50 meters) over a single CAT5/5e/6 cable. For certain USB 2.0 hubs, transmission distances may vary up to 131 feet (40 meters), depending on power requirements and connected devices.

The transmitter connects to your PC via a USB-B port, while the receiver offers two USB 2.0 ports for peripherals such as flash drives, printers, or other USB-based devices. A 5V/1A power supply connected to the receiver ensures stable and reliable performance across the entire transmission distance.

With true plug-and-play functionality, the VLEX-U2CT050-TR offers a simple and cost-effective solution for extending USB connectivity in offices, classrooms, kiosks, and commercial AV systems—no drivers or setup are required.

Key Features

  • Supports USB 2.0 protocol, transmission rate up to 480Mbps

  • Extends USB signals up to 50m/164ft via Cat5/5e/6 cable (up to 40m/131ft with some USB 2.0 hubs)

  • One USB-B host input port on the transmitter

  • Two USB 2.0 output ports on the receiver

  • Transmitter powered by the connected USB-B host device; receiver powered by a DC 5V/1A supply

  • Simple plug-and-play, no drivers or configuration required

  • Compact design for easy and flexible installation

  • Each additional hub level between host and device shortens the CAT cable transmission distance by about 12m/39ft

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
USB Protocol     USB 2.0
Transmission Rate     Up to 480Mbps
Transmission Distance     50m/164ft (Note: The transmission distance can only up to

40m/131ft for some USB 2.0 Hub)
ESD Protection     Human body model:
— ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter Inputs:     1×USB [USB-B, female]

Outputs:     1×CAT [RJ45, female]
Receiver     Inputs:     1×CAT [RJ45, female]

Outputs:  2×USB [USB-A, female]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     Transmitter / Receiver: 82mm (W)×49mm (D)×20mm (H)
Weight    Transmitter / Receiver: 100g
Power Supply    Input: AC100~240V 50/60Hz

Output: DC 5V/1A
Power Consumption     Transmitter: 0.7W, Receiver: 1W
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (non-condensing)
