1x8 HDMI 2.0 Splitter with Integrated HDBaseT Extender, 150m, 8 Receivers Included
VLSP-18HT150
1x8 HDMI 2.0 distribution amplifier with integrated HDBaseT extension, feeding one HDMI loop output plus eight HDBaseT outputs, with eight receivers included
Extends 4K@60Hz 4:4:4 up to 394ft (120m), or 1080p@60Hz up to 492ft (150m), over a single Cat6/6a/7 cable
Digital (coax) and analog (L/R) audio de-embedding, with HDR10, HDR10+, HLG, and Dolby Vision support, at 18Gbps
One-way PoC (transmitter to receiver), IR and RS-232 routed to the HDBaseT outputs, and DIP-switch EDID management
Product Description
The VLSP-18HT150 is a high-performance 1x8 HDMI HDBaseT splitter designed to distribute a single 4K HDMI source to up to eight remote displays with exceptional clarity and distance. Supporting video resolutions up to 4K@60Hz with 4:4:4 color depth and bandwidths of up to 18Gbps, this splitter features one HDMI loop output and eight HDBaseT outputs for seamless integration into extended AV systems.
Using a single CAT6/6a/7 cable, the HDMI signal can be extended up to 120 meters at 4K@60Hz or up to 150 meters at 1080p@60Hz—ideal for large-scale environments. The unit also features IR and RS-232 pass-through for remote control, audio extraction for external sound systems, and advanced EDID management to ensure compatibility across all connected devices.
Engineered for reliability and scalability, the VLSP-18HT150 is the ideal solution for conference rooms, digital signage, control centers, and any installation requiring robust, long-distance HDMI distribution.
Key Features
HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K2K@60Hz 4:4:4
Supports HDR, HDR10+, HLG, and Dolby Vision
Up to 7.1CH HD audio pass-through
Digital and analog audio de-embedded output
Extends transmission up to 120m at 4K2K@60Hz, or 150m at 1080p@60Hz, via a single Cat6/6a/7 cable
1 HDMI input, 1 HDMI loop output, and 8 HDBaseT outputs
IR and RS-232 routed to the HDBaseT outputs
Advanced EDID management
One-way PoC (only from transmitter to receiver)
Compact design for easy, flexible installation
Downloads
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Up to 4k2k@60Hz 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR | Support HDR, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Coaxial Audio Formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| Analog Audio Formats | PCM 2.0CH |
| ESD Protection | Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Connection | |
| Input | 1× HDMI Type A [19-pin female] |

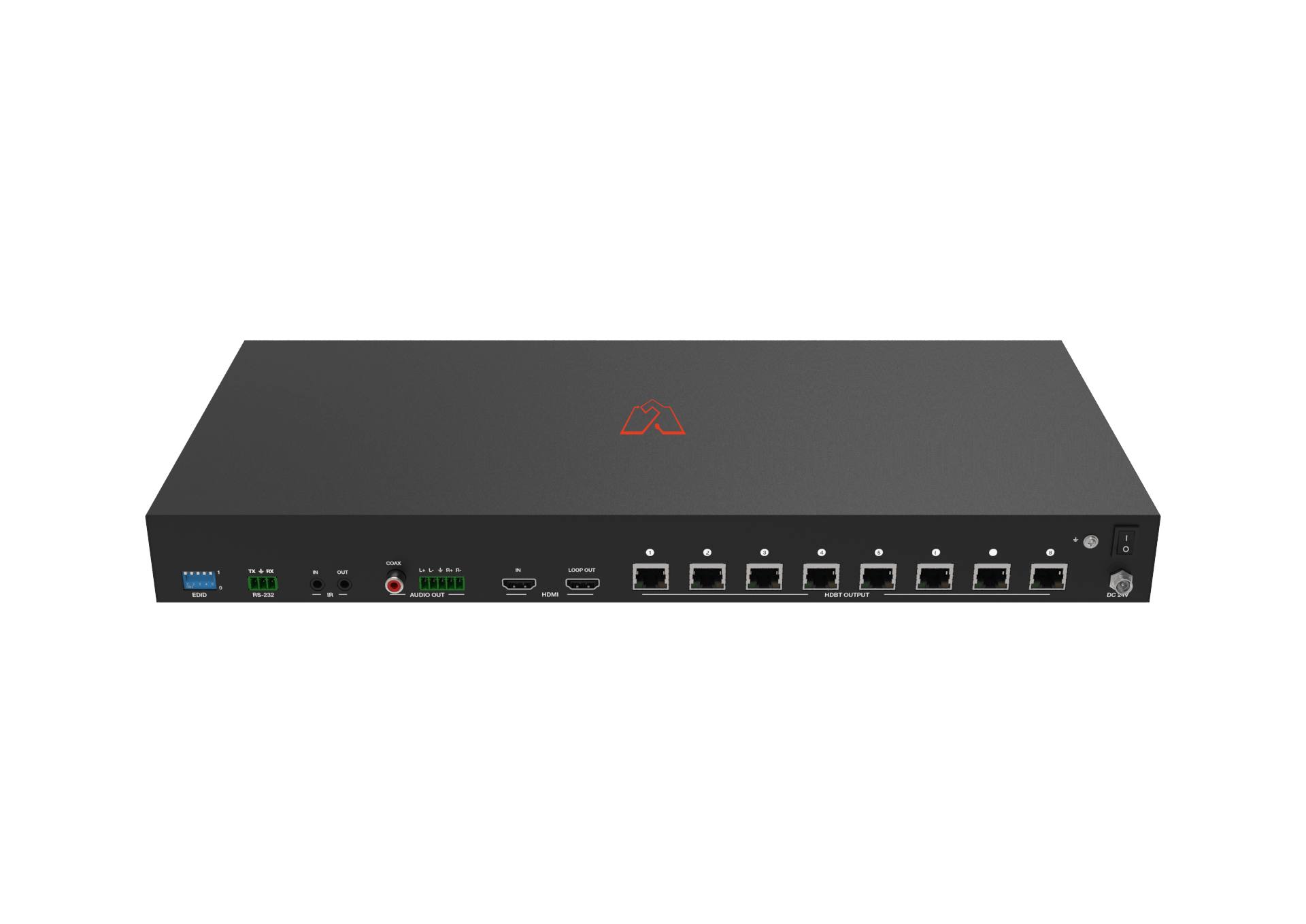

| Output | 1× HDMI Type A (19-pin female） 8x HDBaseT OUT [RJ45] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector] |
| Control | 1× RS-232 (3-pin phoenix connector） 1x EDID DIP switch [5-pin] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | Transmitter: 220mm (W) × 130mm (D) × 40mm (H) Receiver: 140mm (W) × 65mm (D) × 18mm (H) |
| Weight | Transmitter: 1.62kg Receiver: 246g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 72W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
