Home > HDMI Distribution Amplifiers > 4K 18Gbps HDMI 2.0 over HDBaseT > VLSP-14HT150

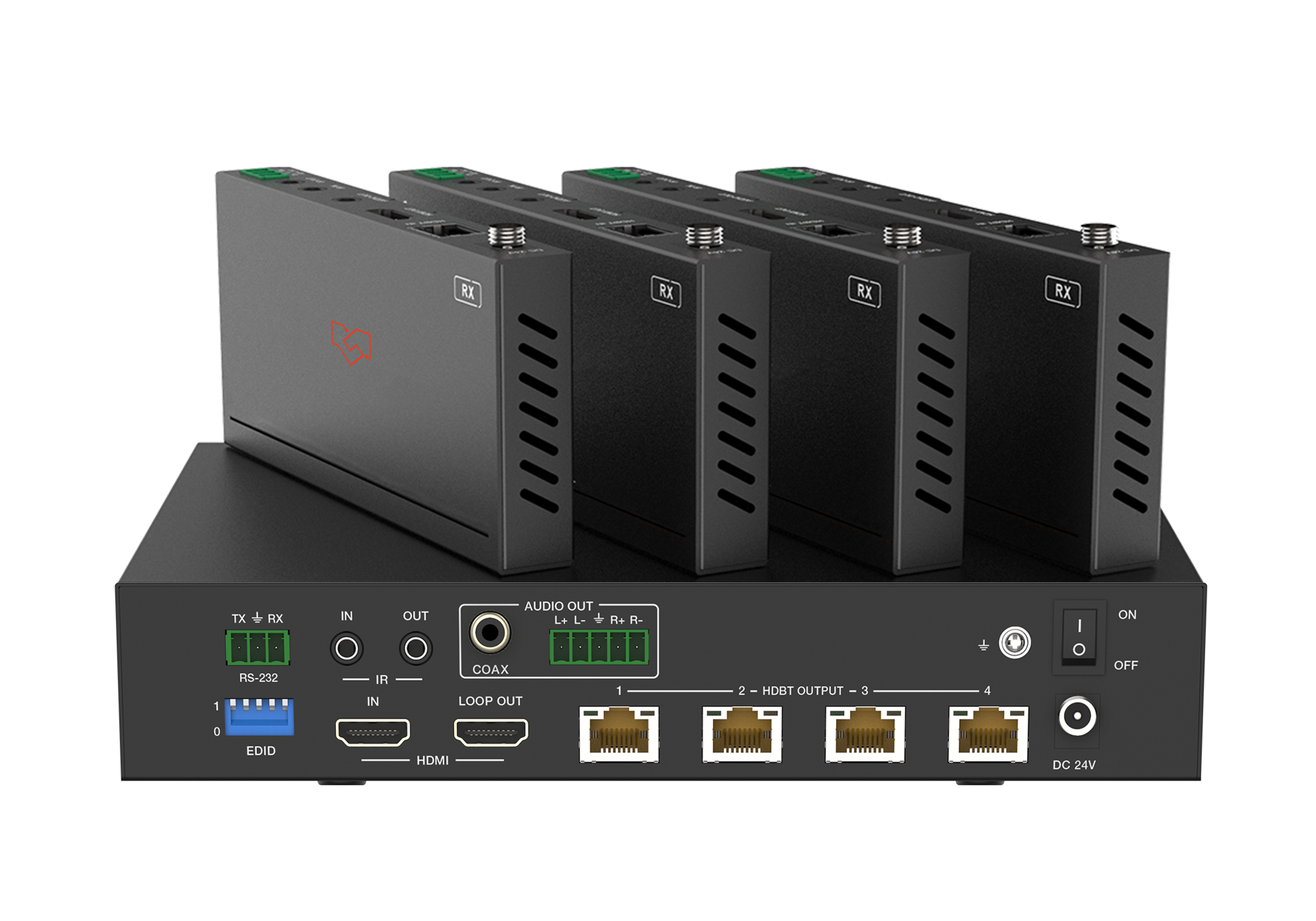

1x4 HDMI 2.0 Splitter with Integrated HDBaseT Extender, 150m, 4 Receivers Included
VLSP-14HT150
1x4 HDMI 2.0 distribution amplifier with integrated HDBaseT extension, feeding one HDMI loop output plus four HDBaseT outputs, with four receivers included
Extends 4K@60Hz 4:4:4 up to 394ft (120m), or 1080p@60Hz up to 492ft (150m), over a single Cat6/6a/7 cable
Digital (coax) and analog (L/R) audio de-embedding, with HDR10, HDR10+, HLG, and Dolby Vision support, at 18Gbps
One-way PoC (transmitter to receiver), IR and RS-232 routed to the HDBaseT outputs, and DIP-switch EDID management
Product Description
The VLSP-14HT150 is a 1x4 HDMI HDBaseT splitter engineered to distribute a single HDMI source to four remote displays with high-performance reliability. Supporting resolutions up to 4K@60Hz 4:4:4 and bandwidths up to 18Gbps, it features one HDMI loop output and four HDBaseT outputs for flexible system design.
Utilizing a single CAT6/6a/7 cable, HDMI signals can be extended up to 120 meters at 4K@60Hz or 150 meters at 1080p@60Hz, making it an ideal solution for large venues, classrooms, conference rooms, and digital signage applications. The unit also supports IR and RS-232 signal pass-through for remote control, audio extraction for external sound systems, and advanced EDID management for optimized display compatibility.
Compact, reliable, and easy to deploy, the VLSP-14HT150 ensures seamless long-distance HDMI distribution with professional-grade performance.
Key Features
HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K2K@60Hz 4:4:4
Supports HDR, HDR10+, HLG, and Dolby Vision
Up to 7.1CH HD audio pass-through
Digital and analog audio de-embedded output
Extends transmission up to 120m at 4K2K@60Hz, or 150m at 1080p@60Hz, via a single Cat6/6a/7 cable
1 HDMI input, 1 HDMI loop output, and 4 HDBaseT outputs
IR and RS-232 routed to the HDBaseT outputs
Advanced EDID management
One-way PoC (only from transmitter to receiver)
Compact design for easy, flexible installation
Downloads
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Up to 4k2k@60Hz 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR | Support HDR, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Coaxial Audio Formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| Analog Audio Formats | PCM 2.0CH |
| ESD Protection | Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Connection | |
| Input | 1×HDMI Type A [19-pin female] |
| Output | 1×HDMI Type A (19-pin female） 4x HDBaseT OUT [RJ45] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector] |
| Control | 1×RS-232 (3-pin phoenix connector） 1x EDID DIP switch [5-pin] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | Transmitter: 220mm (W) × 130mm (D) × 40mm (H) Receiver: 140mm (W) × 65mm (D) × 18mm (H) |
| Weight | Transmitter: 853g Receiver: 246g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 35W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
More Product Information
Related Products
-
![VLSP-18HT150]()

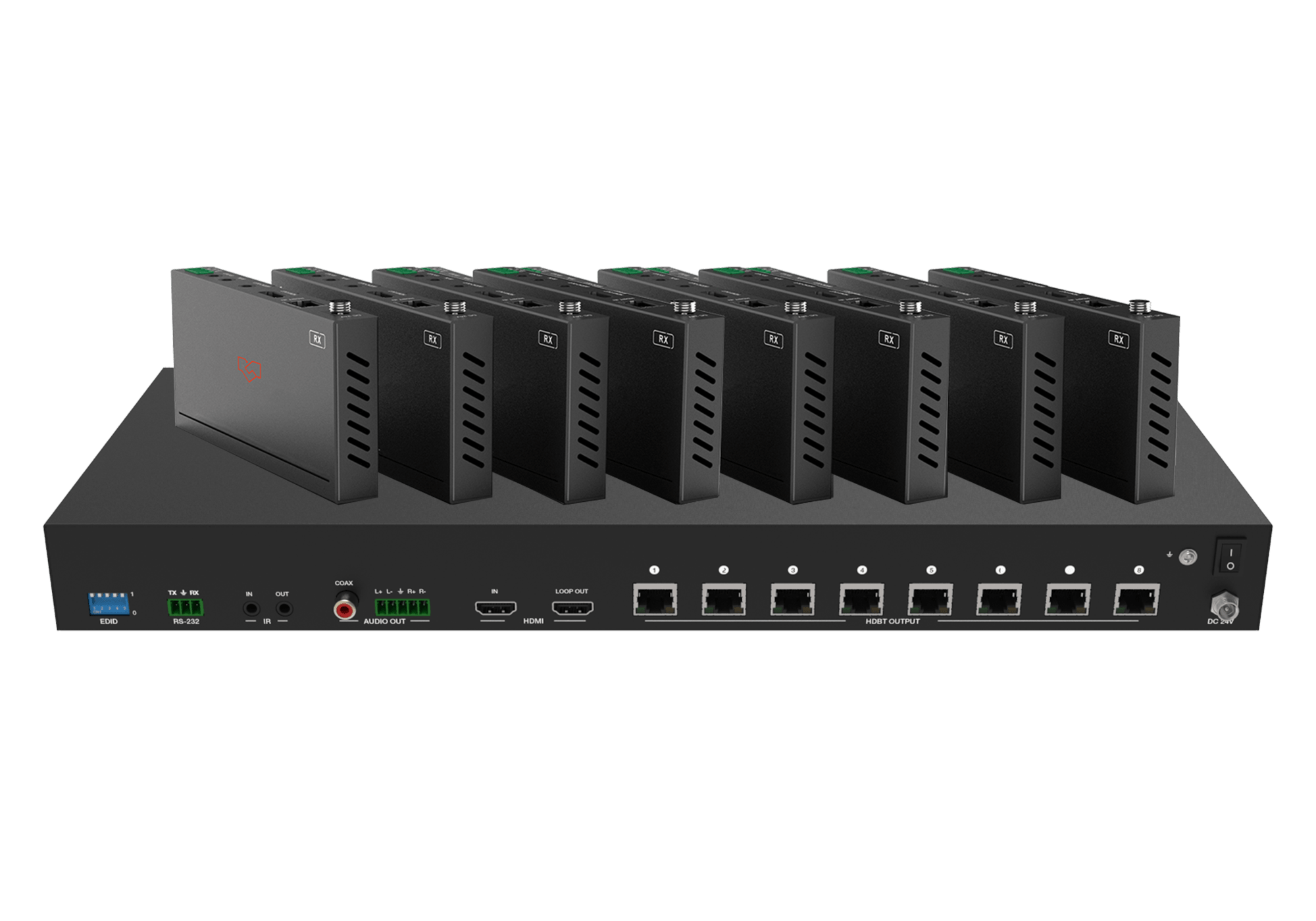

1×8 HDMI 2.0 Splitter with Integrated HDBaseT Extender, 150m, 8 Receivers Included
-
![VLSP-14HT150]()
1×4 HDMI 2.0 Splitter with Integrated HDBaseT Extender, 150m, 4 Receivers Included
-
![VLSP-12HT150]()

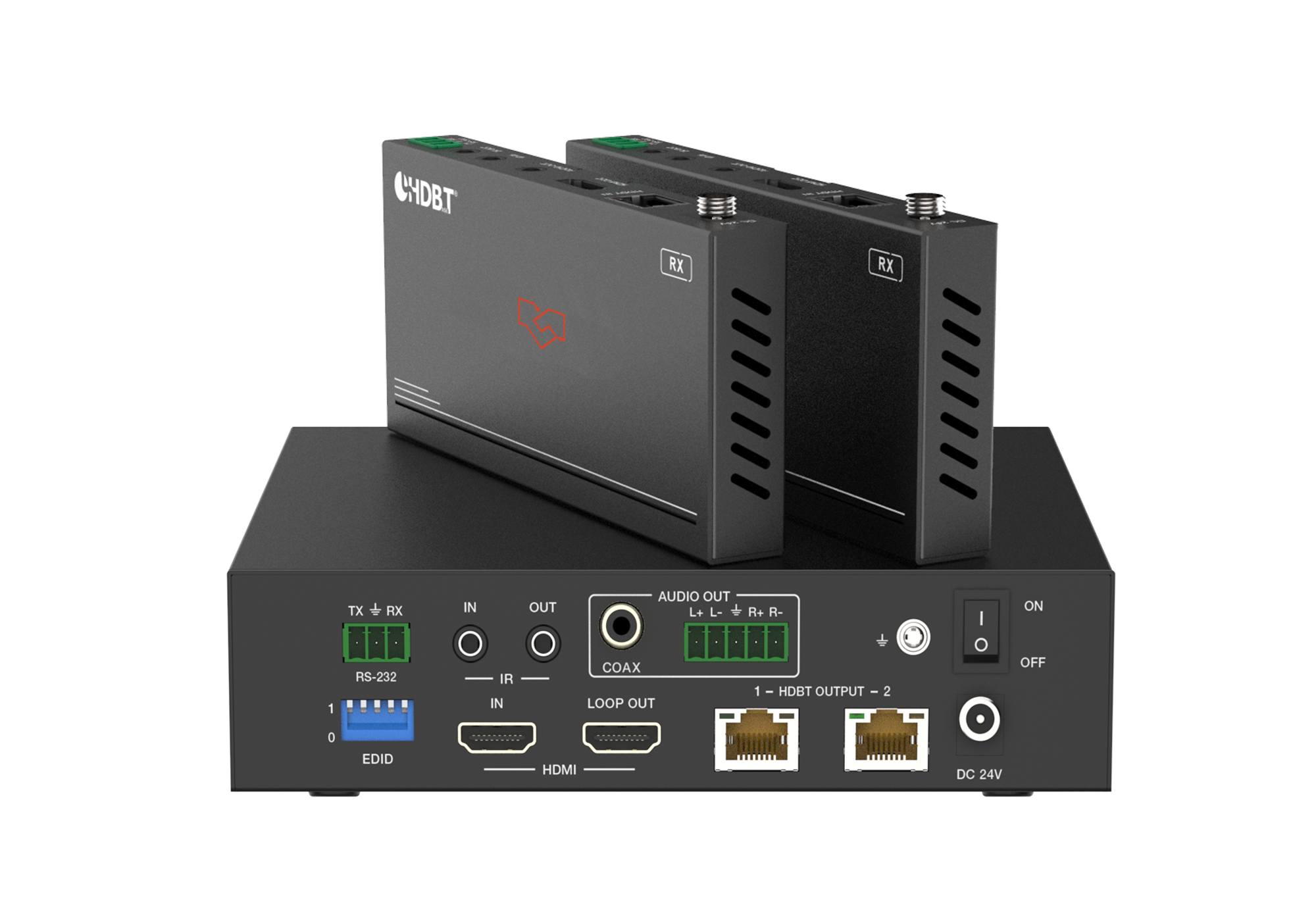

1x2 HDMI 2.0 Splitter with Integrated HDBaseT Extender, 150m, 2 Receivers Included
