1x2 HDMI 2.0 Distribution Amplifier with Integrated HDBaseT Extender, up to 150m, 2 Receivers Included

VLSP-12HT150

  • 1x2 HDMI 2.0 distribution amplifier with integrated HDBaseT extension, feeding one HDMI loop output plus two HDBaseT outputs to remote displays

  • Extends 4K@60Hz 4:4:4 up to 394ft (120m), or 1080p@60Hz up to 492ft (150m), over a single Cat6/6a/7 cable

  • Digital (coax) and analog (L/R) audio de-embedding, with HDR10, HDR10+, HLG, and Dolby Vision support, at 18Gbps

  • One-way PoC (transmitter to receiver), IR and RS-232 routed to the HDBaseT outputs, and DIP-switch EDID management

Where to Buy
Six Year Warranty logo

Product Description

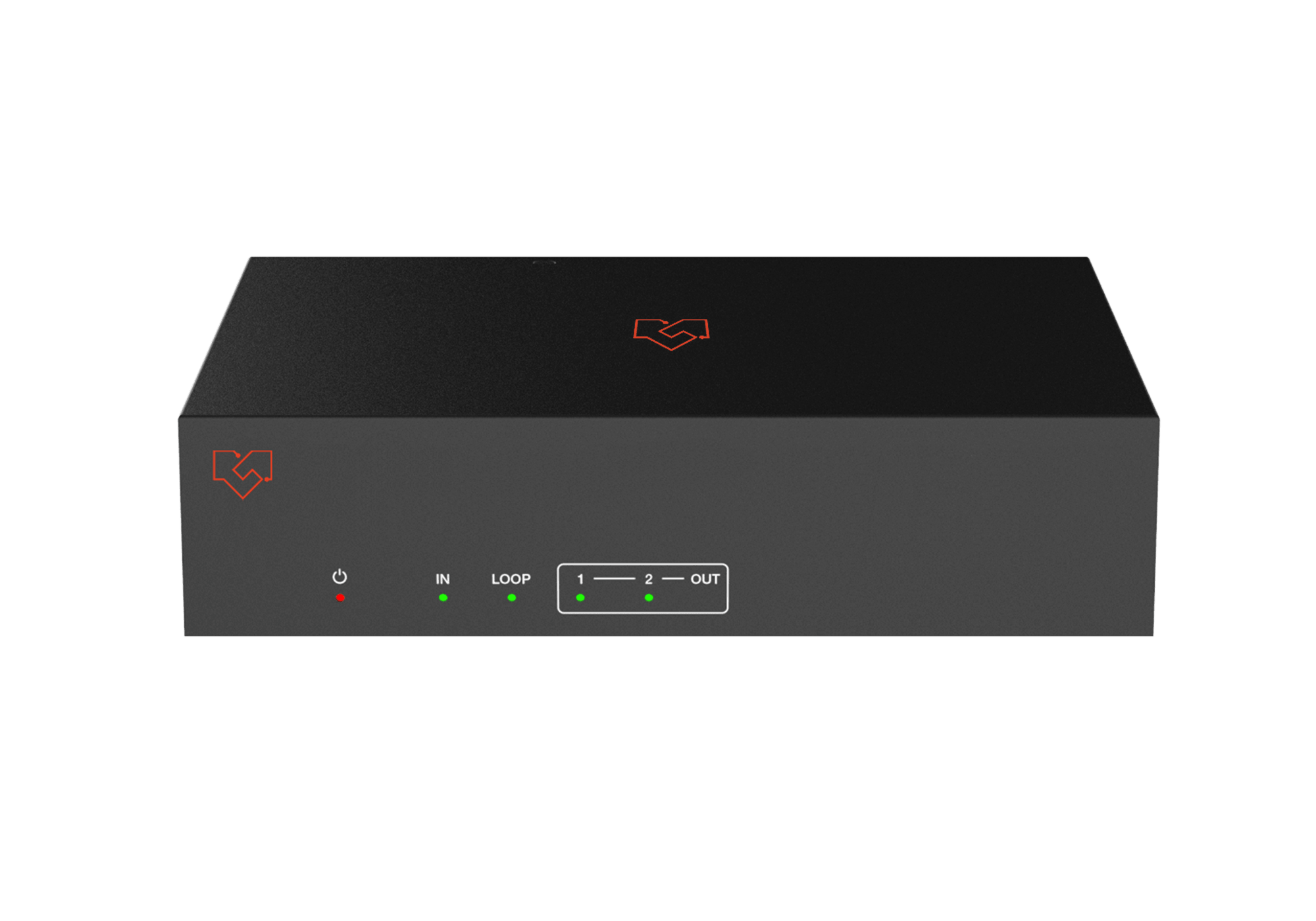

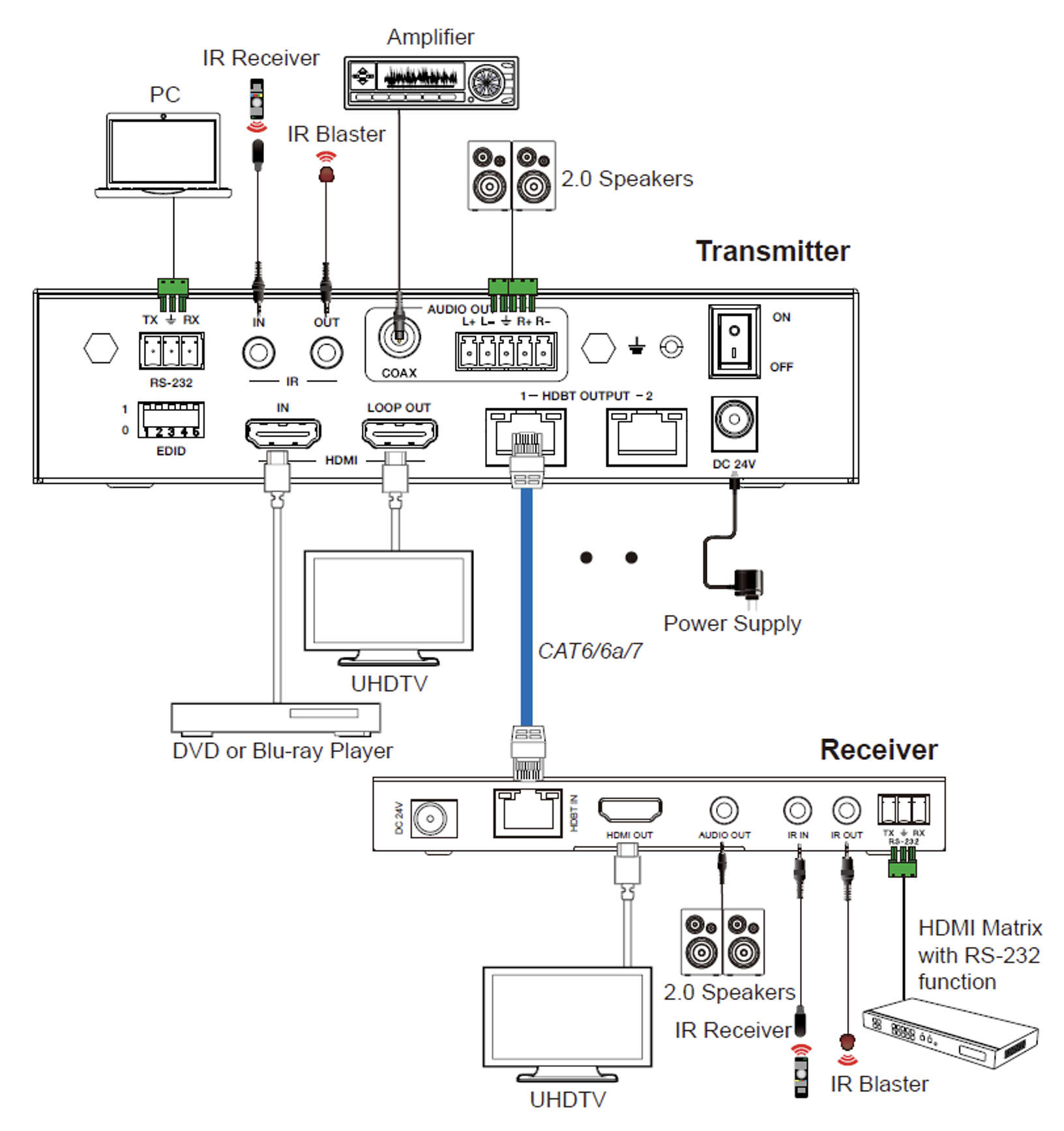

The VLSP-12HT150 is an 18Gbps 1x2 HDMI HDBaseT splitter that distributes a single HDMI source to two remote displays at resolutions up to 4K@60Hz 4:4:4. Designed with one HDMI loop output and two HDBaseT outputs, it gives integrators a local display feed plus two extended runs from a single unit.

Over a single CAT6/6a/7 cable, HDMI signals extend up to 394 feet (120 meters) at 4K@60Hz, or 492 feet (150 meters) at 1080p@60Hz, with two included HDBaseT receivers. The unit supports up to 7.1CH HD audio pass-through, digital (coaxial) and analog (L/R) audio de-embedding, bidirectional IR and RS-232 signal pass-through routed to the HDBaseT outputs, and advanced EDID management, along with one-way PoC that powers each receiver from the transmitter over the same cable.

Compact and reliable, the VLSP-12HT150 is an ideal solution for classrooms, meeting rooms, digital signage, and any environment requiring dual-display HDMI distribution over long distances.

Key Features

  • HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant

  • Supports 18Gbps video bandwidth

  • Supports video resolution up to 4K2K@60Hz 4:4:4

  • Supports HDR, HDR10+, HLG, and Dolby Vision

  • Up to 7.1CH HD audio pass-through

  • Digital and analog audio de-embedded output

  • Extends transmission up to 394ft/120m at 4K2K@60Hz, or 492ft/150m at 1080p@60Hz, via a single CAT6/6a/7 cable

  • 1 HDMI input, 1 HDMI loop output, and 2 HDBaseT outputs

  • IR and RS-232 routed to the HDBaseT outputs

  • Advanced EDID management

  • One-way PoC (only from transmitter to receiver)

  • Compact design for easy, flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2/1.x
Video Bandwidth594MHz / 18Gbps
Video ResolutionUp to 4K2K@60Hz 4:4:4
Color Depth8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz YUV 4:4:4)
8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color SpaceRGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDRSupports HDR, HDR10+, HLG, Dolby Vision
(Note: For Dolby Vision, the local HDMI loop-out supports 4K60, but the remote HDMI output supports 1080p only.)
HDMI Audio FormatsLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS-HD Master, DTS-HD HRA, DTS:X
Coaxial Audio FormatsPCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Audio FormatsPCM 2.0CH
ESD ProtectionHuman body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

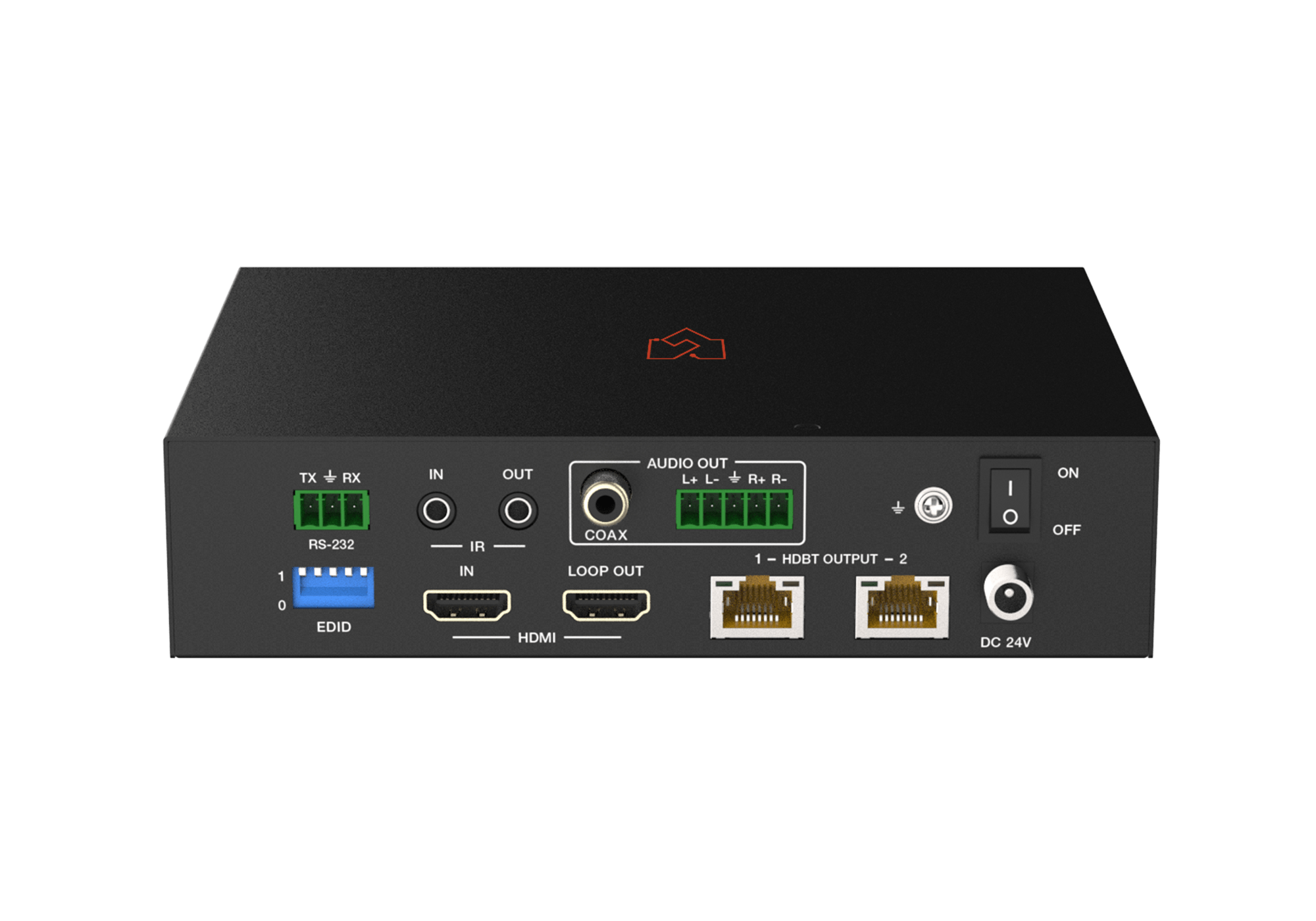

TransmitterInput:
1× HDMI IN [Type A, 19-pin female]
Output:
1× HDMI LOOP OUT [Type A, 19-pin female]
2× HDBT OUTPUT [RJ45]
1× COAX AUDIO OUT [RCA]
1× L/R AUDIO OUT [5-pin phoenix connector]
Control:
1× RS-232 [3-pin phoenix connector]
1× EDID DIP switch [5-pin]
1× IR IN [3.5mm stereo mini-jack]
1× IR OUT [3.5mm stereo mini-jack]

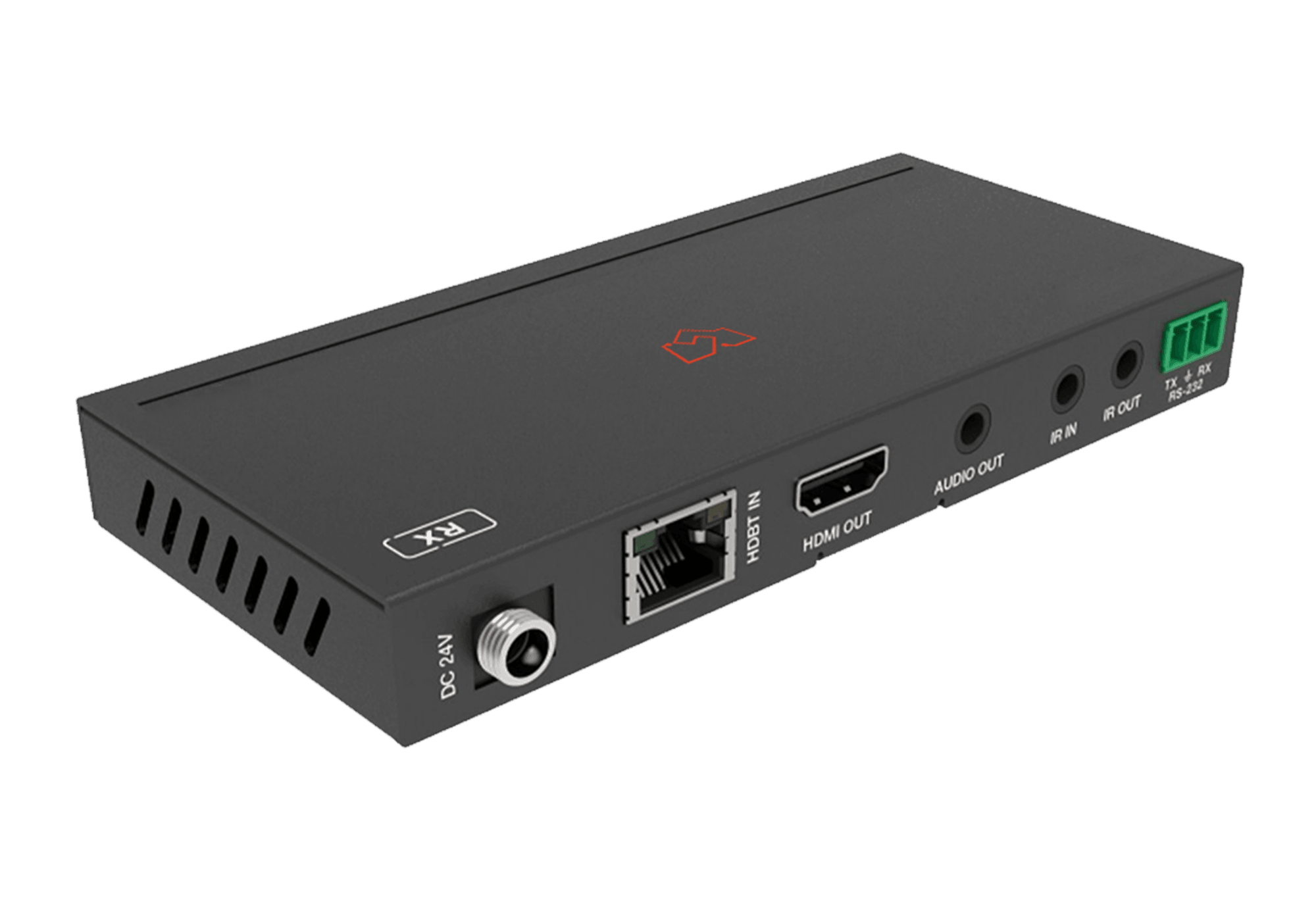

ReceiverInput:
1× HDBT IN [RJ45, 8-pin female]
Output:
1× HDMI [Type A, 19-pin female]
1× AUDIO OUT [3.5mm stereo mini-jack]
Control:
1× IR IN [3.5mm stereo mini-jack]
1× IR OUT [3.5mm stereo mini-jack]
1× RS-232 [Phoenix jack]
1× SERVICE [Mini-USB, Update port]
Mechanical
HousingMetal Enclosure
ColorBlack
DimensionsTransmitter: 170mm (W) × 130mm (D) × 40mm (H)
Receiver: 140mm (W) × 65mm (D) × 18mm (H)
WeightTransmitter: 689g / Receiver: 155g
Power SupplyInput: AC 100–240V 50/60Hz; Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption18W (Max)
Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity20~90% RH (non-condensing)
