Home > HDMI Distribution Amplifiers > 8K 48Gbps HDMI 2.1 > VLSP-18H21S

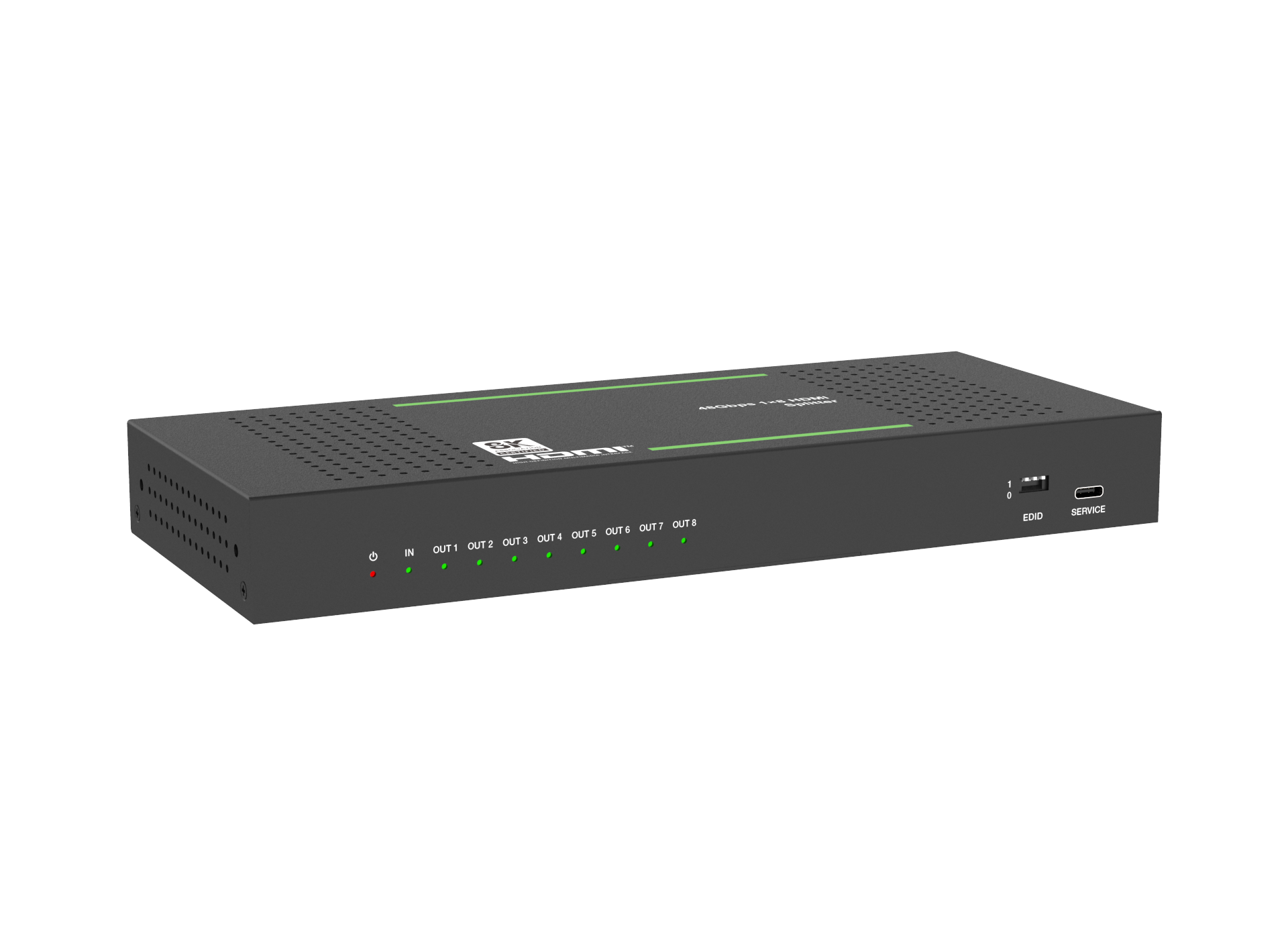

1x8 HDMI 2.1 48Gbps Distribution Amplifier
VLSP-18H21S
1x8 HDMI 2.1 distribution amplifier splitting one 8K source to eight displays simultaneously, up to 8K@60Hz (48Gbps)
Supports 8K@60 4:2:0 and 4K@120 4:4:4, with VRR, ALLM, QMS, QFT, and SBTM, ideal for Xbox Series X and PS5

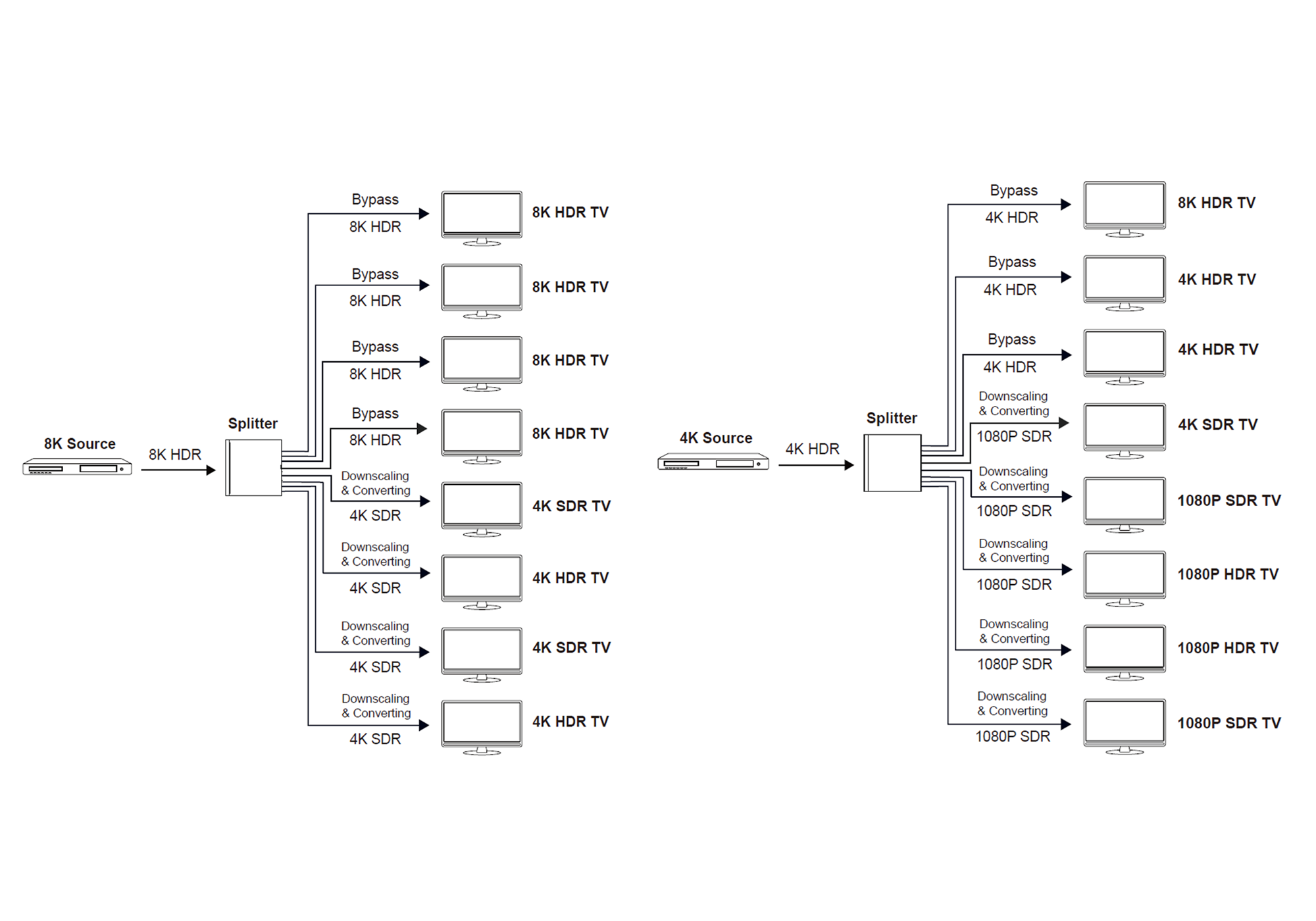

Per-output auto downscaling and automatic HDR-to-SDR conversion, so mixed 8K/4K/1080p displays each get a compatible signal
HDR10, HDR10+, Dolby Vision, and HLG pass-through, with EDID management, cable equalization, and USB-C firmware updates
Product Description
The VLSP-18H21S is a high-bandwidth 1x8 HDMI splitter engineered to distribute a single HDMI source to up to eight displays simultaneously with uncompromised quality. Supporting resolutions up to 8K@60Hz (4:2:0, 12-bit) and data rates up to 48Gbps, this splitter fully complies with HDMI 2.1 and HDCP 2.3 standards for next-generation content delivery.
Designed for seamless integration into high-performance AV systems, the VLSP-18H21S features EDID management and cable equalization capabilities to ensure optimal signal integrity across all connected displays. Its advanced architecture makes it ideal for gaming setups with Xbox Series X or PS5, delivering 4K at 120Hz to compatible TVs and monitors.
Whether for commercial display walls, esports environments, or home entertainment systems, the VLSP-18H21S provides robust performance and seamless multi-screen output in a compact, reliable design.
Key Features
HDCP 2.3 compliant
48Gbps FRL and 18Gbps TMDS video bandwidth
Resolution up to 8K@60Hz 4:2:0 and 4K@120Hz 4:4:4, per HDMI 2.1
VRR, ALLM, QMS, QFT, and SBTM supported
HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
HDMI audio: LPCM 7.1CH, Dolby TrueHD, Atmos, and DTS-HD Master Audio
Per-output automatic resolution downscaling
Per-output automatic HDR-to-SDR conversion
Advanced EDID management
Downloads
Specifications
| Technical | ||||
|---|---|---|---|---|
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit | |||
| Color Depth | 8/10/12bit | |||
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
|||
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||
| Input | 1 × HDMI IN [Type A, 19-pin female] | |||
| Output | 8 × HDMI OUT [Type A, 19-pin female] | |||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal enclosure | |||
| Color | Black | |||
| Dimensions | 250mm [W] × 104mm [D] × 30mm [H] | |||
| Weight | 743g | |||
| Power Supply | DC 12V/2.5A | |||
| Power Consumption | 12.2W (Max) | |||
| Operating Temperature | 32 - 104°F / 0 - 40°C | |||
| Storage Temperature | -4 - 140°F / -20 - 60°C | |||
| Relative Humidity | 20 - 90% RH (No condensation) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K40 | 1080P |
| HDMI Cable Length (HDMI IN / OUT) |
3m/9.8ft (Ultra HDMI 2.1) |
5m/16ft | 10m/33ft | 15m/49ft |
| The use of the “Premium High-Speed HDMI” is highly recommended. | ||||
