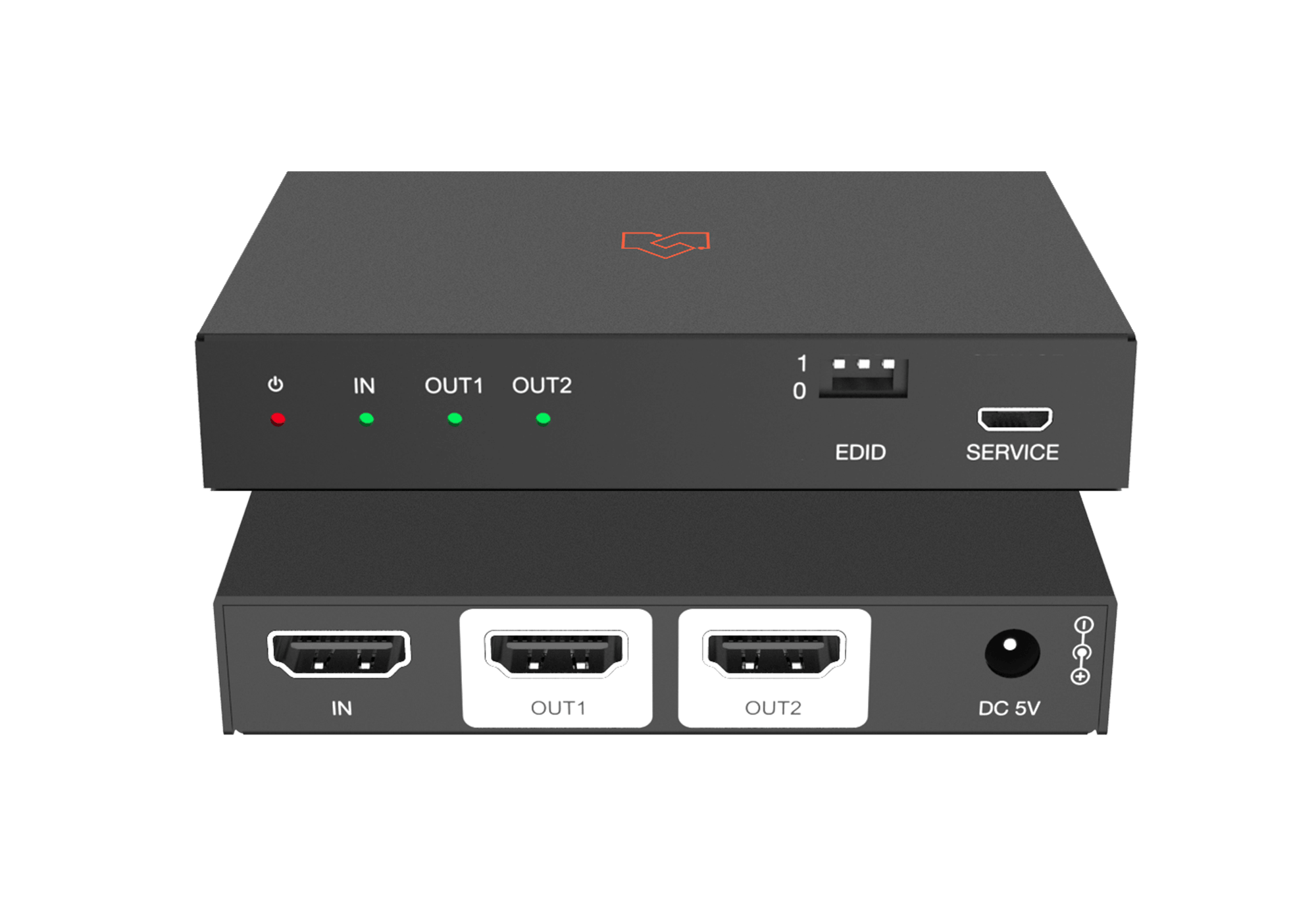

VLSP-12H21S

1x2 HDMI 2.1 distribution amplifier splitting one 8K source to two displays simultaneously, up to 8K@60Hz (48Gbps)
Supports 8K@60 4:2:0 and 4K@120 4:4:4, with VRR, ALLM, QMS, QFT, and SBTM, ideal for Xbox Series X and PS5
Per-output auto downscaling (8K-to-4K and 8K/4K-to-1080p) and automatic HDR-to-SDR conversion for mixed displays
HDR10, HDR10+, Dolby Vision, and HLG pass-through, with LPCM 7.1CH/Atmos/DTS:X, EDID management, and USB-C firmware updates

Product Description

The VLSP-12H21S is a 48Gbps 1x2 HDMI splitter designed to deliver ultra-high-definition video from a single HDMI source to two displays simultaneously. Supporting resolutions up to 8K@60Hz (4:2:0, 12-bit) and fully compliant with HDMI 2.1 and HDCP 2.3 standards, this splitter provides the bandwidth and performance required for next-generation AV systems.

Engineered for integration flexibility, it features advanced EDID management and cable equalization to ensure reliable signal quality across both outputs. Its high refresh rate support makes it ideal for gaming setups, providing smooth 4K@120Hz playback for Xbox Series X, PlayStation 5, and compatible displays.

Compact, powerful, and easy to deploy, the VLSP-12H21S is a go-to solution for premium home entertainment, high-performance gaming, and professional AV environments requiring robust dual-display distribution.

Key Features

HDMI 2.1 and HDCP 2.3 compliant
48Gbps FRL and 18Gbps TMDS video bandwidth
Resolution up to 8K@60Hz 4:2:0 and 4K@120Hz 4:4:4, per HDMI 2.1
VRR, ALLM, QMS, QFT, and SBTM supported
HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS:X audio pass-through

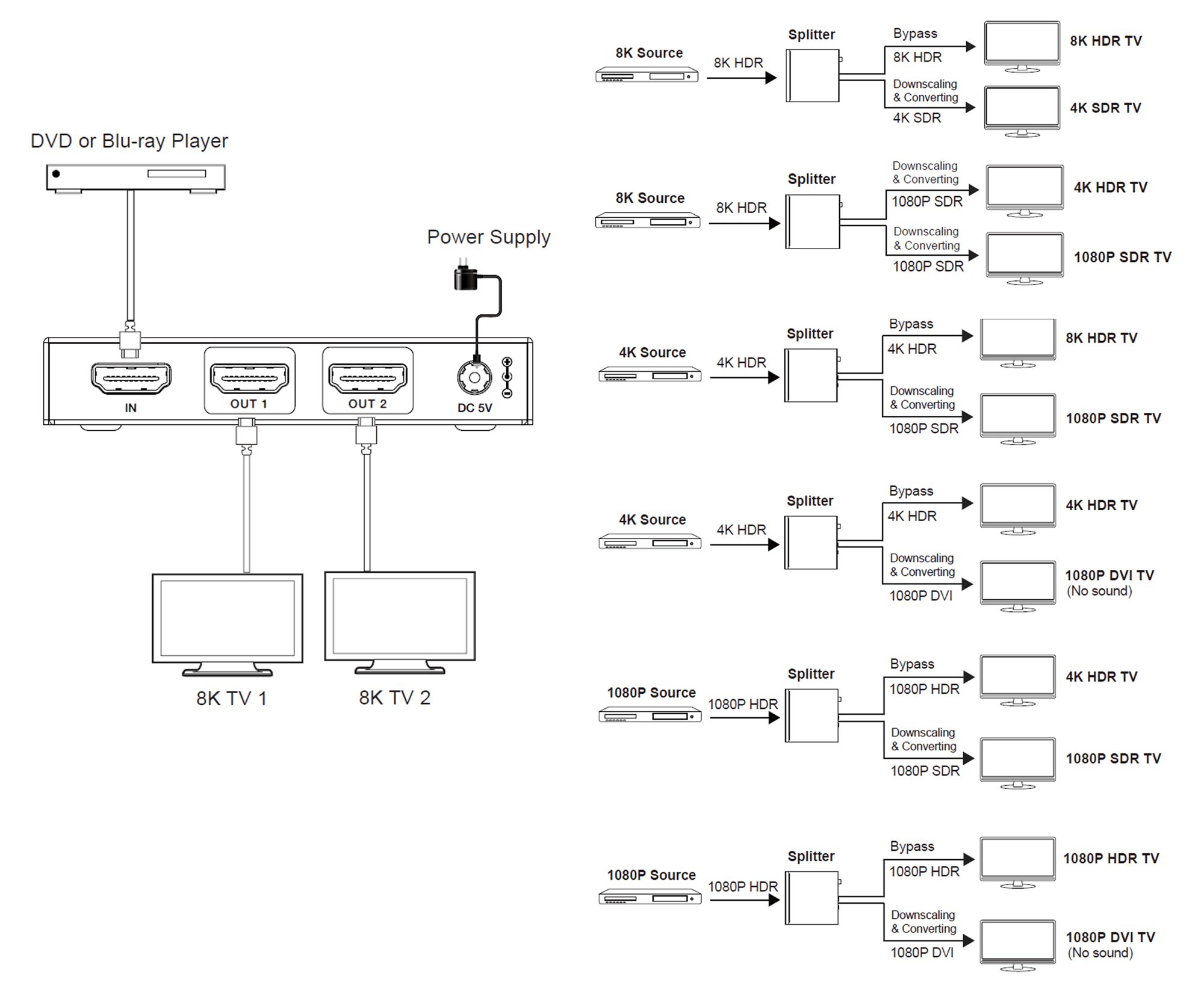

8K-to-4K and 8K/4K-to-1080p auto downscaling on all outputs
HDR-to-SDR auto conversion on all outputs

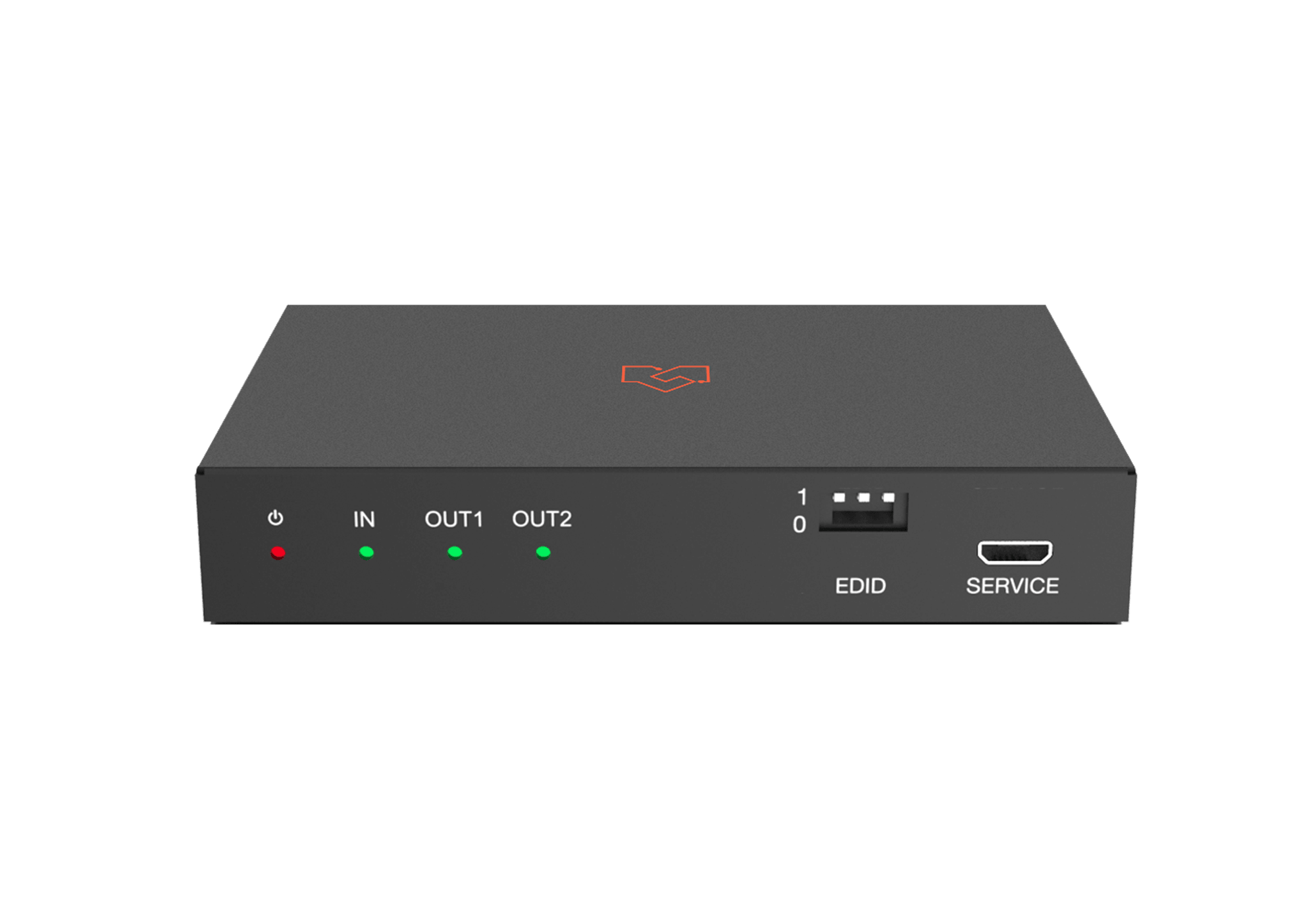

Advanced EDID management
Compact design for easy, flexible installation

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Specifications


     Technical

     HDMI Compliance
    HDMI 2.1

     HDCP Compliance
     HDCP 2.3

     Video Bandwidth
     48Gbps

     Video Resolution
     Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

     Color Depth
     8/10/12bit

     Color Space
     RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0

     HDR
     HDR, HDR10, HDR10+, Dolby Vision, HLG

     Audio Formats
     HDMI input/output:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

     ESD Protection
     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connection

     Input

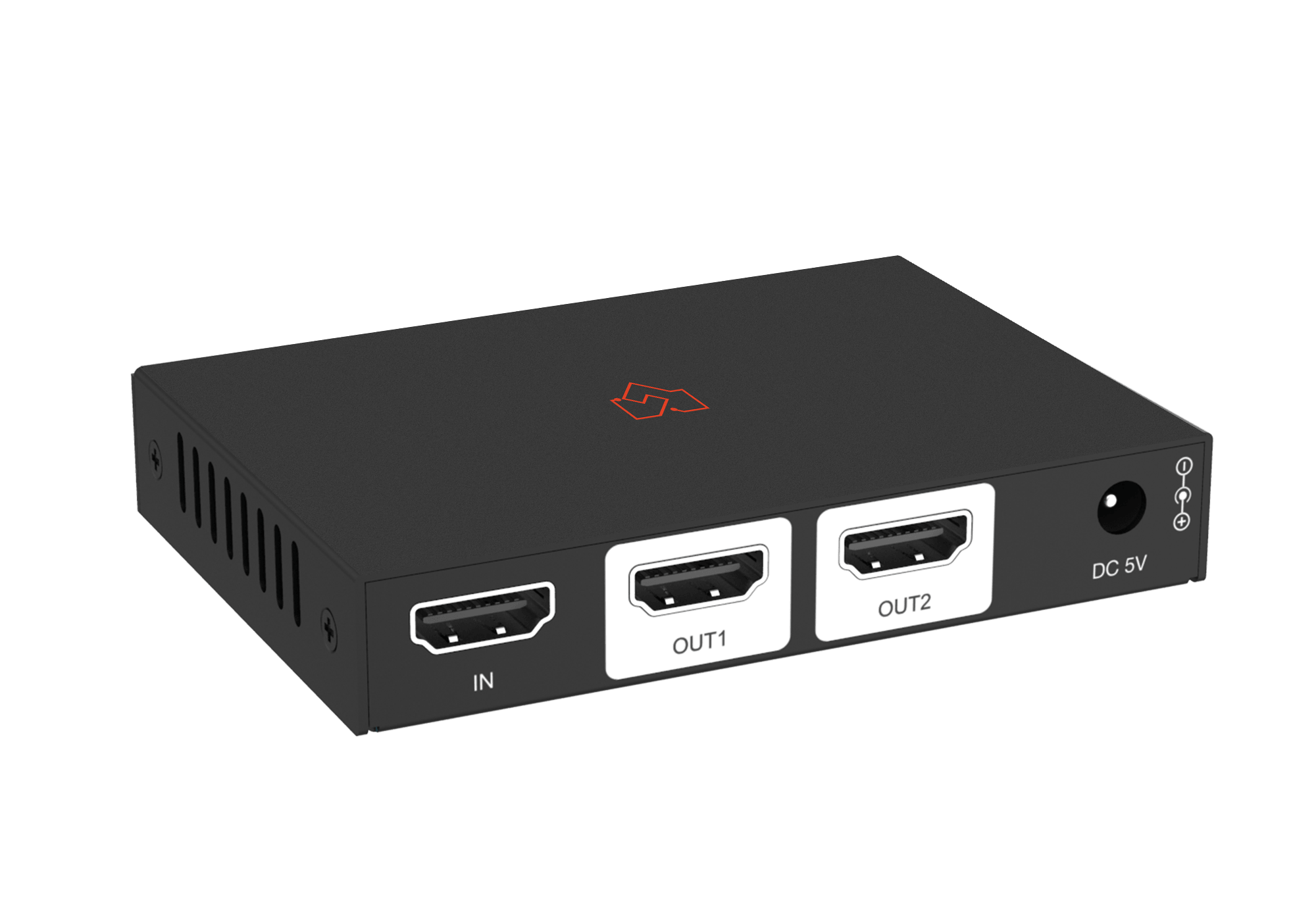

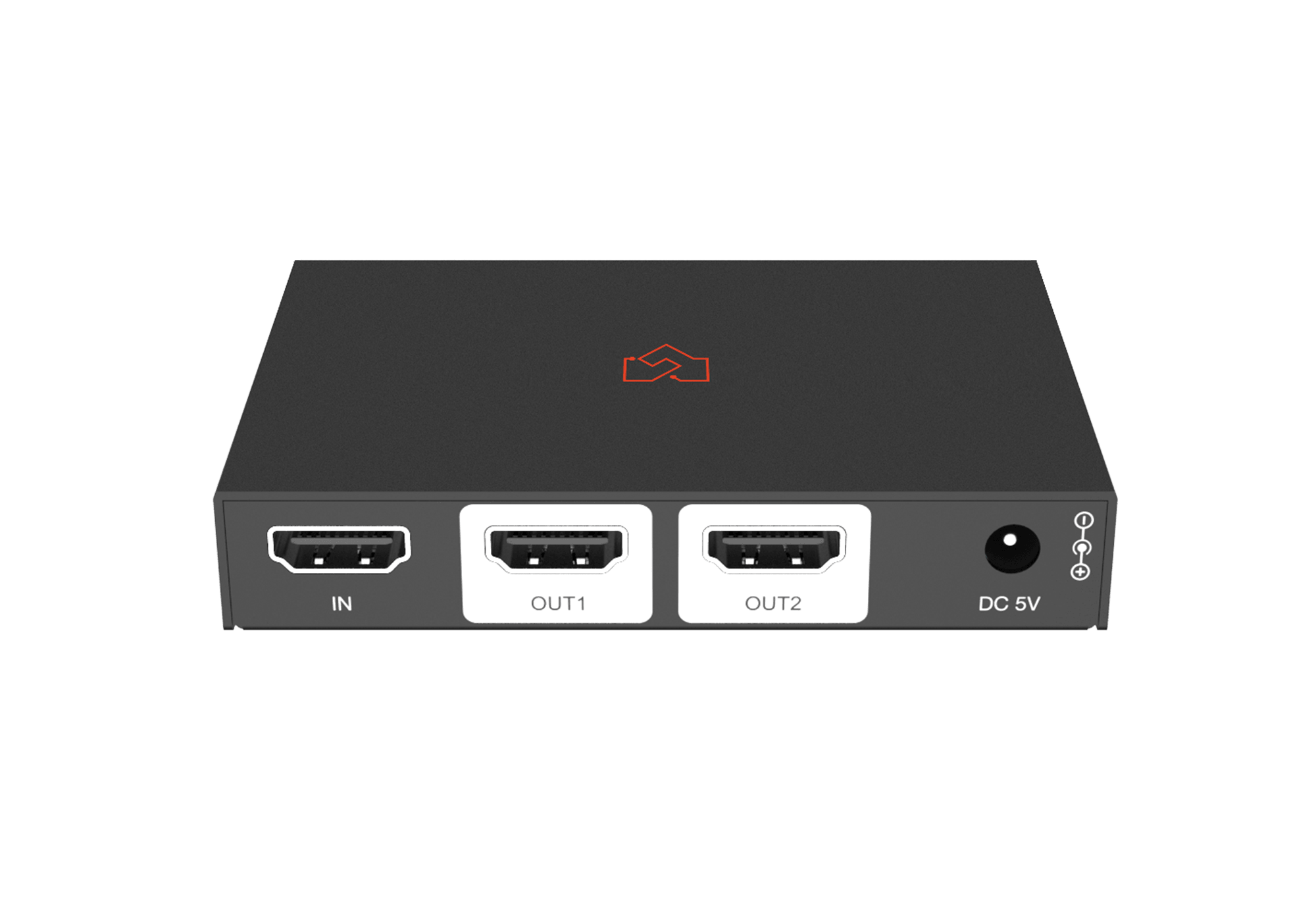

     1 × HDMI IN [Type A, 19-pin female]

     Output
     2 × HDMI OUT [Type A, 19-pin female]

     Control
     1 × SERVICE [USB Type C, Update port]

     Mechanical

     Housing
     Metal enclosure

     Color
     Black

     Dimensions
     95mm (W) × 68mm (D) × 18mm (H)

     Weight
     177g

     Power Supply
     Input: AC 100 - 240V 50/60Hz

 Output: DC 5V/2A

 (US/EU standard, CE/FCC/UL certified)

     Power Consumption
     4.3W (Max)

     Operating Temperature
     32 - 104°F / 0 - 40°C

     Storage Temperature
     -4 - 140°F / -20 - 60°C

     Relative Humidity
     20 - 90% RH (No condensation)

     Recommended HDMI Cable

     Video Resolution
     8K60
     4K60
     1080P

     HDMI Cable Type
     Ultra HDMI 2.1 cable
     HDMI 2.0 cable
     HDMI cable

     HDMI Cable Length

 (HDMI IN / OUT)
     2m/6.6ft ~ 3m/10ft
     8m/26ft
     15m/49ft

    The use of the “Premium High-Speed HDMI” is highly recommended.
