VLSP-14H21S

1x4 HDMI 2.1 distribution amplifier splitting one 8K source to four displays simultaneously, up to 8K@60Hz (48Gbps)
Supports 8K@60 4:2:0 and 4K@120 4:4:4, with VRR, ALLM, QMS, QFT, and SBTM, ideal for Xbox Series X and PS5
Per-output auto downscaling (8K-to-4K and 8K/4K-to-1080p) and automatic HDR-to-SDR conversion, so mixed displays each get a compatible signal
HDR10, HDR10+, Dolby Vision, and HLG pass-through, with LPCM 7.1CH, Dolby Atmos, and DTS:X, plus EDID management and USB-C firmware updates

Where to Buy

Product Description

The VLSP-14H21S is a 48Gbps 1x4 HDMI splitter engineered for ultra-high-definition signal distribution from a single HDMI source to four displays simultaneously. Supporting resolutions up to 8K@60Hz (4:2:0, 12-bit) and compliant with HDMI 2.1 and HDCP 2.3 standards, this compact solution delivers cutting-edge performance for next-generation AV environments.

With advanced features like per-output downscaling, HDR-to-SDR conversion, EDID management, and cable equalization, the VLSP-14H21S ensures seamless integration and optimal signal quality across all connected displays. It also supports 4K@120Hz output, making it an excellent choice for gaming applications with Xbox Series X, PlayStation 5, and high-refresh-rate displays.

Ideal for home entertainment, gaming setups, and small-scale professional AV systems, the VLSP-14H21S offers reliable, high-bandwidth performance in a plug-and-play form factor.

Key Features

HDMI 2.1 and HDCP 2.3 compliant
48Gbps FRL and 18Gbps TMDS video bandwidth
Resolution up to 8K@60Hz 4:2:0 and 4K@120Hz 4:4:4, per HDMI 2.1
VRR, ALLM, QMS, QFT, and SBTM supported
HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS:X audio pass-through

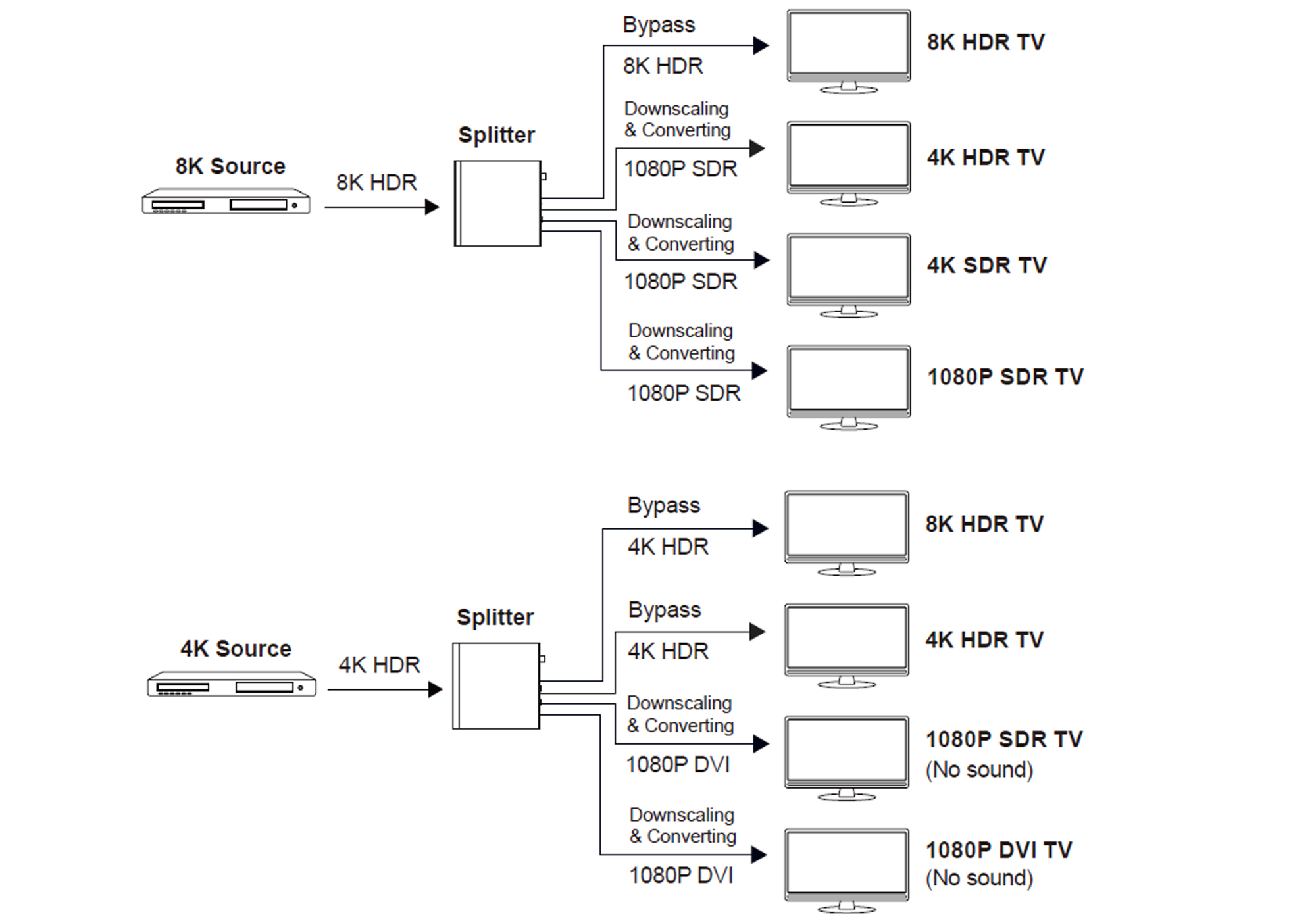

8K-to-4K and 8K/4K-to-1080p auto downscaling on all outputs
HDR-to-SDR auto conversion on all outputs
Advanced EDID management
Compact design for easy, flexible installation

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Specifications


     Technical

     HDMI Compliance
    HDMI 2.1

     HDCP Compliance
     HDCP 2.3

     Video Bandwidth
     48Gbps

     Video Resolution
     Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

     Color Depth
     8/10/12bit

     Color Space
     RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0

     HDR
     HDR, HDR10, HDR10+, Dolby Vision, HLG

     Audio Formats
     HDMI input/output:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

     ESD Protection
     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connection

     Input
     1 × HDMI IN [Type A, 19-pin female]

     Output
     4 × HDMI OUT [Type A, 19-pin female]

     Control
     1 × SERVICE [USB Type C, Update port]

     Mechanical

     Housing
     Metal enclosure

     Color
     Black

     Dimensions
     145mm (W) × 68mm (D) × 17mm (H)

     Weight
     263g

     Power Supply
     Input: AC 100 - 240V 50/60Hz

 Output: DC 5V/2A

 (US/EU standard, CE/FCC/UL certified)

     Power Consumption
     5.5W (Max)

     Operating Temperature
     32 - 104°F / 0 - 40°C

     Storage Temperature
     -4 - 140°F / -20 - 60°C

     Relative Humidity
     20 - 90% RH (No condensation)

     Recommended HDMI Cable

     Video Resolution
     8K60
     4K60
     1080P

     HDMI Cable Type
     Ultra HDMI 2.1 cable
     HDMI 2.0 cable
     HDMI cable

     HDMI Cable Length

 (HDMI IN / OUT)
     2m/6.6ft ~ 3m/10ft
     8m/26ft
     15m/49ft

    The use of the “Premium High-Speed HDMI” is highly recommended.
