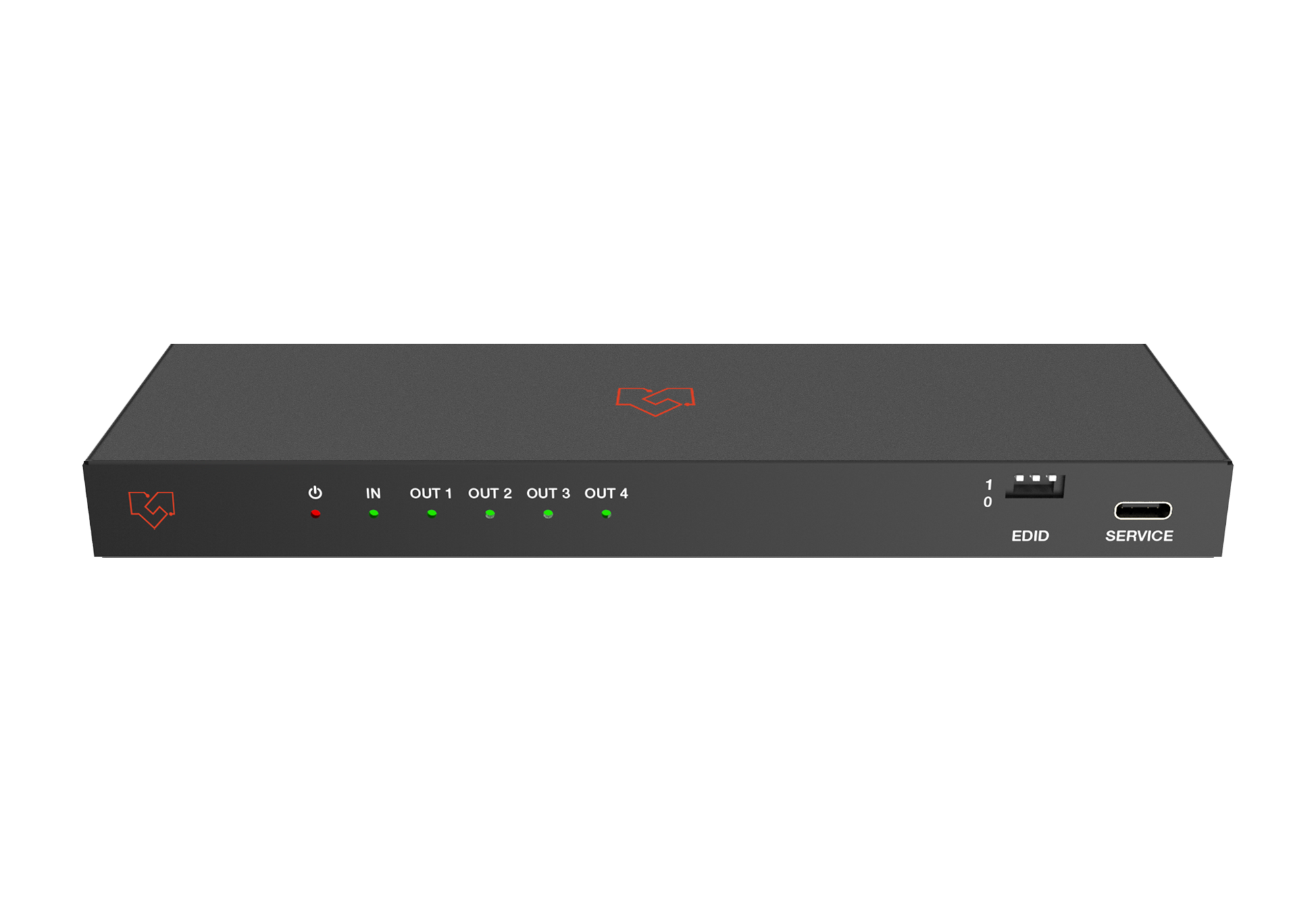

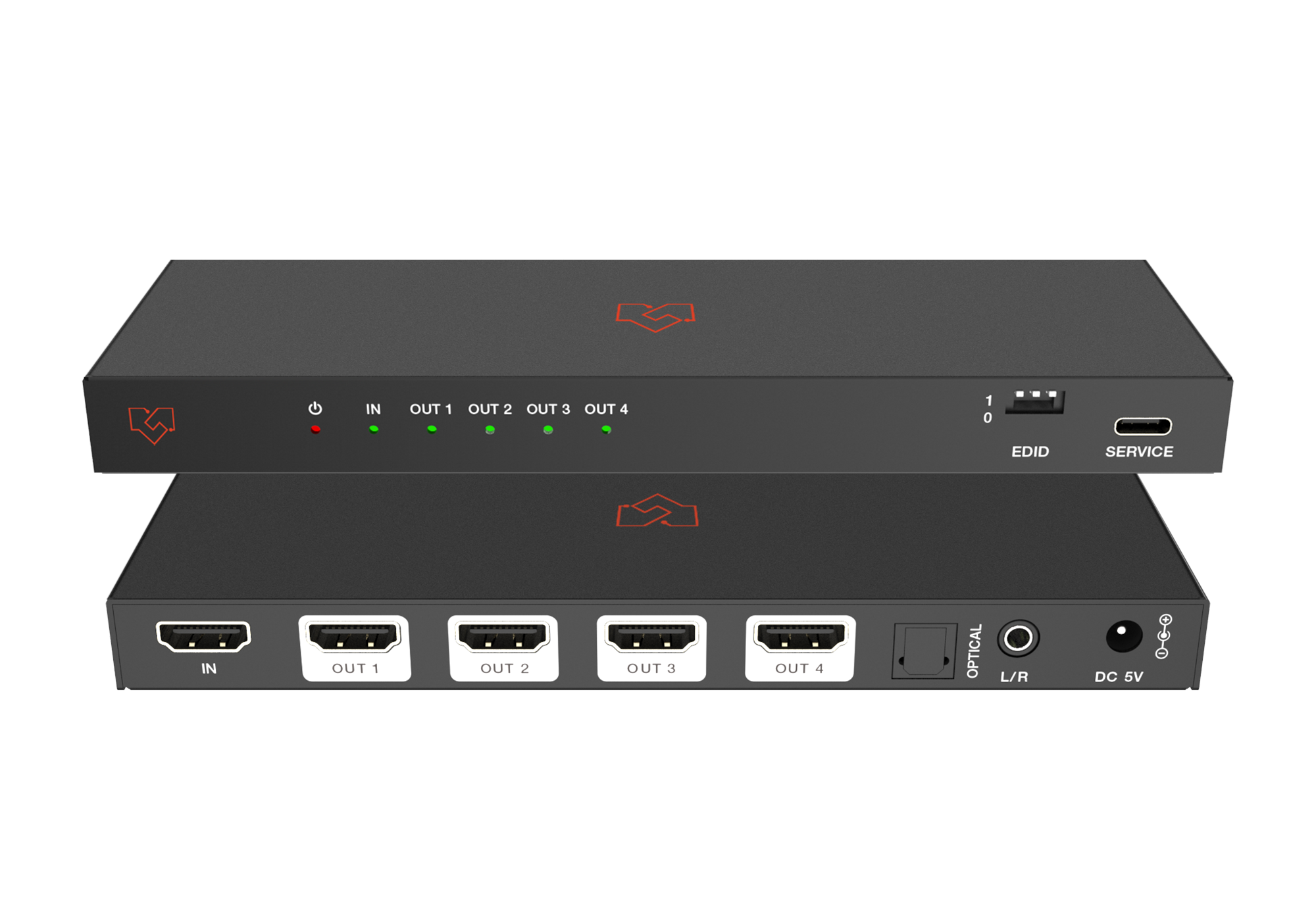

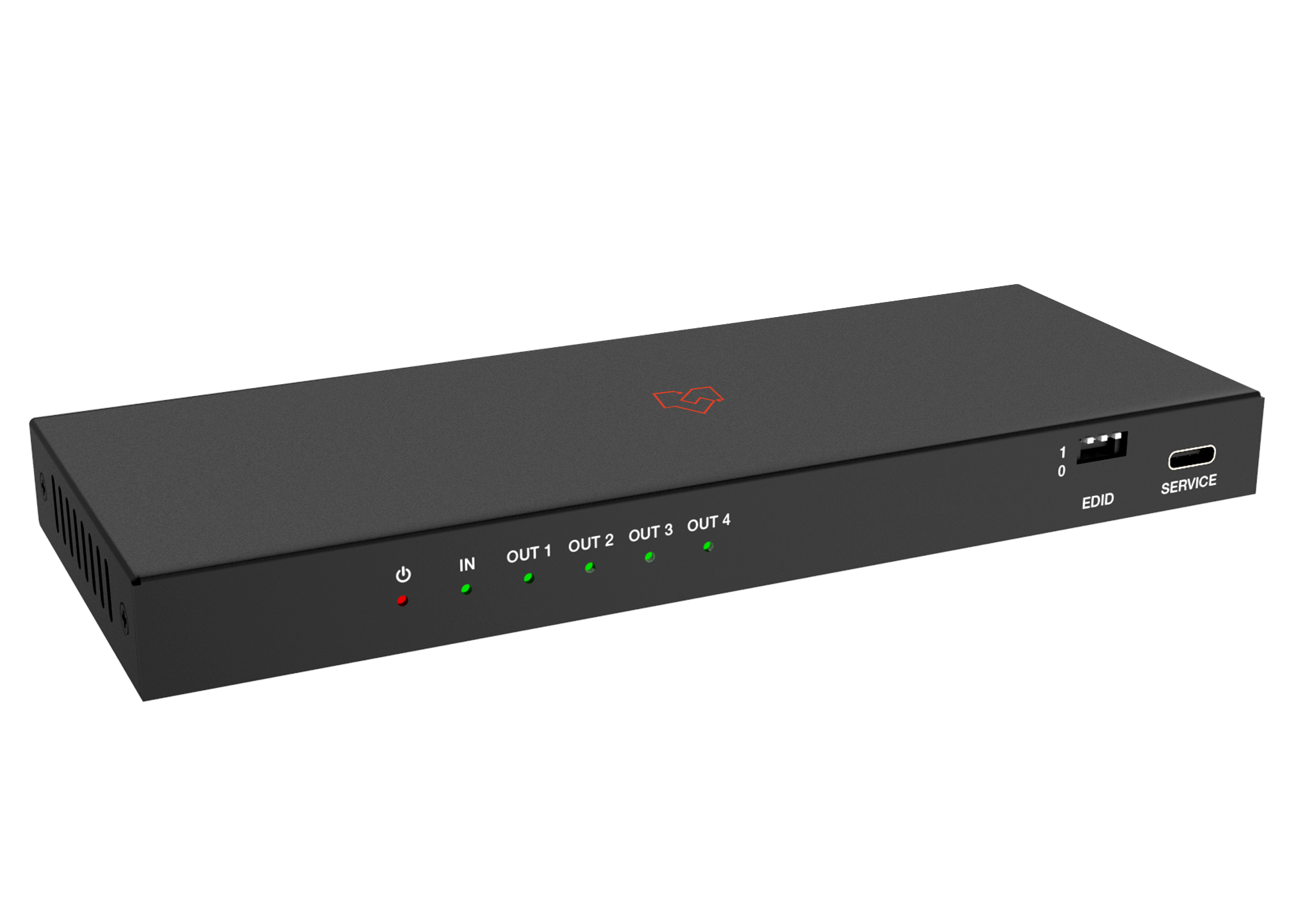

VLSP-14H21SA

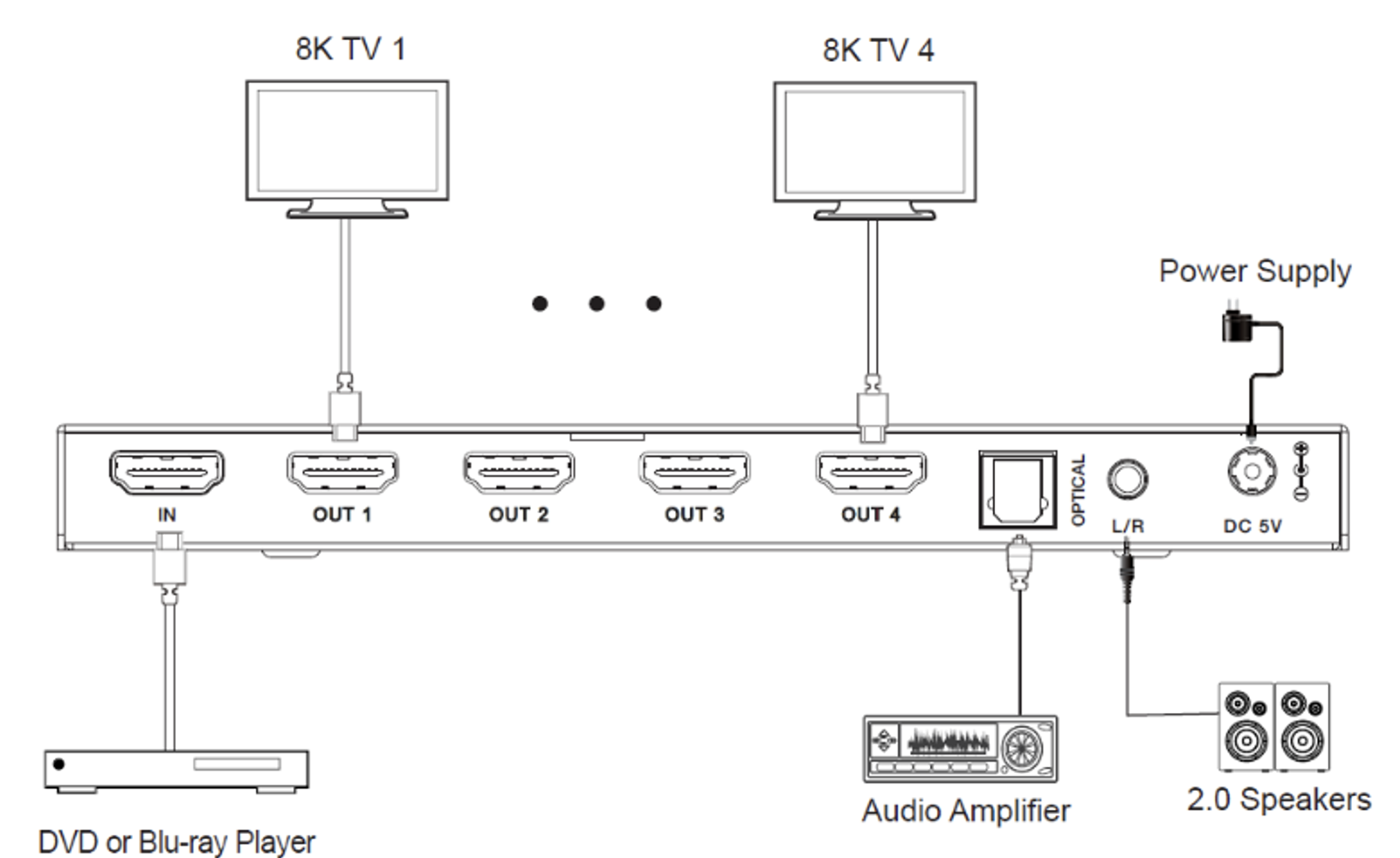

1x4 HDMI 2.1 distribution amplifier with audio de-embedding, splitting one 8K source to four displays, up to 8K@60Hz (48Gbps)
Optical (S/PDIF up to 5.1) and analog L/R (2CH) audio outputs de-embedded from the HDMI source, for external sound systems
Supports 8K@60 4:2:0, 8K@30 4:4:4, and 4K@120 4:4:4, with VRR, ALLM, QMS, QFT, and SBTM
Per-output auto downscaling and HDR-to-SDR conversion, with HDR10/HDR10+/Dolby Vision/HLG pass-through and EDID management

Product Description

The VLSP-14H21SA is a high-performance 1x4 HDMI splitter engineered to distribute a single 8K HDMI source to up to four displays with stunning clarity and reliability. Supporting resolutions up to 8K@60Hz (4:2:0, 12-bit) and data rates up to 48Gbps, it fully complies with HDMI 2.1 and HDCP 2.3 standards, making it ideal for next-gen AV applications.

Designed with integration in mind, the splitter features advanced EDID management, cable equalization, and resolution downscaling to ensure compatibility across a range of display types. Additionally, it supports audio transmission with selectable 5.1 or 2.0 channel output, offering flexibility for connection to external sound systems.

Versatile and easy to deploy, the VLSP-14H21SA is perfectly suited for demonstration spaces, video conferencing environments, multimedia classrooms, and large-scale presentation setups where ultra-high-definition signal distribution is essential.

Key Features

HDMI 2.1 and HDCP 2.3/1.4 compliant
48Gbps FRL and 18Gbps TMDS video bandwidth
Resolution up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4, and 4K@120Hz 4:4:4, per HDMI 2.1
VRR, ALLM, QMS, QFT, and SBTM supported
HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
HDMI audio: LPCM 7.1CH, Dolby TrueHD, Atmos, and DTS-HD Master Audio
Audio de-embedding: optical (LPCM/Dolby/DTS 5.1) and analog L/R (2CH)
Per-output auto downscaling and conversion
Advanced EDID management

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Specifications


     Technical

     HDMI Compliance
    HDMI 2.1

     HDCP Compliance
     HDCP 2.3, HDCP1.4

     Video Bandwidth
     48Gbps FRL and 18Gbps TMDS

     Video Resolution
     Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

     Color Depth
     8/10/12-bit

     Color Space
     RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

     HDR
     HDR, HDR10, HDR10+, Dolby Vision, HLG

     Audio Formats
     HDMI input/output:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

 Audio de-embedding output:

Optical: LPCM/Dolby/DTS 5.1CH

Analog: LPCM 2CH

     ESD Protection
     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

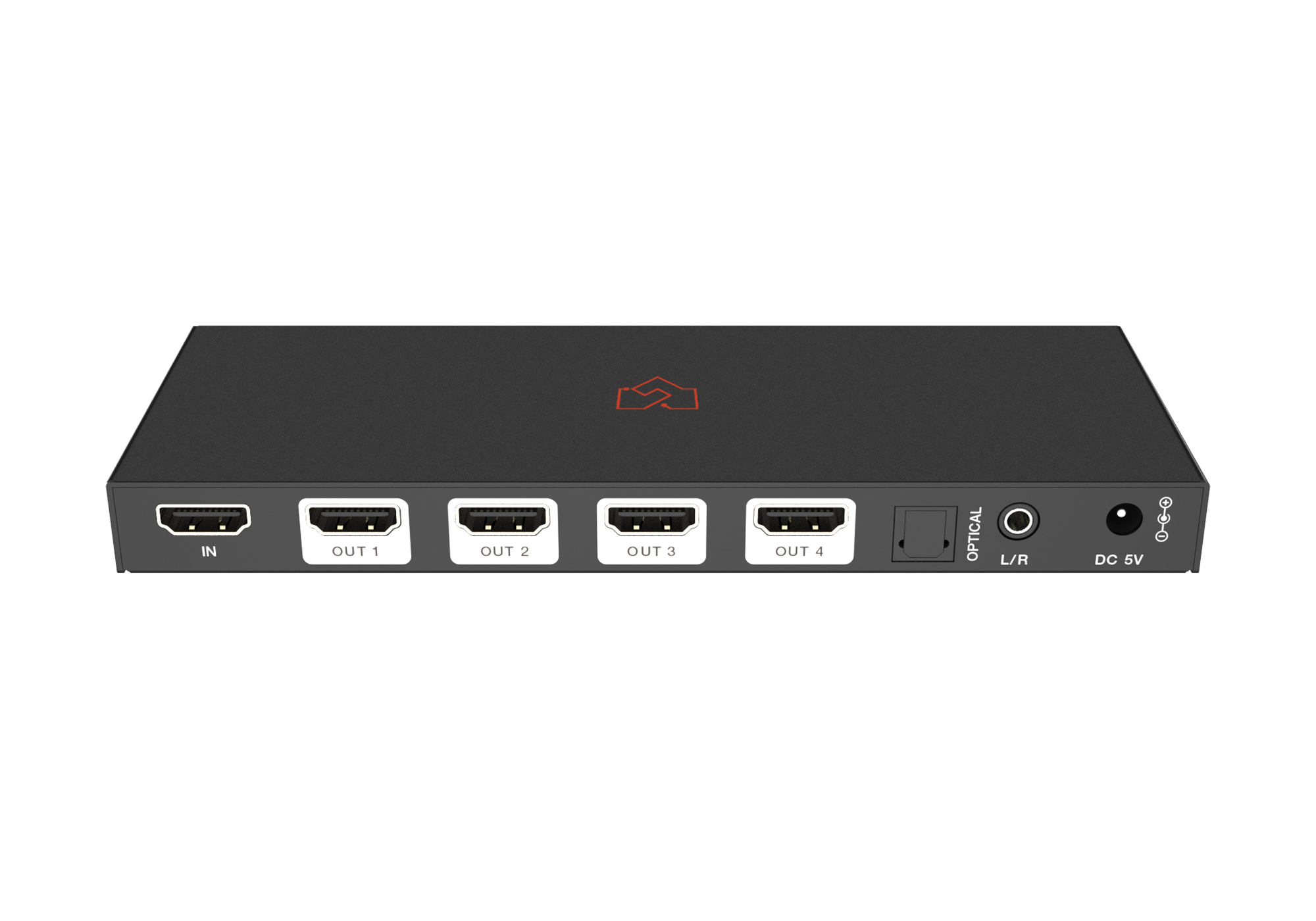

    Connection

     Input
     1 × HDMI IN [Type A, 19-pin female]

     Output
     4 × HDMI OUT [Type A, 19-pin female]

 1 × OPTICAL [S/PDIF]

 1 × L/R [3.5mm Stereo Mini-jack]

     Control
     1 × SERVICE [USB Type C, Update port]

     Mechanical

     Housing
     Metal enclosure

     Color
     Black

     Dimensions
     176mm (W) × 68mm (D) × 18mm (H)

     Weight
     295g

     Power Supply
     Input: AC 100 - 240V 50/60Hz

 Output: DC 5V/2A

 (US/EU standard, CE/FCC/UL certified)

     Power Consumption
     6W (Max)

     Operating Temperature
     32 - 104°F / 0 - 40°C

     Storage Temperature
     -4 - 140°F / -20 - 60°C

     Relative Humidity
     20 - 90% RH (No condensation)

     Recommended HDMI Cable

     Video Resolution
     8K
     4K60
     4K30
     1080P

     HDMI Cable Length

 (HDMI IN / OUT)
     2m/6.6ft

 (Ultra HDMI 2.1)
     5m/16ft
     10m/33ft
     15m/49ft

    The use of the “Premium High-Speed HDMI” is highly recommended.
