CAT Cable HDMI and Toslink Digital Audio Extender 150m

VLEX-HAACT150-TR

Data Sheet

User Manual

Product Description

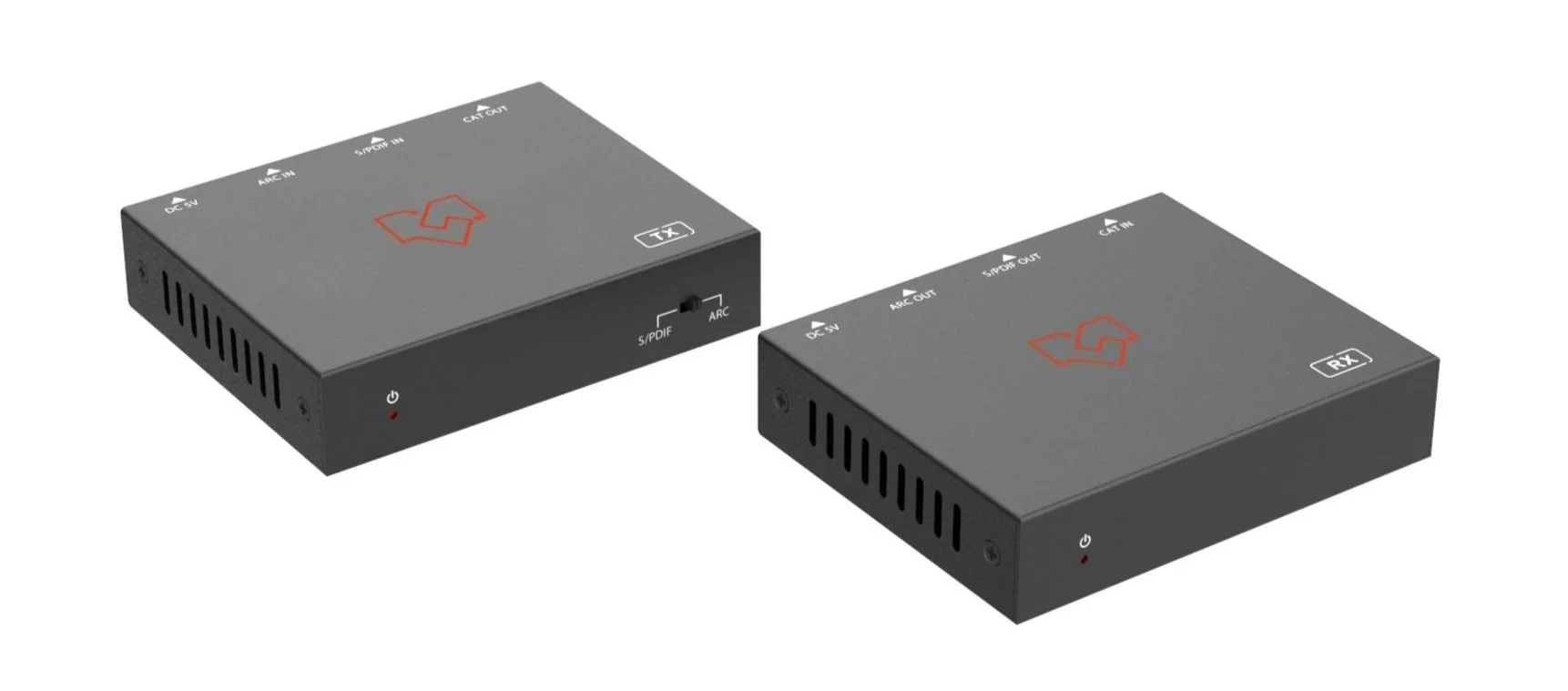

The VigilLink VLEX-HAACT150-TR is a compact, high-performance audio extender designed to transmit HDMI ARC or S/PDIF audio signals over a single CAT5e/6 cable. It supports transmission distances up to 492 feet (150 meters) at 96 kHz or 295 feet (90 meters) at 192 kHz (ARC only), providing a reliable solution for long-distance audio connectivity in residential or commercial AV environments.

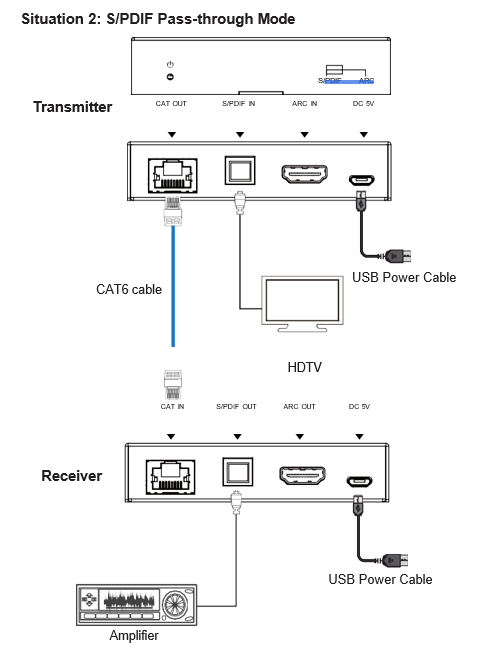

This extender supports full HDMI ARC functionality, including CEC pass-through between the ARC input and output ports, ensuring seamless control and compatibility between devices. For displays that lack ARC capability, the unit also features a dedicated S/PDIF pass-through channel, allowing digital audio to be transmitted from the S/PDIF input on the transmitter to the S/PDIF output on the receiver.

Ideal for routing audio from TVs to amplifiers, AVRs, or distributed audio systems, the VLEX-HAACT150-TR provides a plug-and-play solution that overcomes distance limitations without compromising audio quality or system integration.

Featured Highlights

Extends HDMI ARC audio signal up to a distance of 150m/495ft (96kHz) or 90m/295ft (192kHz) over a single CAT cable
Extends S/PDIF audio signal up to a distance of 150m/495ft (96kHz) over a single CAT cable
Audio formats support: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
Supports CEC pass-through when HDMI ARC mode is enabled
Plug-and-play
Small compact size
Ultra-low jitter and high-fidelity design

Specifications


     Technical

     Supported Audio Formats
     PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch

     Transmission Distance and Sample Rates
     ARC audio: 150m/495ft - 96kHz, 90m/295ft - 192kHz

S/PDIF audio: 150m/495ft - 96kHz

     ESD Protection
     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connection

     Transmitter
    Input port: 1 x S/PDIF IN [Optical Audio Jack]

                   1 x ARC IN [HDMI Type A, 19-pin female]

                   1 x Micro-USB

 Outputs:     1 x CAT OUT [RJ45]

     Receiver
     Inputs:     1×CAT [RJ45, female]

                   1 x Micro-USB

 Outputs:  1 x S/PDIF OUT [Optical Audio Jack]

                    1 x ARC OUT [HDMI Type A, 19-pin female]

     Mechanical

     Housing
     Metal Enclosure

     Color
     Black

     Dimensions
     Transmitter / Receiver: 90mm (W) × 72mm (D) × 20mm (H)

     Weight
     Transmitter / Recever: 175g

     Power Supply
    DC 5V/1A

     Power Consumption
     Transmitter: 0.35W, Receiver: 0.7W

     Operating Temperature
     32 - 104°F / 0 - 40°C

     Storage Temperature
     -4 - 140°F / -20 - 60°C

     Relative Humidity
     20 - 90% RH (non-condensing)
