HDBaseT 1.0 1080p HDMI 1.3 Extender 150m 6.75 Gbps

VLEX-HT2150A-TR

Data Sheet

User Manual

Product Inquiry Form

Product Description

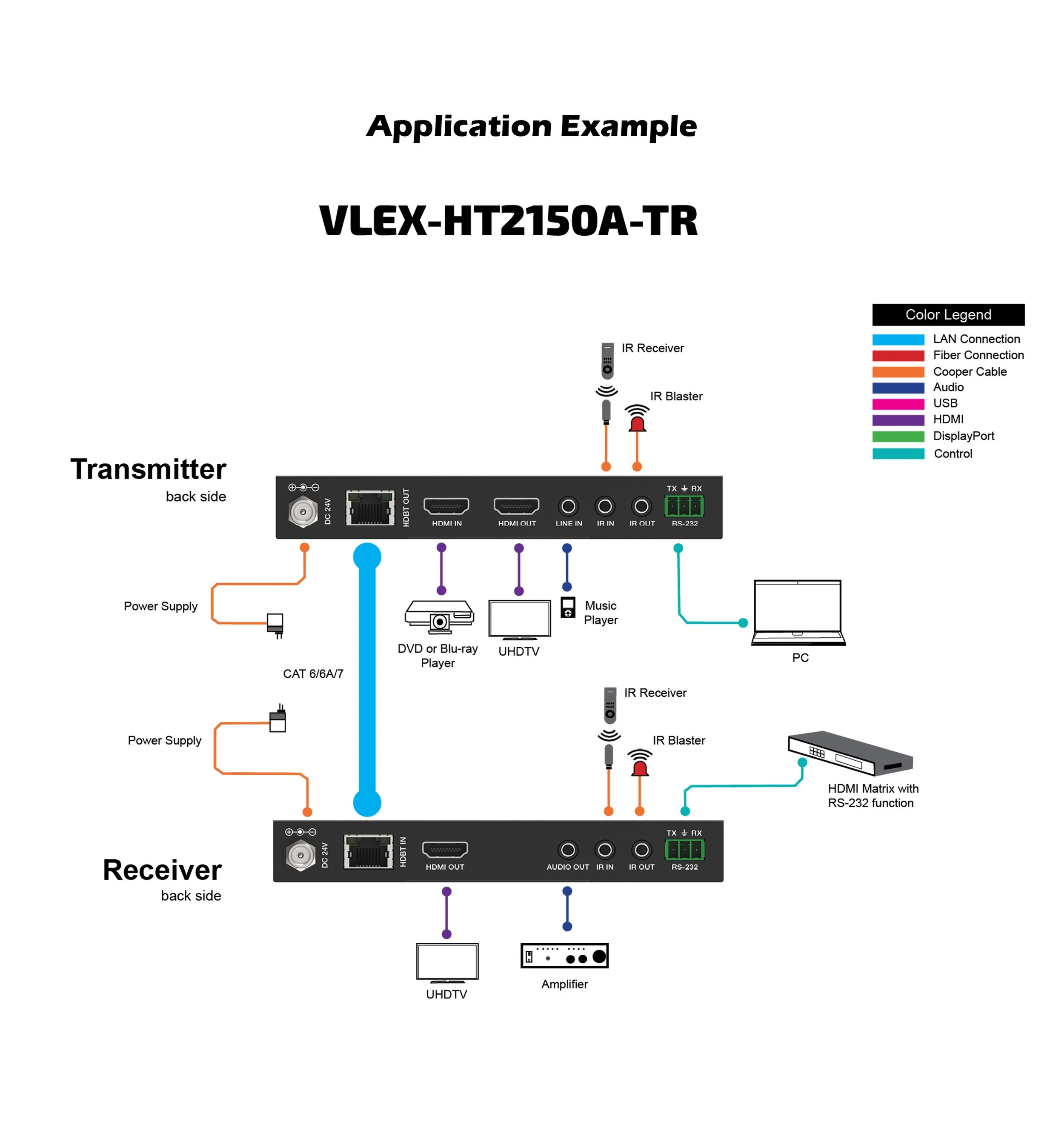

The VigilLink VLEX-HT2150A-TR is a full-featured HDBaseT HDMI extender designed for long-distance signal transmission and professional-grade AV integration. Capable of extending HDMI signals up to 492 feet (150 meters) over a single CAT5e/6 cable, it supports resolutions up to 1080p@60Hz (YUV 4:4:4), delivering crisp and reliable video to remote display devices.

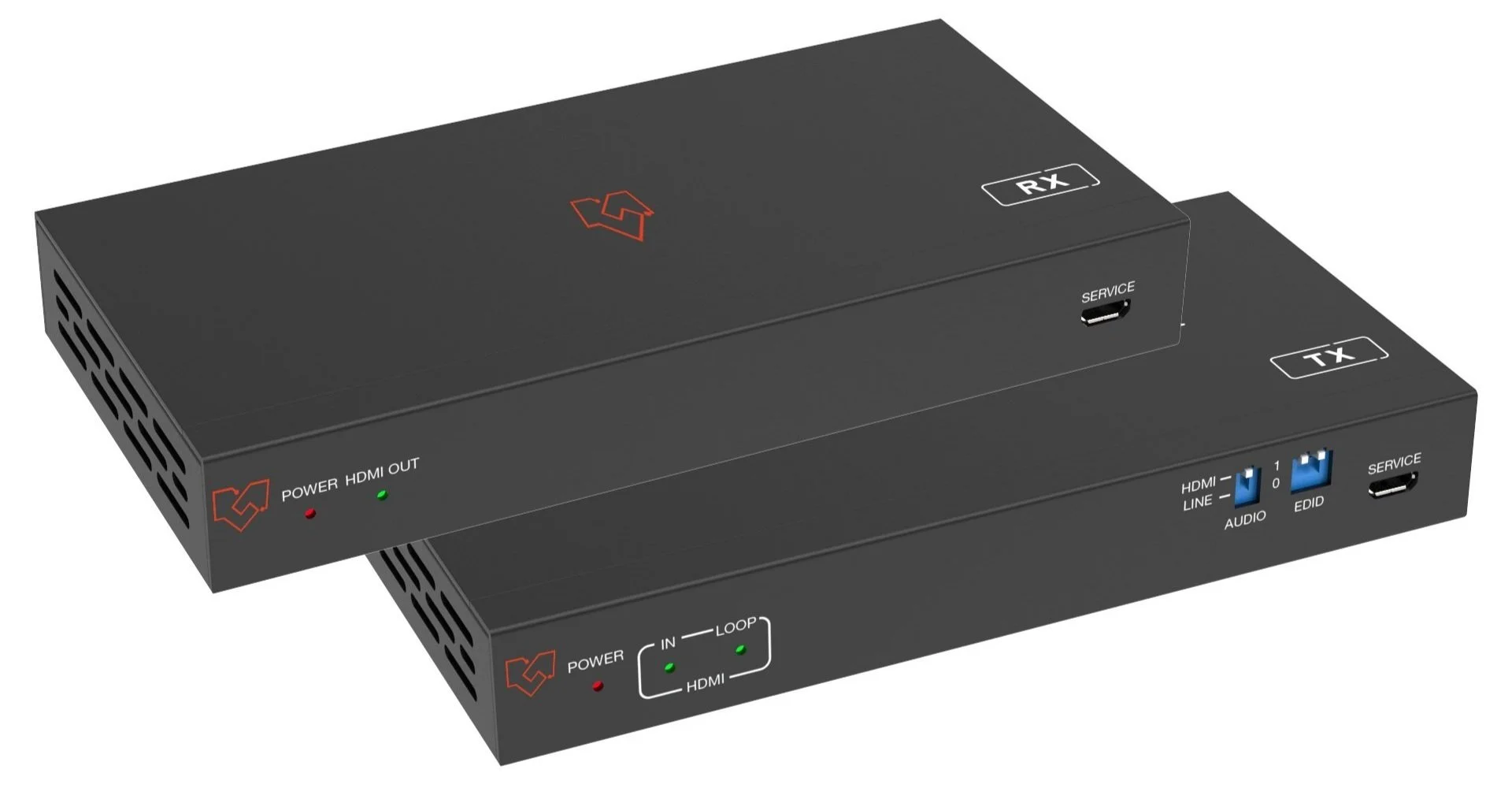

Built for flexibility, the extender supports bidirectional IR pass-through, RS-232 control, EDID management, audio embedding on the transmitter side, and audio de-embedding on the receiver. The transmitter also includes an HDMI loop output for local monitoring. Engineered with a high-performance chipset, the VLEX-HT2150A-TR ensures continuous 24/7 operation with low power consumption and simple plug-and-play deployment.

Ideal for video conferencing, large-scale digital displays, and home theater systems, this extender delivers robust connectivity, control, and audio-video performance across diverse AV environments.

Featured Highlights

  • HDMI 2.0b, HDCP 2.2 compliant

  • Up to 4K / 2K @60Hz with 24bit RGB / YCbCr (4:4:4)

  • HDR, HDR10, HDR10+, Dolby Vision pass through

  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

  • Up to 120m (4K) and 150m (1080P) using CAT6/6A cable

  • Two-way IR transmission

  • USB 2.0 protocol, transmission rate up to 480Mbps transmission

  • EDID management

  • Two-way PoC (Power over Cable)

Specifications

Technical
HDMI Compliance     HDMI 1.3
HDCP Compliance     HDCP 1.4
Video Bandwidth     6.75Gbps
Video Resolution     480i ~1080p50/60Hz;

Up to1200P@60Hz
Color Space     RGB, YCbCr 4:4:4 / 4:2:2
Color Depth     8-bit (1080P60Hz)
HDMI Audio Formats     LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Extension Distance     150m/492ft at 1080P@60

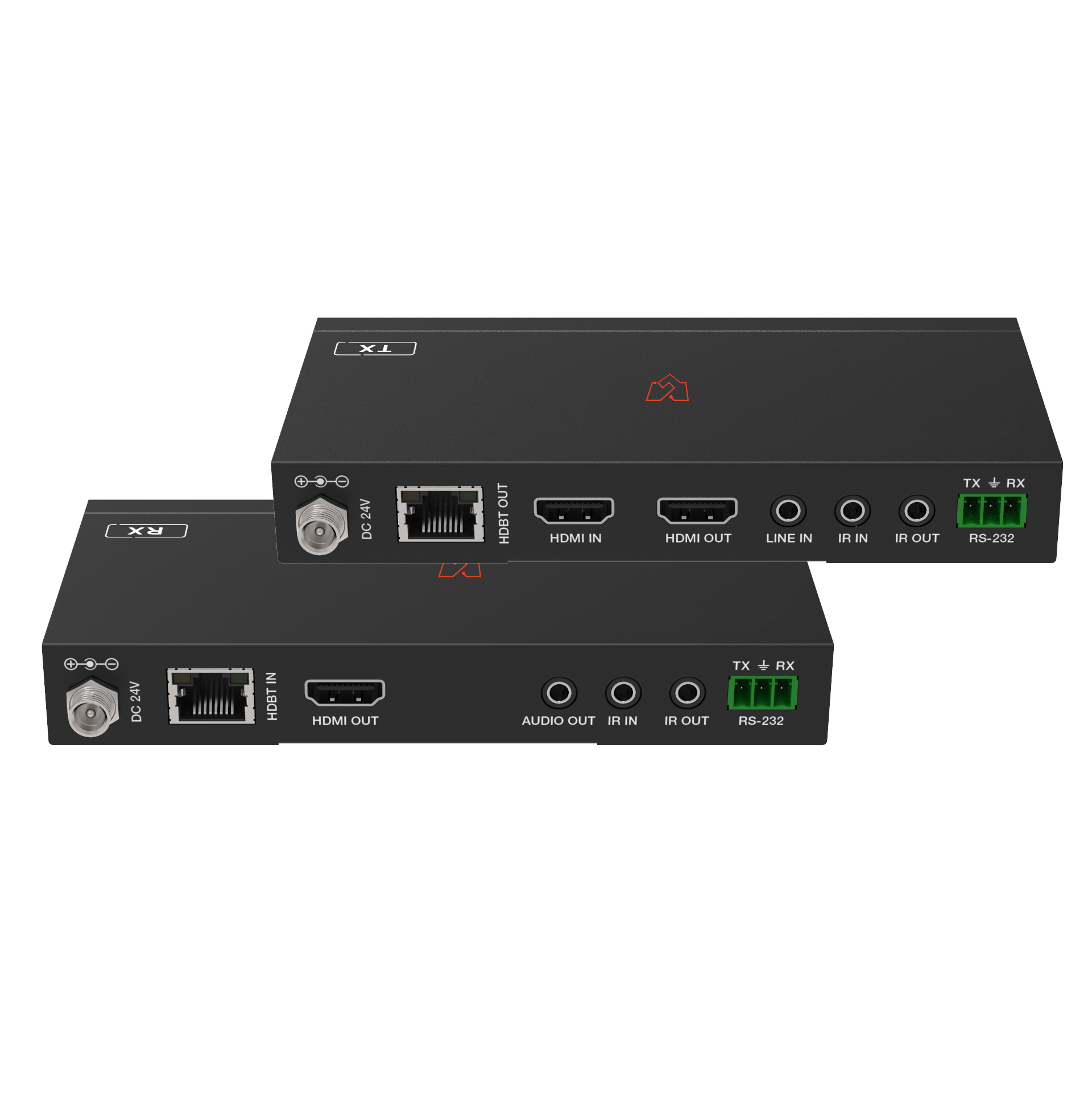

Connection
Transmitter         Input:       1×HDMI IN [TypeA 19-pin female]

                 1×LINE IN [3.5mm Stereo Mini-jack]

Output:    1×HDBT OUT [RJ45 8-pin female]

                 1×HDMI OUT [TypeA 19-pin female]

Control:   1×AUDIO DIP Switch [1 pin]

                 1×EDID DIP Switch [2-pin]

                 1×IR IN [3.5mm Stereo Mini-jack]

                 1×IR OUT [3.5mm Stereo Mini-jack]

                 1×RS-232 [Phoenix jack]

                 1×Service [Micro-USB jack]
Receiver         Input:       1×HDBT IN [RJ45 8-pin female]

                 1×LINE IN [3.5mm Stereo Mini-jack]

Output:    1×HDMI OUT [TypeA 19-pin female]

                 1×AUDIO OUT [3.5mm Stereo Mini-jack]

Control:   1×RS-232 [Phoenix jack]

                 1×SERVICE [Micro-USB jack]

                 1×IR IN [3.5mm Stereo Mini-jack]

                 1×IR OUT [3.5mm Stereo Mini-jack]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     TX/ RX:146.7mm (W)×71.5mm (D)×21mm (H)
Weight     Transmitter: 287g,

Receiver: 249g
Power Supply     Input: AC100~240V 50/60Hz

Output: DC 24V/1A (Locking connector)
Power Consumption     8.4W (max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
