HDBaseT 2.0 4k@60Hz 4:4:4 HDMI 2.0 Extender with ARC 70m 18Gbps
VLEX-HT2070R-TR
Data Sheet
User Manual
Product Inquiry Form
Product Description
The VigilLink VLEX-HT2070R-TR is a versatile HDMI extender designed to transmit high-resolution audio and video signals along with control and return channel data over a single CAT5e/6 cable. Supporting transmission distances up to 230 feet (70 meters), it delivers 4K2K@60Hz video quality while maintaining stable performance and full control integration.
This extender converts HDMI signals into standard HDBaseT format for efficient transmission via LAN cable and supports bi-directional IR pass-through for remote operation of either the source or display device. It also features RS-232 control, Audio Return Channel (ARC), and Power over Cable (PoC), reducing the need for additional power sources.
Ideal for professional AV applications such as video conferencing, multimedia signal distribution, and HDMI signal extension, the VLEX-HT2070R-TR provides a robust and flexible solution for long-distance AV connectivity.
Featured Highlights
HDMI2.0b and HDCP 2.2 compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
The transmission distance can be extended up to 70m / 230ft via a single CAT5e/6 cable
Supports bi-directional IR and RS-232 control signal pass-through
Supports ARC function, audio formats support Dolby 5.1, DTS 5.1, PCM2.0, etc.
Advanced EDID management
Supports POC (Power over Cable) function
Compact design for easy and flexible installation
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz RGB/YCbCr 4:4:4 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080P) 8-bit (4K60) 8-bit, 10-bit, 12-bit (4K24/30) |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 |
| Connection | |
| Transmitter | Input: 1×HDMI IN [TypeA, 19-pin female]
Output: 1×HDBT OUT [RJ45] 1×SPDIF OUT Control: 1×RS-232 [3pin-3.81mm Phoenix connector] 1×SERVICE [Micro-USB jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] |

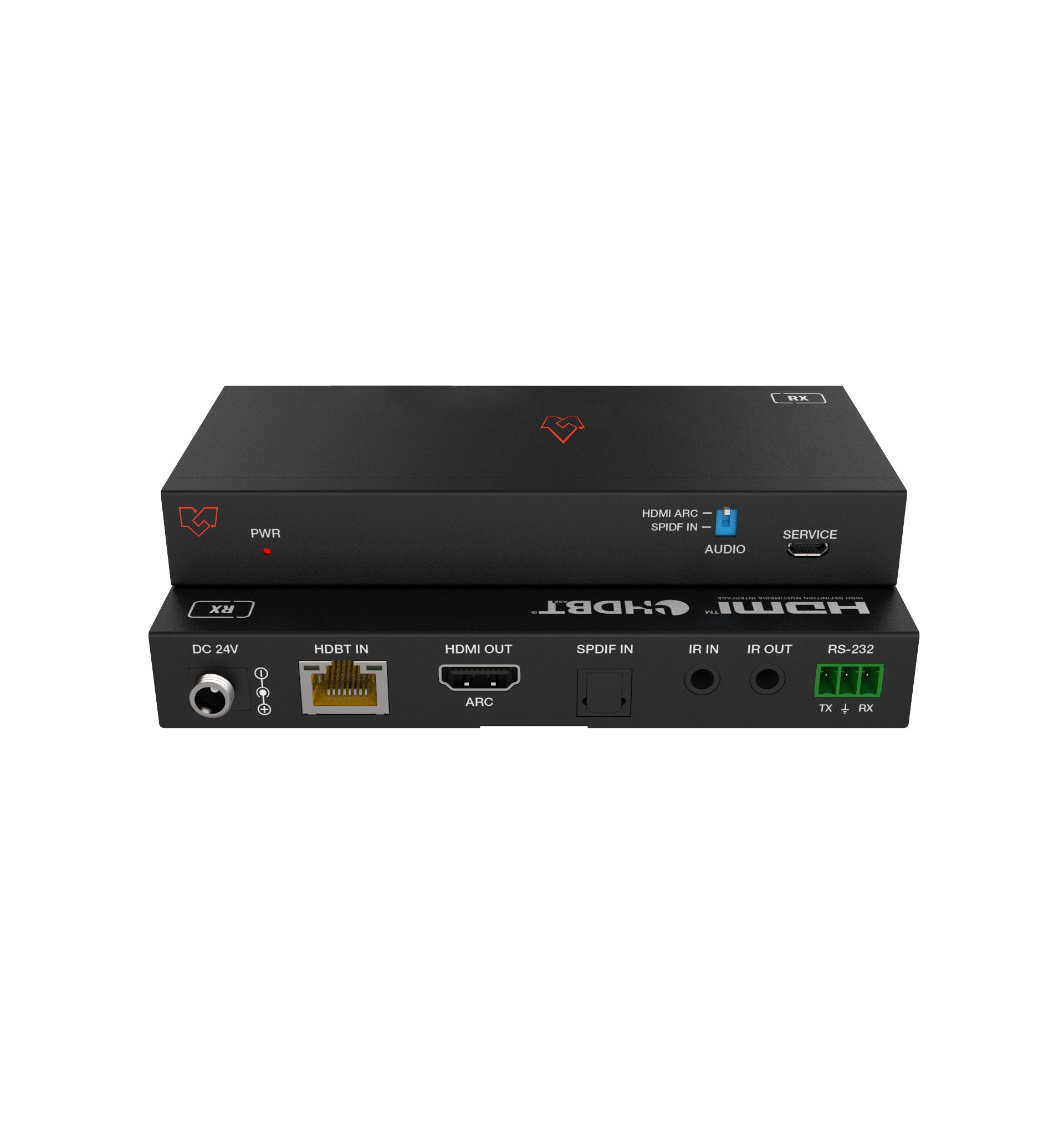

| Receiver | Input: 1×HDBT IN [RJ45]
1×SPDIF IN Output: 1×HDMI OUT [TypeA, 19-pin female] Control: 1×RS-232 [3pin-3.81mm Phoenix connector] 1×SERVICE [Micro-USB jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H) |
| Weight | Transmitter: 235g, Receiver: 239g |
| Power Supply | DC 24V/1A Support bi-directional PoC function |
| Power Consumption | 9.6 W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
Related Products
-
![]()
VLEX-HT2150-TR
18Gbps HDBaseT Extender 150m
-
![]()
VLEX-HT2150K-TR
18Gbps HDBaseT Extender with KVM 150m
-
![]()
VLEX-HT2070-TR
10.2Gbps HDBaseT Extender 70 meters
-
![]()
VLEX-HT2150A-TR
1080p HDBaseT Extender
150m (492ft) over CAT
-
![]()
VLEX-HT2150DPK-TR
18Gbps DP over HDBaseT Extender 150 meters with KVM
-
![]()

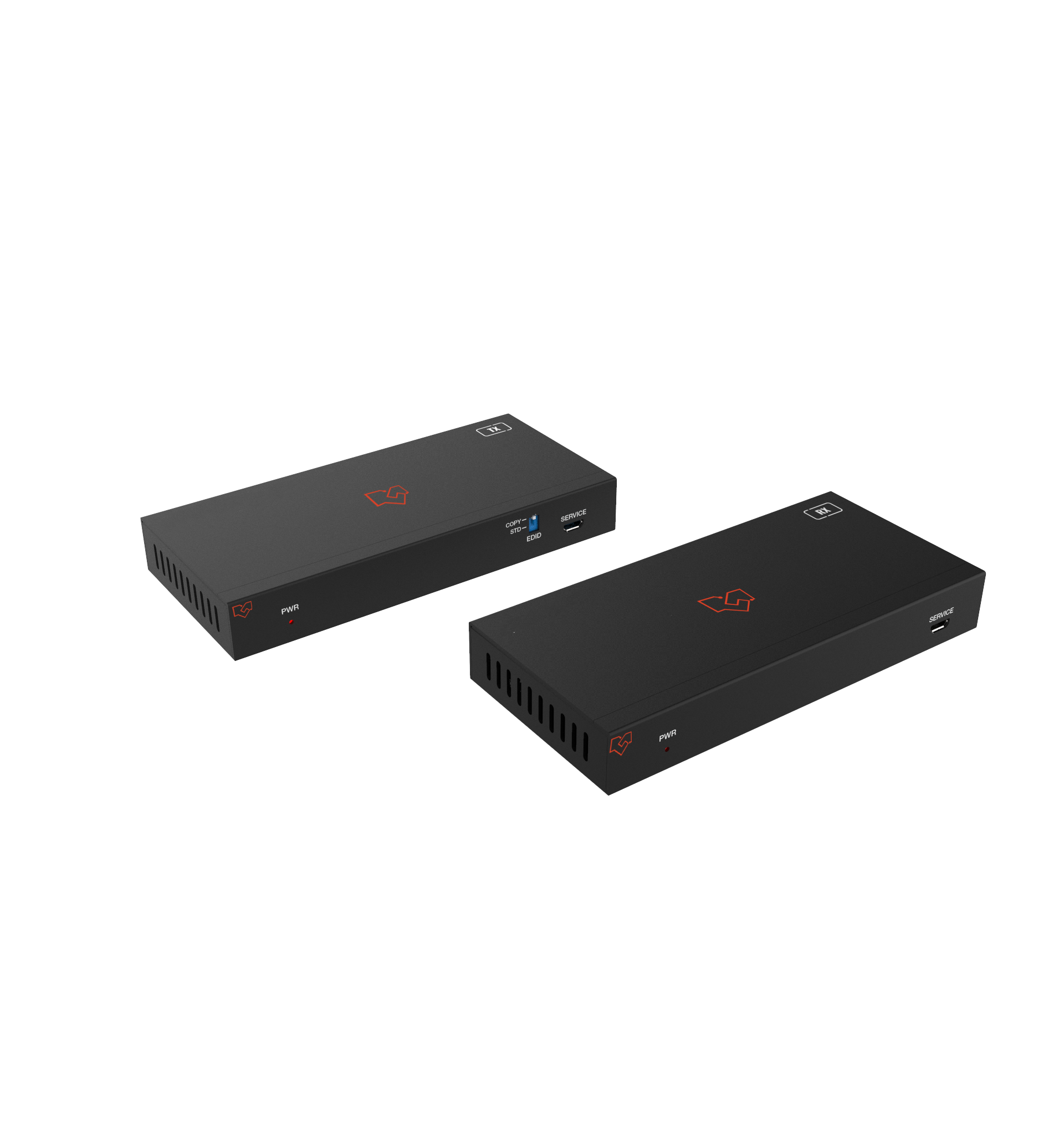

VLEX-HT2150U-TR
