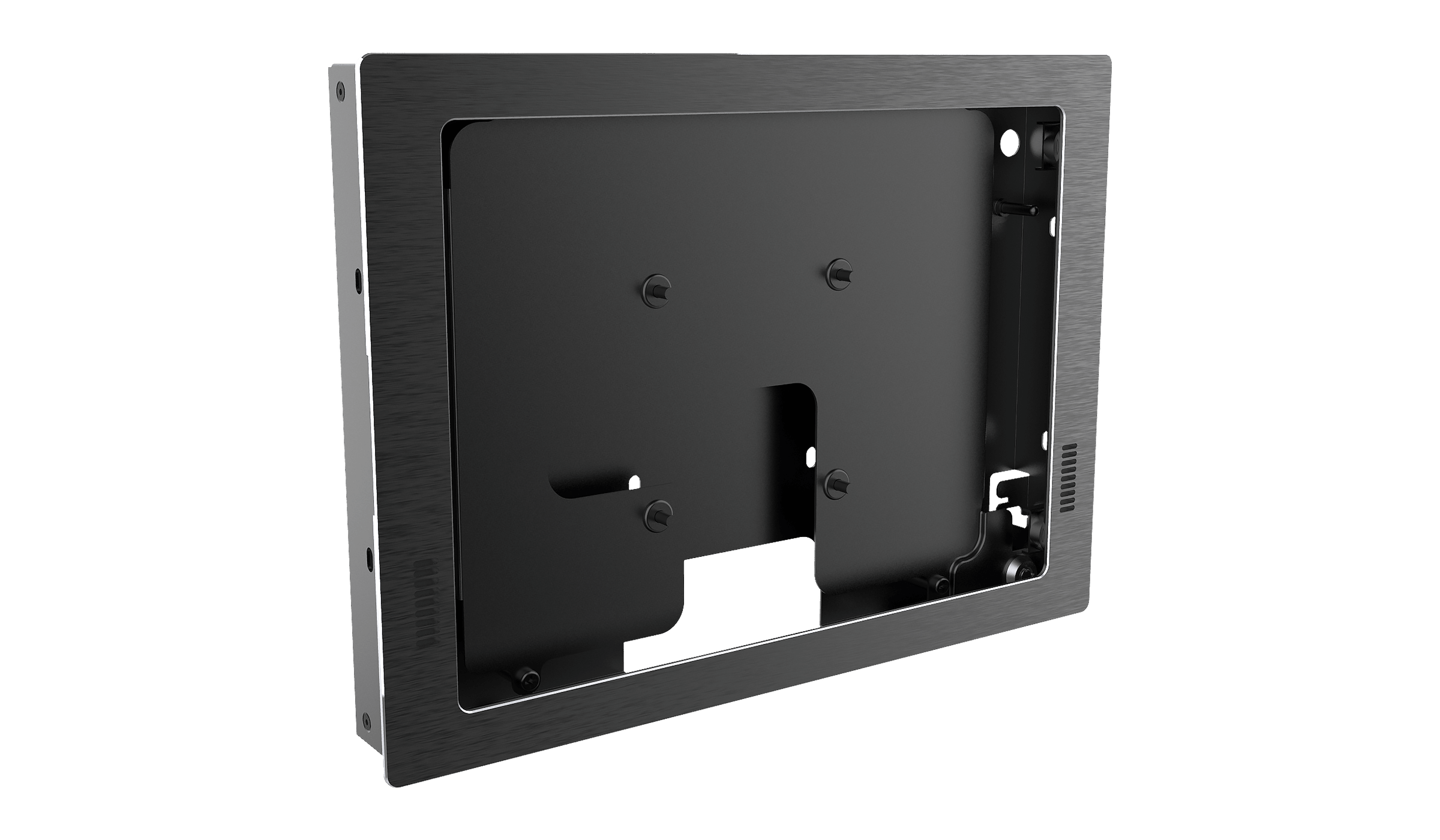

Recessed In-Wall Mount for VigilLynx™ Control 10" Touch Panel

VLCT-QTP10WM

Flush recessed installation — panel sits at wall surface level with no protruding hardware
Locking front cover secures the VLCT-CSQTP10 against accidental removal after installation
Professional aluminum, SGCC steel, and copper construction in black and silver finish
Includes all mounting hardware

Where to Buy

Product Description

The VLCT-QTP10WM is the recessed in-wall mounting solution for the VLCT-CSQTP10 10" touch panel. Designed for permanent wall installations in conference rooms, classrooms, hospitality spaces, and corridors, the VLCT-QTP10WM sets the panel flush with the wall surface — eliminating surface-mount protrusion and delivering a clean, integrated appearance suited to professional AV environments. The front cover locks to the monitor bracket, securing the panel against accidental removal once installed. Construction is aluminum, SGCC steel, and copper, with a black front cover and silver bracket and wall box.

Key Features

Recessed in-wall mount for the VLCT-CSQTP10 10" touch panel
Flush-mount installation — panel sits at wall surface level with no protruding hardware
Locking front cover secures panel against accidental removal
Black front cover; silver monitor bracket and wall metal box
Aluminum, SGCC steel, and copper construction
Includes all mounting hardware and hex key

Downloads

VLCT-QTP10WM DATA SHEET (PDF)

Specifications

  VLCT-QTP10WM Recessed In-Wall Mount
Compatible DeviceVLCT-CSQTP10
ColorBlack (Front Cover); Silver (Monitor Bracket, Wall Metal Box)
MaterialAluminum, SGCC Steel, Copper
Overall Dimensions296mm (W) × 221.5mm (H) × 39mm (D)
Typical Screen Opening261.1mm × 193.3mm
Net Weight1,690g
Shipping Weight1,960g

What’s in the Box

1 × Front Cover with Lock Striker
1 × Monitor Bracket with Lock Catch
1 × Wall Metal Box
4 × VESA Mount Screws, M4 × 10L
4 × Allen Screws, 8L
1 × Hex Key
1 × Quick Start Guide
